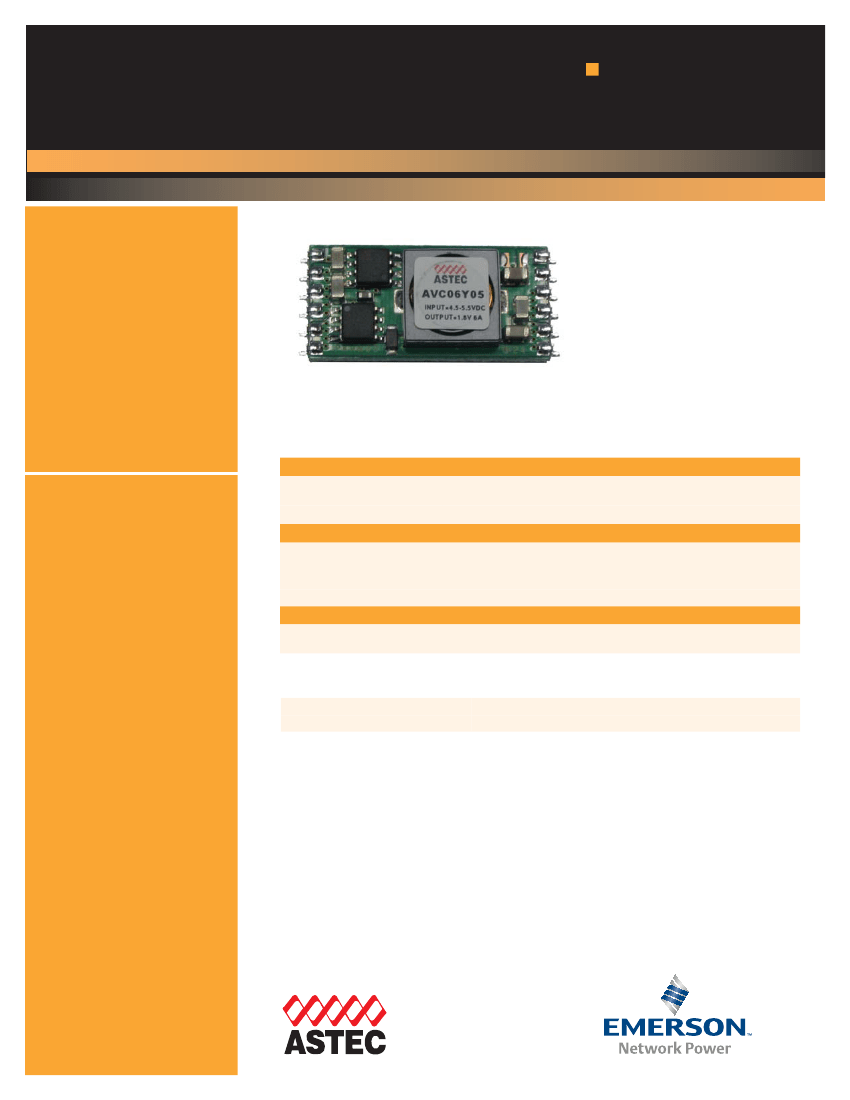

Embedded Power for
Business-Critical Continuity
AVC Series
20 Watts
Total Power:
20 Watts
Input Voltage: 3.3V, 5V
# of Outputs: Single
Rev. 09.21.05
AVC Series
1 of 2
Electrical Specifications
Input
Input range
Special Features
•
•
•
•
•
•
•
•
Ultra Low Profile - 6.0mm
POL appllication
Efficiency - 93% @ 3.3V
-40°C to +85°C Operating
temperature(Ambient)
Open Frame SMT
Low output ripple and noise
Regulation to zero load
Pb-free reflow compatible
and ROHS compliant
Efficiency
2.97 - 3.63VDC for 3.3V
4.5 - 5.5VDC for 5V
93% @ 3.3Vo, 4A
50mV p-p for 5Vin
40mV p-p for 3.3Vin
±10% of Vo
nom
Non-Isolated model
ON: On/Off pin open
OFF: On/Off pin connected to GND
Output
Ripple
Output voltage adjust
Isolation
Control
Enable
Environmental Specifications
Ambient Operating temperature
Storage temperature
-40°C to +80°C (forced air 0.2m/s)
-45°C to +90°C
Safety
None
Embedded Power for
Business-Critical Continuity
Ordering Information
Input Voltage
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
Output Voltage
1.0V @ 6A
1.2V @ 6A
1.5V @ 6A
1.8V @ 6A
2.0V @ 6A
2.5V @ 6A
1.0V @ 6A
1.2V @ 6A
1.5V @ 6A
1.8V @ 6A
2.0V @ 6A
2.5V @ 6A
3.3V @ 6A
Efficiency
84% (Typ)
87% (Typ)
89% (Typ)
90% (Typ)
92% (Typ)
93% (Typ)
82% (Typ)
84% (Typ)
86% (Typ)
88% (Typ)
89% (Typ)
91% (Typ)
93% (Typ)
Model Number
AVC06S04
AVC06K04
AVC06M04
AVC06Y04
AVC06D04
AVC06G04
AVC06S05
AVC06K05
AVC06M05
AVC06Y05
AVC06D05
AVC06G05
AVC06F05
Astec Power
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Technical Support: +1 888 41 ASTEC
or +1 407 241 2752
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Units 2111-2116, Level 21
Tower 1, Metroplaza
223, Hing Fong Road
Kwai Fong, New Territories
Hong Kong
Telephone: +852 2437 9662
Facsimile: +852 2402 4426
15.4 +/- 0.5
Rev. 09.21.05
AVC Series
2 of 2
Pin Assignment
33.8 +/- 0.6
(31.2)
(1.35)
1
12
P P P P P
(1.35)
P P P P P
For global contact, visit:
a
INPUT=
b
VDC
OUTPUT=
c
V 6A
P
6
Part No. marking
Lot No.
7
6.0 ma x.
Voltage marking
0.55
+0.10
-0.15
www.astecpower.com
technicalsupport@astec.com
While every precaution has been taken to ensure
accuracy and completeness in this literature, Astec
Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
Printed in US A
1.3 +/- 0.3
Pin Assignments
Pin No Symbol
1
2
3
4
5
6
On/Off
Vin
Vin
Vin
Gnd
Gnd
Pin No Symbol
7
8
9
10
11
12
Gnd
Gnd
Vout
Vout
Vout
Adjust
0.1mm max.
Emerson Network Power.
The global leader in enabling
business-critical continuity.
AC Power
0~10deg.
Connectivity
DC Power
Embedded Power
Inbound Power
Integrated Cabinet Solutions
Outside Plant
Precision Cooling
Site Monitoring and Services
EmersonNetworkPower. com
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2005 Emerson Electric Co.
Note: Astec reserves the right to
make changes to the information
contained herein without notice and
assumes no liability of its use and
application.
