1-1571998-0: DescriptionPIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size205KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1571998-0 Overview

PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

1-1571998-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1580060042
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	9.6 mm
body height	7.7 mm
Body length or diameter	16.21 mm
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	.025A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	1000 Cycle(s)
Manufacturer's serial number	1571998
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	PIANO DIP SWITCH
Termination type	SOLDER

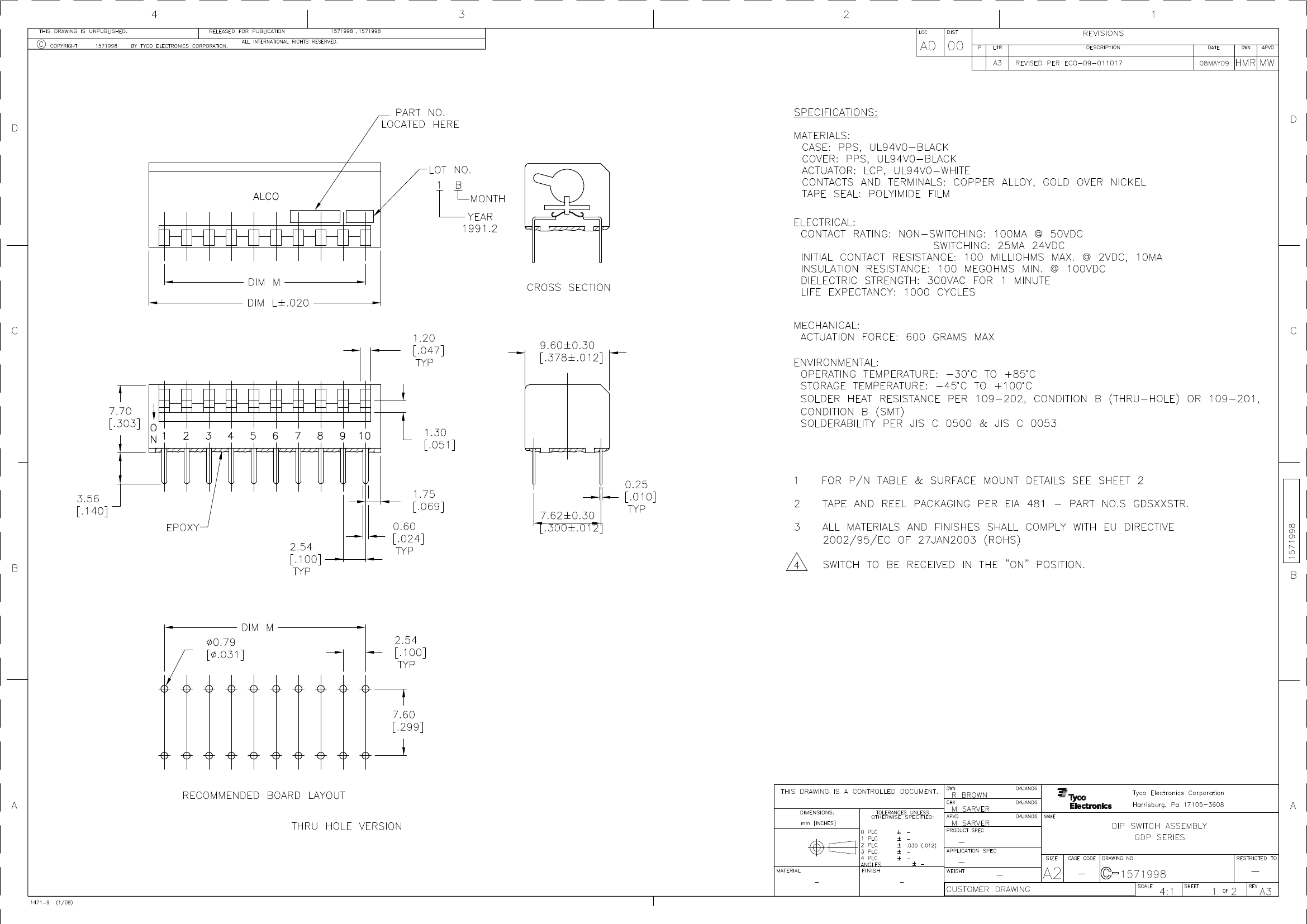

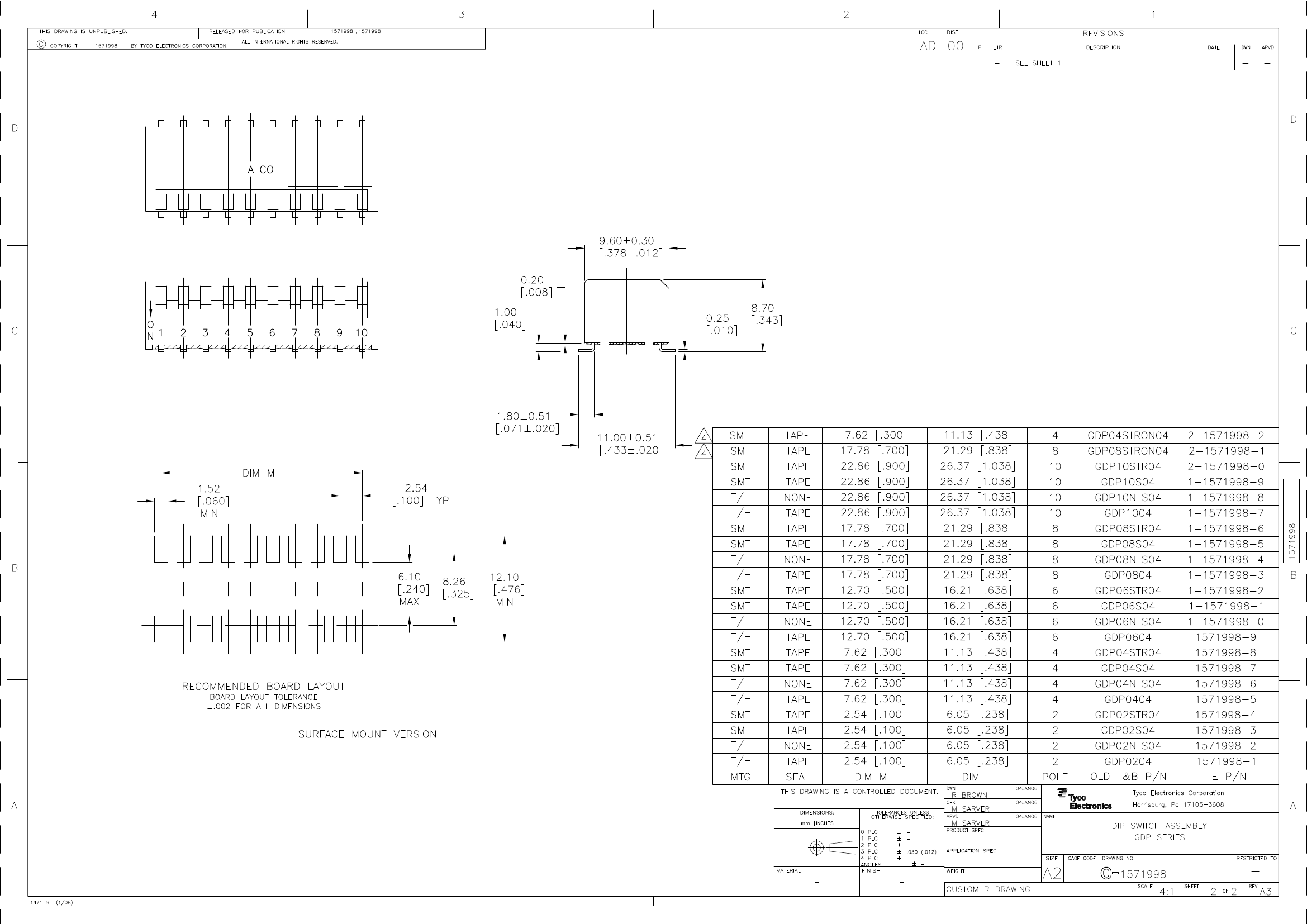

Preview

Download Datasheet

View All

1-1571998-0 Related Products

	1-1571998-0	1571998-2	2-1571998-2	2-1571998-0	2-1571998-1	1-1571998-4	1571998-6	1-1571998-8
Description	PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	PIANO DIP SWITCH-1SWITCHES, SPST, LATCHED,0.025A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknow	unknown	unknown	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	9.6 mm	6.05 mm	9.6 mm	9.6 mm	9.6 mm	9.6 mm	9.6 mm	9.6 mm
body height	7.7 mm	7.7 mm	7.7 mm	7.7 mm	7.7 mm	7.7 mm	7.7 mm	7.7 mm
Body length or diameter	16.21 mm	9.6 mm	11.13 mm	26.37 mm	21.29 mm	21.29 mm	11.13 mm	26.37 mm
Maximum contact current (DC)	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Contact (DC) maximum rated R load	.025A@24VDC	.025A@24VDC	.025A@24VDC	.025A@24VDC	.025A@24VDC	.025A@24VDC	.025A@24VDC	.025A@24VDC
Maximum contact voltage (DC)	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Electrical life	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of switching segments	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
switch function	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Switch type	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to
Manufacturer's serial number	1571998	1571998	-	1571998	-	1571998	1571998	1571998
Base Number Matches	-	1	-	-	1	1	1	1
