3951400044 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3951400044

3951400044: DescriptionElectric Fuse, Fast Blow, 4A, 125VAC, 100A (IR), Through Hole, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size91KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

3951400044 Overview

Electric Fuse, Fast Blow, 4A, 125VAC, 100A (IR), Through Hole, ROHS COMPLIANT

3951400044 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	FAST
body width	4 mm
body height	8 mm
Body length or diameter	8.5 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal	3 J
Manufacturer's serial number	395
Installation features	THROUGH HOLE
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	8.5mm x 4mm x 8mm
Pre-discharge time - minutes	5000 ms
Rated breaking capacity	100 A
Rated current	4 A
Rated voltage (AC)	125 V
Guideline	UL; METI; PSE
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

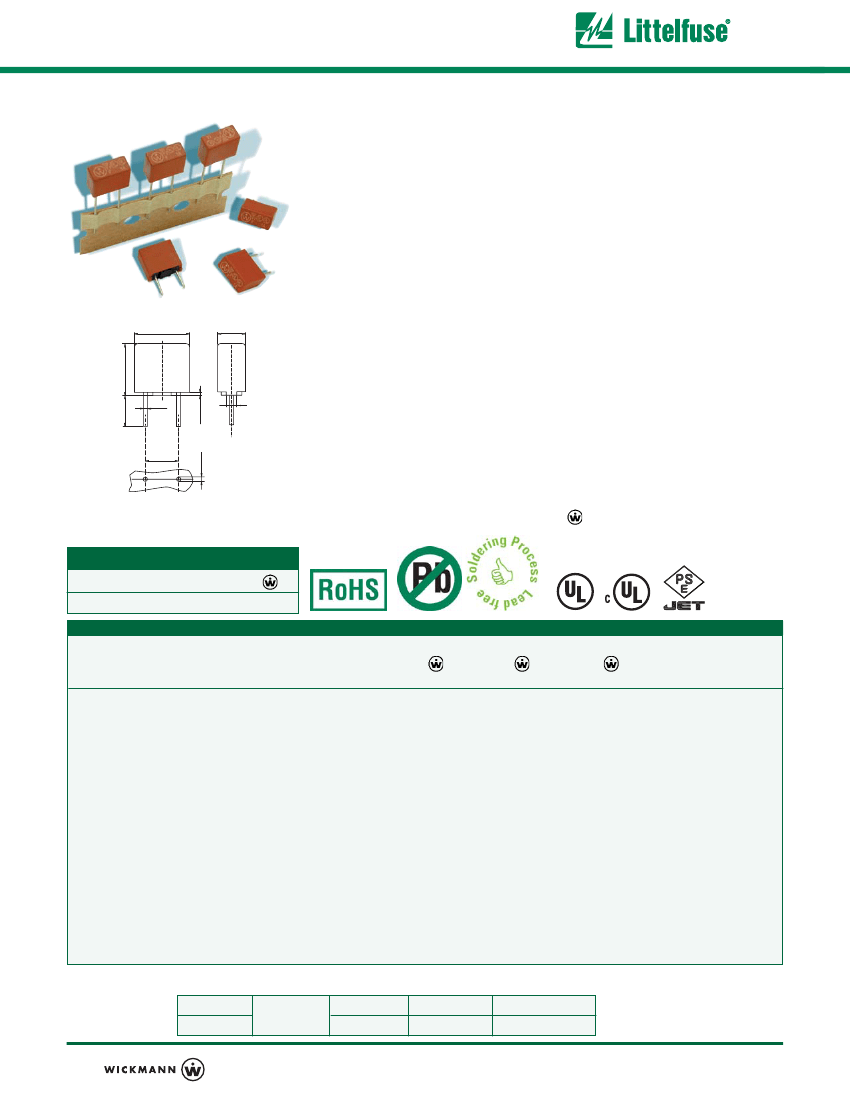

UBMINIATURE

USES

No. 395 / TE5

UL 248-14, 125 V, F

T ime-Current

Standard

Quick Acting (F)

Specifications

Packaging

Materials

000: Tape/Ammopack (1,400 pcs.)

044: Short Leads - Bulk (1,400 pcs.)

Base/Cap:

Brown Thermoplastic

Polyamide PA 6.6, UL 94V0

Round Pins: Copper, Sn plated

-40 ºC to +85 ºC (consider de-rating)

-40 ºC/+85 ºC/21 days

(EN 60068-1,-2-1,-2-2,-2-78)

+10 ºC to +60 ºC

relative humidity

≤

75 % yearly average,

without dew, maximum value for 30 days - 95 %

24 cycles at 15 min. each (EN 60068-2-6)

10 - 60 Hz at 0.75 mm amplitude

60 - 2000 Hz at 10 g acceleration

10 N (IEC 60068-2-21)

Characteristic

UL 248-14

CSA C22.2 No. 248.14

UL Listed

cUL Listed

METI-PSE

Approvals

Temperature

Operating Temperature

Climatic Category

Stock Conditions

Features

Dimensions (mm)

8.5

max. 8

max. 4

Reduced PCB space requirements

Direct solderable or plug-in versions

Internationally approved

Low internal resistance

Shocksafe casing

Vibration resistant

Halogen free

Vibration Resistance

0.5 min

∅

0.6

1.5

Lead Pull Strength

Solderability

260 ºC,

≤

3 s (Wave)

350 ºC,

≤

3 s (Soldering iron)

260 ºC, 10 s (IEC 60068-2-20)

5.08

1 +0.1

Soldering Heat Resistance

Marking

, F, Current Rating, Approvals

Holes in PCB

Long Leads (L=18.8 mm)

Short Leads (L=4.3 mm)

Unit Weight

Limits for Pre-arcing Time

Rated Current

50 mA ... 6.30 A

0.60 g (approx.)

2.0 x I

< 60 s

2.0 x I

<5s

50mA

63mA

80mA

100mA

125mA

160mA

200mA

250mA

315mA

400mA

500mA

630mA

800mA

1.00A

1.25A

1.60A

2.00A

2.50A

3.15A

4.00A

5.00A

6.30A

0050

0063

0080

0100

0125

0160

0200

0250

0315

0400

0500

0630

0800

1100

1125

1160

1200

1250

1315

1400

1500

1630

125V

100A / 125 V AC

50-60 Hz

cos

= 1.0

1600

1300

1200

1100

1350

1000

950

900

800

230

220

210

200

190

180

170

160

150

140

130

120

115

100

110

160

150

210

225

255

110

135

160

190

225

275

450

375

445

520

600

850

0.0001

0.00013

0.0002

0.0013

0.0019

0.0037

0.0075

0.013

0.026

0.015

0.025

0.045

0.068

0.13

0.2

0.39

0.53

1.1

1.9

3.2

6.1

9.7

•

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

Order

Information

011906

Qty.

Order-

Number

Series

395

Amp Code

Packaging

Specifications are subject

to change without notice

In our continuing strategy to deliver unparalleled circuit protection solutions,

technical expertise and application leadership, we proudly introduce the

WICKMANN Group and its products to the Littelfuse portfolio.

www.littelfuse.com

METI-PSE

cUL

Permissible continuous operating current is

≤

70 % at ambient temperature of 23 ºC (73.4 ºF).

Rated

Amp

Voltage

Breaking

Voltage Drop Power Dissipation Melting Integral

1.0 x I

10 x I

Current

Code

Rating

Capacity

1.0 x I

max. (mV)

max. (mW)

max. (A

Approvals

•

Recommended Resources

Infrared remote control relay circuit a

AD converter AD9887 circuit

Typical recording equalization amplifier circuit

Comprehensive compensation method circuit

AC equivalent amplifier circuit

Micro strain sensor signal conditioning circuit

[Shanghai Hangxin ACM32F070 development board + touch function evaluation board review] Touch button: [i=s]This post was last edited by KING_阿飞 on 2022-10-3 15:13[/i][Shanghai Hangxin ACM32F070 development board + touch function evaluation board review] Touch button In order to make it more convenient...; KING_阿飞 Domestic Chip Exchange

Maintaining Common Equipment - Power Meters and Power Sensors: [i=s]This post was last edited by btty038 on 2020-2-20 20:33[/i]Accurate power measurement is critical for many RF and microwave applications. Instruments such as power meters and power sensors are in...; btty038 RF/Wirelessly

I want the written test questions of Richu Information (Dalian) Co., Ltd.: As the title says, I want to work in embedded system... My friend had an interview recently, and the questions were said to be very strange (very different from what I have learned), so I would like t...; chou Embedded System

Could you please help me check if this is written in SMT32?: ...; hu柏拉图的永恒 stm32/stm8

I hope that the moderators of each forum can regularly summarize and index the best posts in the forum.: There are too many things in the forum. If we don't organize and index them in time, many good things will be lost, which is a pity... So I suggest that the moderators of each section can make an inde...; yayasoso Suggestions & Announcements

EK_LM3S8962 CC2500 - receiving driver data and DEMO program: It’s the end of the month, and it feels like time has passed so quickly... Let me share with you the CC2500 CM3 driver that I wrote myself... Below is the main program architecture of this DEMO... int...; shilaike Microcontroller MCU
