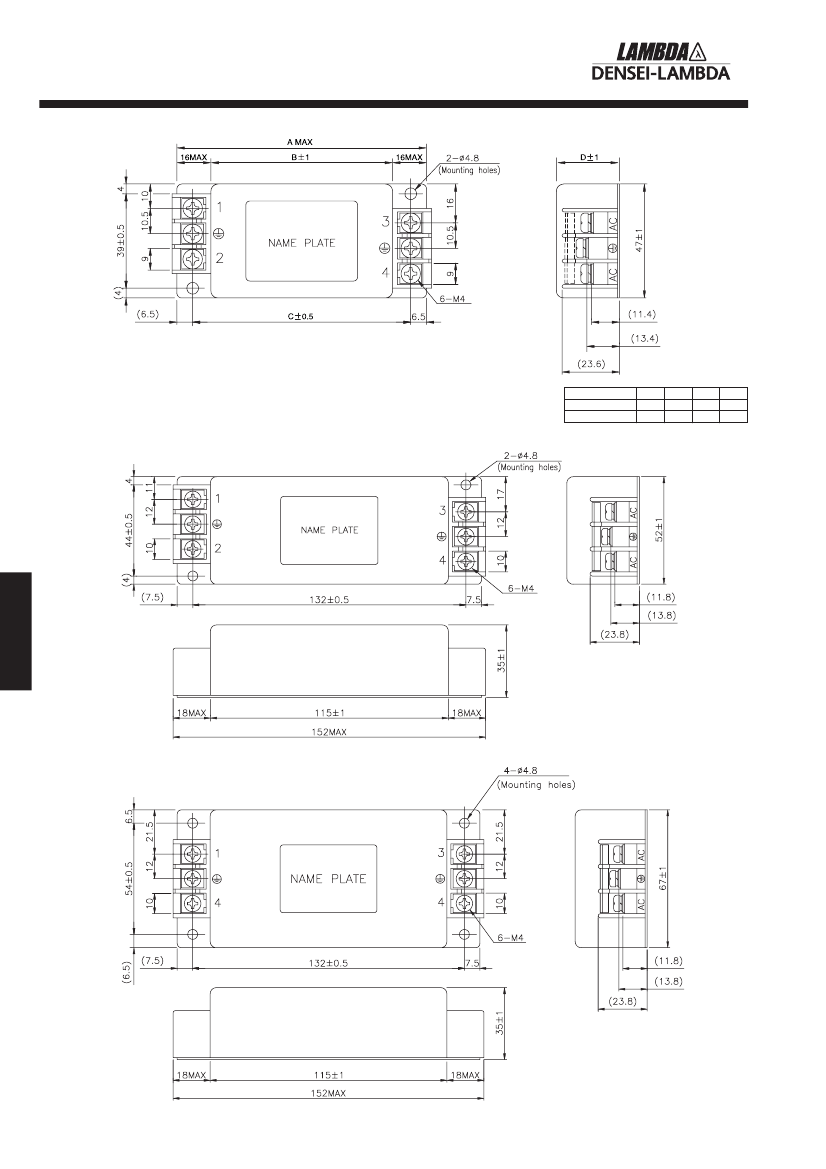

MYB
-SERIES

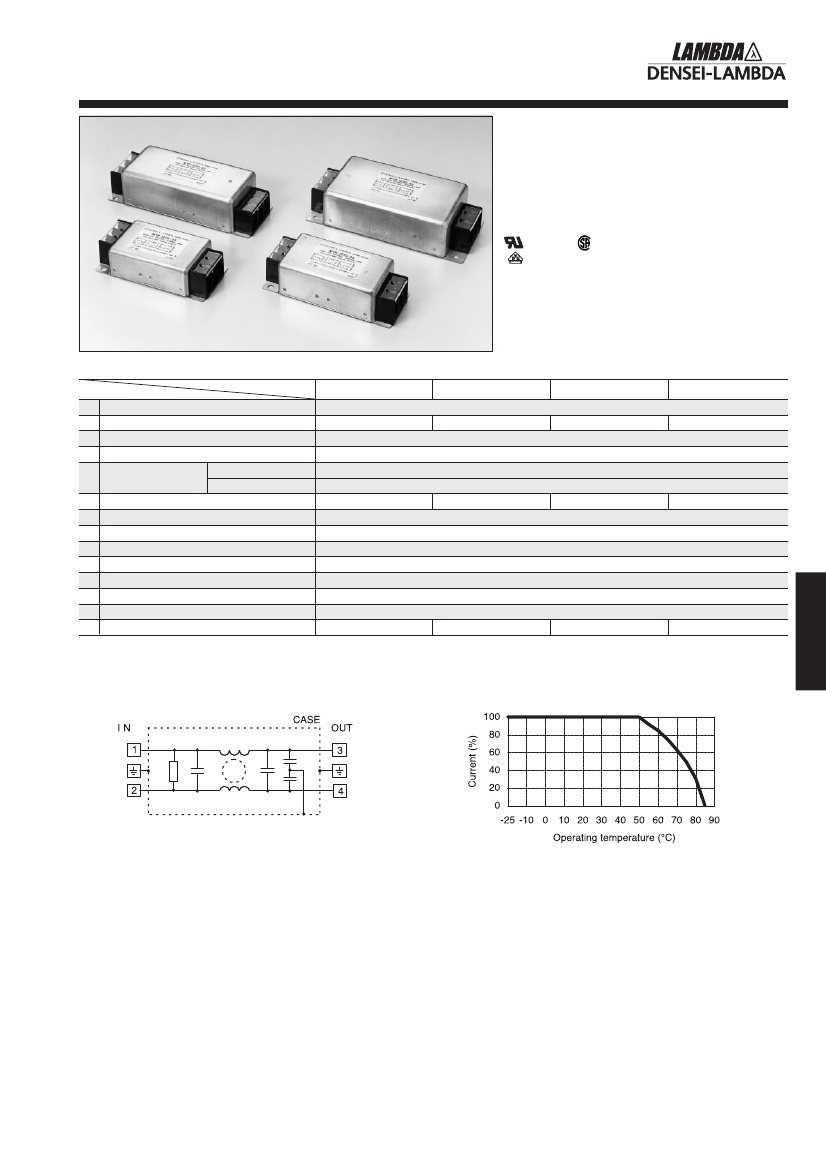

Features
MYB-1220-33
MYB-1230-33

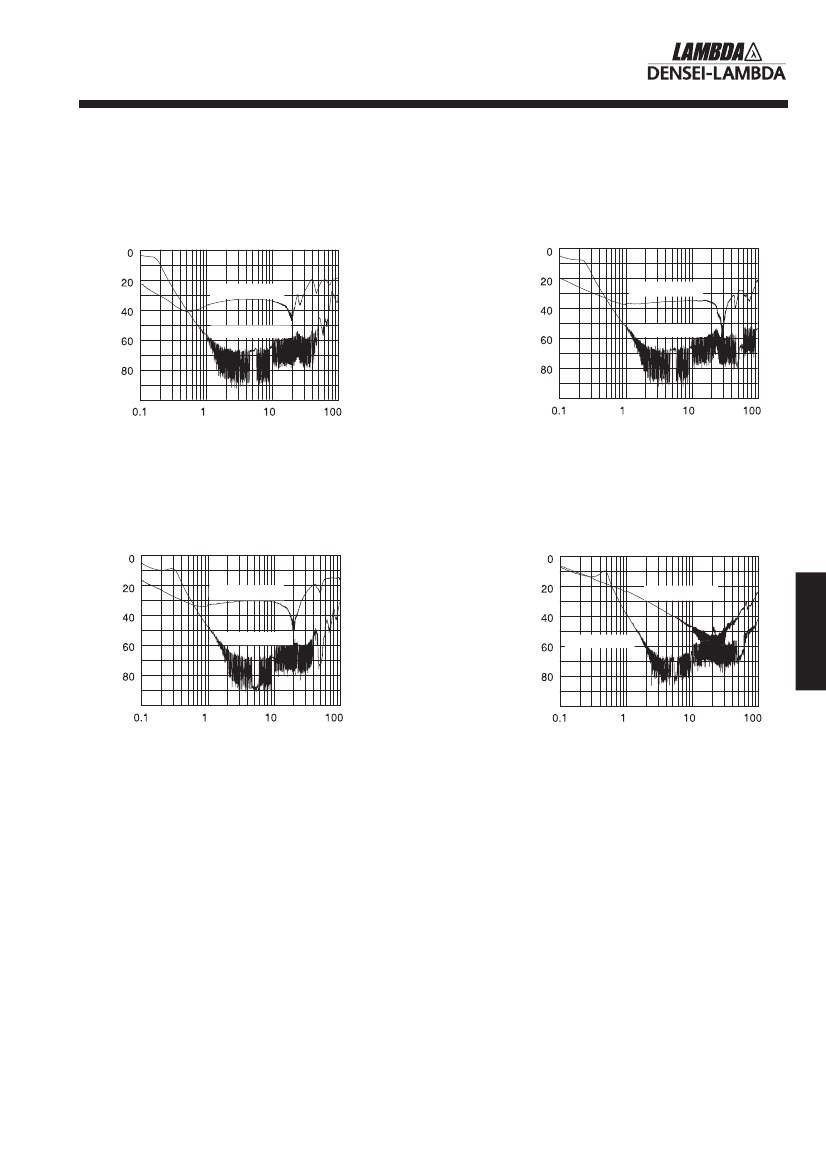

(1) High attenuation effect against high voltage
pulse noise by amorphous core.
(2) Block terminal with cover
Simple wire connection
High safety by cover.
Safety standard
(
MYB-1206-33
MYB-1210-33
UL1283,
CSA Std. C22. 2 No. 8
VDE0565 Teil. 3, Teil 3A2
VDE0565 will transfer to EN133200
on and after July 23, 2003.
)
Specifications
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Rated voltage (AC, DC)
Rated current (AC, DC)
(Note)
6A
10A
2500V (25°C, 70% RH)
100MΩ min. (25°C, 70% RH)
0.25mA max.
0.5mA max.
0.1Ω max.
0.05Ω max.
30°C max.
–25 ~ +85°C
30% ~ 90% RH (No dewdrop)
–30 ~ +85°C
10% ~ 95% RH (No dewdrop)
0.02Ω max.
0.01Ω max.
Test voltage (terminal to case, AC 1 minute)
Isolation resistance (terminal to case, 500VDC)
Leakage current
DC resistance
Temperature rise
Operating temperature
Operating humidity
Storage temperature
Storage humidity
Vibration
Safety standard
Weight (typ)
210g
125V, 60Hz
250V, 60Hz
Model
MYB-1206-33
MYB-1210-33
250V
20A
30A
MYB-1220-33
MYB-1230-33
Noise Filter
Sweep: 10 ~ 55 ~ 10Hz (for 1 minute), Amplitude: 1.5mm X, Y and Z axes for 2 hours
Approved by UL1283, CSA C22.2 No. 8 (C-UL) and VDE0565 Teil3, Teil3A2
260g
450g
510g
(Note) : Value at Ta
<
50°C. Refer to the derating curve shown below at Ta > 50°C.
=
Circuit
Derating
Request customer specification for further details of specifications, outline, characteristics, etc.
Read the instruction manual before usage.
Contact us about delivery before ordering.
159

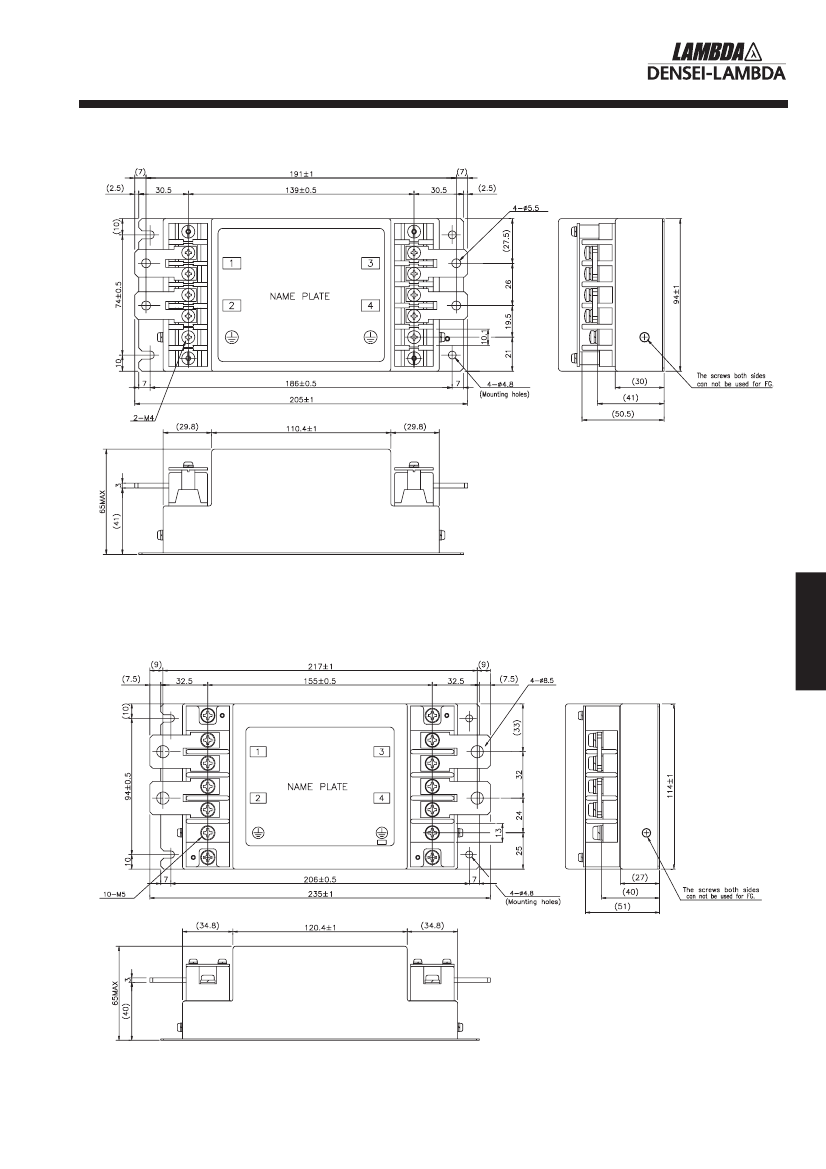

MYB
(50/70/90A)-SERIES

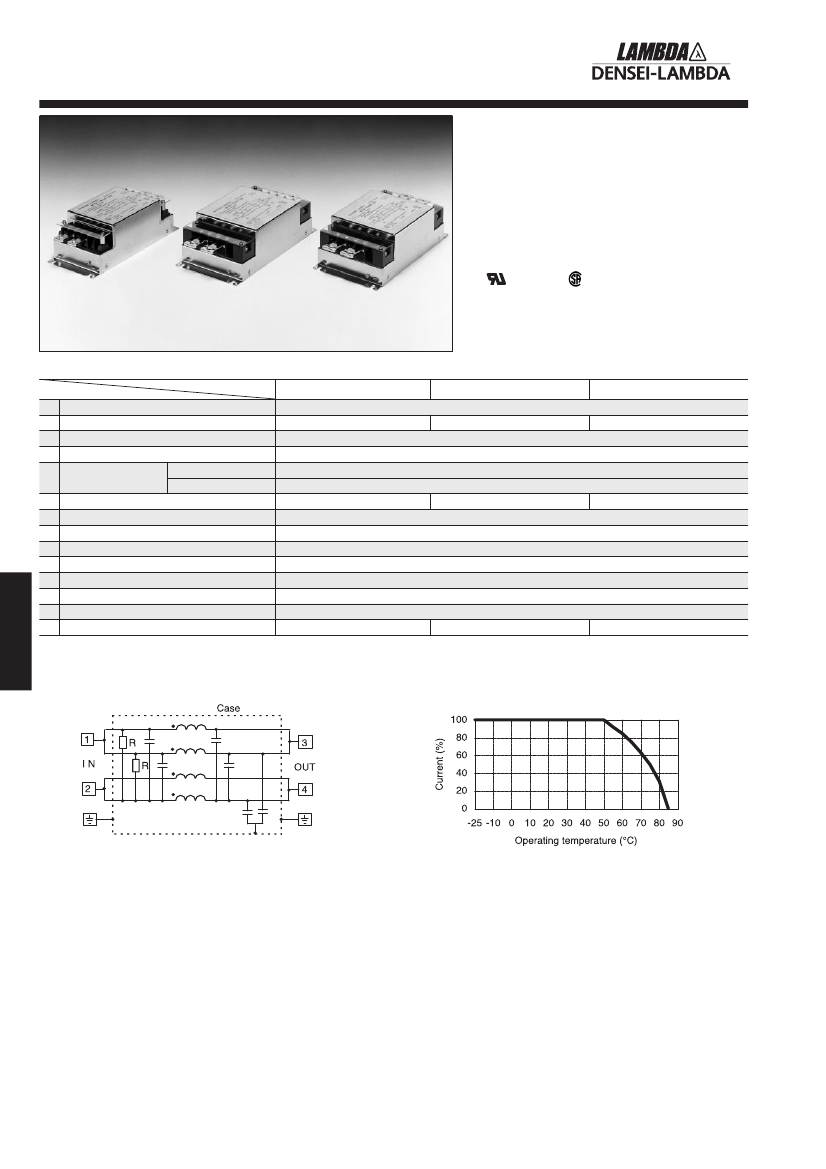

Features
(1) High attenuation effect against high voltage
pulse noise
(2) Compact and low profile (H = 65mm)
(3) Leakage current: 1mA max. (250V, 60Hz)
Safety standard
(1) MYB-1250-33, MYB-1290-33
Conforms to UL safety standard (UL1283)
Conforms to CSA safety standard
(CSA Std. C22. 2 No. 8)
(2) MYB-1270-33
UL1283,
CSA Std. C22. 2 No. 8
MYB-1250-33
MYB-1270-33
MYB-1290-33
Specifications
Item
Model
MYB-1250-33
MYB-1270-33
250V
50A
70A
2500V (25°C, 70% RH)
300MΩ min. (25°C, 70% RH)
0.5mA max.
0.1mA max.
2.5mΩ max.
1.9mΩ max.
35°C max
–25 ~ +85°C
30% ~ 90% RH (No dewdrop)
–30 ~ +85°C
10% ~ 95% RH (No dewdrop)
Sweep: 10 ~ 55 ~ 10Hz (for 1 minute), Amplitude: 1.5mm X, Y and Z axes for 2 hours
Only MYB-1270-33 is approved by UL 1283 and CSA std. C22. 2 No. 8
2000g
2900g
3000g
(Note) : Value at Ta
<
50°C. Refer to the derating curve shown below at Ta > 50°C.
=
MYB-1290-33
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Rated voltage (AC, DC)
Rated current (AC, DC)
(Note)
Test voltage (terminal to case, AC 1 minute)
Isolation resistance (terminal to case, 500VDC)
125V, 60Hz
Leakage current
250V, 60Hz
DC resistance
Temperature rise
Operating temperature
Operating humidity
Storage temperature
Storage humidity
Vibration
Safety standard
Weight (typ)
90A
1.3mΩ max.
Noise Filter
Circuit
Derating
Request customer specification for further details of specifications, outline, characteristics, etc.
Read the instruction manual before usage.
Contact us about delivery before ordering.
