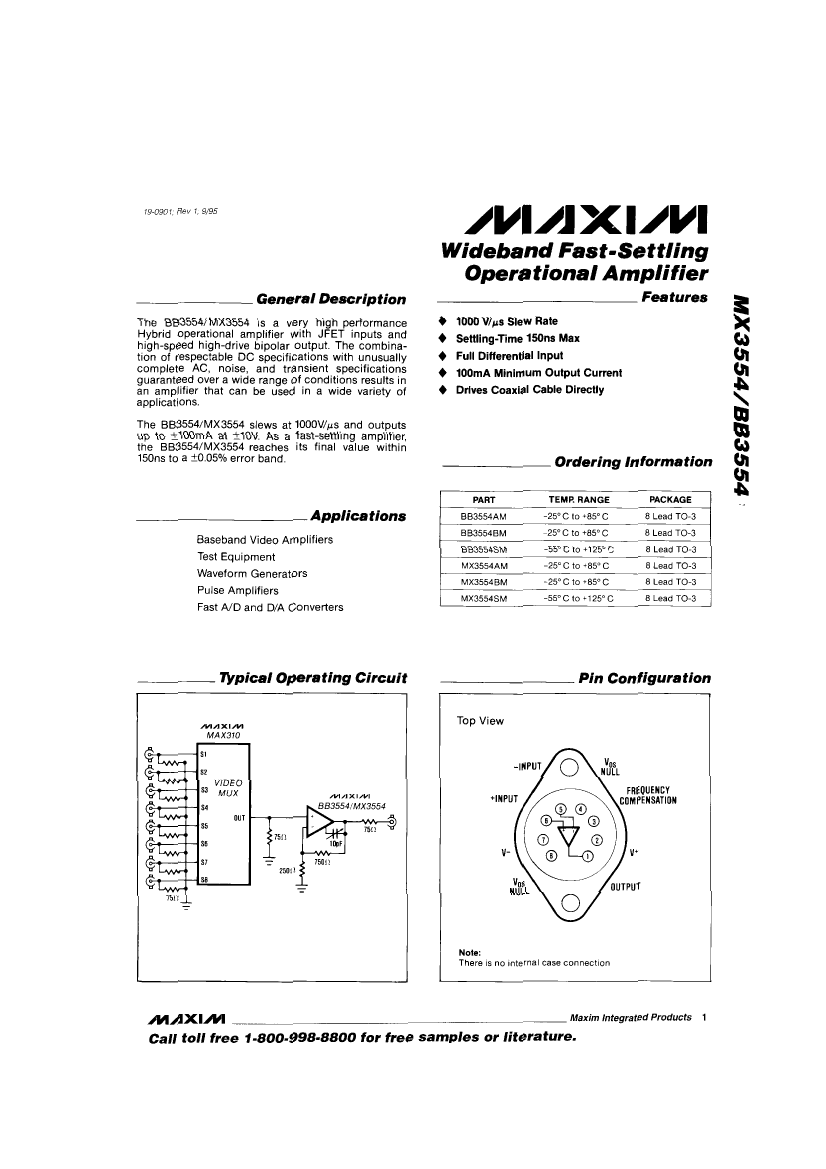

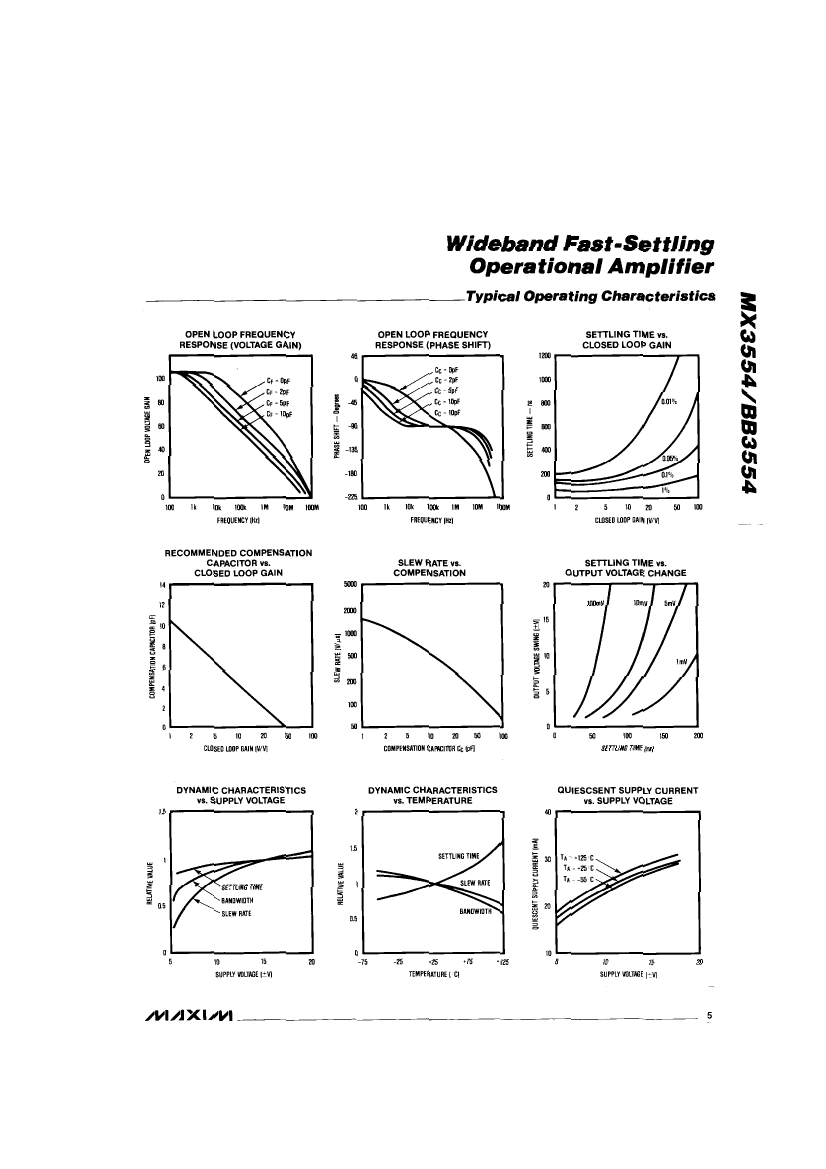

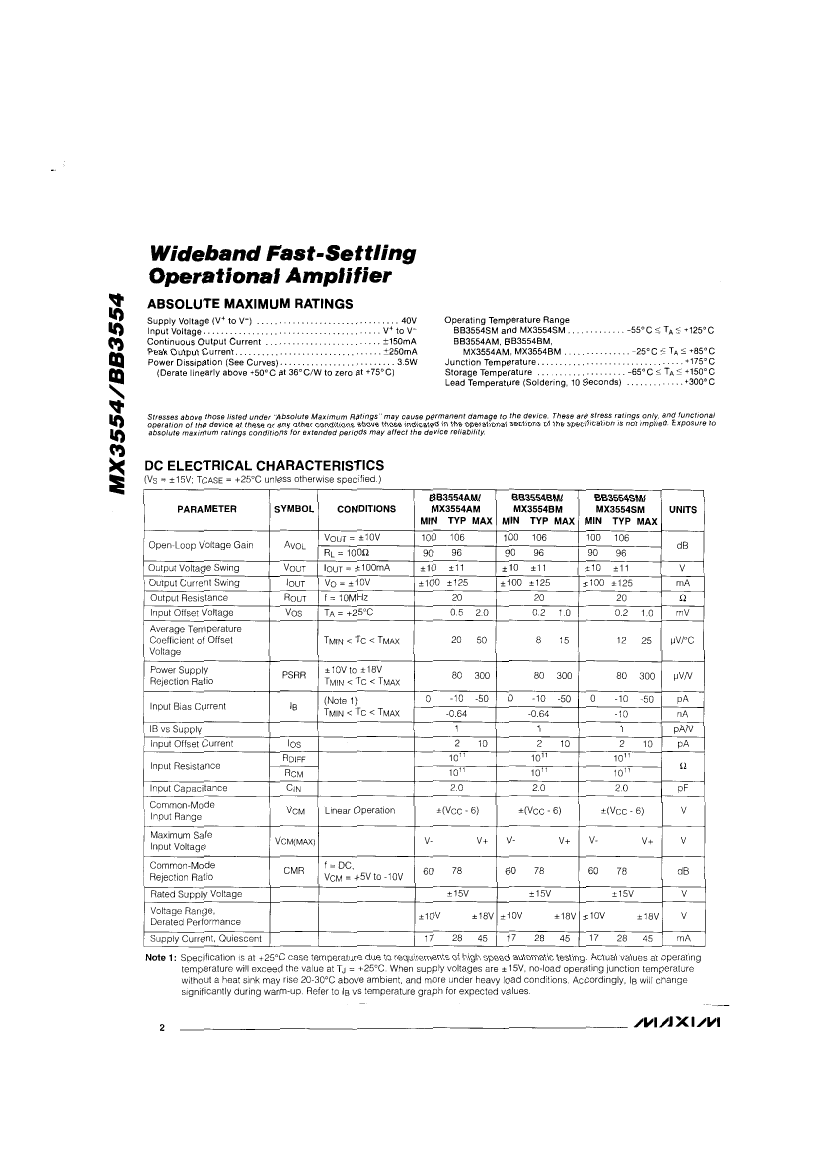

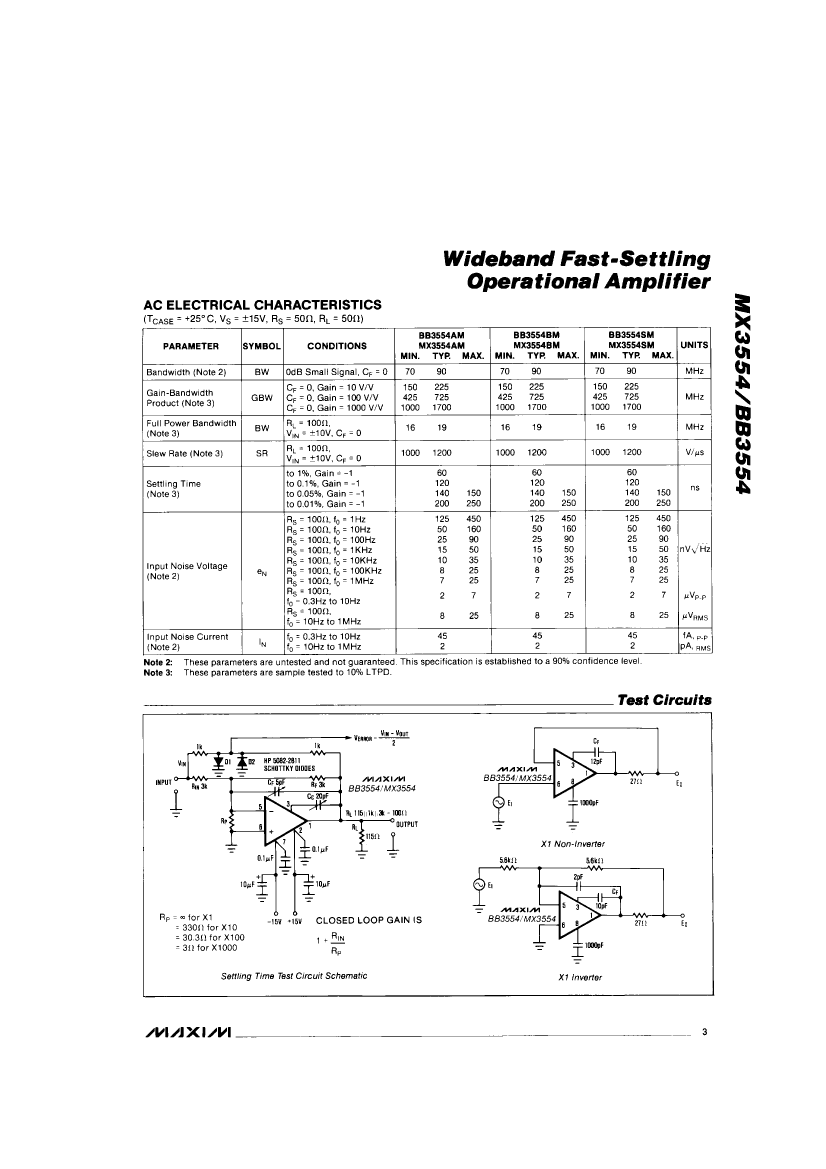

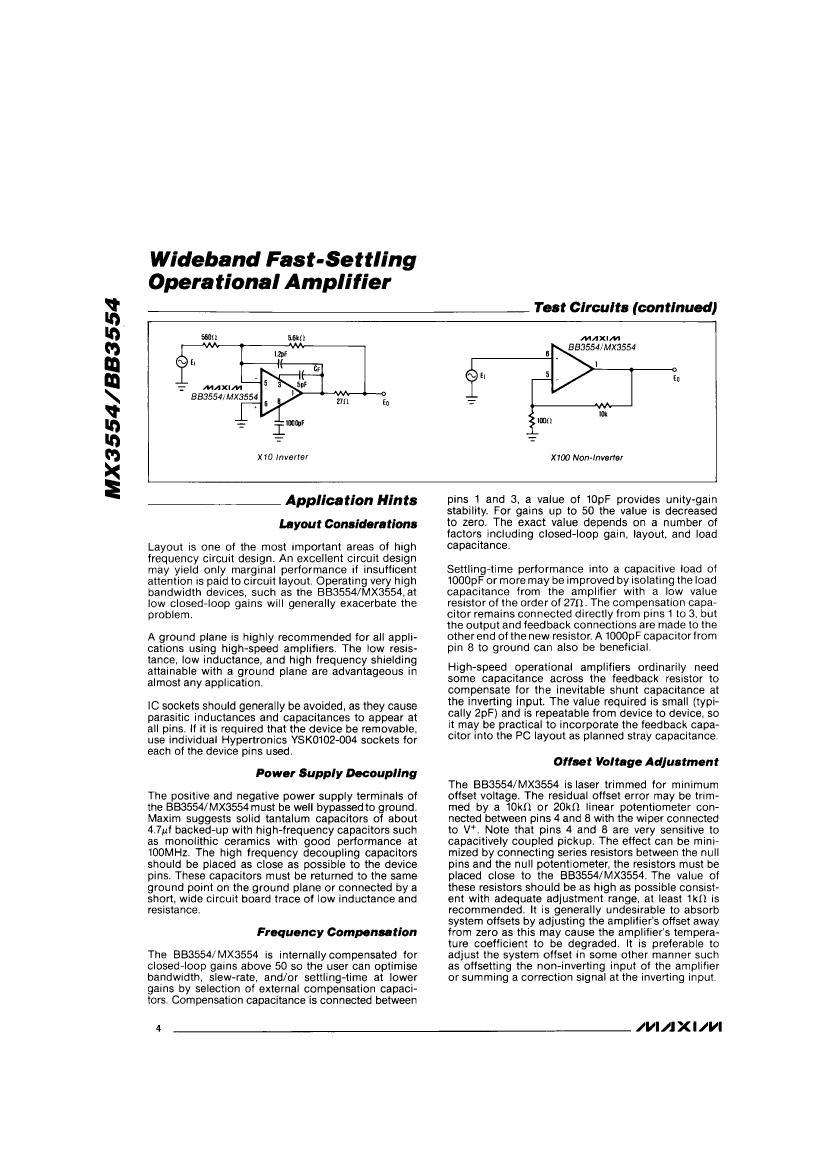

Wideband Fast-Settling Operational Amplifier
| MX3554 | BB3554AM | BB3554BM | BB3554SM | MX3554BM | MX3554SM | MX3554AM | |
|---|---|---|---|---|---|---|---|
| Description | Wideband Fast-Settling Operational Amplifier | Wideband Fast-Settling Operational Amplifier | Wideband Fast-Settling Operational Amplifier | Wideband Fast-Settling Operational Amplifier | Wideband Fast-Settling Operational Amplifier | Wideband Fast-Settling Operational Amplifier | Wideband Fast-Settling Operational Amplifier |
| Is it lead-free? | - | Contains lead | Contains lead | Contains lead | - | - | Contains lead |
| Is it Rohs certified? | - | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | - | TO-204AA | TO-204AA | TO-204AA | TO-204AA | TO-204AA | TO-204AA |
| package instruction | - | TO-3, 8 PIN | TO-3, 8 PIN | TO-3, 8 PIN | TO-3, 8 PIN | TO-3, 8 PIN | TO-3, 8 PIN |
| Contacts | - | 2 | 2 | 2 | 2 | 2 | 2 |
| Reach Compliance Code | - | _compli | _compli | not_compliant | _compli | _compli | _compli |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | - | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | - | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | - | 0.00005 µA | 0.00005 µA | 0.00005 µA | 0.00005 µA | 0.00005 µA | 0.00005 µA |
| Maximum bias current (IIB) at 25C | - | 0.00005 µA | 0.00005 µA | 0.00005 µA | 0.00005 µA | 0.00005 µA | 0.00005 µA |
| Nominal Common Mode Rejection Ratio | - | 78 dB | 78 dB | 78 dB | 78 dB | 78 dB | 78 dB |
| frequency compensation | - | NO | NO | NO | NO | NO | NO |
| Maximum input offset voltage | - | 2000 µV | 1000 µV | 1000 µV | 1000 µV | 1000 µV | 2000 µV |
| JESD-30 code | - | O-MBFM-P8 | O-MBFM-P8 | O-MBFM-P8 | O-MBFM-P8 | O-MBFM-P8 | O-MBFM-P8 |
| JESD-609 code | - | e0 | e0 | e0 | e0 | e0 | e0 |
| low-bias | - | YES | YES | YES | YES | YES | YES |
| low-dissonance | - | NO | NO | NO | NO | NO | NO |
| Nominal Negative Supply Voltage (Vsup) | - | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | - | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | - | 85 °C | 85 °C | 125 °C | 85 °C | 125 °C | 85 °C |
| Minimum operating temperature | - | -25 °C | -25 °C | -55 °C | -25 °C | -55 °C | -25 °C |
| Package body material | - | METAL | METAL | METAL | METAL | METAL | METAL |
| Encapsulate equivalent code | - | CAN8/9,.5FL | CAN8/9,.5FL | CAN8/9,.5FL | CAN8/9,.5FL | CAN8/9,.5FL | CAN8/9,.5FL |
| Package shape | - | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | - | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power | - | YES | YES | YES | YES | YES | YES |
| power supply | - | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| minimum slew rate | - | 1000 V/us | 1000 V/us | 1000 V/us | 1000 V/us | 1000 V/us | 1000 V/us |
| Nominal slew rate | - | 1200 V/us | 1200 V/us | 1200 V/us | 1200 V/us | 1200 V/us | 1200 V/us |
| Maximum slew rate | - | 45 mA | 45 mA | 45 mA | 45 mA | 45 mA | 45 mA |
| Supply voltage upper limit | - | 18 V | 18 V | 18 V | 20 V | 20 V | 20 V |
| Nominal supply voltage (Vsup) | - | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | - | NO | NO | NO | NO | NO | NO |
| technology | - | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | - | OTHER | OTHER | MILITARY | OTHER | MILITARY | OTHER |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | - | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | - | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | - | 225000 kHz | 225000 kHz | 225000 kHz | 225000 kHz | 225000 kHz | 225000 kHz |
| Minimum voltage gain | - | 32000 | 32000 | 32000 | 32000 | 32000 | 32000 |
| Base Number Matches | - | 1 | 1 | 1 | 1 | - | 1 |
