ZAY-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZAY-1

ZAY-1: DescriptionDouble Balanced Mixer, 5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, CASE M22; CategoryWireless rf/communication Radio frequency and microwave; File Size176KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZAY-1 Overview

Double Balanced Mixer, 5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, CASE M22

ZAY-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	BNC, HIGH ISOLATION
structure	COAXIAL
Maximum frequency conversion loss	8.5 dB
Maximum input power (CW)	25.44 dBm
JESD-609 code	e0
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2.5

Preview

Download Datasheet

View All

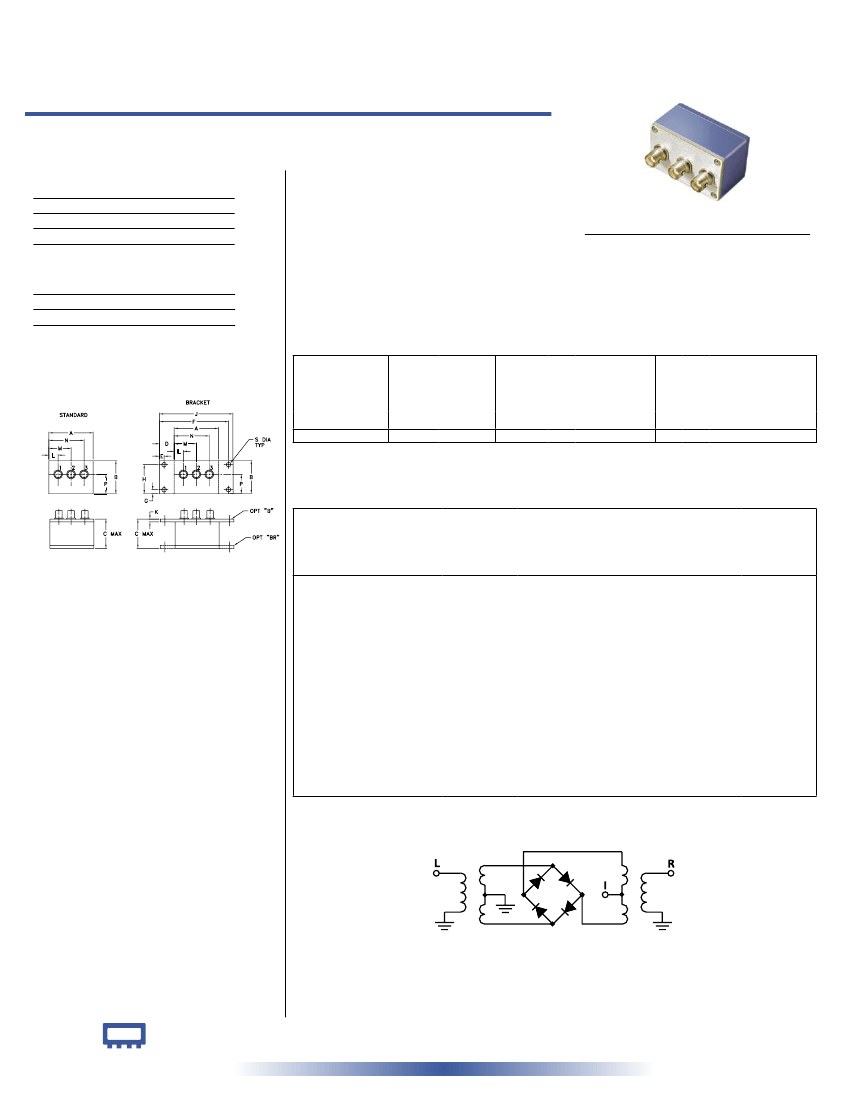

Frequency Mixer

Level 23 (LO Power +23 dBm) 5 to 500 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

350mW

40mA

Coaxial

ZAY-1

Features

• low conversion loss, 6.57 dB typ.

• high L-R isolation, 40 dB typ. L-R & L-I

• rugged shielded case

CASE STYLE: M22

Connectors Model

BNC

ZAY-1

BRACKET (OPTION “B”)

BRACKET (OPTION “BR”)

Price

$64.95

$5.00

$1.50

Qty.

(1-9)

(1+)

Coaxial Connections

Applications

• VHF/UHF

• instrumentation

• federal & defense communication

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

-f

5-500

DC-500

1 dB COMP.: +15 dBm typ.

—

6.57

CONVERSION LOSS

(dB)

Mid-Band

0.9

Total

Range

Max. Max.

7.5

8.5

Typ.

LO-RF ISOLATION

(dB)

Min.

Typ.

Min.

Typ.

Min.

Typ.

LO-IF ISOLATION

(dB)

Min.

Typ.

Min.

Typ.

Min.

L = low range [f

to 10 f

]

m= mid band [2f

to f

/2]

M = mid range [10 f

to f

/_]

U = upper range [f

/2 to f

]

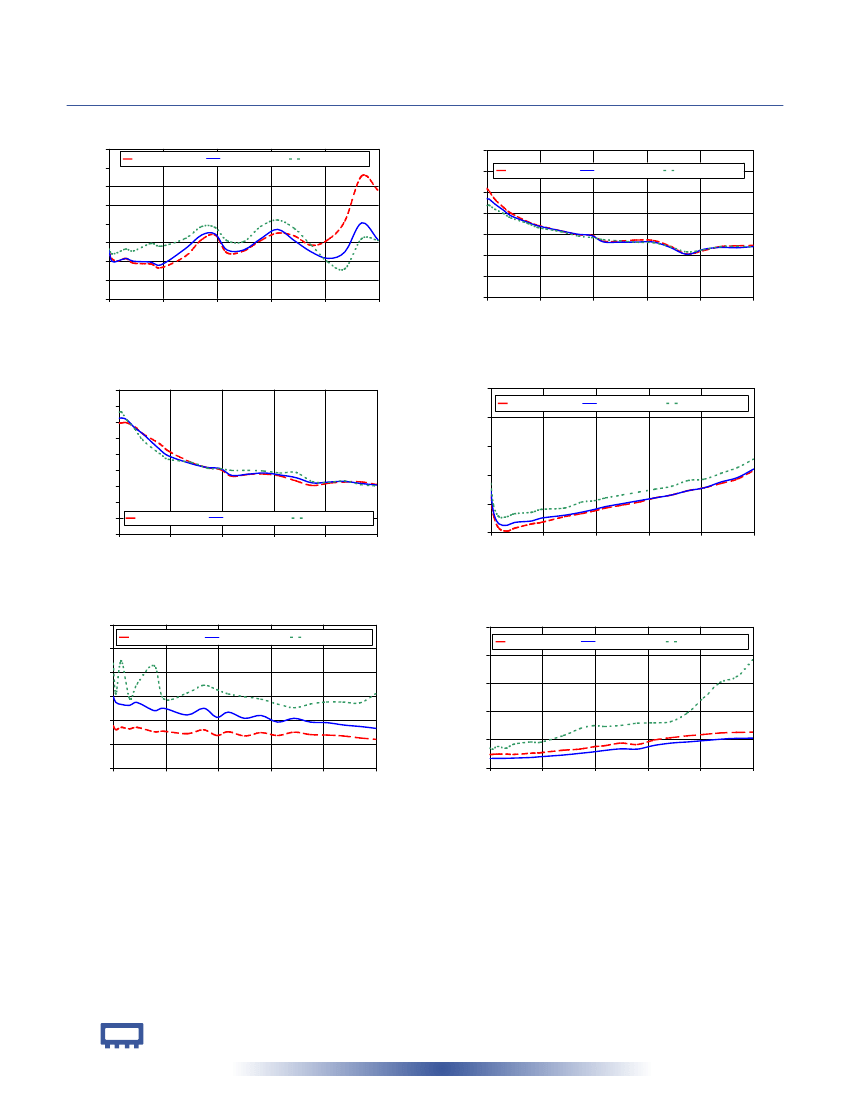

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

35.00

40.00

50.00

65.94

80.00

52.35

70.00

114.22

145.16

170.00

191.57

222.50

253.44

284.38

315.32

346.26

377.19

408.13

439.07

470.00

+23dBm

6.52

6.40

6.43

6.40

6.39

6.36

6.53

6.68

6.69

6.52

6.64

6.74

6.62

6.50

6.43

6.50

6.81

6.62

Isolation

L-R

(dB)

+23dBm

57.02

56.72

54.48

51.51

48.82

45.62

44.05

41.60

40.04

39.45

36.41

36.33

36.36

36.35

33.85

30.50

32.89

33.81

33.63

34.24

Isolation

L-I

(dB)

+23dBm

82.02

82.32

81.28

75.99

72.57

62.91

58.66

53.71

51.38

50.73

46.45

47.23

47.98

46.73

44.99

41.75

42.28

42.66

41.41

40.42

VSWR RF

Port

(:1)

+23dBm

1.29

1.14

1.06

1.05

1.07

1.08

1.10

1.12

1.14

1.16

1.18

1.20

1.22

1.24

1.26

1.29

1.31

1.35

1.38

1.44

VSWR LO

Port

(:1)

+23dBm

2.50

2.37

2.33

2.31

2.37

2.20

2.25

2.11

2.25

2.06

2.17

2.04

2.10

1.96

2.04

1.96

1.95

1.90

1.87

1.83

5.00

10.00

20.00

35.94

50.00

Outline Dimensions (

inch

)

2.25

57.15

3.25

82.55

1.38

35.05

.10

2.54

1.24

31.50

.40

10.16

.50

12.70

1.15

29.21

.150

3.81

1.86

47.24

3.100

78.74

.64

16.26

.138

3.51

1.238

31.45

82.35

100.00

144.22

175.16

200.00

221.57

252.50

283.44

314.38

345.32

376.26

407.19

438.13

469.07

500.00

.150 grams

3.81

74.0

Electrical Schematic

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. OR

M92965

ZAY-1

DJ/TD/CP

060717

Page 1 of 2

ZAY-1 Related Products

	ZAY-1	ZAY-1B	ZAY-1BR
Description	Double Balanced Mixer, 5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, CASE M22	Double Balanced Mixer, 5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, CASE M22	Double Balanced Mixer, 5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, CASE M22
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown	unknown
Other features	BNC, HIGH ISOLATION	BNC, HIGH ISOLATION	BNC, HIGH ISOLATION
structure	COAXIAL	COAXIAL	COAXIAL
Maximum frequency conversion loss	8.5 dB	8.5 dB	8.5 dB
Maximum input power (CW)	25.44 dBm	25.44 dBm	25.44 dBm
JESD-609 code	e0	e0	e0
Maximum operating frequency	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2.5	2.5	2.5
