177-007-25S4FF4-05 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 177-007-25S4FF4-05

177-007-25S4FF4-05: DescriptionD Microminiature Connector, 25 Contact(s), Female, Plug,; CategoryThe connector The connector; File Size176KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

177-007-25S4FF4-05 Overview

D Microminiature Connector, 25 Contact(s), Female, Plug,

177-007-25S4FF4-05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	177-007
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	ANODIZED BLACK
Shell material	ALUMINUM ALLOY
Housing size	D
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

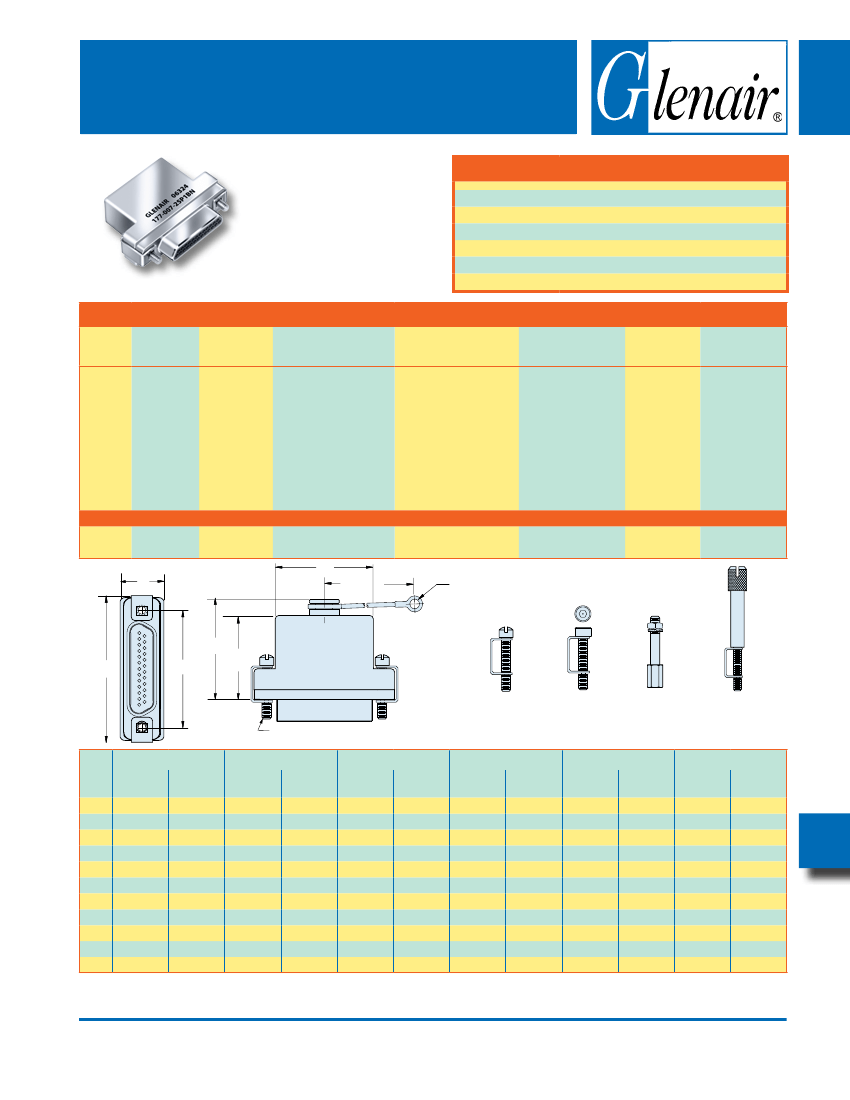

Shorting Plug Assembly

177-007

Shorting Plug Assemblies

are Micro-D connectors

with all contacts bussed/

shorted together. Enclosed

in a backshell and fitted with

jackscrews, these shorting

plugs provide ESD protection to

sensitive instrumentation.

MATERIALS & FINISHES

Shells

Contacts

Encapsulant

Insulators

Interfacial Seal

Hardware

Aluminum Alloy 6061 -T6

Gold-Plated Copper Alloy

Epoxy

Glass-Filled LCP

Fluorosilicone

300 Series Stainless Steel, Passivated

HOW TO ORDER 177-007 SHORTING PLUGS

Connector

Series

Size

177-007

51-2

100

Contact

Type

–

Socket

Shell Finish

–

Cadmium, Yellow

Hardware Option

–

Fillister Head

Jackscrew

Lanyard Option

–

No Lanyard

–

Flexible Nylon

Rope

Lanyard

Length

Ring Terminal

Ordering Code

Chromate

Nickel

–

Electroless

–

Black Anodize

–

Gold

–

Chem Film

–

Hex Head

–

Extended

–

Wire Rope,

Nylon Jacket

Length in 06

–

.125 (3.2)

One Inch 01

–

.140 (3.6)

Increments 05

–

.167 (4.2)

–

.197 (5.0)

Example: “6”

equals six

inches.

I.D. of Ring

Terminal

Jackscrew

–

Wire Rope,

–

Jackpost, Female

–

No Hardware

Teflon Jacket

Sample Part Number

177-007

– 25

LENGTH

SEE ORDERING

INFO

– 06

#2-56 UNC THDS. 9-69 PIN

#4-40 UNC THDS. 100 PIN

CODE B

CODE H

FILLISTER HEAD HEX HEAD

JACKSCREW

CODE F

FEMALE

JACKPOST

CODE E

EXTENDED

JACKSCREW

A Max.

Size

51-2

100

B Max.

In .

.370

.410

.370

.410

.460

In.

.565

.715

.865

.965

1.115

1.265

1.215

1.615

2.015

1.515

1.800

D Max.

mm.

14.35

18.16

21.97

24.51

28.32

32.13

30.86

41.02

51.18

38.48

45.72

E Max.

In.

.450

.570

.690

.750

.810

.850

.880

.940

F Max.

In.

.410

.580

.740

.850

.980

1.130

1.080

1.510

1.880

1.380

1.470

In.

.850

1.000

1.150

1.250

1.400

1.550

1.500

1.910

2.310

1.810

2.235

mm.

21.59

25.40

29.21

31.75

35.56

39.37

38.10

48.51

58.67

45.97

56.77

mm.

9.40

10.41

9.40

10.41

11.68

In.

.600

.720

.840

.900

.960

1.000

1.030

1.090

mm.

15.24

18.29

21.34

22.86

24.38

25.40

26.16

27.69

mm.

11.43

14.48

17.53

19.05

20.57

21.59

22.35

23.88

mm.

10.41

14.73

18.80

21.59

24.89

28.70

27.43

38.35

47.75

35.02

37.34

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

N-3

Micro-D

Accessories
