ZB8PD-242-75-F+

Description
Splitter And Combiner, 600MHz Min, 2400MHz Max, 1.4dB Insertion Loss-Max, ROHS COMPLIANT, Z41
CategoryWireless rf/communication    Radio frequency and microwave
File Size221KB,1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Environmental Compliance
Download Datasheet Parametric View All

ZB8PD-242-75-F+ Overview

Splitter And Combiner, 600MHz Min, 2400MHz Max, 1.4dB Insertion Loss-Max, ROHS COMPLIANT, Z41

ZB8PD-242-75-F+ Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMini-Circuits
package instructionROHS COMPLIANT, Z41
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresF, ISOLATION-MIN (DB):14
Characteristic impedance75 Ω
structureCOAXIAL
Maximum input power (CW)40 dBm
Maximum insertion loss1.4 dB
Maximum operating frequency2400 MHz
Minimum operating frequency600 MHz
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesSPLITTER AND COMBINER
Maximum voltage standing wave ratio1.9
Power Splitter/Combiner
8 Way-0°
75Ω
600 to 2450 MHz
Features
-55°C to 100°C
-55°C to 100°C
10W max.
0.875W max.
wideband, 600 to 2450 MHz
low insertion loss, 0.7 dB typ.
good isolation, 25 dB typ.
good amplitude unbalance, 0.3 dB typ.
rugged shielded case
WiMax
CATV
PCS/DCS
Cellular Infrastructure
UMTS
L-Band
DC Pass
ZB8PD-242-75-F+
Maximum Ratings
Operating Temperature
Storage Temperature
Power Input (as a splitter)
Internal Dissipation
DC Current
CASE STYLE: Z41
Connectors Model
F-Type
ZB8PD-242-75-F+
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications
1.0 A(125mA for each port)
Permanent damage may occur if any of these limits are exceeded.
Applications
Coaxial Connections
SUM PORT
PORT 1,2,3,4,5,6,7,8
S
1,2,3,4,5,6,7,8

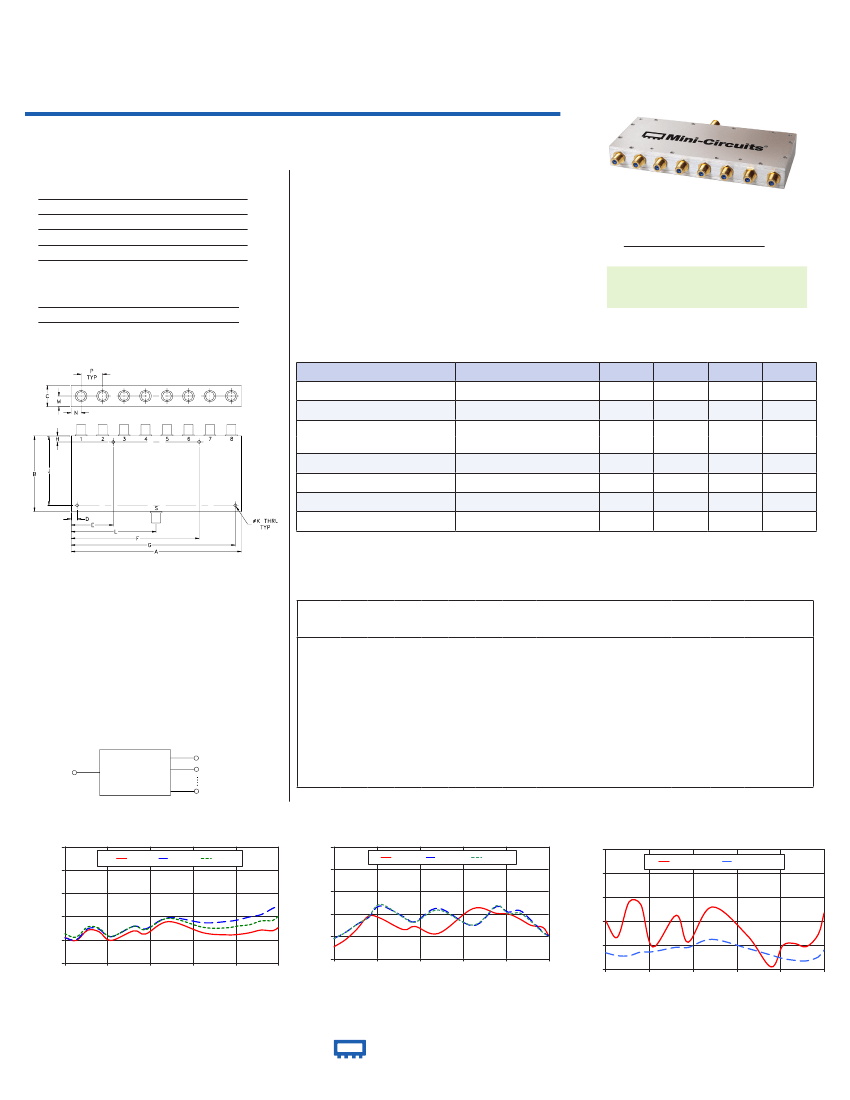

Outline Drawing
Parameter
Frequency Range
Insertion Loss
(Above 9.0 dB)
Isolation
Phase Unbalance
Amplitude Unbalance
VSWR (Port S)
VSWR (Port 1-8)
Electrical Specifications at 25°C
Frequency (MHz)
Min.
600
600 - 2450
600 - 800
800 - 2450
600 - 2450
600 - 2450
600 - 2450
600 - 2450
14
19
0.7
20
27
3
0.3
1.35
1.15
Typ.
Max.
2450
1.5
8
0.7
1.9
1.35
Unit
MHz
dB
dB
Degree
dB
:1
:1
Outline Dimensions (
inch
)
mm
A
B
C
7.06
3.13
.88
179.32 79.50 22.35
J
2.875
73.03
D
E
F
G
.250 1.750 5.310 6.810
6.35 44.45 134.87 172.97
H
.250
6.35
wt
grams
800
Typical Performance Data
Freq.
(MHz)
S-1
600.00
700.00
800.00
900.00
1000.00
1200.00
1300.00
1500.00
1800.00
1900.00
2000.00
2100.00
2200.00
2300.00
2400.00
2450.00
9.44
9.39
9.56
9.54
9.39
9.55
9.50
9.71
9.52
9.50
9.48
9.49
9.52
9.57
9.55
9.61
Total Loss
(dB)
S-2 S-3 S-4
9.46
9.40
9.58
9.56
9.42
9.60
9.55
9.77
9.61
9.64
9.61
9.64
9.64
9.70
9.70
9.80
9.44
9.40
9.59
9.58
9.45
9.63
9.59
9.78
9.69
9.71
9.71
9.74
9.79
9.83
9.94
9.98
9.47
9.43
9.62
9.61
9.47
9.65
9.59
9.81
9.74
9.73
9.73
9.76
9.78
9.79
9.95
10.03
1
S-6
9.47
9.43
9.61
9.60
9.46
9.66
9.57
9.78
9.72
9.75
9.73
9.80
9.82
9.87
9.98
10.11
S-8
9.50
9.44
9.62
9.60
9.45
9.63
9.57
9.77
9.61
9.64
9.60
9.64
9.66
9.72
9.73
9.81
Amp.
Unb.
(dB)
0.07
0.06
0.06
0.07
0.08
0.10
0.09
0.09
0.22
0.25
0.25
0.31
0.30
0.30
0.42
0.50
1-2
16.23
20.06
25.77
32.82
31.70
25.51
27.25
23.45
36.84
45.38
34.24
34.01
31.28
27.76
26.74
22.36
Isolation
(dB)
2-3
3-4
20.72
23.98
28.32
32.01
38.27
32.50
29.72
36.97
27.62
31.17
37.91
34.88
35.84
30.44
24.22
22.22
25.09
27.85
30.76
33.83
36.31
37.84
35.30
32.37
34.06
35.43
39.41
36.19
33.33
30.32
29.60
27.50
6-7
20.65
23.91
28.32
32.33
39.15
32.05
29.46
36.05
27.91
31.71
38.33
34.00
34.48
29.79
23.99
22.04
Phase
Unb.
(deg.)
0.90
1.04
1.30
1.48
1.59
1.84
1.95
2.09
2.60
2.64
2.83
3.06
3.09
3.75
4.41
4.18
VSWR VSWR VSWR
S
1
8
1.41
1.27
1.56
1.54
1.19
1.45
1.22
1.52
1.28
1.25
1.02
1.20
1.21
1.19
1.29
1.47
1.14
1.11
1.11
1.14
1.15
1.18
1.18
1.25
1.17
1.15
1.12
1.09
1.07
1.07
1.10
1.16
1.13
1.10
1.10
1.13
1.14
1.16
1.15
1.21
1.17
1.15
1.11
1.07
1.07
1.07
1.10
1.15
K
L
M
N
P
.144
3.53
.44
.415
.89
3.66 89.66 11.18 10.54 22.61
Electrical Schematic
(DC THROUGH)
PORT 1 RF+DC
PORT S
RF+DC
PORT N RF+DC
PORT 2 RF+DC
1. Total Loss = Insertion Loss + 9.0 dB splitter theoretical loss.
11.0
TOTAL LOSS (dB)
10.6
ZB8PD-242-75-F+
TOTAL LOSS
S-1
S-3
S-8
70
ZB8PD-242-75-F+
ISOLATION
1-2
2-3
6-7
2.0
1.8
ZB8PD-242-75-F+
VSWR
#S-VSWR
#1-VSWR
ISOLATION (dB)
58
46
9.8
9.4
9.0
34
22
10
600
970
1340
1710
2080
2450
600
970
1340
1710
FREQUENCY (MHz)
2080
2450
VSWR
10.2
1.6
1.4
1.2
1.0
FREQUENCY (MHz)
600
970
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
1340
1710
FREQUENCY (MHz)
2080
2450
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
REV. C
M157490
ED-16002/1
ZB8PD-242-75-F+
JC/CP/AM
160802
Page 1 of 1
