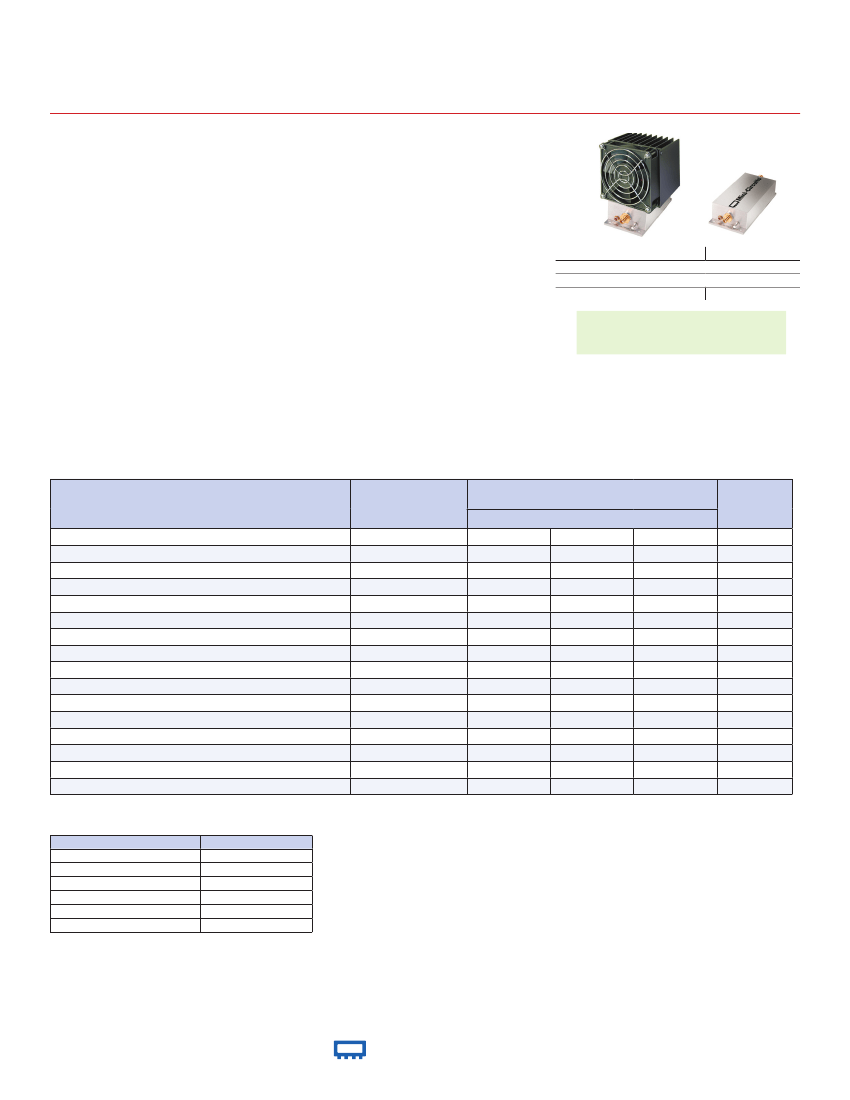

Coaxial, Built-In RF Switch
High Power Amplifier
50Ω
20W
20 to 1000 MHz
Features
• High power, 20 Watt
• Protected against overheat - shuts off automatically at about +100°C
case temperature
• Protected against over voltage - shuts off automatically at about
+29V(excluding fan)
• Excellent gain flatness, ±1.2 dB typ.
• RF built-in switch with TTL/CMOS control
• Class A amplifier
• Protected by US patent 7,348,854
ZHL-20W-13SW+
Model No.
Case Style
Connectors
Price (Qty.)
▲
ZHL-20W-13SW+
ZHL-20W-13SWX+
CP1683
SMA
$1445.00 ea. (1-9)
$1370.00 ea. (1-9)
Applications
• VHF/UHF transmitters
• Defense
• Amateur radio, FM, TV
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications
Product Description
ZHL-20W-13SW+ is a Class-A, high dynamic range, unconditionally stable amplifier with automatic over temperature and over voltage protection.
It features a built-in RF switch with TTL/CMOS control.
Electrical Specifications at 25°C
▲
ZHL-20W-13SW+
ZHL-20W-13SWX+
Parameter
Frequency Range
Gain
Gain Flatness
Output Power at 1dB compression
Output Power at 3 dB compression
Noise Figure
Output third order intercept point
Input VSWR
Output VSWR
DC Supply Voltage
Supply Current
SW Low (V
IL
), RF ON
SW High (V
IH
), RF OFF
SW Current
Rise Time (SW ON to 90% RF)
Fall Time (SW OFF to 10% RF)
* Recommended Operating Voltage.
Condition (MHz)
20 - 1000
20 - 1000
20 - 1000
20 - 1000
20 - 1000
20 - 1000
20 - 1000
20 - 1000
Min.
20
46
—
+39
+40
—
—
—
—
—
—
—
2.7
—
—
—
Typ.
50
Max.
1000
55
±1.8
Units
MHz
dB
dB
dBm
dBm
dB
dBm
:1
:1
V
A
V
V
µA
µsec
µsec
+41
+43
3.5
+50
1.7
2.5
24*
—
—
5.0
5
—
—
—
—
—
—
—
—
—
2.8
0.5
—
—
50
5
▲
Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Base Plate Temperature
DC Voltage
SW Voltage
Input RF Power
1
(no damage)
Ratings
-20°C to 65°C
-55°C to 100°C
85°C
28V
10V
-3 dBm
Heat sink and fan not included. Alternative heat sinking and heat removal must be provided by
the user to limit maximum base-plate temperature to 85°C, in order to ensure proper performance.
For reference, this requires thermal resistance of user’s external heat sink to be 0.3°C/W max.
Permanent damage may occur if any of these limits are exceeded.
1. At nominal output load, 24V nominal supply voltage. Amplifier can withstand
a full mismatch (short or open) across all phases at the RF output for peak
envelope power (PEP) not exceeding the output power at 1 dB compression (or
+41dBm typ. at output) [Refer to application note AN-60-037 for PEP calculation].
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
REV. OR
M136431
ZHL-20W-13SW+
ED-13572/6
MM/CP/AM
120914
Page 2 of 4
ZHL-20W-13SW+

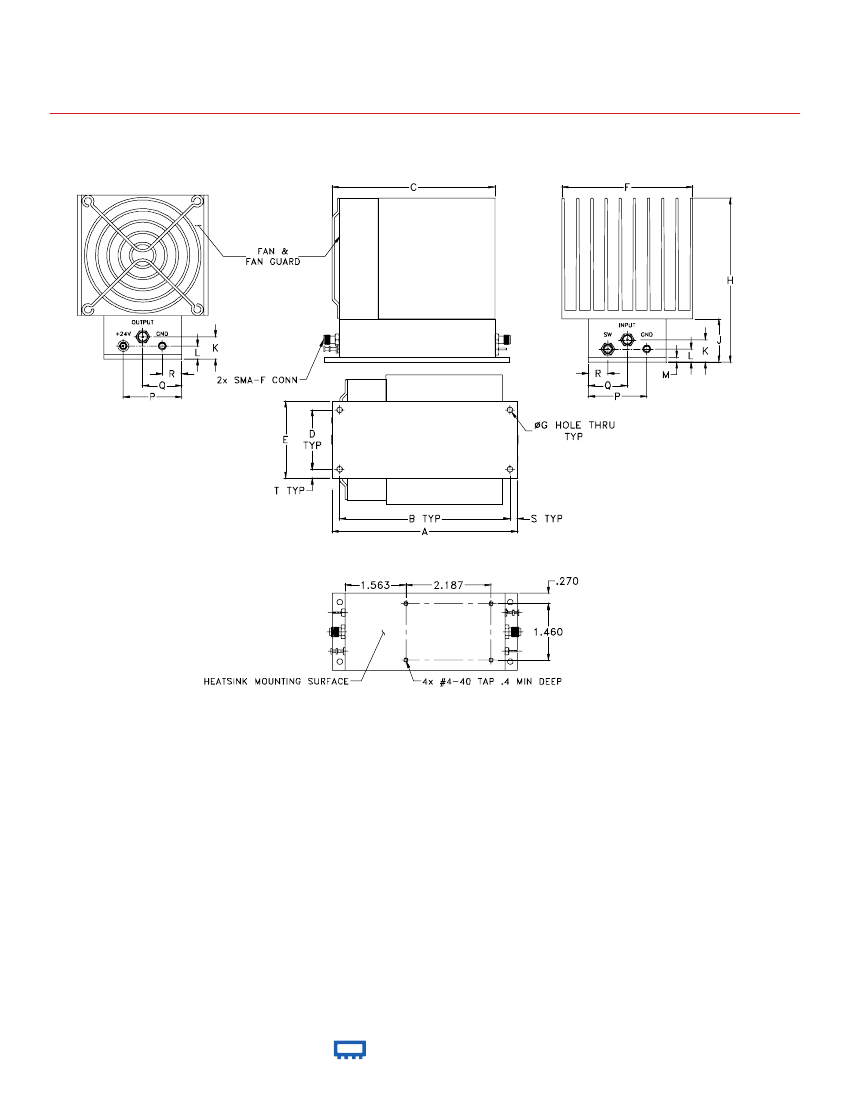

Outline Drawing for models with heatsink
Outline Drawing for models without heatsink
Outline Dimensions (
inch
)
mm
A
B
C
4.75 4.375
4.18
120.65 111.13 106.17
D
1.540
39.12
E
2.00
50.80
F
3.36
85.34
G
H
.144
4.25
3.66 107.95
J
1.12
28.45
K
0.58
14.73
L
0.34
8.636
M
.13
3.30
P
1.50
38.10
Q
1.00
25.40
R
S
T
wt
.50
.19
.23 grams*
12.70
4.83
5.84
750
*290 grams without heatsink
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
Page 3 of 4
Typical Performance Data/Curves
ZHL-20W-13SW+
FREQUENCY
(MHz)
GAIN
(dB)
SW Low or Open
ON
SW High
OFF
-20.25
-16.58
-10.82
-8.63
-6.18
-4.97
-3.82
-3.39
-2.83
-2.34
-1.13
0.03
2.06
3.33
4.21
4.13
3.93
4.18
5.44
6.55
6.87
VSWR
(:1)
NOISE
FIGURE
(dB)
OUT
1.06
1.15
1.42
1.50
1.41
1.29
1.51
1.89
2.61
3.09
3.59
3.75
3.66
3.49
3.39
3.47
3.57
3.52
3.37
3.21
2.78
POUT at
1 dB COMPR.
(dBm)
24V
41.42
41.88
42.35
42.48
42.40
42.42
42.35
41.83
41.28
41.25
41.18
41.12
40.88
41.07
41.59
41.75
41.88
41.94
41.80
41.84
40.96
IP3
(dBm)
IN
1.39
1.40
1.37
1.34
1.28
1.26
1.29
1.34
1.40
1.41
1.37
1.32
1.18
1.07
1.09
1.16
1.20
1.19
1.15
1.11
1.09
24V
3.90
3.76
3.64
3.65
3.69
3.75
3.78
3.84
3.85
3.81
3.85
3.85
3.89
3.86
3.81
3.85
3.84
3.82
3.80
3.88
3.89
24V
53.41
57.17
56.07
55.19
53.84
52.46
52.10
51.92
51.59
52.00
52.60
51.63
50.91
50.19
49.83
49.60
50.23
50.44
50.84
50.17
50.28
20.00
50.00
100.00
150.00
200.00
250.00
300.00
350.00
400.00
450.00
500.00
550.00
600.00
650.00
700.00
750.00
800.00
850.00
900.00
950.00
1000.00
49.96
49.84
50.04
50.35
50.83
51.02
50.82
50.41
49.76
49.48
49.52
49.91
50.92
51.69
51.98
51.57
50.64
50.31
50.55
51.01
50.52
70
50
GAIN (dB)
at 24V
ZHL-20W-13SW+
GAIN
5.0
4.0
at 24V
IN
ZHL-20W-13SW+
VSWR
OUTPUT POWER (dBm)
44
43
42
41
40
39
0
ZHL-20W-13SW+
OUTPUT POWER at 1dB COMPRESSION
at 24V
OUT
ON
OFF
VSWR
30
10
-10
-30
0
200
3.0
2.0
1.0
400
600
800
1000
0
200
400
600
800
1000
200
400
600
800
1000
FREQUENCY (MHz)
FREQUENCY (MHz)
FREQUENCY (MHz)
4.0
NOISE FIGURE (dB)
at 24V
ZHL-20W-13SW+
NOISE FIGURE
80
at 24V
ZHL-20W-13SW+
IP3
3.8
3.7
3.6
0
200
400
600
800
1000
FREQUENCY (MHz)
IP3 (dBm)
3.9
60
40
20
0
200
400
600
800
1000
FREQUENCY (MHz)
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
