ZMY-3

Description
Double Balanced Mixer, 0.07MHz Min, 200MHz Max, 8dB Conversion Loss-Max, CASE M21
CategoryWireless rf/communication    Radio frequency and microwave
File Size184KB,2 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric Compare View All

ZMY-3 Overview

Double Balanced Mixer, 0.07MHz Min, 200MHz Max, 8dB Conversion Loss-Max, CASE M21

ZMY-3 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSMA, HIGH ISOLATION
structureCOAXIAL
Maximum frequency conversion loss8 dB
Maximum input power (CW)25.44 dBm
JESD-609 codee0
Maximum operating frequency200 MHz
Minimum operating frequency0.07 MHz
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesDOUBLE BALANCED
Terminal surfaceTin/Lead (Sn/Pb)
Maximum voltage standing wave ratio2.42

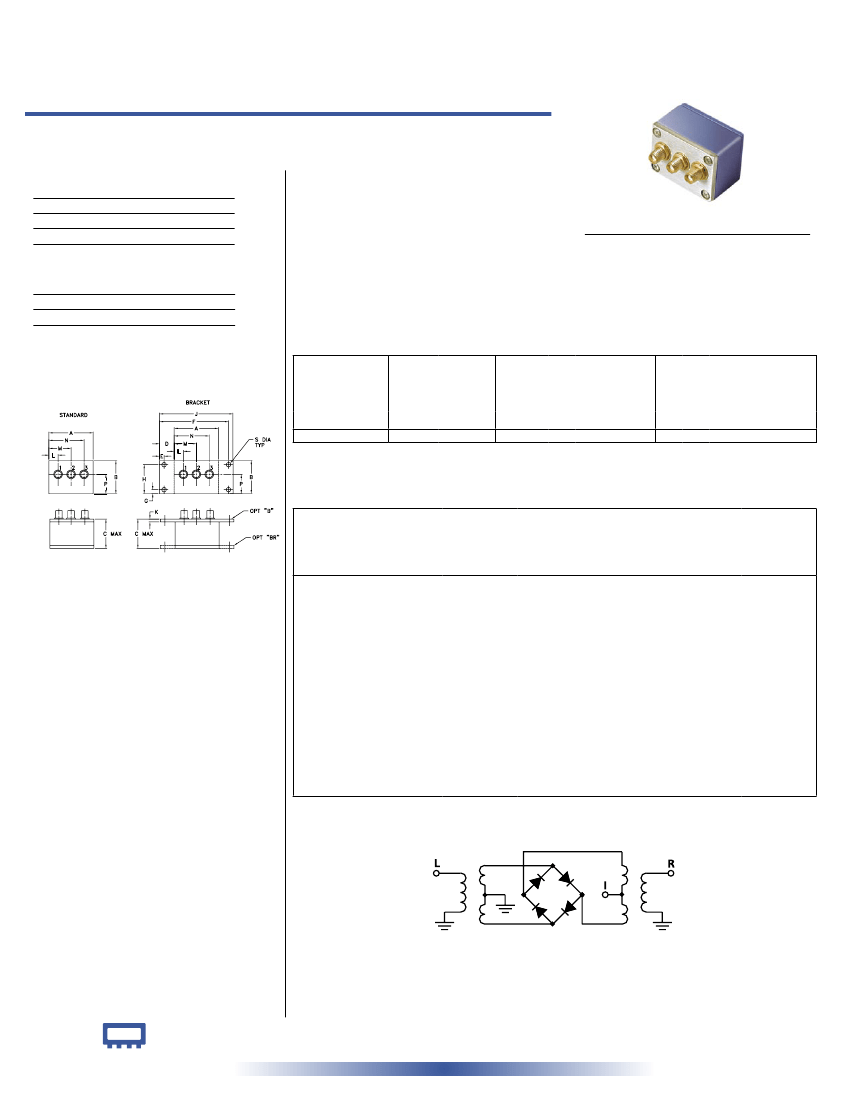

Frequency Mixer
Level 23 (LO Power +23 dBm) 0.07 to 200 MHz
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power
IF Current
-55°C to 100°C
-55°C to 100°C
350mW
40mA
Coaxial
ZMY-3
Features
• low conversion loss, 5.53 dB typ.
• high L-R & L-I isolation, 40 typ.
• rugged shielded case
CASE STYLE: M21
Connectors Model
SMA
ZMY-3
BRACKET (OPTION “B”)
BRACKET (OPTION “BR”)
Price
$69.95
$5.00
$1.50
Qty.
(1-9)
(1+)
(1+)
Coaxial Connections
LO
RF
IF
1
3
2
Applications
• VHF
• instrumentation
• FM radio
Electrical Specifications
Outline Drawing
FREQUENCY
(MHz)
LO/RF
f
L
-f
U
0.07-200
DC-200
1 dB COMP.: +15 dBm typ.
IF
X
5.53
CONVERSION LOSS
(dB)
Mid-Band
m
σ
0.08
Total
Range
Max. Max.
7.5
8.0
L
Typ.
55
LO-RF ISOLATION
(dB)
M
Min.
45
Typ.
40
Min.
30
Typ.
30
U
Min.
25
Typ.
55
L
LO-IF ISOLATION
(dB)
M
Min.
45
Typ.
40
Min.
30
Typ.
30
U
Min.
20
L = low range [f
L
to 10 f
L
]
m= mid band [2f
L
to f
U
/2]
M = mid range [10 f
L
to f
U
/2]
U = upper range [f
U
/2 to f
U
]

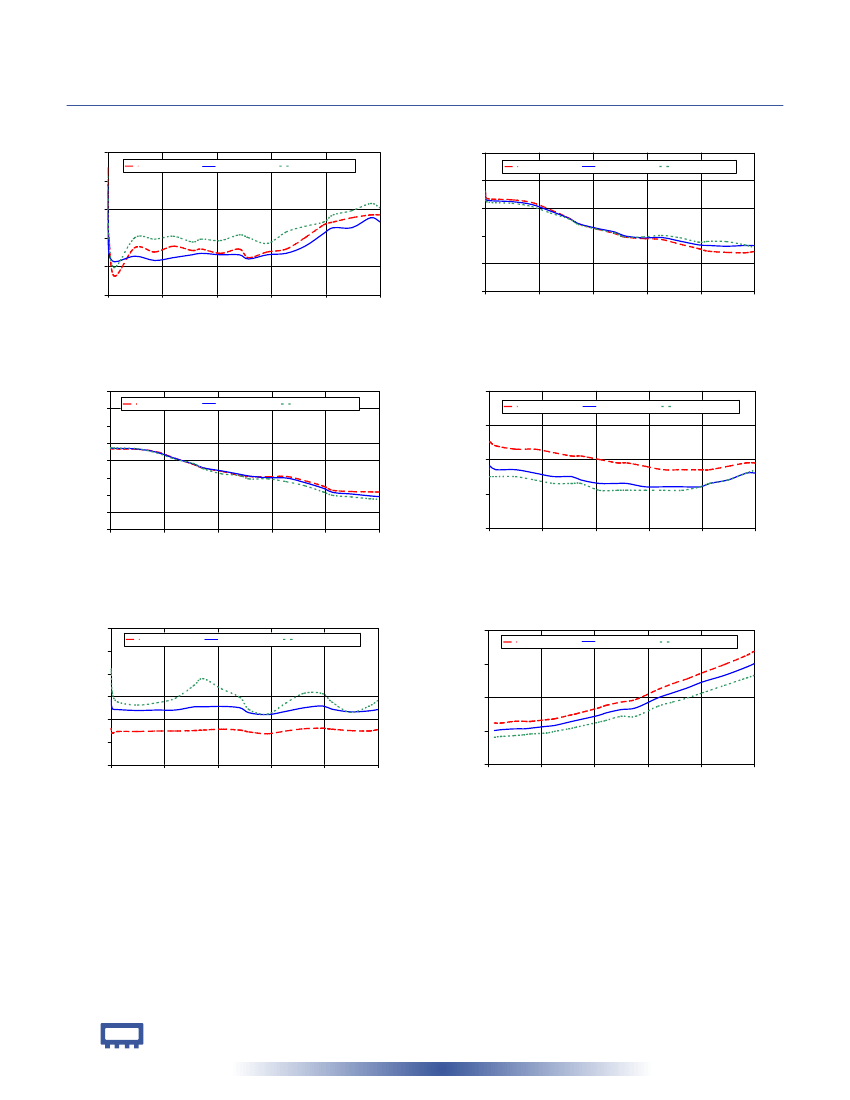

Typical Performance Data
Frequency
(MHz)
Conversion
Loss
(dB)
LO
30.07
30.20
31.00
35.00
50.00
64.54
78.33
92.12
99.01
52.80
66.59
73.48
87.27
101.06
114.85
128.63
135.53
149.32
163.10
170.00
LO
+23dBm
5.77
5.58
5.29
5.23
5.27
5.24
5.26
5.28
5.29
5.28
5.28
5.25
5.28
5.29
5.34
5.43
5.47
5.47
5.54
5.51
Isolation
L-R
(dB)
LO
+23dBm
55.55
53.15
52.74
52.57
52.28
51.27
48.91
46.28
44.38
42.67
41.29
39.95
39.22
39.37
38.04
36.70
36.49
36.22
36.47
36.43
Isolation
L-I
(dB)
LO
+23dBm
56.68
57.09
57.07
56.88
56.59
54.69
51.06
47.85
45.65
43.88
41.90
40.89
39.90
39.78
37.10
33.79
31.41
30.50
29.43
29.00
VSWR RF
Port
(:1)
LO
+23dBm
1.17
1.18
1.18
1.17
1.17
1.16
1.15
1.15
1.14
1.13
1.13
1.13
1.12
1.12
1.12
1.12
1.13
1.14
1.16
1.16
VSWR LO
Port
(:1)
LO
+23dBm
2.42
2.40
2.23
2.21
2.19
2.20
2.20
2.27
2.27
2.28
2.25
2.14
2.10
2.17
2.25
2.29
2.22
2.16
2.18
2.21
RF
0.07
0.20
1.00
5.00
20.00
Outline Dimensions (
inch
)
mm
A
1.50
38.10
J
2.50
63.50
B
1.13
28.70
K
.10
2.54
C
1.00
25.40
L
.31
7.87
D
.50
12.70
M
.75
19.05
E
.155
3.94
N
1.19
30.23
F
2.345
59.56
P
.66
16.76
G
.138
3.51
H
.987
25.07
34.54
48.33
62.12
69.01
82.80
96.59
103.48
117.27
131.06
144.85
158.63
165.53
179.32
193.10
200.00
S
wt
.150 grams
3.81
40.0
Electrical Schematic
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
Mini-Circuits
ISO 9001 & ISO 14001
Certified
REV. OR
M92965
ZMY-3
DJ/TD/CP
060717
Page 1 of 2
