Slew-Rate Controlled Output Buffer
BU8SRC
DATA SHEET
Process
C35 (0.35µ m)
Description
The BU8SRC is a Slew-Rate Controlled (SRC) pad-limited output
buffer with 8mA drive strength. It offers significant reductions of
the conducted and radiated electromagnetic emissions of
integrated circuits. With the two Slew-Rate Control Input Pins
(St0 and St1) the slew-rate of the output signal can be adjusted
in four different values:
St0 = St1 = 0
=> slew-rate 1 (highest)
St0 = 1 / St1 = 0 => slew-rate 2
St0 = 0 / St1 = 1 => slew-rate 3
St0 = St1 = 1
=> slew-rate 4 (lowest)

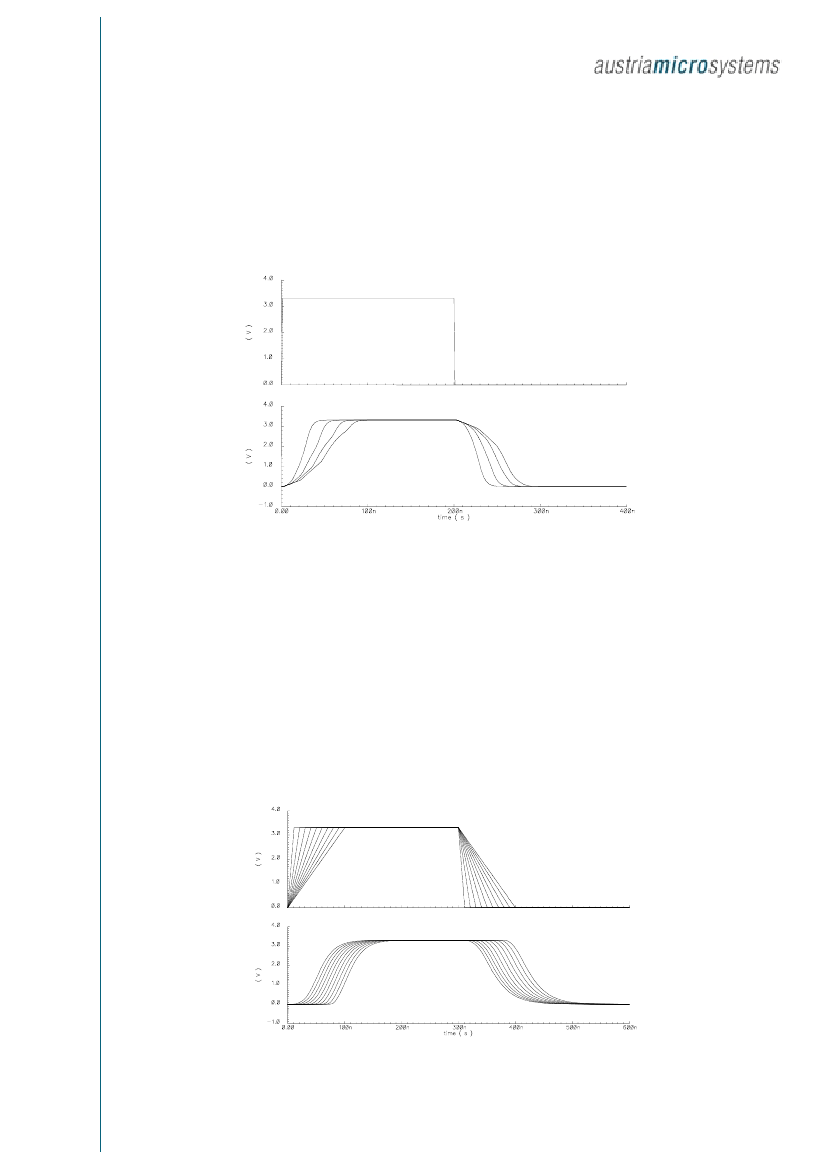

The slew-rate can be set to a fixed value, or it can be varied
during the operation by simply changing the values of the two
Slew-Rate Control Input Pins. In addition to the BU8SRC output
buffer with selectable slew rates there are also four versions
available with fixed slew rates (BU8SRC_00, BU8SRC_01,
BU8SRC_10, and BU8SRC_11).
Using these output buffers the ground bounce amplitude as well
as the ringing of the output signal can be reduced significantly.
They should be used in designs where the reduction of the
electromagnetic emission as well as the signal integrity of
integrated circuits is of interest.
Key Features
Œ
Œ
Œ
Œ
Œ
Œ
Œ
Œ
Œ
Œ
Œ
Œ
Pad-limited 52.762 mil² / 34040 µ m²
EMC optimized Output Buffer
Selectable slew-rate (four slew-rates possible)
Ability of changing the slew-rate during operation of the
integrated circuit
No crowbar current of the output transistors
Optimized di/dt for low radiated and conducted
electromagnetic emissions
Distributed and weighted technique
Over- and undershoot (ringing) reduction
Reduction of the high frequency spectral content
Selected slew-rate is independent of the slew-rate of the
input signal
Dynamic switching current optimized
Available in C35B3 (3 metal) and C35B4 (4 metal)
Pinlist
Pin
A
PAD
St0
St1
Description
Input
Output
Slew-Rate Control Input
Slew-Rate Control Input
Typ
DIN
DOUT
DIN
DIN
0.005pF
0.005pF
Cap
0.037pF
Symbol
Revision A, 03.12.03
Page 1 of 5
