STSW-RFSOL001
STWPLLSIM_v5.2 simulation tool for STW81200/STuW81300
Data brief
Features
•
Embedded model of the PLL synthesizer
integrated in the STW81200 product (46.875-
6000 MHz Wideband RF Fractional/Integer
Synthesizer) and in the new STuW81300
(1.925-16GHz Wideband RF/Microwave
Fractional/Integer Synthesizer.
•
The environment for design and simulation
using STW8110x family product is also
included
.
Description

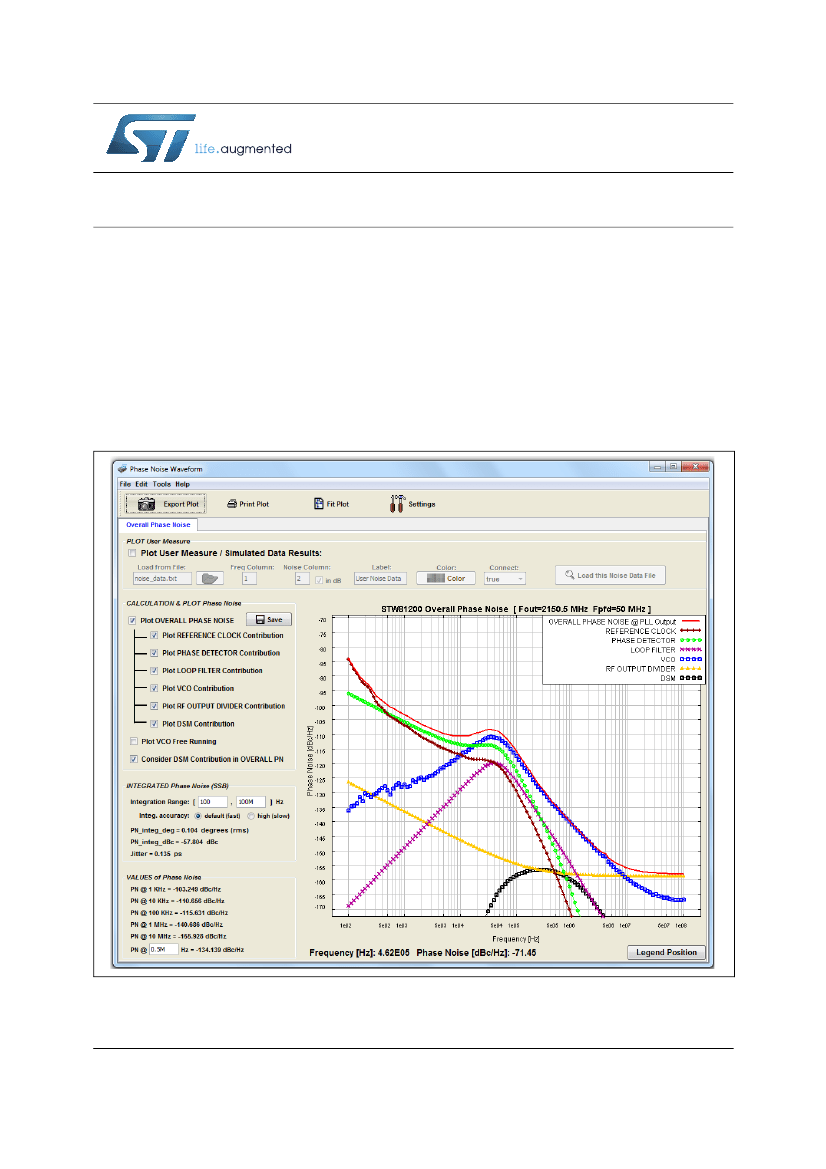

STWPLLSim software (STSW-RFSOL001) is a
powerful tool developed to allow the end-user of
ST PLL Synthesizer products to optimize the PLL
design and accurately simulate both phase-noise
and transient performance.
