MASWSS0060
GaAs SP3T 2.7 V CDMA-GPS Switch
DC - 2.5 GHz
Features
•
•
•
•
•
•
Balanced (symmetrical) RF Ports
Low Cross Modulation
Low Insertion Loss: 0.55 dB at 1 GHz
High Isolation: 21 dB at 2 GHz
Miniature Package: 3 mm 12-Lead PQFN
0.5 micron GaAs PHEMT Process
Rev. V4
Functional Schematic
Pin 12
100 pF
GND
ANT
Pin 1
V1
GND
V3
Description
M/A-COM’s MASWSS0060 is an industry leading
GaAs PHEMT MMIC single pole three throw (SP3T)
CDMA-GPS switch in a low cost 3 mm 12-lead
PQFN package. The MASWSS0060 is uniquely
configured to enable switching from a common an-
tenna port to CDMA cellular, CDMA PCS, or GPS
ports.
The design is symmetric and has been fully opti-
mized for excellent cross modulation performance in
all three paths while still maintaining excellent inser-
tion loss and isolation. Note that since the design is
symmetric, the user can assign CDMA cellular,
CDMA PCS and GPS to ports RF1, RF2 or RF3 at
his or her discretion.
The MASWSS0060 is fabricated using a 0.5 micron
gate length GaAs PHEMT process. The process
features full passivation for performance and reliabil-
ity.
RF1
RF3
100 pF
100 pF
GND
GND
GND
RF2
Pin Configuration
Pin No.
1
2
3
4
5
Function
V1
RF1
GND
GND
RF2
V2
GND
RF3
V3
GND
ANT
GND
GND (paddle)
100 pF
V2
Description
Control 1
RF Port 1
Ground
Ground
RF Port 2
Control 2
RF Ground
RF Port 3
Control 3
RF Ground
Antenna Port
RF Ground
RF Ground
Ordering Information
1
Part Number
MASWSS0060TR
MASWSS0060TR-3000
MASWSS0060SMB
6
Package
1000 piece reel
3000 piece reel
Sample on Evaluation Board
7
8
9
10
11
12
13
1. Reference Application Note M513 for reel size information.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0060
GaAs SP3T 2.7 V CDMA-GPS Switch
DC - 2.5 GHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50
Ω
2
Parameter
Insertion Loss
3
(All Paths)
Isolation
Rev. V4
Test Conditions
1.0 GHz
1.5 GHz
2.0 GHz
DC - 1.0 GHz
1.0 - 2.0 GHz
2.0 - 2.5 GHz
DC - 2.5 GHz
Two Tone, +22 dBm/tone, 1 MHz Spacing, 820 MHz
Two Tone, +22 dBm/tone, 1 MHz Spacing, 1880 MHz
For Cell Band: Two-tone signal input:
Tx1 = +22 dBm @ 820 MHz, Tx2 = +22 dBm @ 821 MHz,
RX interfere = -23 dBm @ 869 MHz
For PCS Band: Two-tone signal input:
Tx1 = +18 dBm @ 1880 MHz, Tx2 = +18 dBm @ 1881 MHz,
RX interfere = -23 dBm @ 1960 MHz
Units
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
Min.
—
—
—
23
18
16
—
—
—
—
Typ.
0.55
0.60
0.70
27
21
20
20
62
61
-101
Max.
0.70
0.75
0.90
—
—
—
—
—
—
—
Return Loss
(All RF ports)
IP3
Cross Modulation
dBm
dBm
µS
µS
mV
µA
—
—
—
—
—
—
-102
36
0.06
0.09
70
—
—
—
—
—
—
30
P.1dB
Trise, Tfall
Ton, Toff
Transients
Control Current
Vc = 0 V/2.7 V, 1 GHz
10% to 90% RF, 90% to 10% RF, 900 MHz
50% control to 90% RF, and 50% control to 10% RF, 900 MHz
In Band
Vc = 0 V/2.7 V
2. External DC blocking capacitors are required on all RF ports.
3. Insertion Loss can be optimized by varying the DC blocking capacitor value, e.g. 1000 pF for 100 MHz - 500 MHz, 100 pF for 0.5 - 2.5
GHz.
Absolute Maximum Ratings
4,5
Parameter
Input Power
(0.5 - 2.5 GHz, 2.7 V Control)
Control Voltage
Operating Temperature
Storage Temperature
Truth Table
6,7
V1
1
0
Absolute Maximum
+36 dBm
±8.5 volts
-40
°
C to +85
°
C
-65
°
C to +150
°
C
V2
0
1
0
V3
0
0
1
ANT-RF1 ANT-RF2 ANT-RF3
On
Off
Off
Off
On
Off
Off
Off
On
0
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. M/A-COM does not recommend sustained operation near
these survivability limits.
6. Differential voltage, V (state 1) -V (state 0) must be 2.6 V
minimum and must not exceed 8.5 V.
7. 0 = -5 V to 2.4 V, 1 = -2.4 V to 5 V.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0060
GaAs SP3T 2.7 V CDMA-GPS Switch
DC - 2.5 GHz

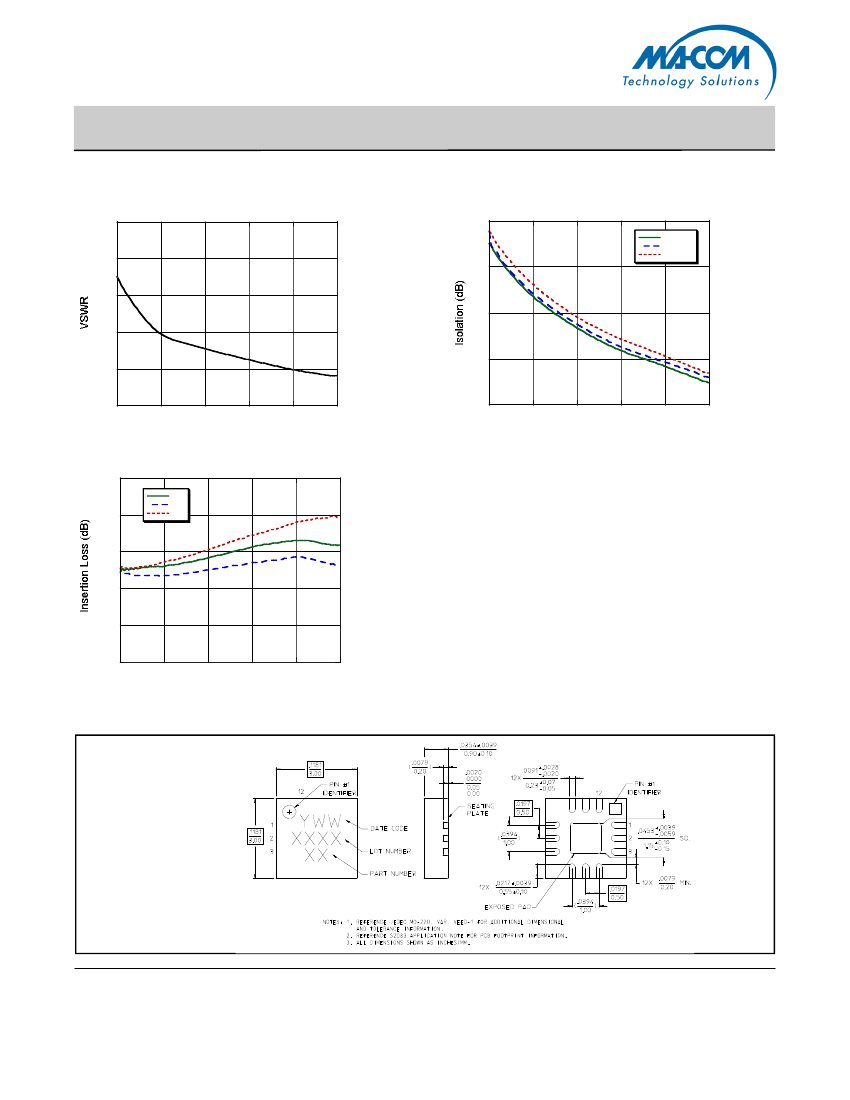

Typical Performance Curves @ +25°C
VSWR
1.5
Rev. V4
Isolation
35
RF1-RF2
RF2-RF1
RF3-RF2
1.4
30
1.3
25
1.2
20
1.1
1.0
0.5
1.0
1.5
2.0
2.5
3.0
15
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
Frequency (GHz)
Insertion Loss
1.0
RF1
RF2
RF3
Qualification
Qualified to M/A-COM specification REL-201,
Process Flow –2.
0.8
Handling Procedures
0.6
Please observe the following precautions to avoid
damage:
0.4
Static Sensitivity
0.2
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
3 mm 12-Lead PQFN
