EPM7128AETI144-6 datasheet, PDF

EPM7128AETI144-6: DescriptionEE PLD, 6ns, 128-Cell, CMOS, PQFP144, TQFP-144; CategoryProgrammable logic devices Programmable logic; File Size1MB，66 Pages; ManufacturerAltera (Intel)

Download Datasheet Parametric View All

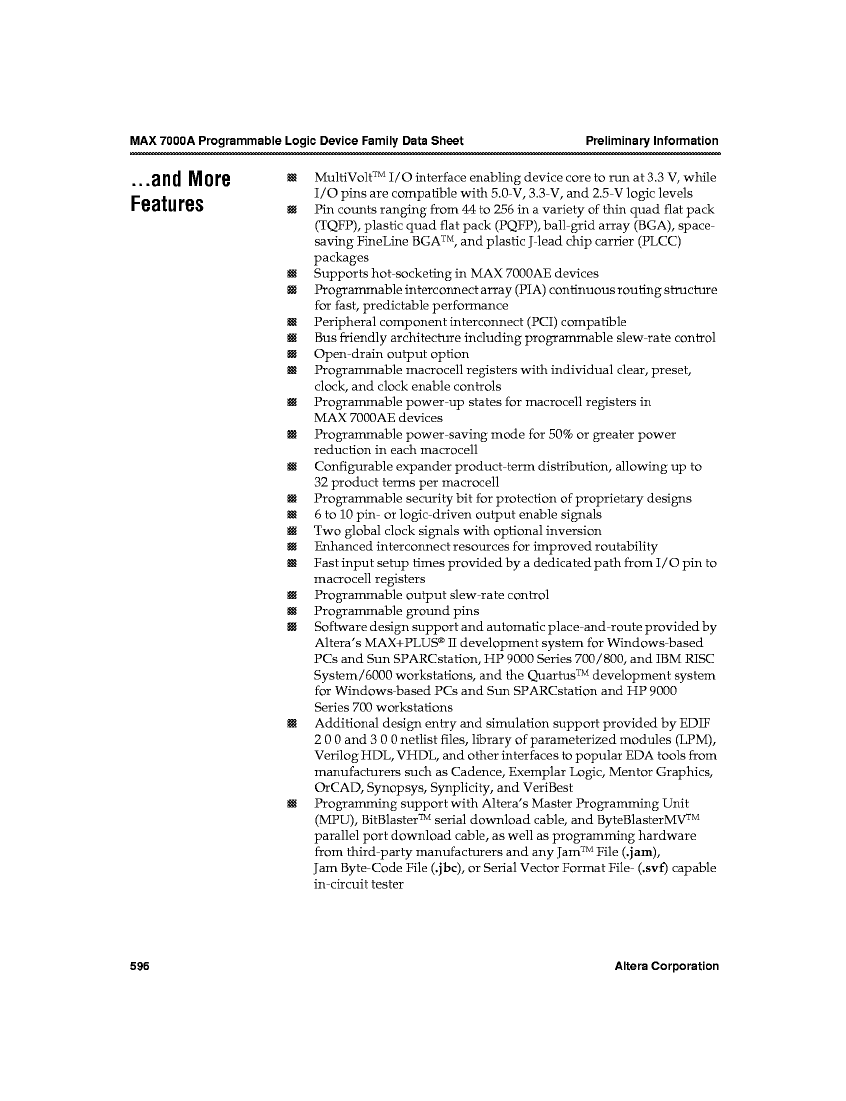

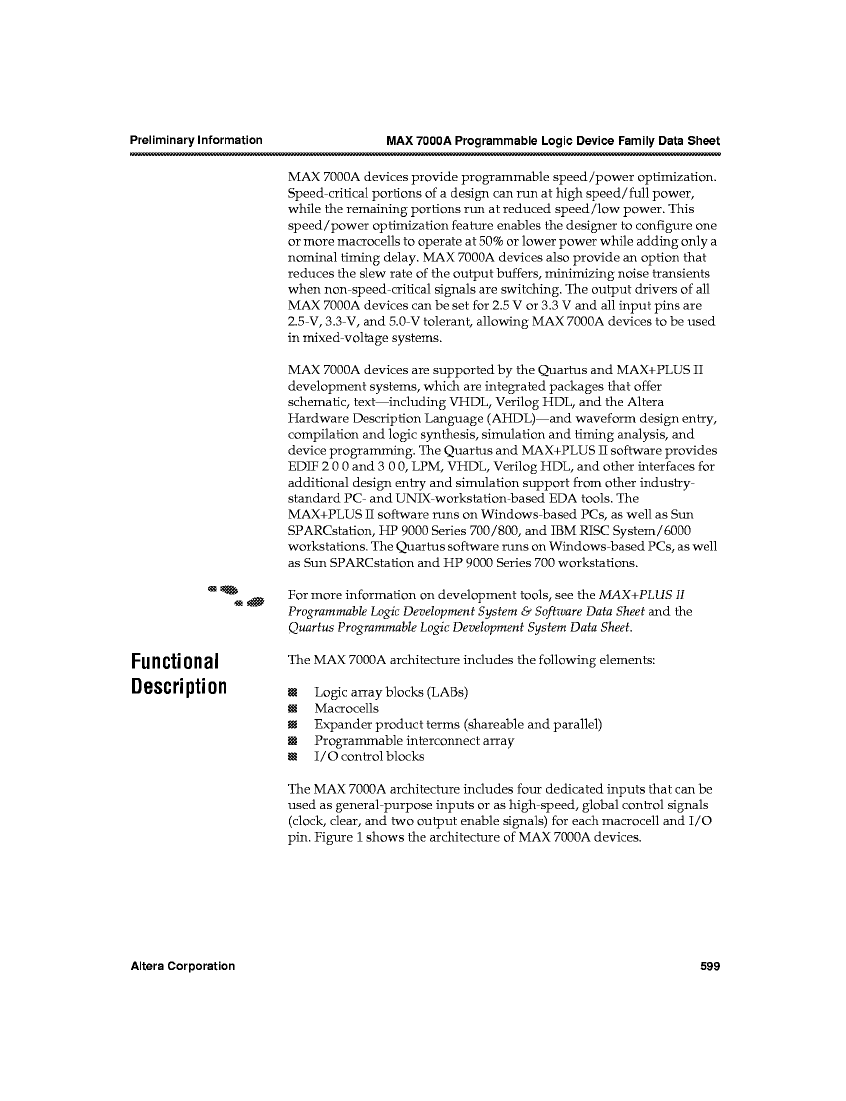

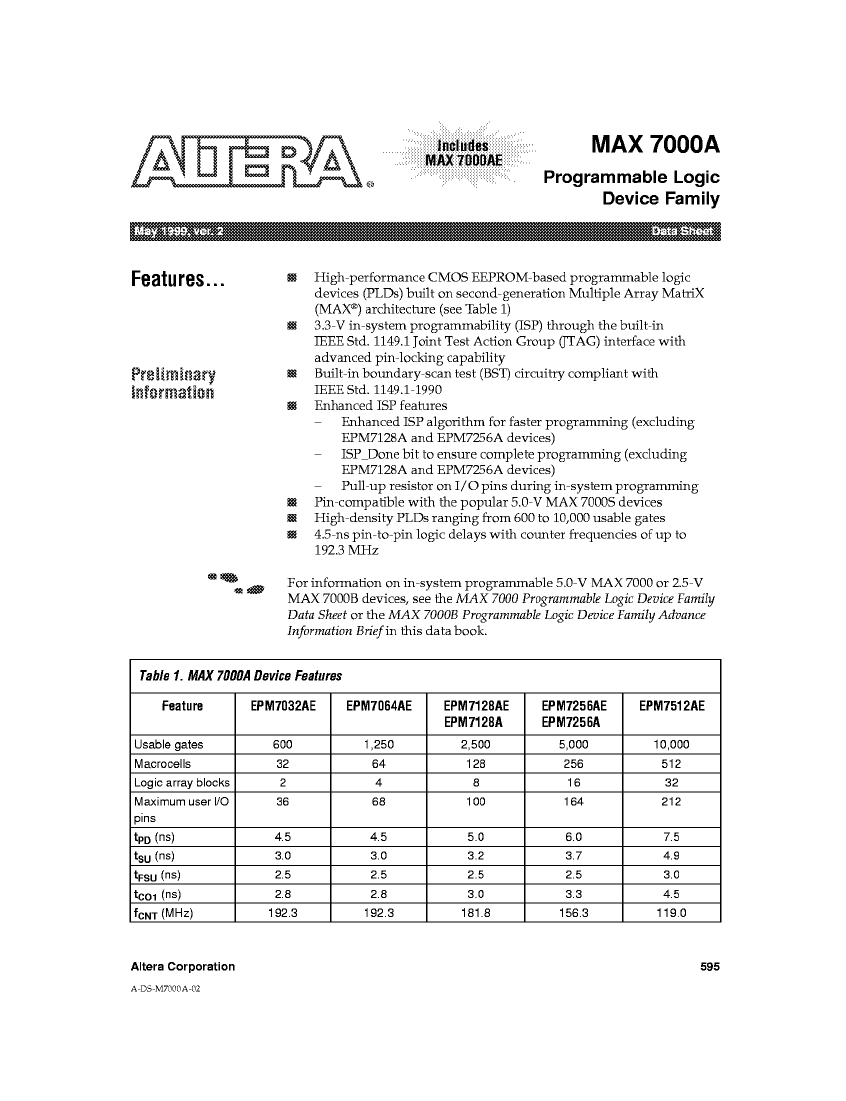

EPM7128AETI144-6 Overview

EE PLD, 6ns, 128-Cell, CMOS, PQFP144, TQFP-144

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Altera (Intel)
Parts packaging code	QFP
package instruction	LFQFP, QFP144,.63SQ,20
Contacts	144
Reach Compliance Code	compliant
Is Samacsys	N
Other features	YES
maximum clock frequency	166.7 MHz
In-system programmable	YES
JESD-30 code	S-PQFP-G144
JESD-609 code	e0
JTAG BST	YES
length	20 mm
Humidity sensitivity level	3
Dedicated input times

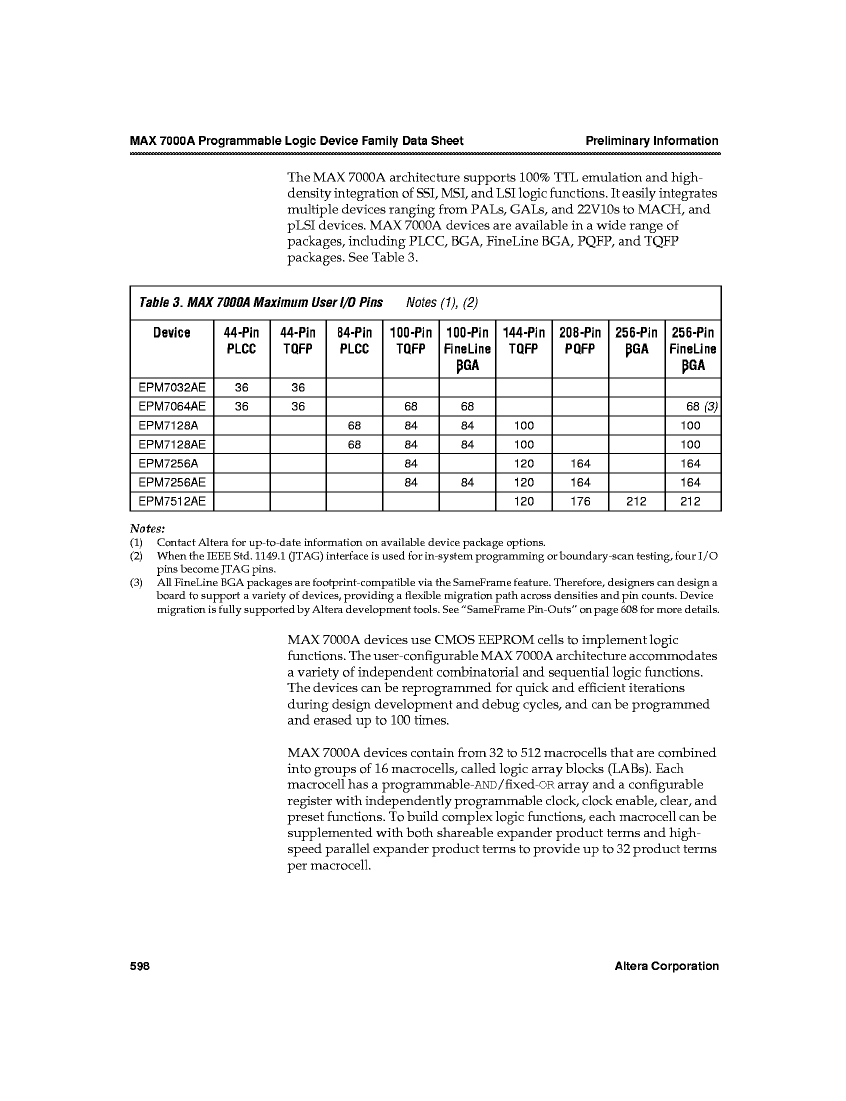

Number of I/O lines	100
Number of macro cells	128
Number of terminals	144
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	0 DEDICATED INPUTS, 100 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP144,.63SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
power supply	2.5/3.3,3.3 V
Programmable logic type	EE PLD

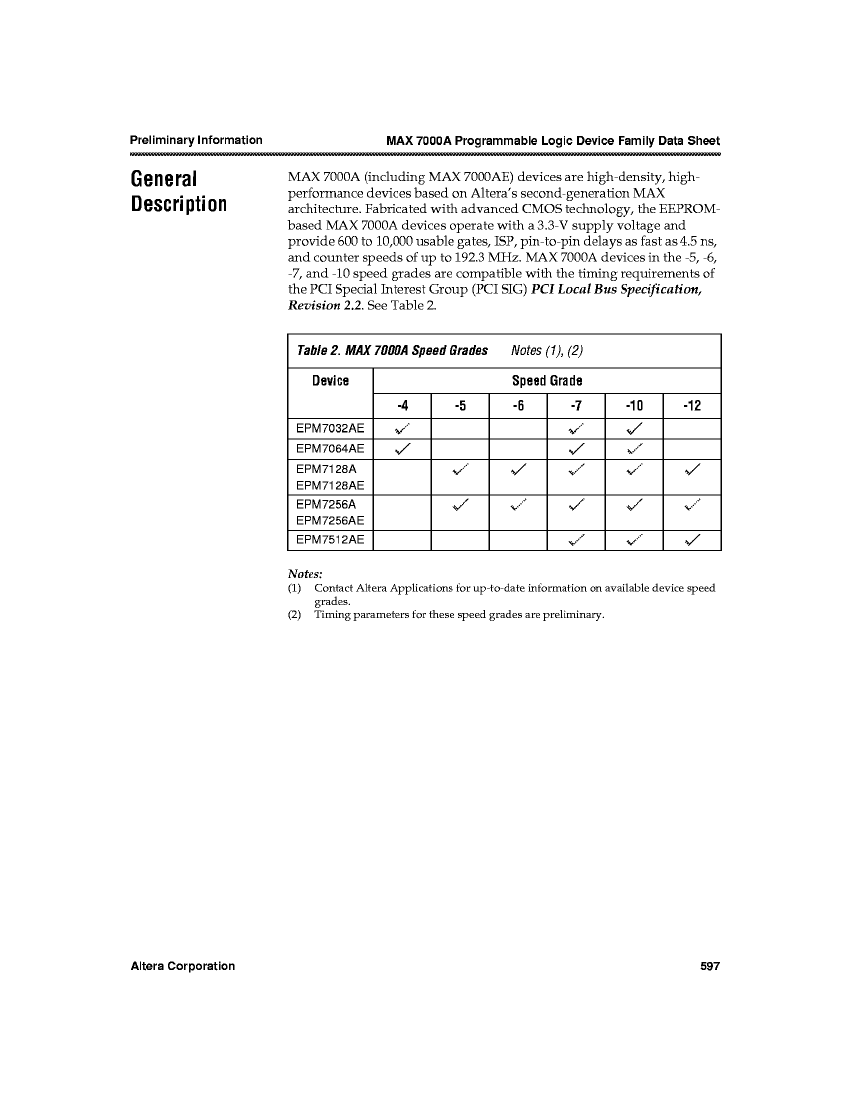

propagation delay	6 ns
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	20 mm
Base Number Matches	1
