PSD512B1-15UI datasheet, PDF - EEWORLD Datasheet

PSD512B1-15UI: DescriptionMultifunction Peripheral, CMOS, PQFP80,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，130 Pages; ManufacturerWaferscale Integration Inc.

Download Datasheet Parametric View All

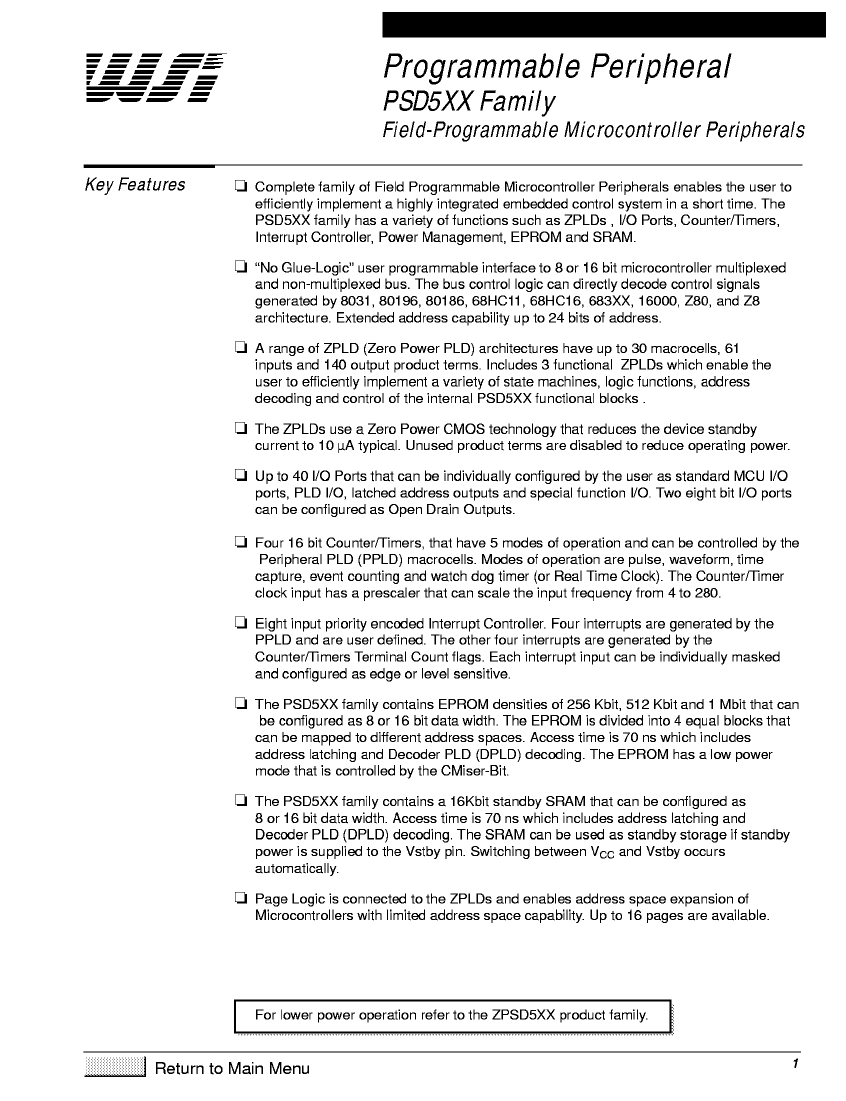

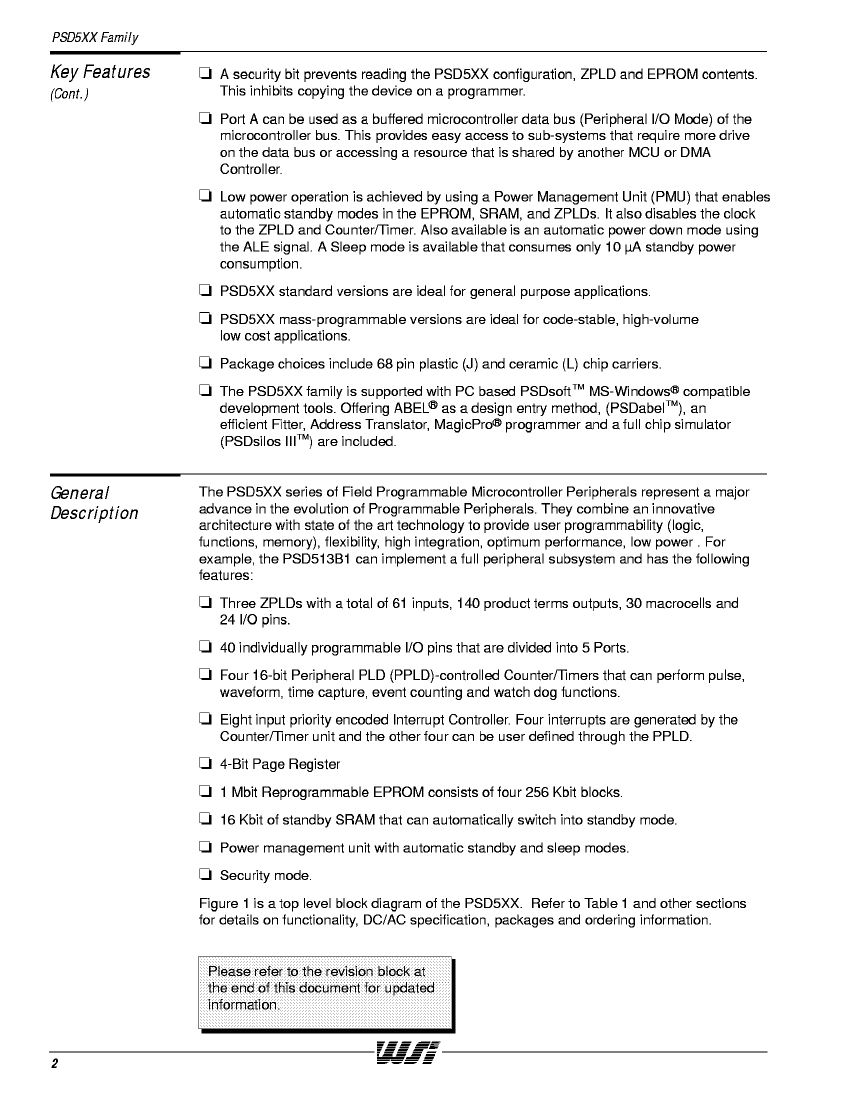

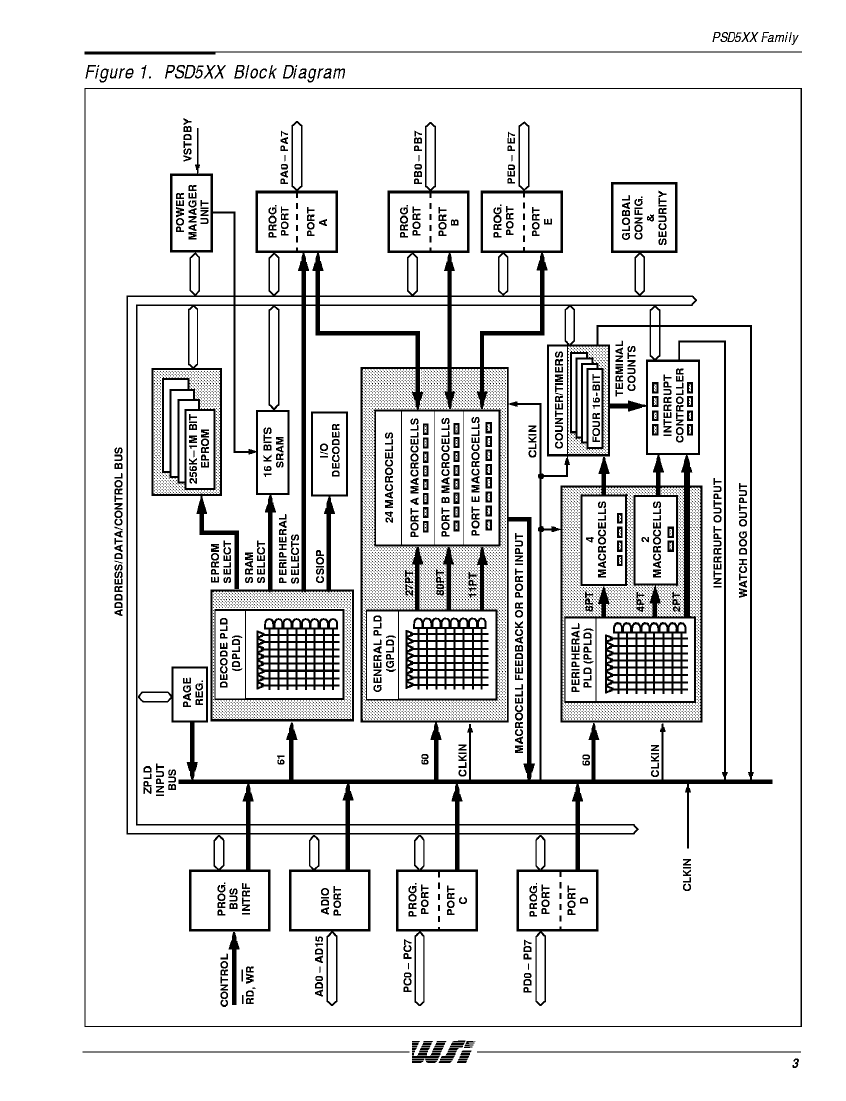

PSD512B1-15UI Overview

Multifunction Peripheral, CMOS, PQFP80,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Waferscale Integration Inc.
Reach Compliance Code	unknown
Is Samacsys	N
Maximum access time	1.5e-7 ns

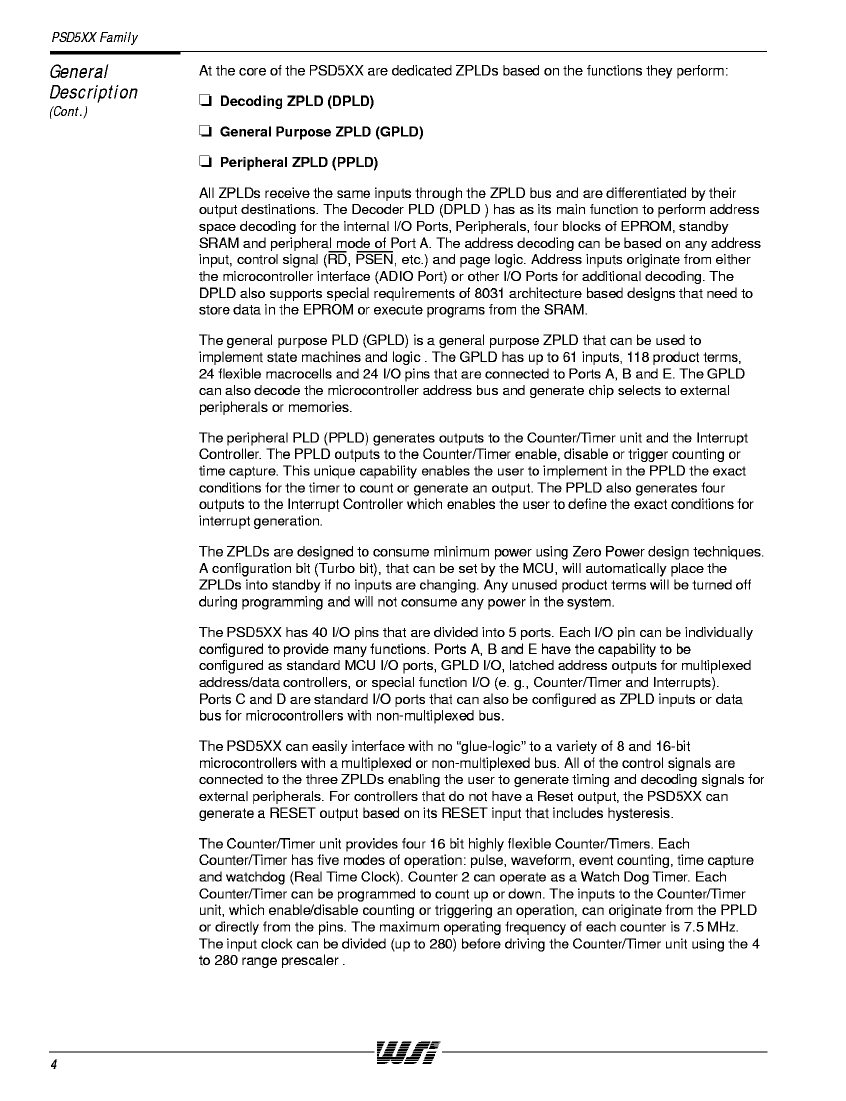

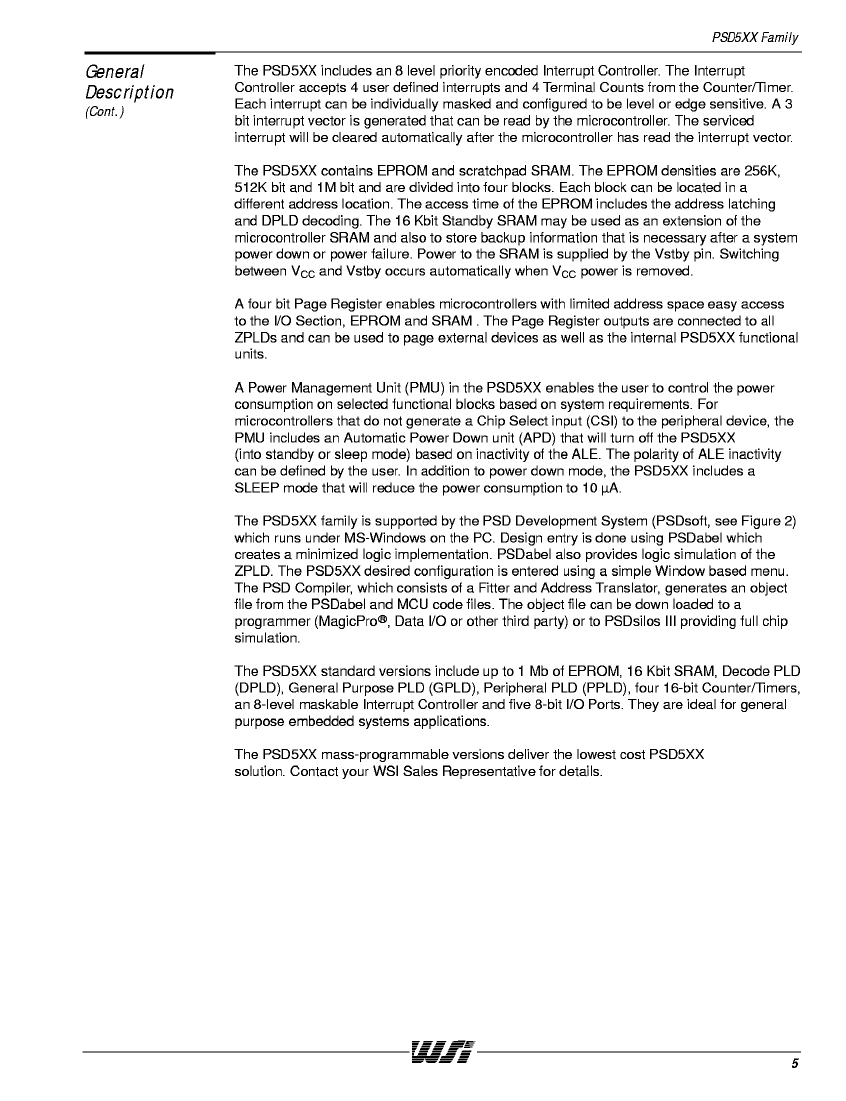

Other features	64K X 8 REPROGRAMMABLE EPROM; GENERAL PURPOSE ZPLD, DECODING ZPLD & PERIPHERAL ZPLD
Address bus width	16
boundary scan	NO
Bus compatibility	8031; 80196; 80196SP; 80186; 68HC11; 68HC16; 68330; 68331; 68340; 68302; 16000; Z80; Z8
maximum clock frequency	34.48 MHz
External data bus width	8
JESD-30 code	S-PQFP-G80
JESD-609 code	e0
Number of I/O lines	40
Number of serial I/Os
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP80,.64SQ
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	2000
ROM size (bits)	512 Bits
Maximum standby current	0.00002 A
Maximum slew rate	40 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
UV erasable	N
Base Number Matches	1
