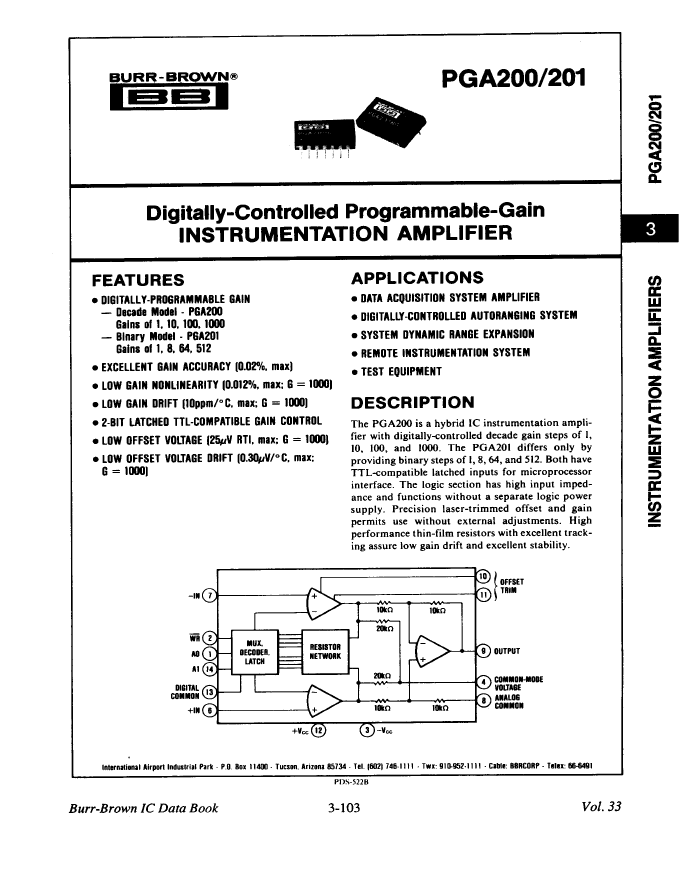

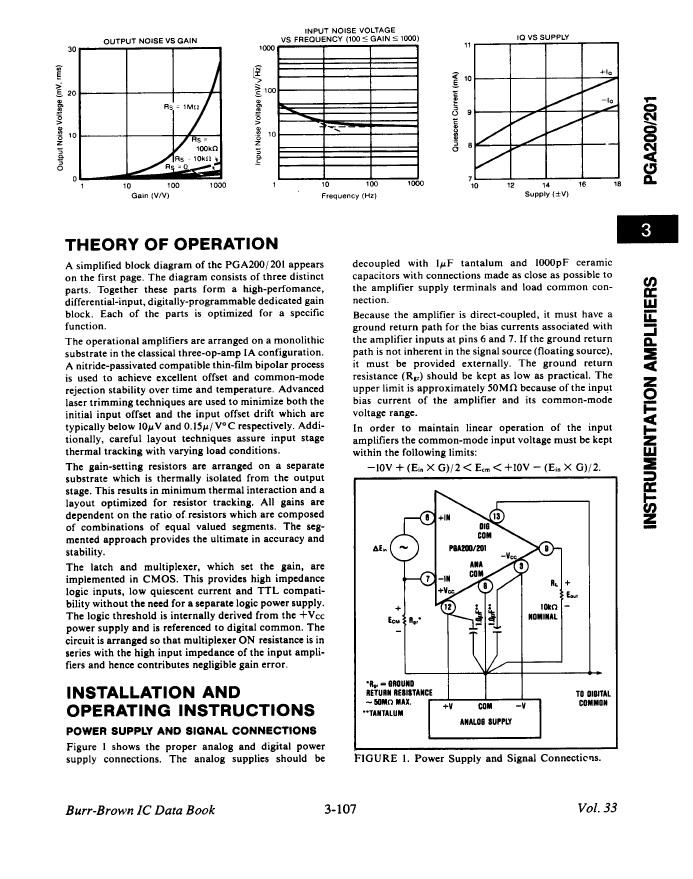

Basic information of PGA200BG amplifier:
PGA200BG is an INSTRUMENTATION AMPLIFIER.
PGA200BG amplifier core information:
The minimum operating temperature of PGA200BG is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.02 µA while its maximum input offset current (IIO) is only 0.02 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of PGA200BG is 0.4 V/us. The maximum slew rate of PGA200BG given by the manufacturer is 24 mA. Its maximum voltage gain is 1000 and its minimum voltage gain is 1. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the PGA200BG gain becomes 0.707 times the low-frequency gain is 0.05 MHz.
The nominal supply voltage of PGA200BG is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of PGA200BG is 250 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

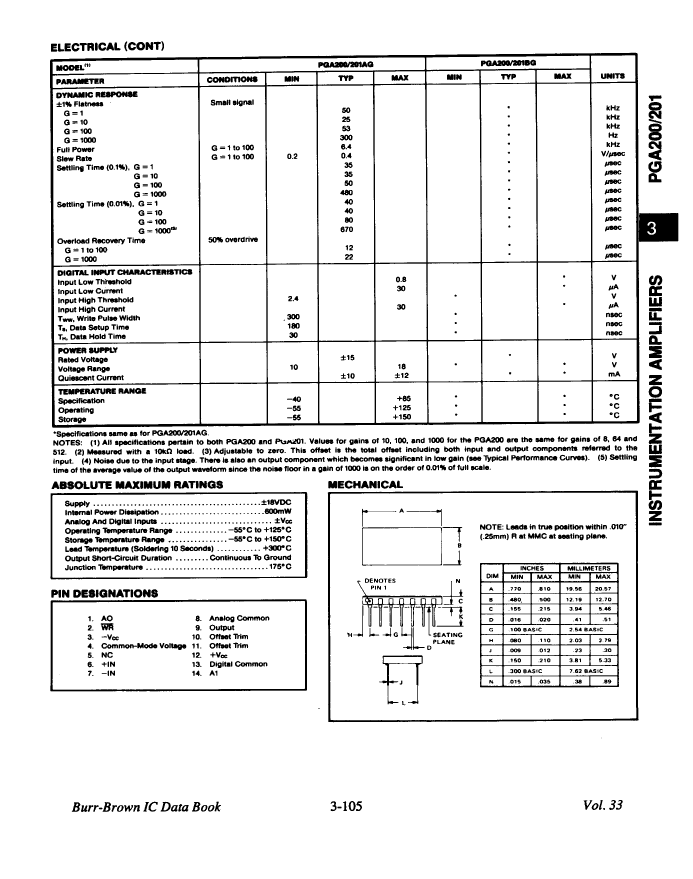

Related dimensions of PGA200BG:
PGA200BG has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
PGA200BG amplifier additional information:
Its temperature grade is: MILITARY. PGA200BG is not Rohs certified. The corresponding JESD-30 code is: R-CDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of PGA200BG is: DIP.
PGA200BG packaging materials are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is RECTANGULAR. The PGA200BG package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.
Basic information of PGA200BG amplifier:
PGA200BG is an INSTRUMENTATION AMPLIFIER.
PGA200BG amplifier core information:
The minimum operating temperature of PGA200BG is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.02 µA while its maximum input offset current (IIO) is only 0.02 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of PGA200BG is 0.4 V/us. The maximum slew rate of PGA200BG given by the manufacturer is 24 mA. Its maximum voltage gain is 1000 and its minimum voltage gain is 1. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the PGA200BG gain becomes 0.707 times the low-frequency gain is 0.05 MHz.
The nominal supply voltage of PGA200BG is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of PGA200BG is 250 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of PGA200BG:
PGA200BG has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
PGA200BG amplifier additional information:
Its temperature grade is: MILITARY. PGA200BG is not Rohs certified. The corresponding JESD-30 code is: R-CDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of PGA200BG is: DIP.
PGA200BG packaging materials are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is RECTANGULAR. The PGA200BG package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

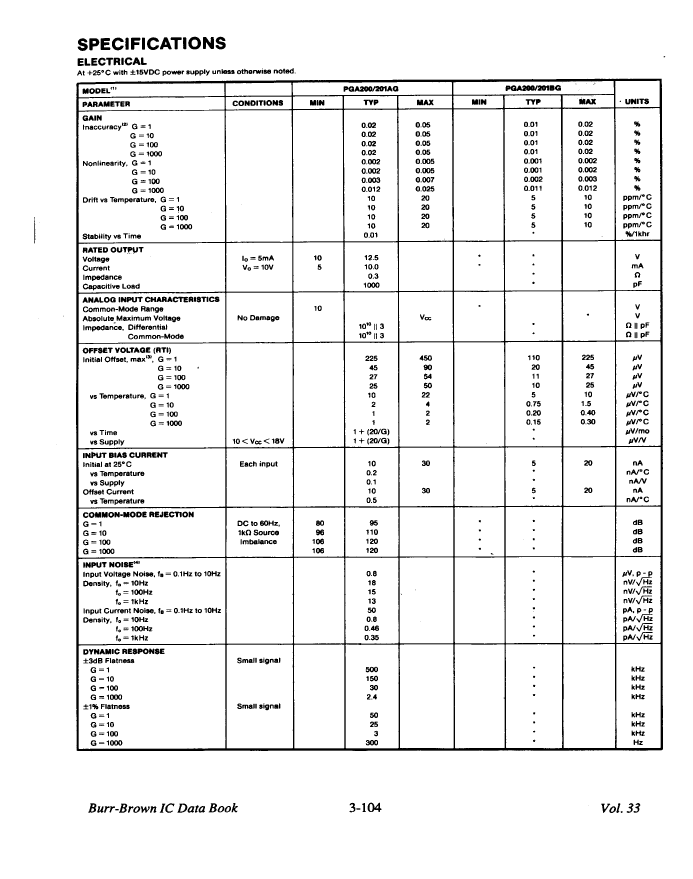

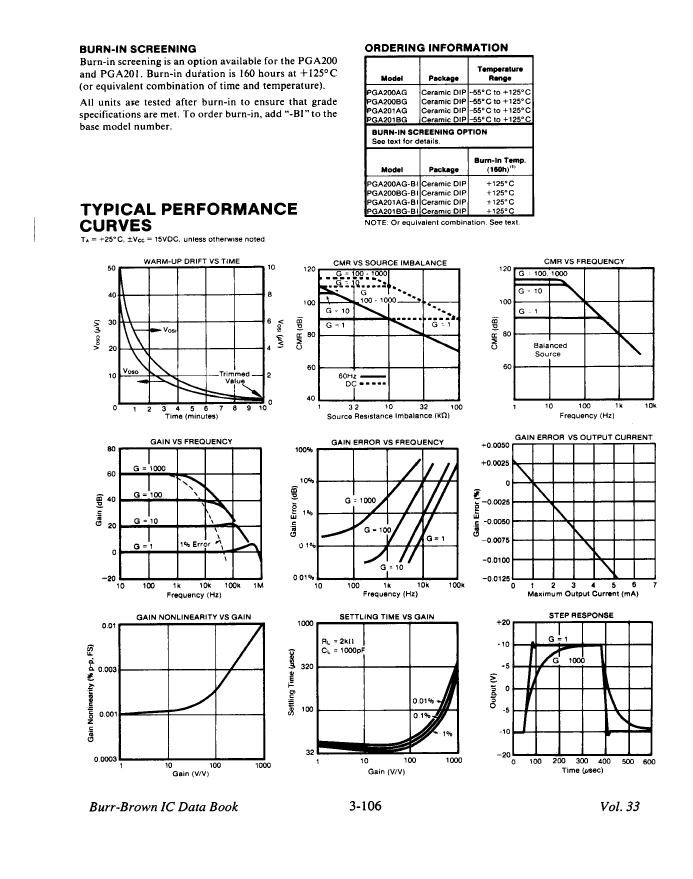

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Burr-Brown |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Amplifier type | INSTRUMENTATION AMPLIFIER |
| Maximum average bias current (IIB) | 0.02 µA |
| Nominal bandwidth (3dB) | 0.05 MHz |
| Minimum Common Mode Rejection Ratio | 80 dB |
| Maximum input offset current (IIO) | 0.02 µA |
| Maximum input offset voltage | 250 µV |
| JESD-30 code | R-CDIP-T14 |
| JESD-609 code | e0 |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| maximum nonlinearity | 0.012% |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Nominal slew rate | 0.4 V/us |
| Maximum slew rate | 24 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Maximum voltage gain | 1000 |
| Minimum voltage gain | 1 |
| Base Number Matches | 1 |
| PGA200BG | PGA200AG | PGA201AG | PGA201BG | |
|---|---|---|---|---|
| Description | Instrumentation Amplifier, 1 Func, 250uV Offset-Max, 0.05MHz Band Width, BIPolar, CDIP14, | Instrumentation Amplifier, 1 Func, 450uV Offset-Max, 0.05MHz Band Width, BIPolar, CDIP14, | Instrumentation Amplifier, 1 Func, 450uV Offset-Max, 0.05MHz Band Width, BIPolar, CDIP14, | Instrumentation Amplifier, 1 Func, 250uV Offset-Max, 0.05MHz Band Width, BIPolar, CDIP14, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Burr-Brown | Burr-Brown | Burr-Brown | Burr-Brown |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Amplifier type | INSTRUMENTATION AMPLIFIER | INSTRUMENTATION AMPLIFIER | INSTRUMENTATION AMPLIFIER | INSTRUMENTATION AMPLIFIER |
| Maximum average bias current (IIB) | 0.02 µA | 0.03 µA | 0.03 µA | 0.02 µA |
| Nominal bandwidth (3dB) | 0.05 MHz | 0.05 MHz | 0.05 MHz | 0.05 MHz |
| Minimum Common Mode Rejection Ratio | 80 dB | 80 dB | 80 dB | 80 dB |
| Maximum input offset current (IIO) | 0.02 µA | 0.03 µA | 0.03 µA | 0.02 µA |
| Maximum input offset voltage | 250 µV | 450 µV | 450 µV | 250 µV |
| JESD-30 code | R-CDIP-T14 | R-CDIP-T14 | R-CDIP-T14 | R-CDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Negative supply voltage upper limit | -18 V | -18 V | -18 V | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V |
| maximum nonlinearity | 0.012% | 0.025% | 0.025% | 0.012% |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP14,.3 | DIP14,.3 | DIP14,.3 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | +-15 V | +-15 V | +-15 V | +-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal slew rate | 0.4 V/us | 0.4 V/us | 0.4 V/us | 0.4 V/us |
| Maximum slew rate | 24 mA | 24 mA | 24 mA | 24 mA |
| Supply voltage upper limit | 18 V | 18 V | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum voltage gain | 1000 | 1000 | 512 | 512 |
| Minimum voltage gain | 1 | 1 | 1 | 1 |
| package instruction | - | DIP, DIP14,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 |
