TECHNICAL DATA SHEET
7/16
STRAIGHT JACK
(1-1/4’’R)
60K117-C06N1

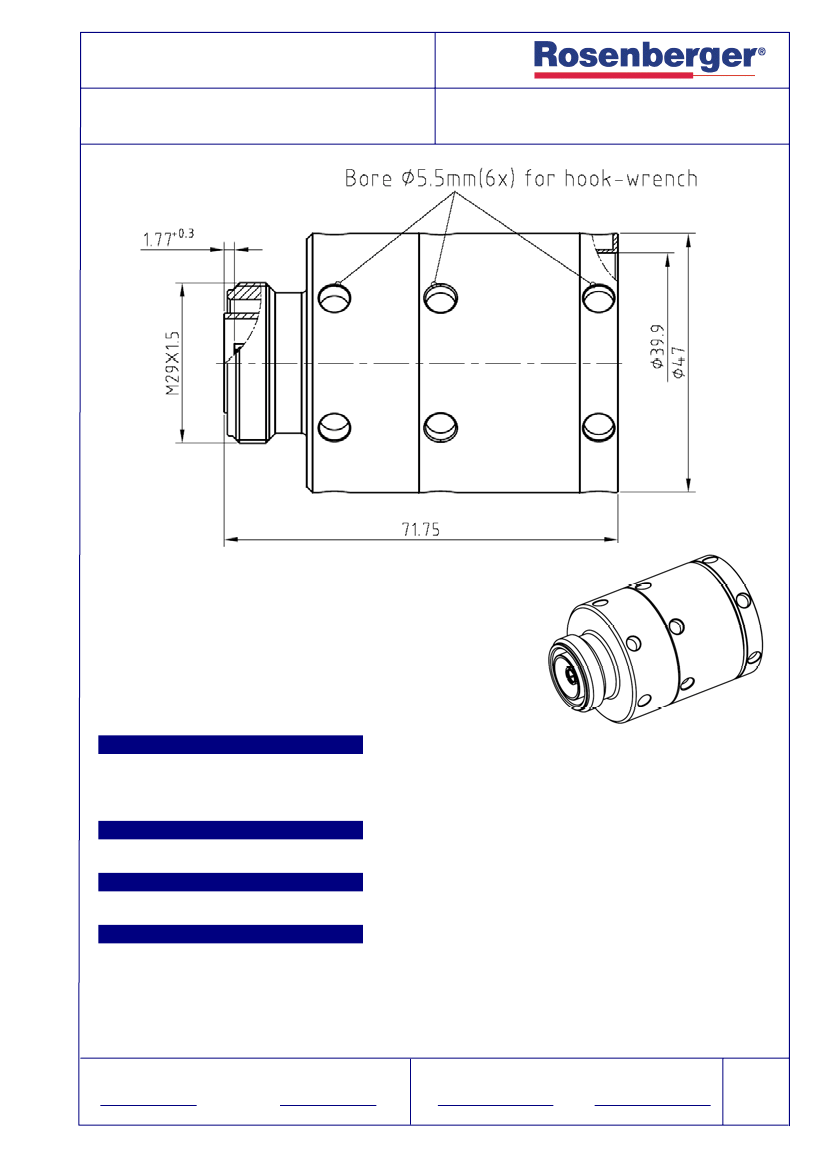

All dimensions are in mm; tolerances according to ISO 2768 m-H
Description
Female coaxial connector, series 7-16 acc. international interface standards. The connector is designed for
1-1/4’’R corrugated cables. The connector is waterproof in mated and unmated condition.
The connector will be delivered single packed including assembly instruction.
Interface
According to
IEC 60169-4, VG 95250, CECC 22190, DIN 47233
Documents
Assembly instruction
60 I41
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Material
Spring bronze
Brass
Brass
TPX
Silicone
Plating
Silver, 3-6µm
Flash white bronze over silver(e.g. Optargen®)
White bronze(e.g. Optalloy®)
RF_35/06.07/5.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG, Germany
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
www.rosenberger.de
email: info@rosenberger.de
Rosenberger Asia Pacific Electronic Co., Ltd., China
Tel.: +86 10 80481995
Fax: +86 10 80497052
www.rosenbergerap.com email: info@rosenbergerap.com
Page
1/2
TECHNICAL DATA SHEET
7/16
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Center contact resistance
Insulation resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
Intermodulation
(3
rd
order)
STRAIGHT JACK
(1-1/4’’R)
50
Ω
DC-8.3GHz
≤
-35dB, DC to 1 GHz
≤
-32dB, 1 to 2.7 GHz
≤
0.05 dB
≤
0.4mΩ
≥
10
4
MΩ
≤
1.5mΩ
4000 V rms, 50 Hz
2700 V rms, 50 Hz
1800 W @ 1 GHz
800 W @ 4 GHz
≤
-115dBm @ 2 x 20 W
60K117-C06N1
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation: axial
radial
Coupling test torque
Recommended torque
min. 500
≥
1000 N
≥
200 N
≥
2 Ncm
max. 35 Nm
25 Nm to 30 Nm
Environmental data
Temperature range
Rapid change of temperature
Corrosion
Vibration
Damp heat
Climatic tests
Degree of protection
2002/95/EC (RoHS)
-45°C to +85°C
DIN EN 122190, clause
DIN EN 122190, clause
DIN EN 122190, clause
DIN EN 122190, clause
DIN EN 122190, clause
IEC 60529, IP68
compliant
4.6.7
4.6.10
4.6.3
4.6.6
4.6.5 (45/85/56)
Tooling
99W101-C06
Suitable cables
SL 114R PE (recommended)
Andrew LDF6-50A;
Leoni 1 1/4”R
Packing
Standard
Weight
1 Pce in box
342 g/pce
While the information h as been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Checker
ZhaiQK
Approved
Kevin
Date
20/05/09
Rev.
b
Engineering change number
09-0254
Name
Roger
Date
20/05/09
RF_35/06.07/5.0
Roger
Rosenberger Hochfrequenztechnik GmbH & Co. KG, Germany
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
www.rosenberger.de
email: info@rosenberger.de
Rosenberger Asia Pacific Electronic Co., Ltd., China
Tel.: +86 10 80481995
Fax: +86 10 80497052
www.rosenbergerap.com email: info@rosenbergerap.com
Page
2/2
