MC74LVX138
3−to−8 Line Decoder
With 5V−Tolerant Inputs
The MC74LVX138 is an advanced high speed CMOS 3−to−8 line
decoder. The inputs tolerate voltages up to 7.0 V, allowing the
interface of 5.0 V systems to 3.0 V systems.
When the device is enabled, three Binary Select inputs (A0 − A2)
determine which one of the outputs (O0 − O7) will go Low. When
enable input E3 is held Low or either E2 or E1 is held High, decoding
function is inhibited and all outputs go high. E3, E2, and E1 inputs are
provided to ease cascade connection and for use as an address decoder
for memory systems.
Features
http://onsemi.com

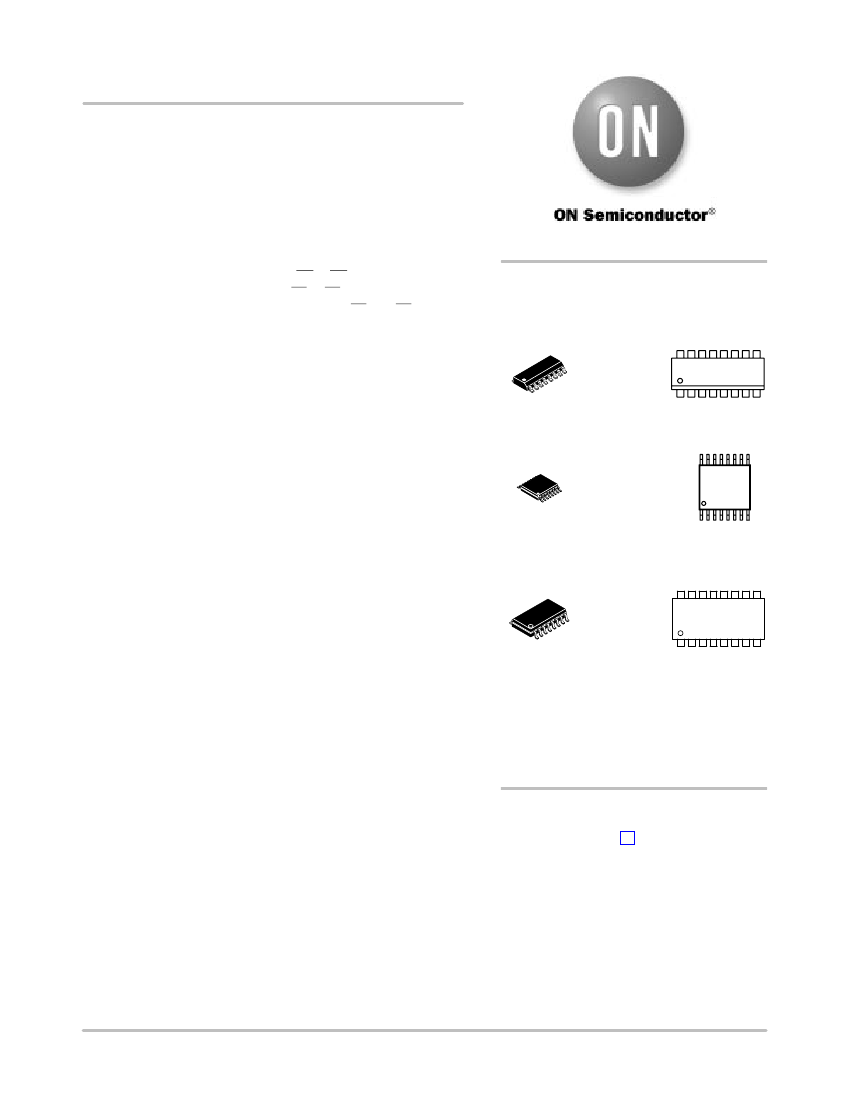

MARKING
DIAGRAMS
16
SOIC−16
D SUFFIX
CASE 751B
1
LVX138
AWLYWW
•
•
•
•
•
•
•
•
High Speed: t
PD
= 5.5 ns (Typ) at V
CC
= 3.3 V
Low Power Dissipation: I
CC
= 4
mA
(Max) at T
A
= 25
°C
Power Down Protection Provided on Inputs
Balanced Propagation Delays
Low Noise: V
OLP
= 0.5 V (Max)
Pin and Function Compatible with Other Standard Logic Families
Latchup Performance Exceeds 300 mA
ESD Performance:
Human Body Model > 2000 V;
Machine Model > 200 V
•
Pb−Free Packages are Available*
16
TSSOP−16
DT SUFFIX
CASE 948F
1
LVX
138
ALYW
16
SOEIAJ−16
M SUFFIX
CASE 966
1
LVX138
ALYW
A
WL or L
Y
WW or W
=
=
=
=
Assembly Location
Wafer Lot
Year
Work Week
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 3 of this data sheet.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2005
1
March, 2005 − Rev. 2
Publication Order Number:
MC74LVX138/D
MC74LVX138
V
CC
16
O0
15
O1
14
O2
13
O3
12
O4
11
O5
10
O6
9
PIN NAMES
Pins
A0−A2
E1−E2
E3
O0−O7
Function
Address Inputs
Enable Inputs
Enable Input
Outputs
1
A0
2
A1
3
A2
4
E1
5
E2
6
E3
7
O7
8
GND
Figure 1. 16−Lead Pinout
(Top View)
15
14
13
12
11
10
9
7
O0
O1
O2
O3
O4
O5
O6
O7
DATA
OUTPUTS
A0
1
SELECT
INPUTS
A1
2
A2
3
E1
ENABLE
INPUTS
E2
E3
4
5
6

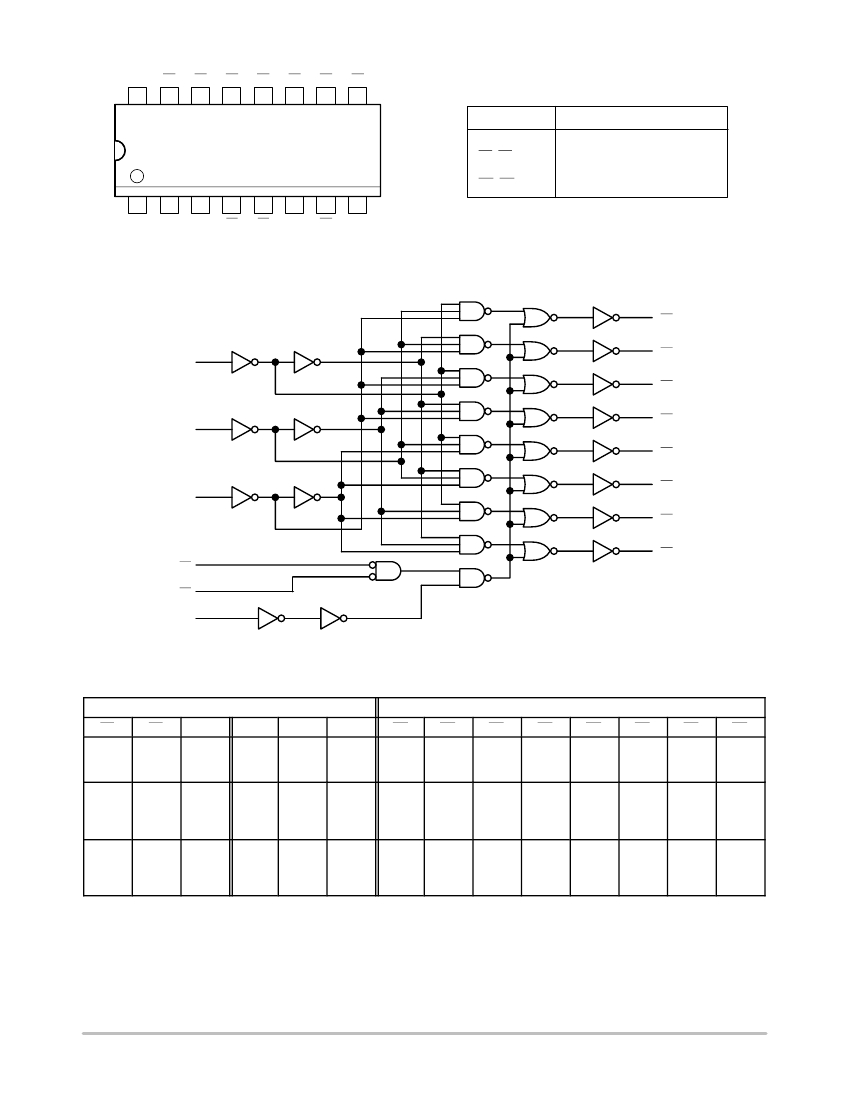

Figure 2. Logic Diagram
INPUTS
E1
H
X
X
L
L
L
L
L
L
L
L
E2
X
H
X
L
L
L
L
L
L
L
L
E3
X
X
L
H
H
H
H
H
H
H
H
A0
X
X
X
L
H
L
H
L
H
L
H
A1
X
X
X
L
L
H
H
L
L
H
H
A2
X
X
X
L
L
L
L
H
H
H
H
O0
H
H
H
L
H
H
H
H
H
H
H
O1
H
H
H
H
L
H
H
H
H
H
H
O2
H
H
H
H
H
L
H
H
H
H
H
OUTPUTS
O3
H
H
H
H
H
H
L
H
H
H
H
O4
H
H
H
H
H
H
H
L
H
H
H
O5
H
H
H
H
H
H
H
H
L
H
H
O6
H
H
H
H
H
H
H
H
H
L
H
O7
H
H
H
H
H
H
H
H
H
H
L
H = High Voltage Level; L = Low Voltage Level; X = High or Low Voltage Level and Transitions Are Acceptable; For I
CC
reasons, DO NOT FLOAT
Inputs
http://onsemi.com
2
MC74LVX138
A0
A1
A2
A3
A4
H
123
A0 A1 A2
E
A0 A1 A2
123
E
A0 A1 A2
123
E
A0 A1 A2
123
E
‘04
O0 O1 O2 O3 O4 O5 O6 O7
O0
O0 O1 O2 O3 O4 O5 O6 O7
O0 O1 O2 O3 O4 O5 O6 O7
O0 O1 O2 O3 O4 O5 O6 O7
O31
Figure 3. Expansion to 1−of−32 Decoding
ORDERING INFORMATION
Device
MC74LVX138DR2
MC74LVX138DR2G
MC74LVX138DTR2
MC74LVX138M
MC74LVX138MG
MC74LVX138MEL
MC74LVX138MELG
Package
SOIC−16
SOIC−16
(Pb−Free)
TSSOP−16*
SOEIAJ−16
SOEIAJ−16
(Pb−Free)
SOEIAJ−16
SOEIAJ−16
(Pb−Free)
Shipping
†
2500 Tape & Reel
2500 Tape & Reel
2500 Tape & Reel
50 Units / Rail
50 Units / Rail
2000 Tape & Reel
2000 Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
*This package is inherently Pb−Free.
