REVISION AD
DO NOT
SCALE FROM
THIS PRINT
((No OF POS / 26) x .840[21.34]) - .020[.51] REF
((No OF POS / 26) x .840[21.34]) - .035[.89] REF
C
C
QMS-XXX-XX.XX-XX-D-XX-XXX-XX
No OF POSITIONS
-026, -052, -078,-104, * -130
(PER ROW)
(SEE NOTE 9)
LEAD STYLE
((No OF POS / 26) x .840[21.34]) - .215[5.46]
.8400 21.336 (TYP)
C
-05.75 (SEE FIG 1)
-06.75 (SEE FIG 1)
AD
**-09.75 (SEE FIG 4, SHEET 3)
PACKAGING OPTION
-TR: TAPE & REEL PACKAGING
(-026 THRU -078 WITH NO OPTIONS)
(-026 & -052 WITH -GP, -PXX, -RF1, -RT1)
(-026 WITH RF2)
END OPTION
-PC4: POWER COMBO 4 (.062" THICK BOARD)
(SEE FIG 5, SHEET 4)
-PC8: POWER COMBO 8 (.062" THICK BOARD)
(SEE FIG 5, SHEET 4)
-PT4: POWER COMBO 4 (.093" THICK BOARD)
(SEE FIG 5, SHEET 4)
-PT8: POWER COMBO 8 (.093" THICK BOARD)
(SEE FIG 5, SHEET 4)
-RF1: 1 RF POS PER END
(SEE FIG 6, SHEET 5)
-RF2: 2 RF POS PER END
(SEE FIG 7, SHEET 5)
-RT1: 1 RT POS PER END
(SEE FIG 8, SHEET 6)
(-PXX & -RFX NOT AVAILABLE IN
COMBINATION WITH -A, -GP, OR -K)
(END OPTION APPLIES TO BOTH ENDS,
COMBINATIONS ARE NOT AVAILABLE)
(-PXX & -RFX AVAILABLE IN POS
-026, -052, & -078 ONLY)
(-RFX & -RT1 AVAILABLE ON -05.75 LEAD
STYLE ONLY)
(-RT1 AVAILABLE IN -026, -052, -078,
& -104 POS WITH -A OPTION ONLY)
(-PXX AVAILABLE ON -05.75 & -06.75
LEAD STYLES ONLY)
25 EQ SPACES @ .0250[.635]
.1075 2.73
"A"
01
PLATING SPECIFICATION
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL.
(AVAILABLE ON -05.75 & -06.75 LEAD STYLE ONLY)
-L: 10µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
(AVAILABLE ON -05.75 & -06.75 LEAD STYLE ONLY)
-S: 30µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
(AVAILABLE ON -09.75 LEAD STYLE ONLY)
-SL: 10µ" GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
(AVAILABLE ON -09.75 LEAD STYLE ONLY)
ROW SPECIFICATION
-D: DOUBLE
.009 0.23 REF
.090 2.29 REF

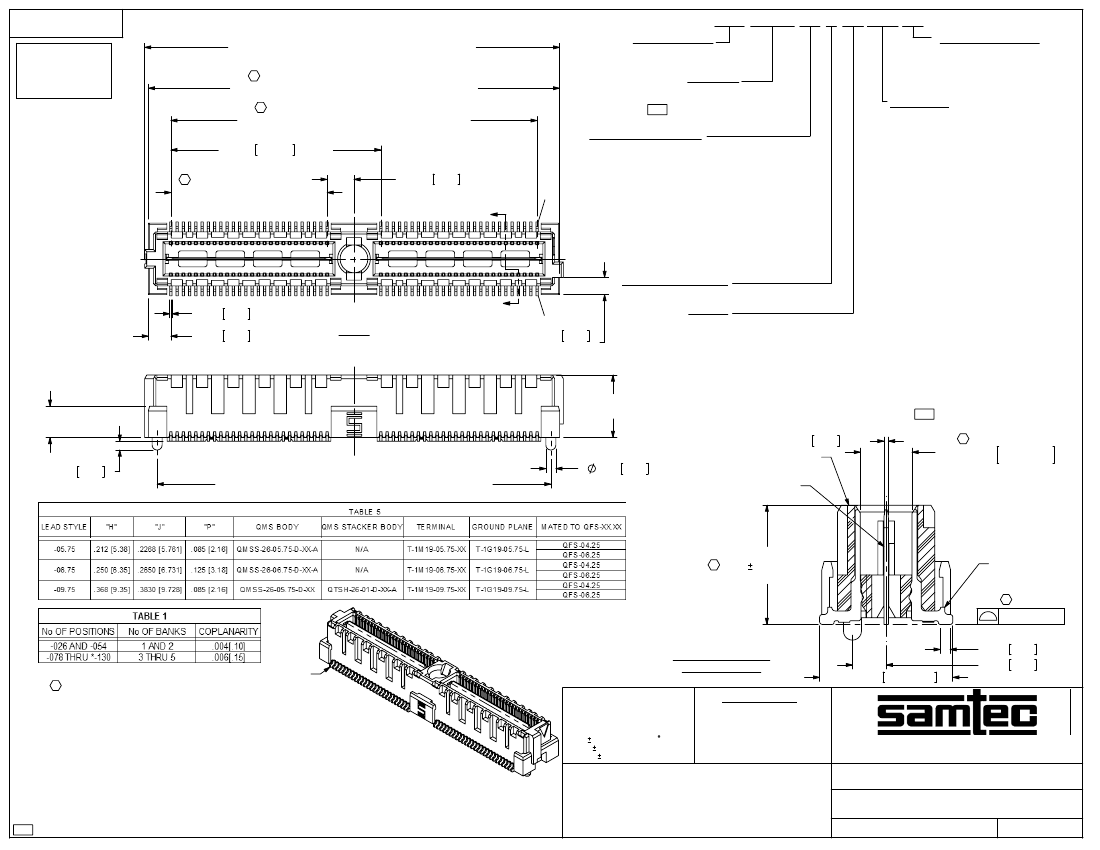

FIG 1
-05.75 & -06.75 LEAD STYLE
(QMS-052-06.75-X-D-A SHOWN)
"A"
02
.069 1.74
REF
-A: ALIGNMENT PIN
-GP: GUIDE POSTS
(SEE FIG 3, SHEET 2)
(AVAILABLE ON -05.75 & -06.75
LEAD STYLES ONLY)
-K: KAPTON PAD
(SEE FIG 2, SHEET 2)
OPTION
"P" REF
(SEE TABLE 5)
(OPTIONS NOT AVAILABLE IN
"H" REF
(SEE TABLE 5)
COMBINATION WITH -PXX OR -RFX)
AD
* = NOT TOOLED
** = SEE NOTE 10
C
.035 0.89
REF
.040 1.02 REF
((No OF POS / 26) x .8400[21.336]) - .1050[2.667] REF
.010 0.25 REF
QMSS-26-XX.XX-D-XX-A
(SEE TABLE 5)
T-1G19-XX.XX-L
(SEE TABLE 5)
.1150
- .0020
2.921
- 0.051
(MEASURED TERMINAL
TO TERMINAL)
+.0040
+0.102
C
"J"
.0020 [0.051]
(SEE NOTES 5, 6 & 7)
.0040 [0.102]
T-1M19-XX.XX-X
(SEE TABLE 5)
C
SEE TABLE 1
(SEE NOTE 6)
SEE NOTE 4
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .0015 MAX.
3. MINIMUM PUSHOUT FORCE: SIGNAL: .5 LB, GROUND: 1 LB,
POWER: .5 LB, RF: .5 LB.
4. ALL TERMINALS ON THE -05.75 & -06.75 LEAD STYLES WILL BE SHEARED.
5. MAX VARIANCE OF .002.
6. DIMENSION APPLIES TO CONTACTS & GROUND PLANE.
7. GROUND PLANE PRESS HEIGHT MUST BE .003[.08] LESS THAN THE MAX HEIGHT
OR .001[.03] GREATER THAN THE MINIMUM HEIGHT OF THE TERMINALS.
8. PARTS TO BE PACKAGED IN TRAYS.
9. LEADSTYLES -10 AND -11 MAY BE SUBSTITUTED IN PART CALLOUT FOR -05.75 AND
-06.75 ACCORDINGLY FOR EXISTING CUSTOMERS ONLY.
10. FOR NEW APPLICATIONS REQUIRING THIS LEAD STYLE, PLEASE CONTACT SAMTEC
INTERCONNECT PROCESSING GROUP.
AD
SECTION "A"-"A"
SCALE 4.5 : 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.296±.006 7.52±0.15
.022 0.56 REF
.075 1.91 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.4
INSULATOR: LCP, COLOR: BLACK
TERMINAL & GROUND PLANE:
PHOS BRONZE
F:\DWG\MISC\MKTG\QMS-XXX-XX.XX-XX-D-XX-XXX-XX-MKT.SLDDRW
.635mm DOUBLE ROW TERMINAL STRIP
DWG. NO.
DESCRIPTION:
QMS-XXX-XX.XX-XX-D-XX-XXX-XX
10-12-2010
SHEET
1
OF
6
BY:
E.L.S.
REVISION AD
IN-PROCESS 1

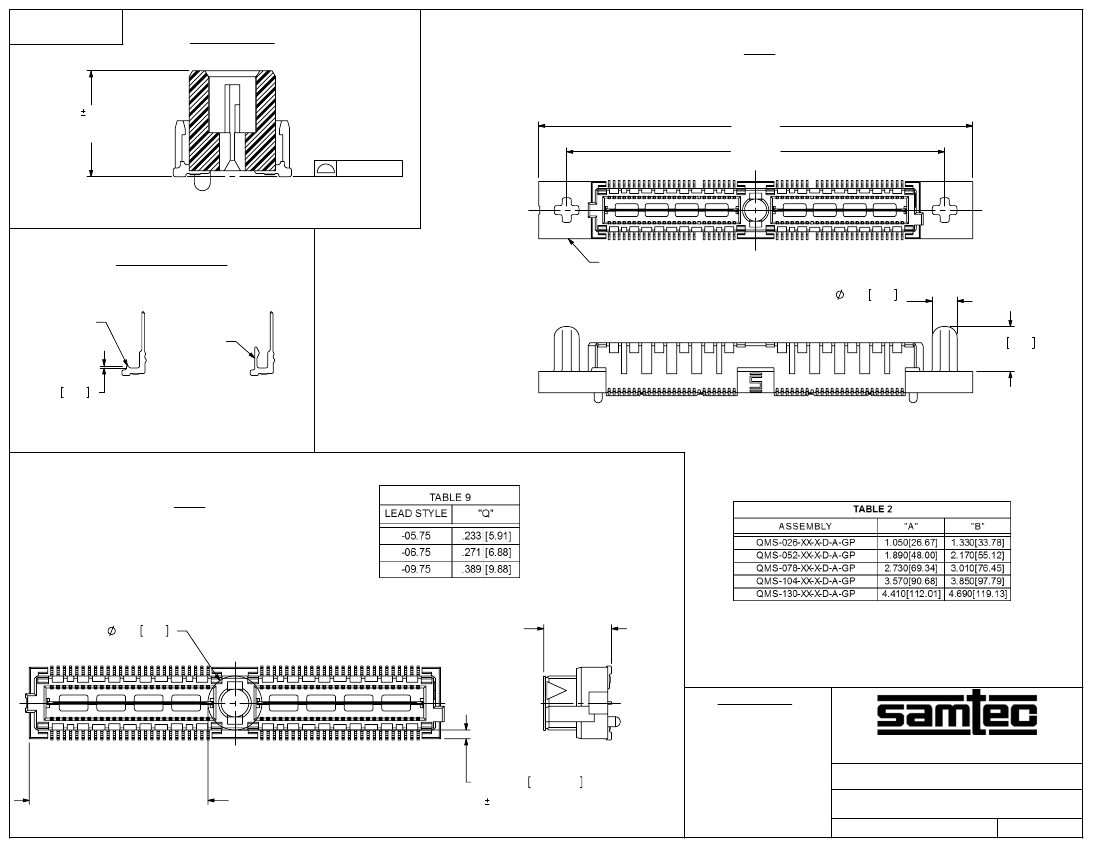

FIG 3
-GP: GUIDE POST OPTION
(QMS-052-06.75-X-D-A-GP SHOWN)
(AVAILABLE ON -05.75 & -06.75 LEAD STYLES ONLY)
"J"
.0020 [0.051]
(SEE NOTES 5, 6 & 7)
(SEE TABLE 5)
SEE TABLE 1
.0040 [0.102]
"B" REF
"A" REF
TERMINAL DETAILS
QMSS-26-XX.XX-D-XX-A-GP
.125 3.18
REF (TYP)
.002[0.05] MAX
BURR
SEE NOTE 4
.225 5.72
REF (TYP)
.008 0.20
-K: KAPTON PAD OPTION
(USE K-500-300)
(USE K-DOT-.217-.313-.005 FOR -GP OPTION, NOT APPROVED
FOR VISION INTEGRATED KAPTON APPLICATION)
(QMS-052-06.75-X-D-A-K SHOWN)
FIG 2
*
.216 5.49
"Q"±.004[0.10]
* NOT TOOLED
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
.035±.020 0.89±0.51
((((No OF POS / 26) x .840[21.34) - .251[6.38]) / 2) .020[0.51]
F:\DWG\MISC\MKTG\QMS-XXX-XX.XX-XX-D-XX-XXX-XX-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.4
.635mm DOUBLE ROW TERMINAL STRIP
DWG. NO.
DESCRIPTION:
QMS-XXX-XX.XX-XX-D-XX-XXX-XX
10-12-2010
SHEET
2
OF
6
BY:
E.L.S.
REVISION AD

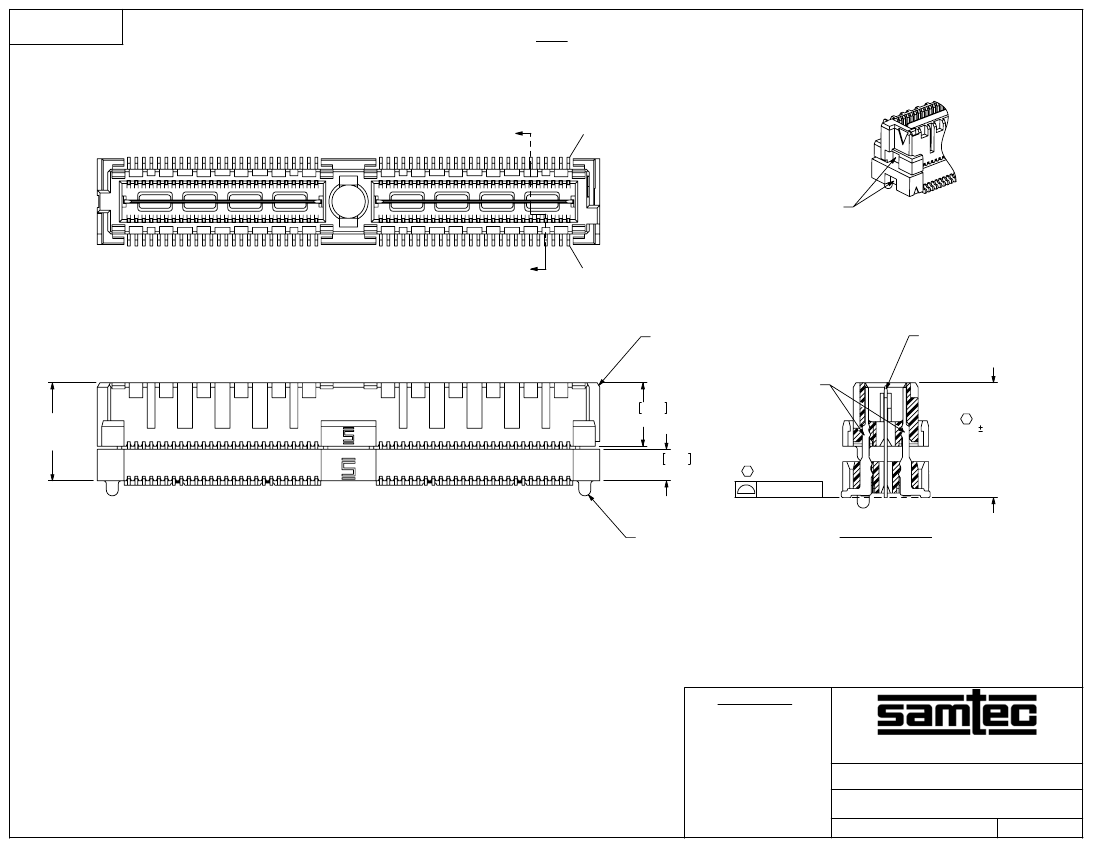

-09.75 LEAD STYLE
(QMS-052-09.75-X-D-A SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
FIG 4
"B"
01
POLARIZATION NOTCHES
"B"
02
QMSS-26-05.75-D-XX
(SEE TABLE 5, SHEET 1)
T-1M19-09.75-XX
(SEE TABLE 5, SHEET 1)
T-1G19-09.75-XX
(SEE TABLE 5, SHEET 1)
"H" REF
(SEE TABLE 5,
SHEET 1)
.212 5.38
REF
.105 2.67
REF
"J"
.0020[0.051]
(SEE NOTES 5, 6 & 7)
(SEE TABLE 5, SHEET 1)
C
C
.0040[0.102]
SEE TABLE 1
(SEE NOTE 6)
QTSH-26-01-D-XX-A
(SEE TABLE 5, SHEET 1)
SECTION "B"-"B"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
.635mm DOUBLE ROW TERMINAL STRIP
DWG. NO.
QMS-XXX-XX.XX-XX-D-XX-XXX-XX
10-12-2010
SHEET
3
OF
6
F:\DWG\MISC\MKTG\QMS-XXX-XX.XX-XX-D-XX-XXX-XX-MKT.SLDDRW
BY:
E.L.S.
REVISION AD

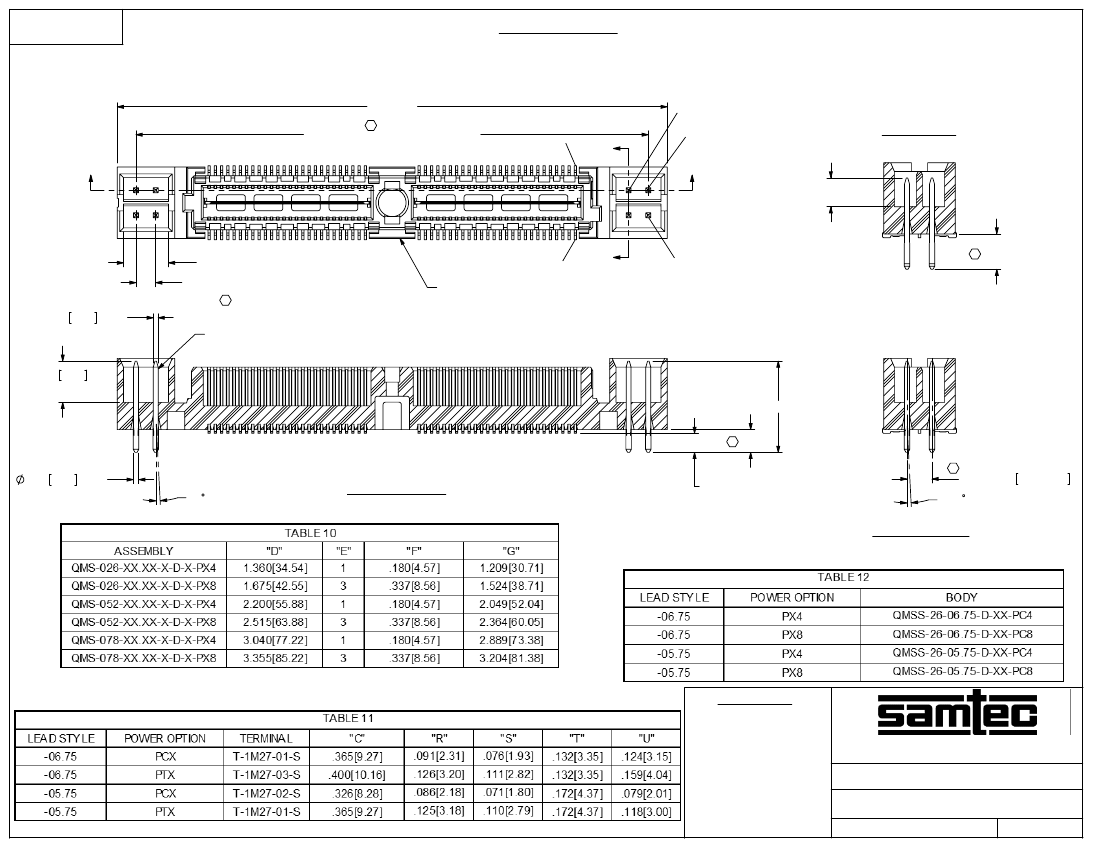

POWER COMBO OPTIONS
QMS-052-06.75-X-D-PC4 SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
[NOT AVAILABLE WITH -A, -GP OR -K OPTION, AVAILABLE ON LEAD STYLES -05.75 & -06.75 ONLY]
(AVAILABLE ON -026, -052 & -078 POSITIONS ONLY)
"D" REF
"G"
(MEASURED ON POST AND TAIL)
C
FIG 5 -PXX OPTION
POWER PIN 3
01
"D"
POWER PIN 1
"C"
"U" REF
IN-PROCESS
"C"
"F" REF
("E" EQ SPACE(S) @ .07874[2.000]) (TYP)
C
02
QMSS-26-XX.XX-D-XX-PCX
(SEE TABLE 12)
"D"
POWER PIN 2
C
"T"
.020 0.50 REF
T-1M27-XX-X
.165 4.19
REF
"C" REF
C
"R"
C
.022 0.56 REF
2 MAX SWAY
(TYP)
SECTION "C"-"C"
"S" REF
.100±.005 2.54±0.13
3 MAX TOE
(TYP)
SECTION "D"-"D"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.4
.635mm DOUBLE ROW TERMINAL STRIP
QMS-XXX-XX.XX-XX-D-XX-XXX-XX
10-12-2010
SHEET
4
OF
6
F:\DWG\MISC\MKTG\QMS-XXX-XX.XX-XX-D-XX-XXX-XX-MKT.SLDDRW
BY:
E.L.S.
REVISION AD

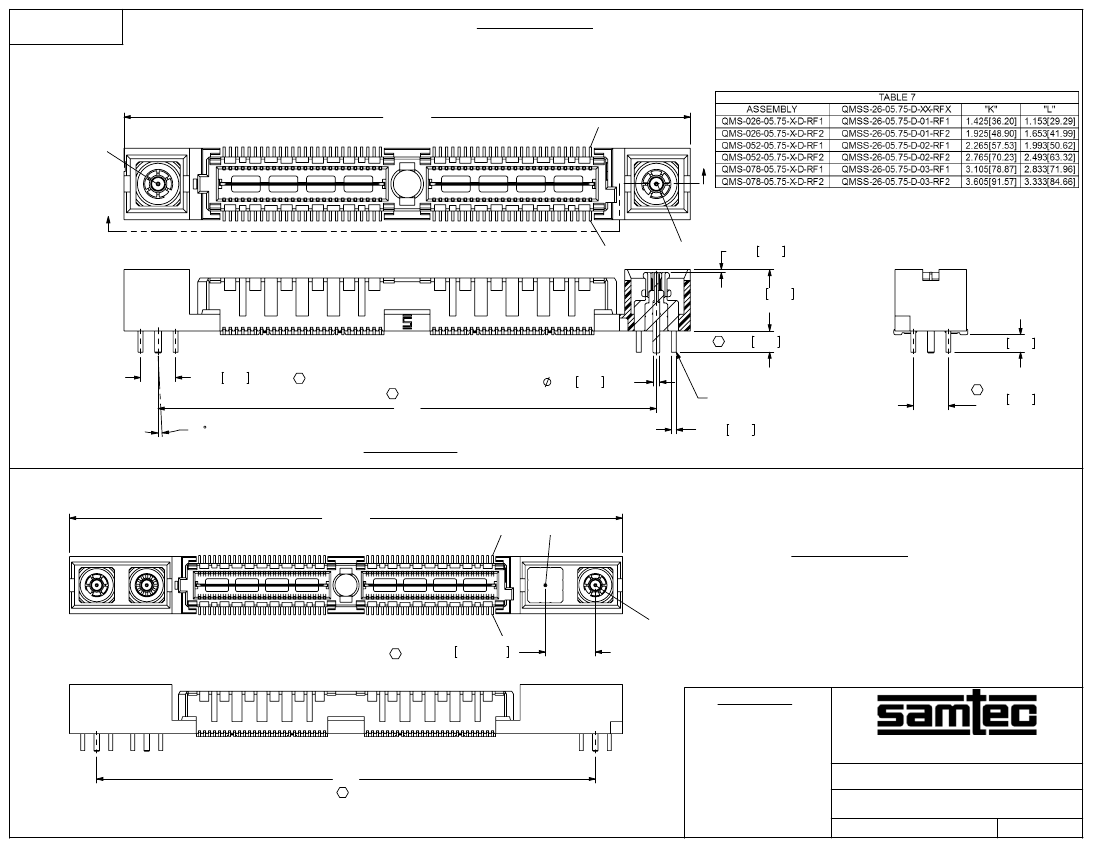

QMS-052-05.75-X-D-RF1 SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
[NOT AVAILABLE WITH -A OR -GP OPTION, AVAILABLE ON LEAD STYLE -05.75 ONLY]
(AVAILABLE ON -026, -052 & -078 POSITIONS ONLY)
FIG 6 -RF1 OPTION
"K" REF
RF02
01
"E"
"E"
02
RF01
.011 0.29 REF
.245 6.23
REF
C
.085 2.16 (TYP)
.070 1.78 REF
.140 3.56 (TYP)
C
C
.028 0.70 REF
"L"
SUB-GRF1-P-P-H-ST-TH2
.020 0.50 SQ REF
C
.140 3.56 REF
(TYP)
2 MAX SWAY
(TYP)
SECTION "E"-"E"
"K" REF
01
RF02
QMS-052-05.75-X-D-RF2 SHOWN
(SAME AS FIG 6, UNLESS OTHERWISE STATED)
[NOT AVAILABLE WITH -A OR -GP OPTION, AVAILABLE ON LEAD STYLE -05.75 ONLY]
(AVAILABLE ON -026, -052 & -078 POSITIONS ONLY)
RF01
02
C
FIG 7 -RF2 OPTION
.250±.002 6.35±0.05
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
"L"
C
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.4
.635mm DOUBLE ROW TERMINAL STRIP
10-12-2010
SHEET
5
OF
6
QMS-XXX-XX.XX-XX-D-XX-XXX-XX
F:\DWG\MISC\MKTG\QMS-XXX-XX.XX-XX-D-XX-XXX-XX-MKT.SLDDRW
BY:
E.L.S.
