Power DIN
Type F24+H7 (Series M)
D
ESCRIPTION
/A
PPLICATION

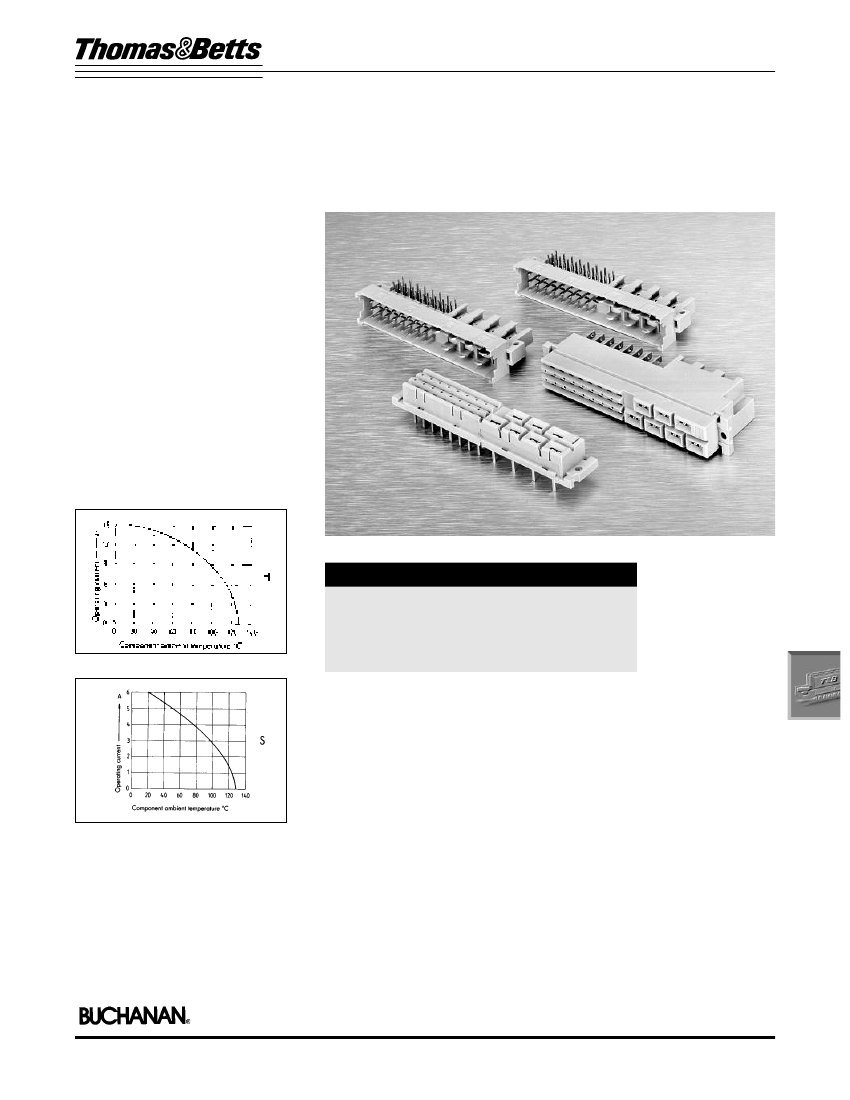

The Buchanan
®
Type F24+H7 (Series
M) mixed connectors are created with
seven high current contacts that
correspond to Type H and 24 signal
contacts that correspond with Type F.
The connectors comply with
technical requirements and mounting
specifications of DIN 41612.
TYPE F24+H7 (SERIES M)
MIXED CONNECTORS
D
ESIGN
A
DVANTAGES
• Slimline versions of F24+H7 female
connectors developed especially
for use in bus systems.
• Male and slimline versions of female
connectors are designed with an
integrated coding device to guard
against misconnection.
D
ERATING
C
URVES
CONNECTOR INDEX
F24+H7 Male, without Coding Device ..................................137
F24+H7 Male, with Coding Device........................................138
F24+H7 Female, Polycarbonate ............................................139
F24+H7 Female, PBT ............................................................140
Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312
137
Power DIN
Type F24+H7 (Series M)

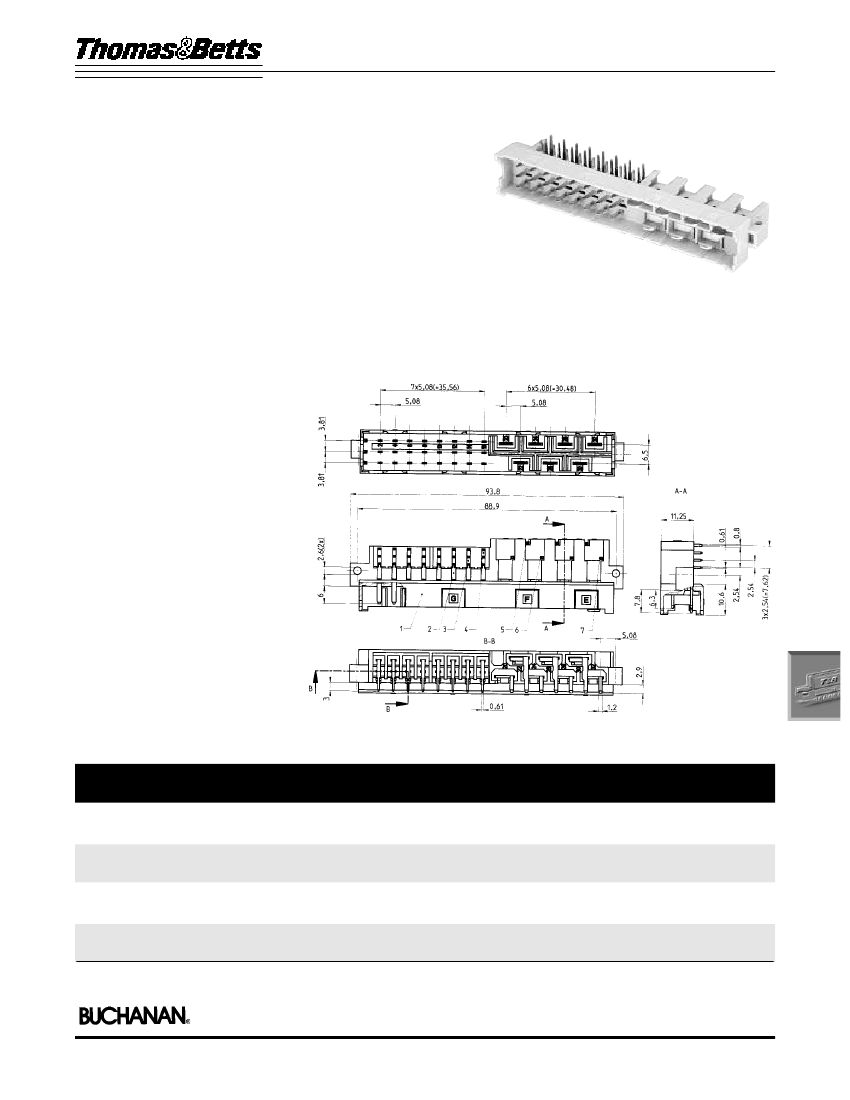

SERIES F24+H7 (SERIES M)
MALE CONNECTORS
WITH CODING DEVICE
P
HYSICAL
P
ROPERTIES
H
OUSING
M
ATERIAL
:
PBT
C
OLOR
:
Beige
F
LAMMABILITY
R
ATING
:
UL94V-0
I
NSULATING
R
ESISTANCE
:
≥10
12
Ω
(Type F)
I
NSERTION
/W
ITHDRAWAL
F
ORCE
:
80N Max.
E
LECTRICAL
P
ROPERTIES
M
AXIMUM
C
URRENT
:
Type F: 6A
Type H: 15A
(according to derating curve)
O
PERATING
V
OLTAGE
:
Type F: 125V
Type H: 500V
T
EST
V
OLTAGE
V
eff
:
Type F: 1550V contact to contact
Type H: 3100V contact to contact
Type F: 2500V contact to mass
Type H: 3100V contact to mass
E
NVIRONMENTAL
P
ROPERTIES
O
PERATING
T
EMPERATURE
R
ANGE
:
-55º C to 125º C
S
OILING
D
EGREE PER
VDE 0110:
3
A
IRSPACE
:
Type F:
≥1,6mm;
Type H:
≥4,5mm
L
EAKAGE
P
ATH
:
Type F:
≥3mm;
Type H:
≥8mm
C
ONTACT
R
ESISTANCE
:
Type F:
≤15mΩ;
Type H:
≤8mΩ
Ordering Information
# OF
CONTACTS PERFORMANCE
(ROWS)
LEVEL
24 +7 Pin
1
(z + b + d)
2
3
16 +7 Pin
1
(z + b
2
grid 2, 54
3
16 +7 Pin
1
(z + b/d
2
grid 5, 08
3
16 +7 Pin
1
(z + d)
2
3
SOLDER PIN
90°
MM24 W-7W2C
MM24 W-7W3C
MM16 ZBW-7W2C
MM16 ZBW-7W3C
MM16 ZB-DW-7W2C
MM16 ZB-DW-7W3C
MM16 ZDW-7W2C
MM16 ZDW-7W3C
SOLDER PIN 90°
EXT. PIN POS. Z32
MM24 W-61W2C
MM24 W-61W3C
MM16 ZBW-61W2C
MM16 ZBW-61W3C
MM16 ZB-DW-61W2C
MM16 ZB-DW-61W3C
MM16 ZDW-61W2C
MM16 ZDW-61W3C
SOLDER 90˚ (F PINS)
FASTON (H PINS)
MM24 W-7FA2C
MM24 W-7FA3C
MM16 ZBW-7FA2C
MM16 ZBW-7FA3C
MM16 ZB-DW-7FA2C
MM16 ZB-DW-7FA3C
MM16 ZDW-7FA2C
MM16 ZDW-7FA3C
SOLDER 90˚ (F PINS)
FASTON (H PINS)
MM24 W-61FA2C
MM24 W-61FA3C
MM16 ZBW-61FA2C
MM16 ZBW-61FA3C
MM16 ZB-DW-61FA2C
MM16 ZB-DW-61FA3C
MM16 ZDW-61FA2C
MM16 ZDW-61FA3C
Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters.
139
Power DIN
Accessories
ACCESSORIES

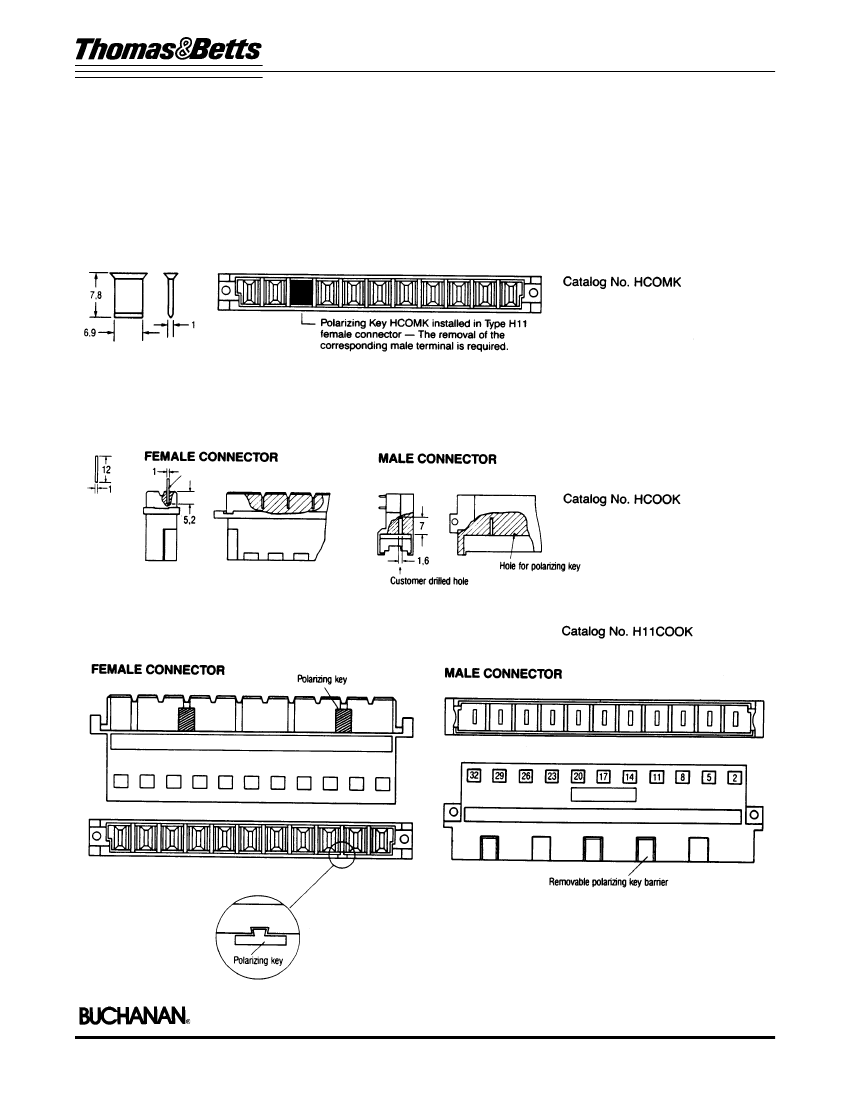

POLARIZATION OPTIONS
E
XTERNAL
P
LASTIC
P
OLARIZING
K
EY
—
With loss of a contact
For types H11, H15, H15/HA, F24/H7
(Customer installed)
E
XTERNAL
P
OLARIZING
K
EY
—
Without loss of a contact
For types H15, H15/HA, F24+H7 (No drilling required on Type F24+H7)
(Customer installed)
I
NTEGRAL
P
OLARIZING
K
EY
—
Without loss of a contact
For types H11, H15, H15/HA, F, and F24+H7 with Integral Polarization Capability
(Customer installed)
Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters.
142
