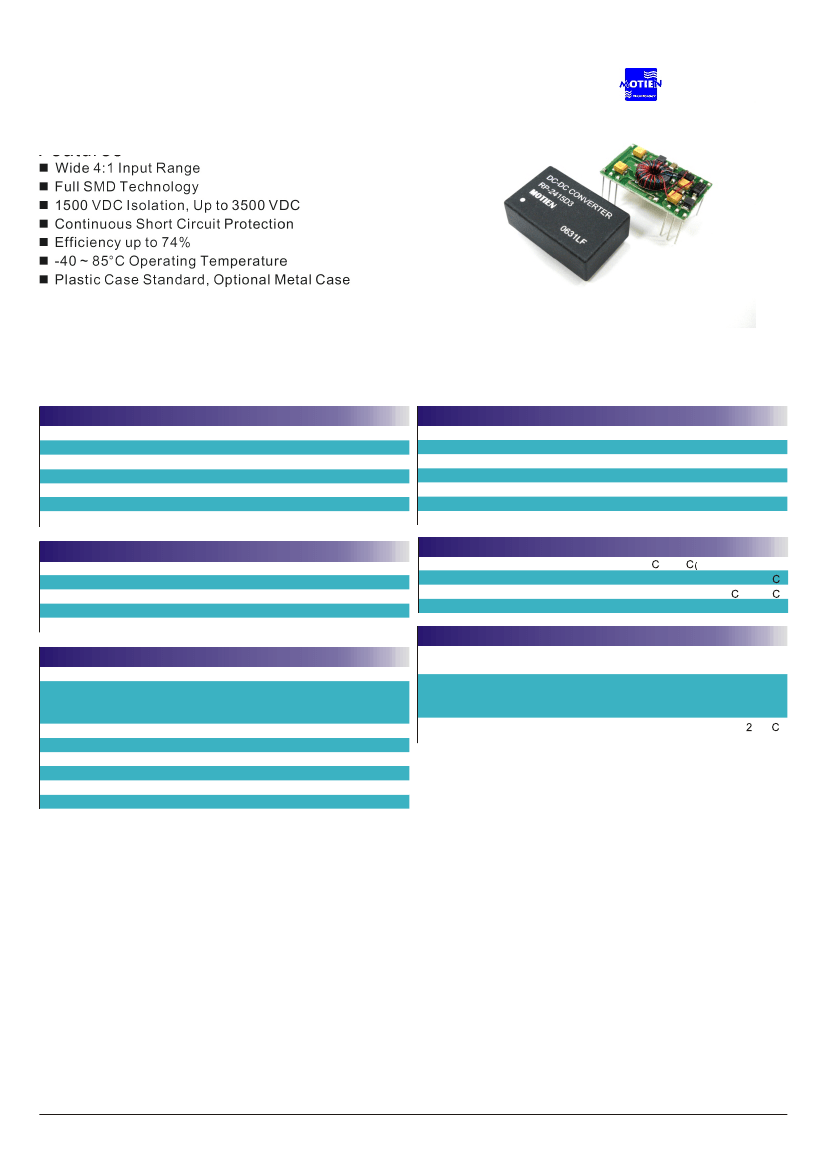

RP-1.5W Series
1.5W 4:1 Regulated Single & Dual output
Features
MOTIEN
TECHNOLOGY
he RP series is a family of cost effective 1.5W single & dual output DC-DC converters. These converters combine Plastic case in a 24-
pin DIL package with high performance features such as 1500 VDC ~ 3500VDC input/output isolation voltage, continuous short circuit
protection with automatic restart and tight line / load regulation. Devices are encapsulated using flame retardant resin. Input voltages of 24
and 48 with output voltage of 5, 9, 12, 15, 24,
±5, ±9, ±12, ±15
and
±24
Vdc. High performance features include high efficiency operation up
to 74% and output voltage accuracy of
±1%
maximum.
All specifications typical at Ta=25°C, nominal input voltage and full load unless otherwise specified
OUTPUT SPECIFICATIONS
Voltage accuracy
Line regulation
Load regulation
Ripple & noise
(20 MHz bandwidth)(1)
Short circuit protection
Temperature coefficient
Capacitor load
(2)
INPUT SPECIFICATIONS
Voltage Range
Max. Input Current
No-Load Input Current
Input Filter
Input Reflected Ripple Current
(3)
GENERAL SPECIFICATIONS
Efficiency
I/O Isolation Voltage
(3 sec)
Input/Output
Metal Case/Input & Output
I/O Isolation Capacitance
I/O Isolation Resistance
Switching Frequency
Humidity
Reliability Calculated MTBF
(MIL-HDBK-217 F)
Safety Standard :
(designed to meet)
±1%
±0.5%
±0.5%
60mV pk-pk
Continuous
±0.02%/°C
See table
PHYSICAL SPECIFICATIONS
Case Material
Non-conductive Black Plastic(UL94V-0 rated)
Nickel-coated Copper
Non-conductive Black Plastic(UL94V-0 rated)
Base Material
¨0.5mm
Brass Solder-coated
Pin Material
Potting Material
Epoxy (UL94V-0 rated)
Weight
12.5g(Plastic Case)/15.0g(Metal
Case)
Dimensions
1.25”x0.8”x0.4”
ENVIRONMENT SPECIFICATIONS
Operating Temperature
-40° ~85°
See Derating Curve)
Maximum Case Temperature
100°
Storage Temperature
-40° ~125°
Cooling
Nature Convection
ABSOLUTE MAXIMUM RATINGS
(4)
These are stress ratings. Exposure of devices to any of these
conditions may adversely affect long-term reliability.
Input Voltage
(100mS)
24 Modes
-0.7~40 Vdc
48 Modes
-0.7~80 Vdc
Soldering Temperature
60°
(1.5mm from case 10 sec.)
T
See table
See table
See table
PI Type
35mA pk-pk
See table
, typ
1500~3500Vdc
1000Vdc
60 pF Typ.
1000M Ohm
100~400kHz
95% rel H
>2.199 Mhrs
IEC 60950-1
The information and specifications contained in this data sheet are believed to be correct at time of publication. However,
MOTIEN Technologies
accepts no responsibility for
consequences arising from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s)
or information contained herein.
1
RP - 1.5W 4:1 Regulated Single & Dual output
PART NUMBER STRUCTURE
Derating Curve
R P - 24 05 S 1 H M
OUTPUT POWER
Series Name
Input Voltage Range
24
- 9 ~ 36V
48
- 18 ~ 72 V
1.5 Watt
Metal Case.
Optional, if no suffix " M"
mean plastic Case
3.5KVdc Isolation.
Optional, if no suffix "H"
mean1.5KVdc Isolation
100%
75%
50%
Output Type
S
- Single output
D
- Dual Output
S.O.A.
-20
0
20
40
60
80
85
Output Voltage
5
- 5V
9
- 9V
12
- 12V
15
- 15V
24
- 24V
25%
-40
100
120
AMBIENT TEMPERATURE(°
MODEL SELECTION GUIDE
MODEL NUMBER
RP-2405S1
RP-2409S1
RP-2412S1
RP-2415S1
RP-2424S1
RP-2405D1
RP-2409D1
RP-2412D1
RP-2415D1
RP-2424D1
RP-4805S1
RP-4809S1
RP-4812S1
RP-4815S1
RP-4824S1
RP-4805D1
RP-4809D1
RP-4812D1
RP-4815D1
INPUT
Voltage Range
(Vdc)
9-36
9-36
9-36
9-36
9-36
9-36
9-36
9-36
9-36
9-36
18-72
18-72
18-72
18-72
18-72
18-72
18-72
18-72
18-72
INPUT Current
No-Load
Full Load
(mA)
(mA)
20
91
20
20
20
30
20
20
20
20
30
10
10
10
10
10
10
10
10
10
89
86
86
88
94
91
89
89
90
44
43
42
42
43
45
44
43
43
OUTPUT
Voltage
(Vdc)
5
9
12
15
24
5
9
12
15
24
5
9
12
15
24
5
9
12
15
24
OUTPUT Current
Min. load
Full load
(mA)
(mA)
100
300
55.7
41.7
33.3
20.8
50
27.8
20.8
16.7
10.3
100
55.7
41.7
33.3
20.8
50
27.8
20.8
16.7
10.3
167
125
100
62.5
150
83.3
62.5
50
31
300
167
125
100
62.5
150
83.3
62.5
50
31
EFFICIENCY
@FL(%)
68
70
72
72
71
66
68
70
70
69
70
72
74
74
72
68
70
72
72
71
Capacitor
Load(uF)
2200
470
470
470
220
1000
220
220
220
100
2200
470
470
470
220
1000
220
220
220
100
RP-4824D1
18-72
10
44
Suffix
“H”
means 3.5KVdc isolation
Suffix
“M”
means Metal Case instead of standard Plastic case
NOTE
1.
2.
3.
4.
5.
6.
Typical value at nominal input voltage and full load.
Test by nominal input voltage and constant resistor load.
Measured Input reflected ripple current with a simulated source inductance of 12uH.
Exceeding the absolute ratings of the unit could cause damage. It is not allowed for continuous operating.
Operation under no-load conditions will not damage these devices, however they may not meet all listed specifications.
It’s necessary to add minimum capacitor in output for some models, please check single model datasheet for detail value.
The models listed above is just for standard type. If you need the special specification product, please contact our service member by telephone presented in shortform cover or e-mail
to : sales@motien.com.tw
2
RP - 1.5W 4:1 Regulated Single & Dual output
MECHANICAL SPECIFICATIONS FOR HIGH ISOLATION MODEL
31.75
(1.25)
Printed Face
10.16
(0.40)
PIN
NUMBER
PIN CONNECTIONS
SINGLE
+V Input
N.C.
N.C.
N.P.
V Output
+V Output
V Input
V Input
+V Output
V Output
N.P.
N.C.
N.C.
+V Input
DUAL
+V Input
V Output
Common
N.P.
Common
+V Output
V Input
V Input
+V Output
Common
N.P.
Common
V Output
+V Input
SINGLE-H
N.P.
-V Input
-V Input
N.P.
N.P.
N.C.
N.P.
N.P.
+V Output
N.P.
V Output
+V Input
+V Input
N.P.
DUAL-H
N.P.
V Input
V Input
Common
N.P.
V Output
N.P.
N.P.
+V Output
N.P.
Common
+V Input
+V Input
N.P.
20.32
(0.80)
DC-DC CONVERTER
RP-XXXXXX
MOTIEN
d/c
1
2
3.05
(0.12)
Min.
3
9
10
22.86
(0.9)
0.50
(0.02)
11
12
9 10 11 12
1 2
3
Bottom View
24 23 22
16 15 14 13
15.24
(0.60)
24 Pin DIL Package
Non-Conductive Plastic
Notes: All dimensions are typical in millimeters ( inches ).
1. Pin diameter: 0.5
±0.05
( 0.024
±0.002
)
2. Pin pitch tolerance:
±0.35
(
±0.014
)
3. Case Tolerance:
±0.5
(
±0.02
)
13
14
15
16
22
23
24
0.50
(0.02)
5.08
(0.20)
MECHANICAL SPECIFICATIONS
31.75
(1.25)
27.94
(1.10)
PIN CONNECTIONS
9 10 11 12
PIN
NUMBER
SINGLE
+V Input
N.C.
N.C.
N.P.
V Output
+V Output
V Input
V Input
+V Output
V Output
N.P.
N.C.
N.C.
+V Input
DUAL
+V Input
V Output
Common
N.P.
Common
+V Output
V Input
V Input
+V Output
Common
N.P.
Common
V Output
+V Input
SINGLE-H
N.P.
-V Input
-V Input
N.P.
N.P.
N.C.
N.P.
N.P.
+V Output
N.P.
V Output
+V Input
+V Input
N.P.
DUAL-H
N.P.
V Input
V Input
Common
N.P.
V Output
N.P.
N.P.
+V Output
N.P.
Common
+V Input
+V Input
N.P.
DC-DC CONVERTER
RP-XXXXXXM
MOTIEN
d/c
0.50
(0.02)
1 2 3
1
20.32
(0.80)
Bottom View
24 23 22
0.50
(0.02)
15.24
(0.60)
2
3
9
16 15 14 13
Printed Face
Built-in stand-offs
to ease PCB cleaning
2.54
(0.10)
10
11
12
10.16
(0.40)
For
“M” Case
Min.
13
14
3.05
(0.12)
24 Pin DIL Package
Nickel-Coated Copper
Notes: All dimensions are typical in millimeters ( inches ).
1. Pin diameter: 0.5
±0.05
( 0.024
±0.002
)
2. Pin pitch tolerance:
±0.35
(
±0.014
)
3. Case Tolerance:
±0.5
(
±0.02
)
15
16
22
23
24
