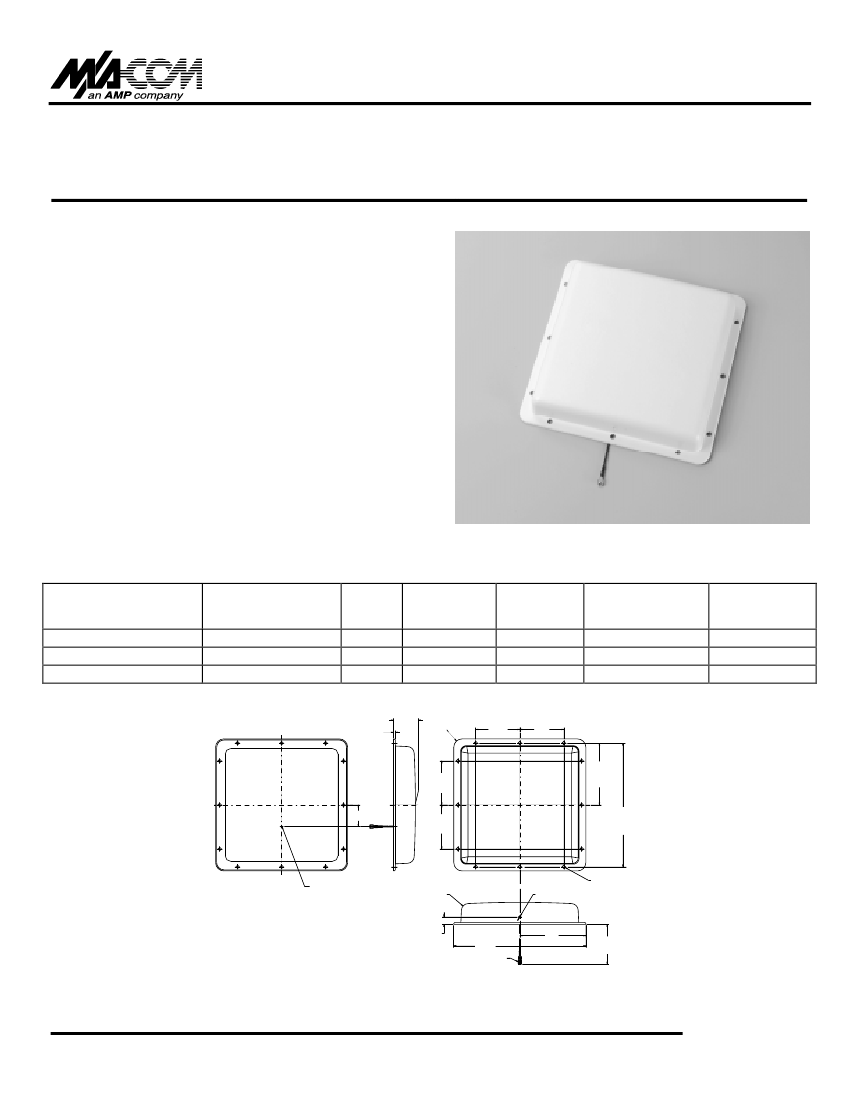

WLL Subscriber Antenna

ANAD-158W-A-6-SM

ANAD-159W-A-6-SM

ANAD-160W-A-6-SM

V3.00

Features

x

Low profile

Single piece circuit board construction

Multiple gain and beamwidth options available

Color and finish options available

Available in 3 frequency bands

Description

M/A-COM’s WLL subscriber antenna belongs to our family of

Planar Array antennas. With our patented technology and

automated production process, we can quickly and cost

effectively derive antennas that fit your requirements.

Our WLL antennas are assembled with an innovative backplane

which becomes a shielded enclosure to house RF and/or digital

electronics. The antenna element alone may also be purchased for

integration into your housing.

Specifications

Part Number

ANAD-158W-A-6-SM

ANAD-159W-A-6-SM

ANAD-160W-A-6-SM

Frequency

1850 – 1990 MHz

2300 – 2500 MHz

3400 – 3700 MHz

Gain

14 dB

16 dB

18 dB

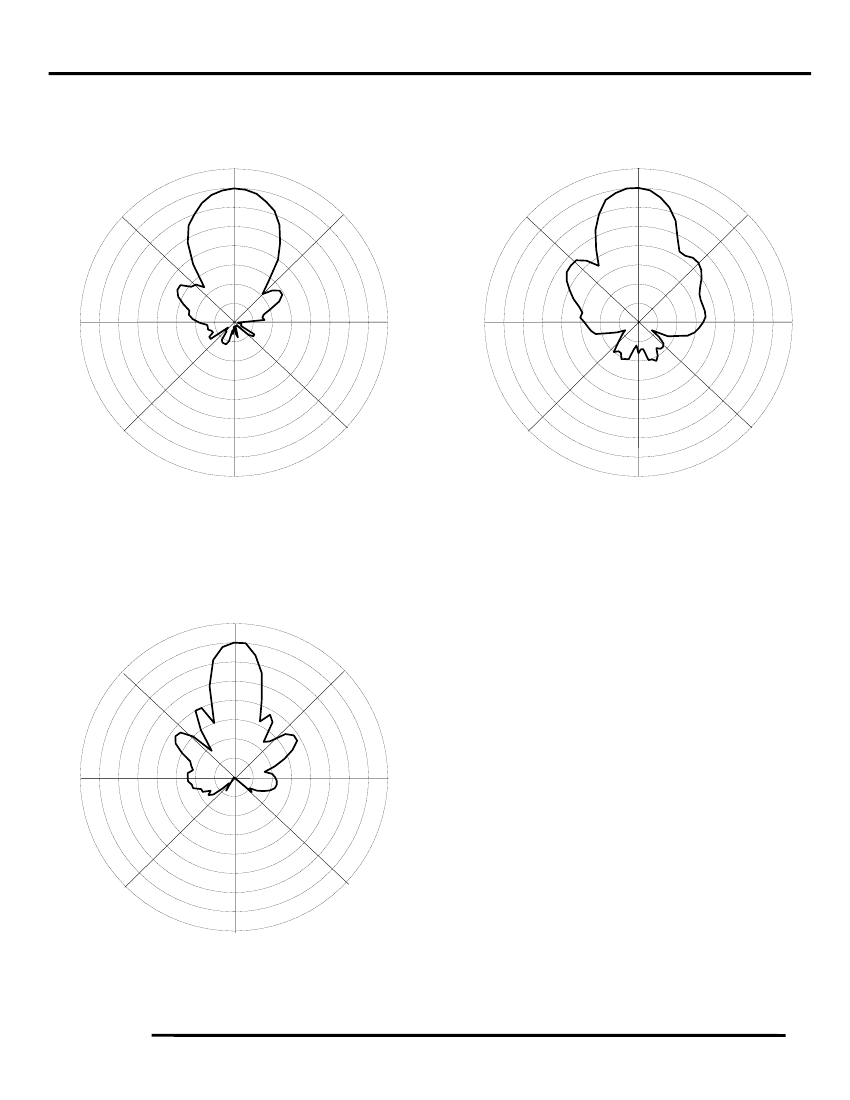

Beamwidth

Azimuth

(3 dB)

30° nominal

28° nominal

23° nominal

2.00

50.80

.75

19.05

4 PL

R(

4.00

101.60

1.97

49.99

5.625

142.88

2 PL

11.25

285.75

2 PL

Beamwidth

Elevation

(3 dB)

28° nominal

27° nominal

17° nominal

VSWR

1.5:1/1.6:1 typical

Dimensions

12” x 12” x 2”

.18

4.57

4.00

101.60

4.00

101.60

4.00

101.60

CABLE ASSY

FEED POINT

C

L

R.63

16.00

.68

17.27

.22

5.56

.313

7.94

THRU 12 PL

12.00

304.8

SMA PLUG

6.00

152.4

2 PL

6.00

152.40

Note: Dimensions given in inches over millimeters.

Specifications Subject to Change Without Notice

M/A-COM Inc.

North America: Tel. (800) 366-2266

Fax (800) 618-8883

i

Asia/Pacific:

Tel. +85 2 2111 8088

Fax +85 2 2111 8087

i

Europe:

Tel. +44 (1344) 869-595

Fax +44 (1344) 300-020

ANAD-159W-A-6-SM Related Products

	ANAD-159W-A-6-SM	ANAD-158W-A-6-SM	ANAD-160W-A-6-SM
Description	2300MHz - 2500MHz ANTENNA-OTHER, 16 dBi GAIN, 28deg 3dB BEAMWIDTH	1850MHz - 1900MHz ANTENNA-OTHER, 14 dBi GAIN, 30deg 3dB BEAMWIDTH	3400MHz - 3700MHz ANTENNA-OTHER, 18 dBi GAIN, 23deg 3dB BEAMWIDTH
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown
application	WIRELESS LOCAL LOOP	WIRELESS LOCAL LOOP	WIRELESS LOCAL LOOP
Beam Width-E	27 deg	28 deg	17 deg
Beamwidth-H	28 deg	30 deg	23 deg
Gain	16 dB	14 dB	18 dB
Omnidirectional	NO	NO	NO
Maximum operating frequency	2500 MHz	1900 MHz	3700 MHz
Minimum operating frequency	2300 MHz	1850 MHz	3400 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	ANTENNA-OTHER	ANTENNA-OTHER	ANTENNA-OTHER
Maximum voltage standing wave ratio	1.6	1.6	1.6
Base Number Matches	1	1	-
