CERAMIC SURFACE MOUNT MICROPROCESSOR CRYSTAL
ABMM
FEATURES:
• Suitable for RoHS reflow
• Low height 1.3 mm max
• AT-strip cut offers a tight tolerance & stability
Pb
RoHS
Compliant
APPLICATIONS:
• Computers, Modems, Microprocessors
• Communication, Test equipment
• PCMCIA
7.0 x 5.0 x 1.3 mm
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency Range
Operation Mode
ABMM
6.0 MHz to 125 MHz
AT-cut
6.0 MHz ~ 33.0 MHz (Fundamental: Standard)
33.01 MHz - 125 MHz (Third-Overtone: Standard)
33.01 MHz ~ 50.0 MHz (Fundamental: Please spedcify. See options)
Operating Temperature
Storage Temperature
Frequency Tolerance at +25°C
Frequency Stability over the
Operating Temp. (Ref to +25°C)
Equivalent Series Resistance
Shunt Capacitance C
0
Load Capacitance C
L
Drive Level
Aging at 25°C (first year)
Insulation Resistance
- 10°C to + 60°C (see options)
- 40°C to + 85°C
± 50 ppm max. (see options)
± 50 ppm max. (see options)
See Table 1
7pF max.
18pF (see options)
500µW max., 100µW typical
± 5ppm max.
500Ω min at 100Vdc ± 15V
ESR (
Ω
) Max
TABLE 1: STANDARD ESR
6.000 - 11.999(Fund)
12.000 - 20.000(Fund)
Frequency (MHz)
70
50
20.000 - 50.000(Fund)
33.000 - 125.00(3rd O/T)
Frequency (MHz)
E S R (
Ω
) max
40
80
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ABMM –
MHz -
-R
-
-
-
-
-
Packaging
Frequency in MHz
e.g. 6.000MHz
14.31818MHz
26.000MHz
Load Capacitance
Please specify CL (8 to
33pF) in pF or S for Series
Please contact ABRACON for other
values
Blank: Bulk
T: Tape & Reel (1k)
T2: Tape & Reel (250)
Mode
F: Fund.AT for >33MHz
ESR if other than STD
Specify a value in
Ω
Operating Temp.
E: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
Freq. Tolerance
1: ± 10 ppm
7: ± 15 ppm
2: ± 20 ppm
3: ± 25 ppm
4: ± 30 ppm
Freq. Stability
U: ± 10 ppm (*)
G: ± 15 ppm (**)
X: ± 20 ppm
W: ± 25 ppm
Y: ± 30 ppm
H: ± 35 ppm
* -10 to +60
°C
only.
** Option E, B, and10 to +60
°C
only.
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.19.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
CERAMIC SURFACE MOUNT MICROPROCESSOR CRYSTAL
ABMM

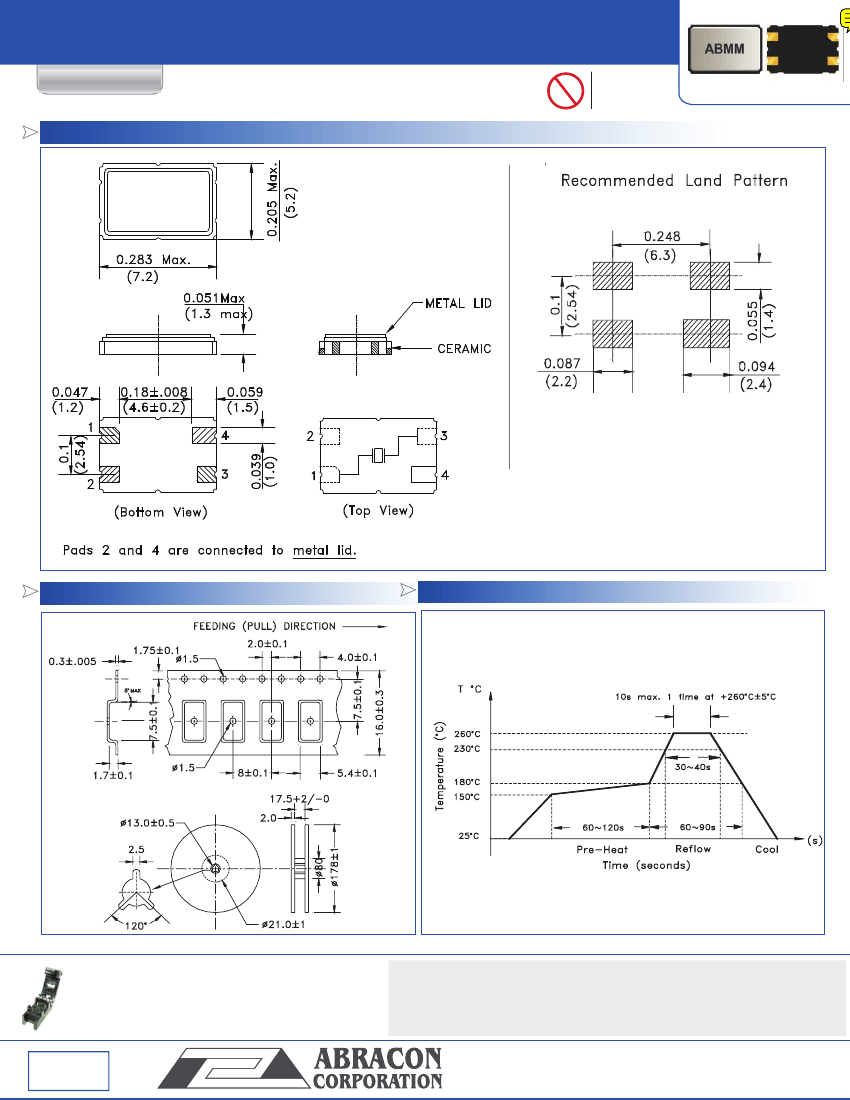

OUTLINE DRAWING:
Pb
RoHS
Compliant
7.0 x 5.0 x 1.3 mm
| | | | | | | | | | | | | | |
Dimension : Inches (mm)
Note 1: A longer pad (1.5mm) may appear on either pad 2, 3, or 4.
Note 2: A chamfer of 0.3mm may appear on pad 1 or 2.
Note 3: Pads 2 and 4 are connected to the metal lid.
TAPE & REEL:
Tape and reel 1,000 pcs/reel
Dimensions: mm
REFLOW PROFILE:
Need a test socket for the ABMM Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here.
ABRACON IS
ABRACON IS
ISO 9001 / QS 9000
ISO9001:2008
CER
CERTIFIED
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for
Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically
designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring
high reliability where component failure could result in loss of life and/or property. For applications requiring
high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
Revised: 08.19.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
