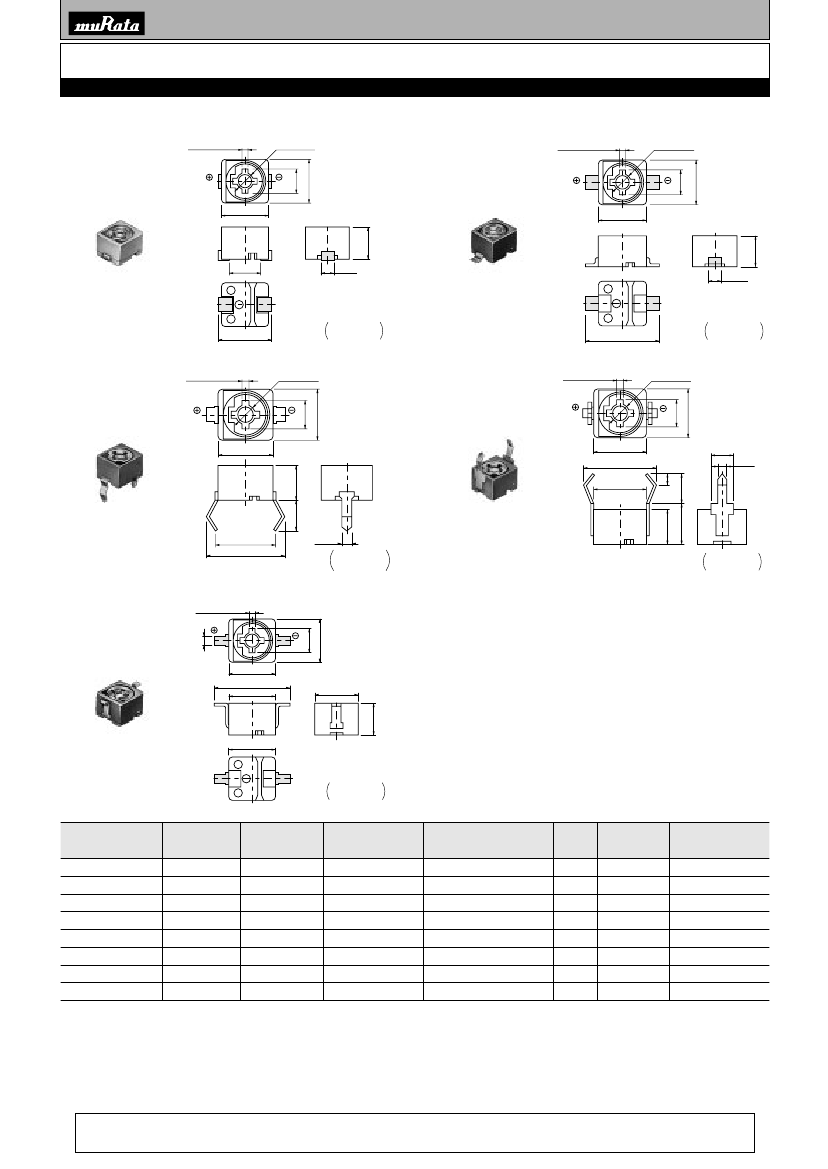

Capacitors
Ceramic Trimmer Capacitors
o
TZB4 Series (Applied product to ELV. RoHS)
0.6±0.1 Depth 0.5
1.4±0.1 dia.
0.6±0.1 Depth 0.5
1.4±0.1 dia.
4.0±0.2
2.4±0.1
4.5±0.2
3.0±0.2
2.4±0.1
4.5±0.2
4.0±0.2
2.7±0.3
1.2±0.1
1.2±0.1
A Type
5.0
Tolerance :
±0.5
in mm
B Type
7.0
Tolerance :
±0.5
in mm
0.6±0.1 Depth 0.5
1.4±0.1 dia.
0.6±0.1 Depth 0.5
1.4±0.1 dia.
2.4±0.1
4.0±0.2
4.5±0.2
3.0±0.2
4.5±0.2
6.2
1.0
5.0
2.5±0.2
2.4±0.1
4.0±0.2
2.0±0.2
0.8±0.1
2.5
C Type
5.0
6.2
0.8±0.1
Tolerance :
±0.5
in mm
D Type
3.0±0.2
3.5±0.2
Tolerance :
±0.5
in mm
0.6±0.1 Depth 0.5
2.4±0.1
0.8±0.1
4.5±0.2
7.0
4.8
4.0±0.2
3.0±0.2
4.5
E Type
Tolerance :
±0.5
in mm
Part Number
TZB4Z030pp10
TZB4Z060pp10
TZB4Z100pp10
TZB4R200pp10
TZB4P300pp10
TZB4P400pp10
TZB4Z250pp10
TZB4R500pp10
Cmin.
(pF)
1.4 max.
2.0 max.
3.0 max.
4.5 max.
6.5 max.
8.5 max.
4.0 max.
7.0 max.
Cmax.
(pF)
3.0 +50/-0%
6.0 +50/-0%
10.0 +50/-0%
20.0 +50/-0%
30.0 +50/-0%
40.0 +50/-0%
25.0 +100/-0%
50.0 +100/-0%
4.0±0.2
TC
NP0±200ppm/°C
NP0±200ppm/°C
NP0±300ppm/°C
N750±300ppm/°C
N1200±500ppm/°C
N1200±500ppm/°C
NP0±300ppm/°C
N750±300ppm/°C
Q
300min. at 1MHz, Cmax
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax
300min. at 1MHz, Cmax
300min. at 1MHz, Cmax
300min. at 1MHz, Cmax.
300min. at 1MHz, Cmax
Rated Withstanding
Voltage
Voltage
100Vdc
100Vdc
100Vdc
100Vdc
100Vdc
100Vdc
50Vdc
50Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
110Vdc
110Vdc
Stator/Case Color
Brown
Blue
White
Red
Green
Yellow
Black+Marking
Black+Marking
Insulation Resistance : 10000M ohm min. Torque : 1.5~10.0mNm Operating Temperature Range : -40~+85°C
Two blank columns are filled with cover film codes (A:not provided, B:provided) and terminal type codes.
!Note
• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specification or transact the approval sheet for product specification
before ordering. Especially, please read rating and
!CAUTION
(for storage and operating, rating, soldering and mounting, handling) in them to prevent smoking and/or burning, etc.
• You are able to read a detailed specification in the website (http://search.murata.co.jp/) before to require our product specification or to transact the approval sheet for product specification.
3.0±0.2
