MSAS-179-ZU-GG-18 datasheet, PDF

Datasheet> All Categories > The connector> socket> MSAS-179-ZU-GG-18

MSAS-179-ZU-GG-18: DescriptionPGA179, IC SOCKET, ROHS COMPLIANT; CategoryThe connector socket; File Size746KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MSAS-179-ZU-GG-18 Overview

PGA179, IC SOCKET, ROHS COMPLIANT

MSAS-179-ZU-GG-18 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Is Samacsys	N
Other features	ULTRA LOW INSERTION FORCE
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	PGA179
Shell material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Manufacturer's serial number	MSAS
Number of contacts	179
Base Number Matches	1

Preview

Download Datasheet

View All

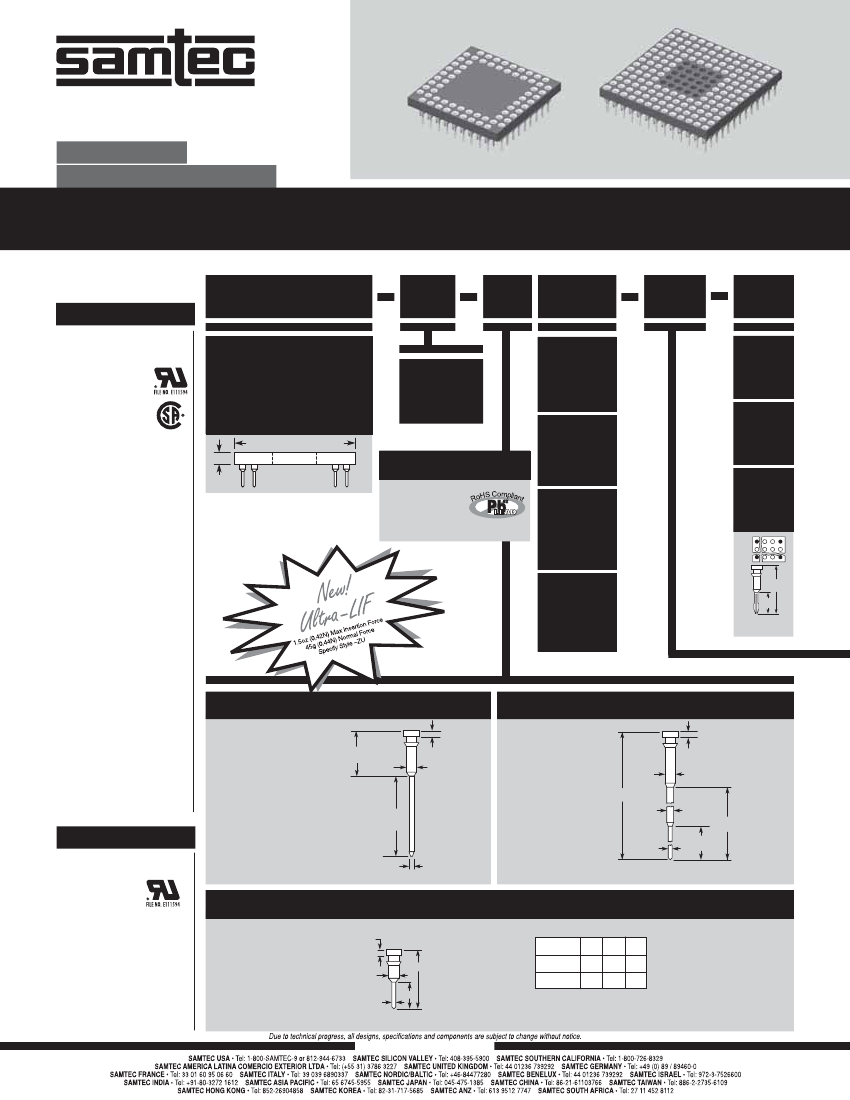

F-210-1 SUPPLEMENT

(2,54mm) .100"

MPAS, MVAS, MSAS SERIES

MPAS–068–ZSGT–11

MPAS–144–ZSGT–13

PIN GRID ARRAY SOCKETS

Mates with:

MPAT, MVAT, MHAT, MSAT

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?MPAS

or www.samtec.com?MVAS

BODY

STYLE

COUNT

LEAD

STYLE

PLATING

OPTION

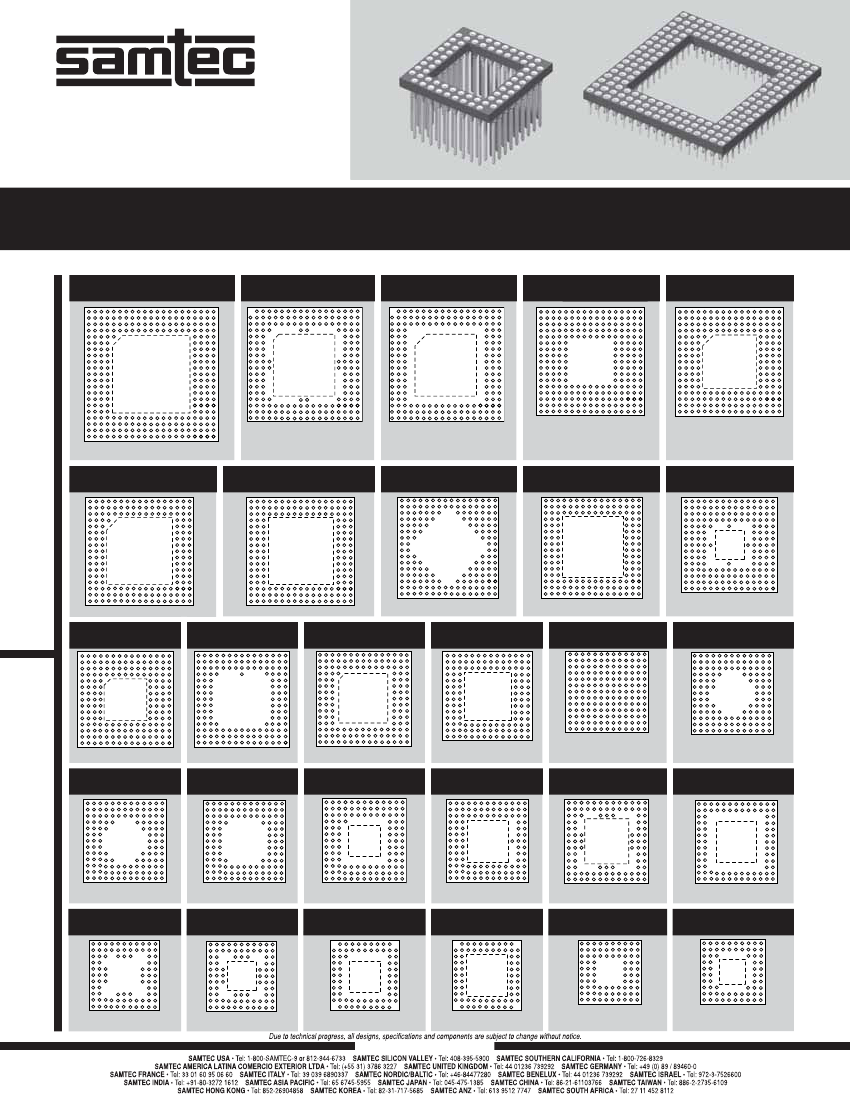

PIN OUT

CODE

OPTION

MPAS

= Standard

Polyester

MVAS

= Open

Body Polyester

–“XXX”

= Total Number

of Filled

Positions

= 30µ" (0,76µm)

Gold Contact,

10µ" (0,25µm)

Gold Shell

–2

= (9,14).360

Wire-Wrap

(–ZW Only)

MPAS, MVAS

Insulator Material:

Black G.F. Polyester

Contact:

BeCu

Shell:

Brass except Style K

Phospher Bronze

Operating Temp Range:

-55°C to +105°C with Tin

-55°C to +125°C with Gold

Plating:

Au over 50µ"(1,27µm) Ni or

Sn over 100µ" (2,58µm) Cu or

50µ" (1,27µm) Ni

Current Rating:

Contact Resistance:

10mΩ max

Lead Size Range:

.015" (0,38mm) to

.022" (0,56mm) DIA

Insertion Force:

(Single contact only)

Style ZU = 1.5oz (0,42N) max,

all others = 2.5 oz (0,69N) avg,

5.5 oz (1,53N) max

Withdrawal Force:

(Single contact only)

Style ZU = 1.5oz (0,42N) max,

all others = 2.0 oz (0,56N) avg,

0.35 oz (0,97N) min

Lead-Free Solderable:

Wave, only

RoHS Compliant:

MSAS

= Hi-Temp LCP

Open Body

No. of Positions X .100 (2,54) SQ

ALSO AVAILABLE

= 30µ" (0,76µm)

Gold Contact,

Tin Shell

–3

= (6,60).260

Wire-Wrap

(–ZW Only)

(2,54)

.100

RoHS compliant

options.

Call Samtec.

–L

= Locking

Socket

(–ZS Only)

fre

w.sam

tec.com/lead-

= Tin Contact

and Shell

(Styles –ZS &

ZW Only)

= 10µ" (5,08µm)

Gold Contact,

Tin Shell

(Style –ZS only)

(7,62)

.300

(3,43)

.135

Requires GT

Plating Option

–ZW

= Wire Wrap

Shorter w/w

tail lengths

available.

See OPTION.

(4,90)

.193

(1,32)

.052

DIA

(0,76)

.030

–ZE

= Elevated

(0,76)

.030

(1,32)

.052

DIA

(13,77)

.542

(0,89)

.035

DIA

(0,51)

.020

DIA

Insertion Depth = .125" to .170"

Style ZE Component Part No. = EZ-2P3

(4,32)

.170

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(12,95)

.510

(8,86)

.348

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?MSAS

MSAS

Insertion Depth = .125" to .157"

Style ZW Component Part No. = EZ-1W1(1)

Style ZW-2 Component Part No. = EZ-1W1(2)

Style ZW-3 Component Part No. = EZ-1W1(3)

(0,64)

.025

Same as

MPAS except:

Insulator Material:

Black Liquid Crystal Polymer

(0,76)

.030

–ZS, –ZU, –ZA

= Printed Circuit

LEAD

STYLE

DIA

(0,51)

.020

(0,51)

.020

TAIL

(3,18)

.125

(4,57)

.180

OAL

(7,62)

.300

(8,89)

.350

(1,32)

.052

DIA

Insertion Depth = .095" to .145",

Style ZS Component Part No. = EZ-1P1

Style ZA Component Part No. = EZ-6P1

Option L Component Part No. = SC-1L1 or EZ-1L1

–ZS, –ZU

–ZA

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

Locking lead (–L) available.

See OPTION.

WWW.SAMTEC.COM

MSAS-179-ZU-GG-18 Related Products

	MSAS-179-ZU-GG-18	MSAS-068-ZUGG-11	MSAS-068-ZU-GG-11	MSAS-191-ZU-GG-18	MSAS-191-ZUGG-18
Description	PGA179, IC SOCKET, ROHS COMPLIANT	IC Socket, PGA68, 68 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder, ROHS COMPLIANT	PGA68, IC SOCKET, ROHS COMPLIANT	PGA191, IC SOCKET, ROHS COMPLIANT	IC Socket, PGA191, 191 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	ULTRA LOW INSERTION FORCE	ULTRA LOW INSERTION FORCE	ULTRA LOW INSERTION FORCE	ULTRA LOW INSERTION FORCE	ULTRA LOW INSERTION FORCE
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD (10) OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier	GOLD	GOLD	Gold (Au)
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PGA179	PGA68	PGA68	PGA191	PGA191
Shell material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
JESD-609 code	e4	e4	e4	e4	e4
Number of contacts	179	68	68	191	191
Maker	SAMTEC	-	-	SAMTEC	SAMTEC
Factory Lead Time	2 weeks	-	2 weeks	2 weeks	-
Is Samacsys	N	N	N	-	-
Manufacturer's serial number	MSAS	-	MSAS	MSAS	-
Base Number Matches	1	1	1	-	-
