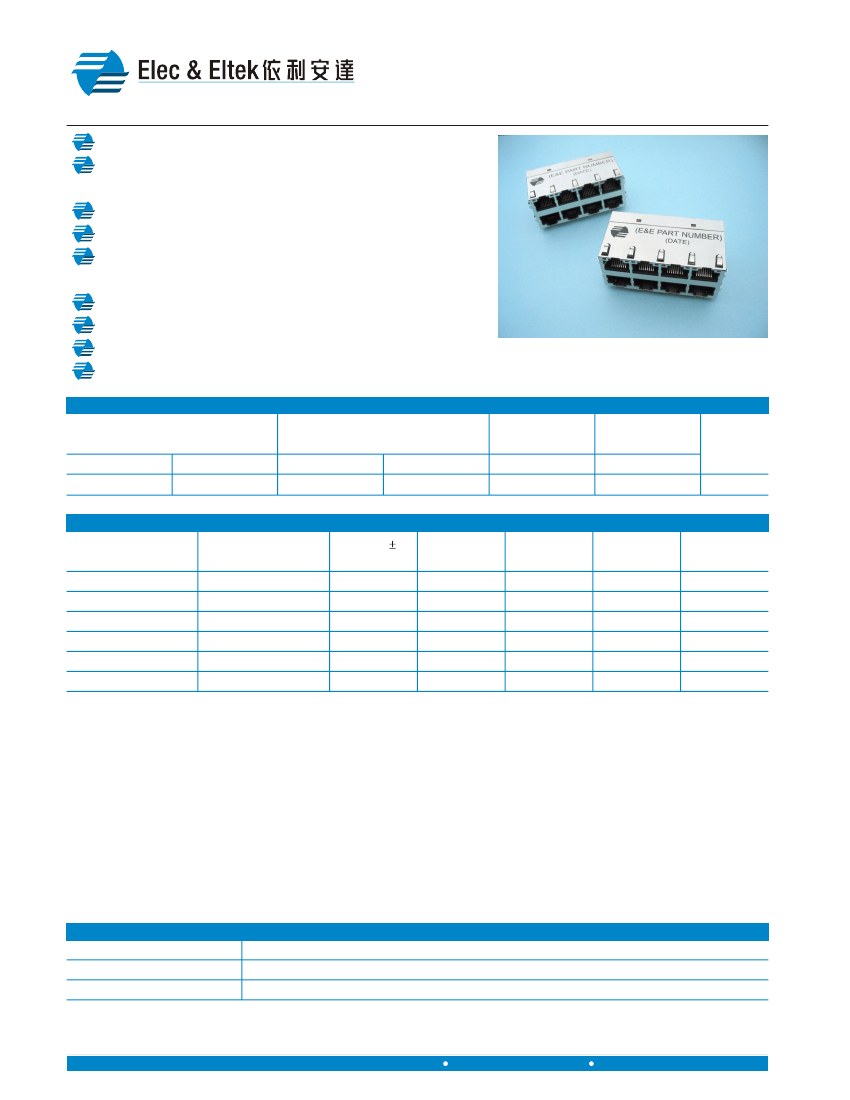

E & E Magnetic Products Limited
1000 Base-T Applications
Stack 2XN, Through Hole
Zigzag Output Pins Pattern (With LED)

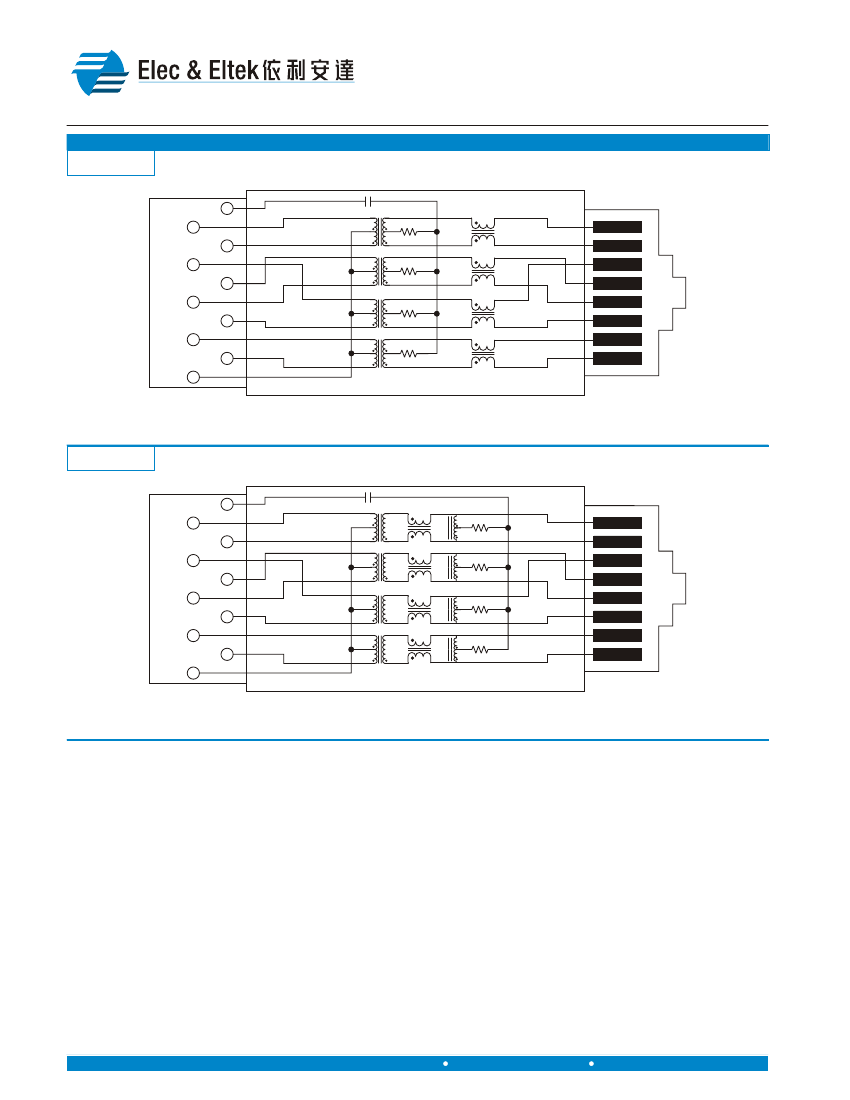

S
CHEMATICS
Magnetic Integrated Connector Modules
Compliant with IEEE802.3 standard including 350µH OCL
with 8mA DC Bias
1500Vrms isolation voltage per IEEE802.3
Enhanced performance on EMI suppression with metal shield
Support 4 pairs of Category 5 UTP cable with 1000Base-T
full duplex applications
Operating temperature 0°C to +70°C
Stacked design for Hub and Switch applications
UL 1863 listed
RoHS compliant versions are available
G
ENERAL
E
LECTRICAL
S
PECIFICATION
Insertion Loss
(dB Max)
0.1-100MHz
1.0
100-100MHz
1.2
Return Loss
(dB Min)
0.5-40MHz
18.0
1
@
25°C
CMRR
(dB Min)
0.1-100MHz
32.0
Crosstalk
(dB Min)
1
Hipot
(Vrms)
1500
40-100MHz
12-20Log(F/80)
0.1-100MHz
33-20Log(F/50)
P
ART
N
UMBER
T
ABLE
Part Number
2
RoHS Part Number
MJR24N2EEA0-G100
MJR24N2EEA0-G300
MJR26N2EEA0-G100
MJR26N2EEA0-G300
MJR28N2EEA0-G100
MJR28N2EEA0-G300
Turn Ratio ( 3%)
(Chip : Cable)
1CT:1CT
1CT:1
1CT:1CT
1CT:1
1CT:1CT
1CT:1
Configuration
3
TC
TCA
TC
TCA
TC
TCA
LED
(Left / Right)
E/E
E/E
E/E
E/E
E/E
E/E
4
Mechanical
Package
MJ24N-06A
MJ24N-06A
MJ26N-06A
MJ26N-06A
MJ28N-06A
MJ28N-06A
Schematic
G100
G300
G100
G300
G100
G300
MJ-24N2EEA0-G100
MJ-24N2EEA0-G300
MJ-26N2EEA0-G100
MJ-26N2EEA0-G300
MJ-28N2EEA0-G100
MJ-28N2EEA0-G300
Notes:
1. “F” represents the test frequency specified in MHz.
2. For different electrical and mechanical specifications, please contact E&E Magnetic Products Limited.
3. Core location are counted from PCB (Chip) side to Cable (Media) side, where:
“T” = Isolation transformer ; “C” = Common-mode choke ; “A” = Auto-transformer
4. LEDs (Left / Right) : “E” = Orange & Green bi-color (3 terminals type). For different LED color requirements,
please contact E&E Magnetic Products Limited.
5. Panel tabs are optional.
6. All parts shown in this datasheet have gold plating thickness of 10 micro-inch (min.) over contact area.
Advance options including 30 micro-inch (min.) and 50 micro-inch (min.) are also available.
M
ATERIALS
Housing
Contact Pins
PCB Pins
6
Consist of thermoset & thermoplastic materials, all of them are UL 94-V0 rated.
Phosphor bronze, plated with nickel under-plating and hard gold over contact area.
Copper wire which meets solderability requirements per MIL-STD-202, method 208.
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
1
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ123(02)
Revised in 06/07
E & E Magnetic Products Limited
1000 Base-T Applications
Stack 2XN, Through Hole
Zigzag Output Pins Pattern (With LED)

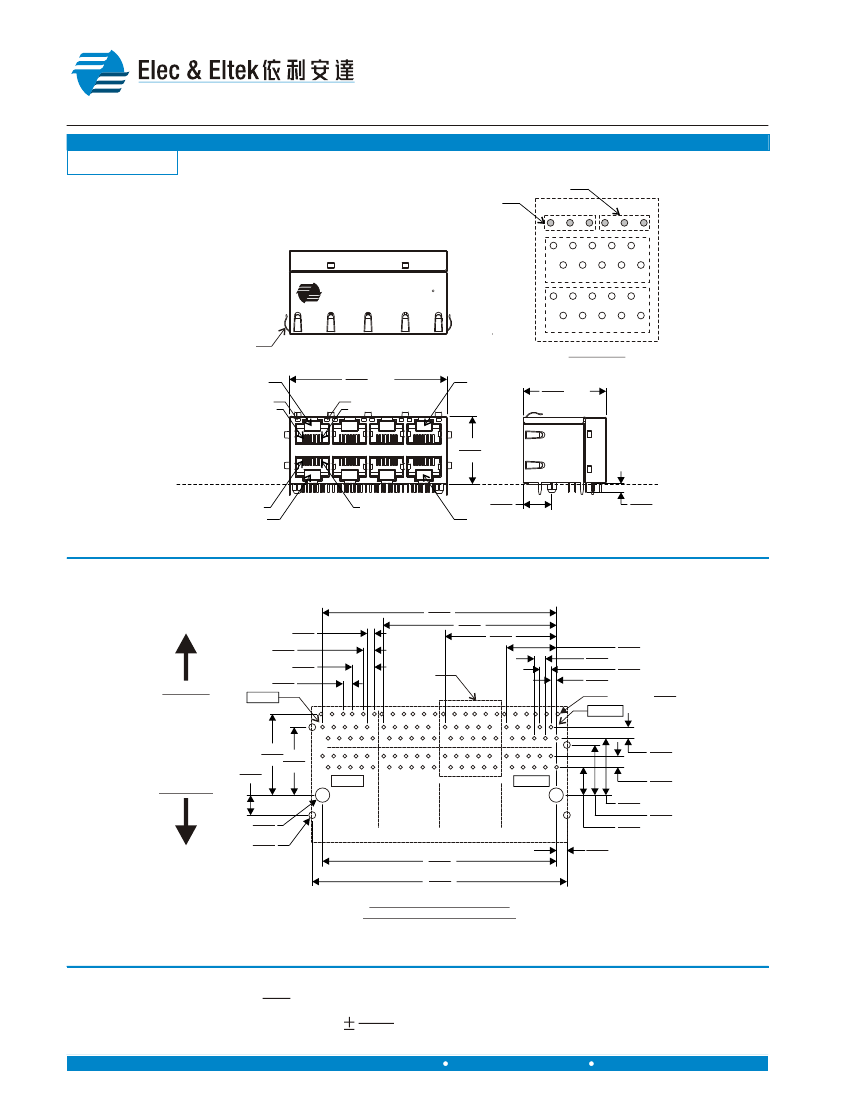

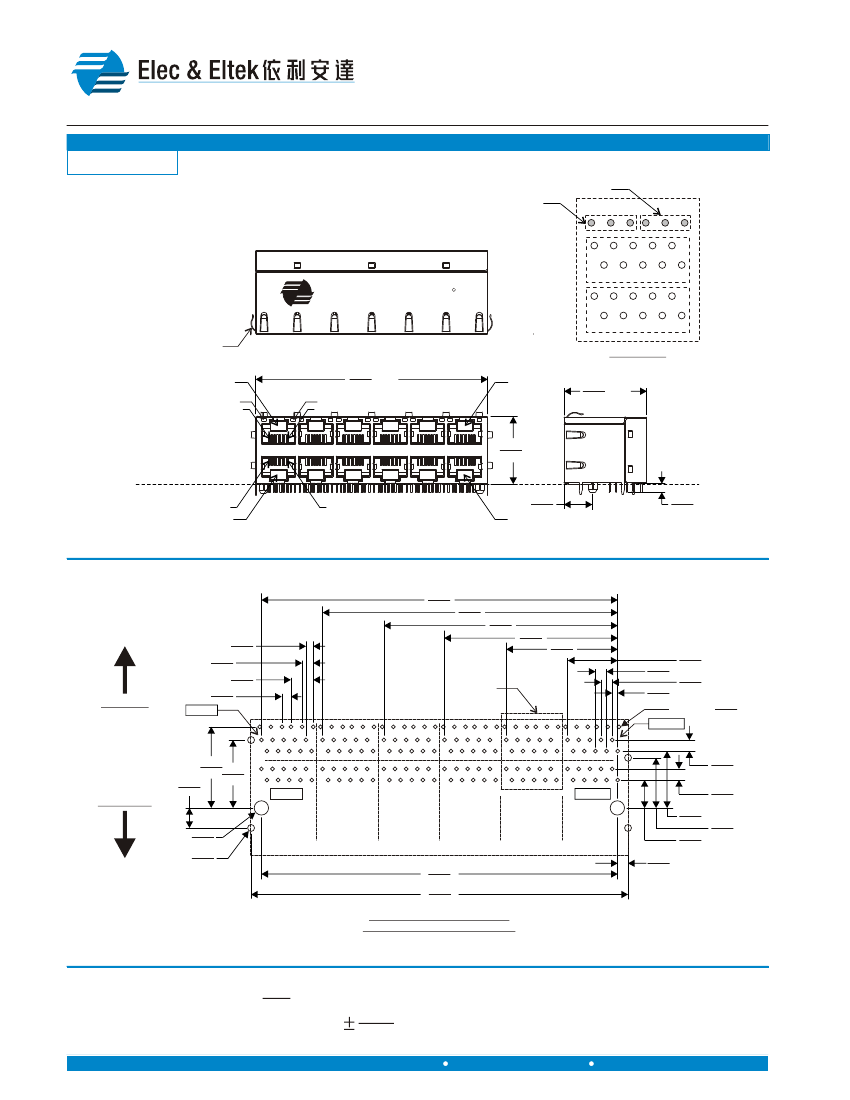

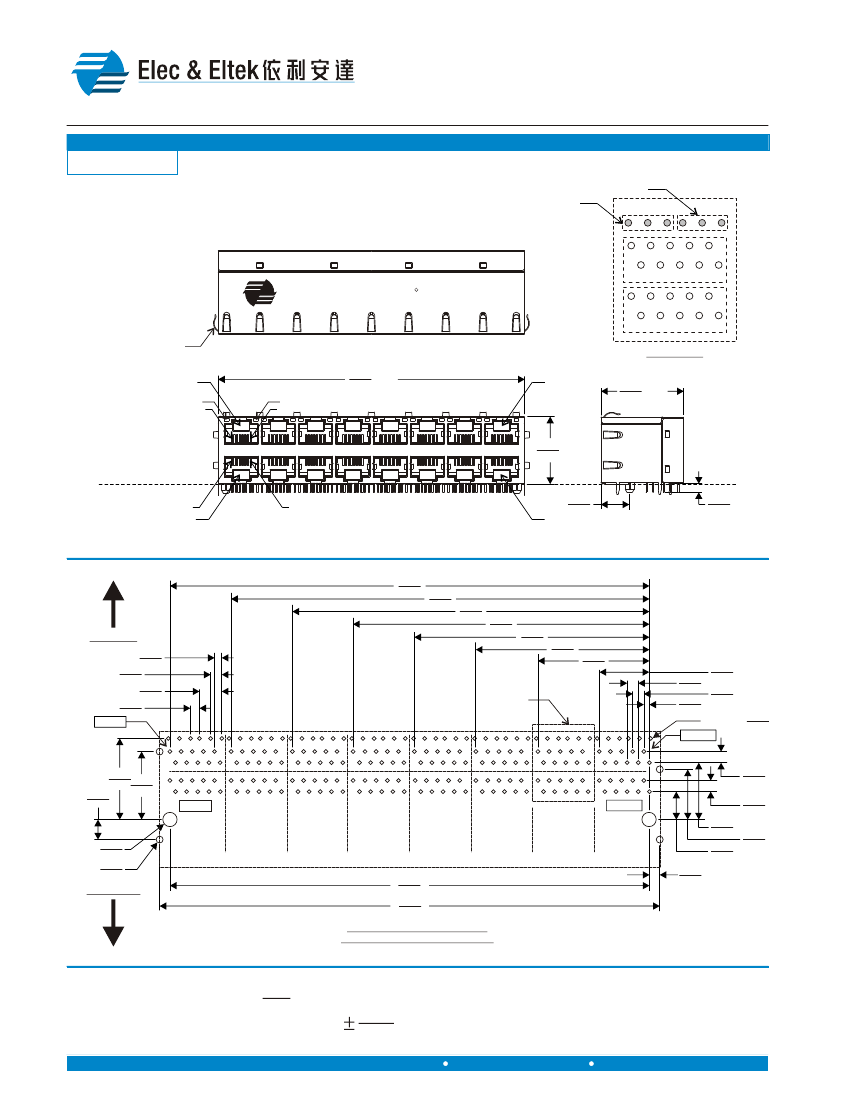

M
ECHANICAL
D
IMENSIONS
MJ24N-06A
RIGHT LED
LEFT LED
11
12
13 13
12
11
UPPER PORT
(E&E PART NUMBER)
(DATE)
10
9
8
7
6
5
4
3
2
1
C
R
U
R
US
LOWER PORT
1
2
3
4
5
6
7
8
9
10
NOTE 5
2.340
MAX.
59.44
LED (RIGHT LED)
J1
DETAIL “A”
PORT 8
1.260
MAX.
32.00
PORT 2
LED (LEFT LED)
J8
1.020
MAX.
25.91
REFERENCE OR
GAUGE PLANE
J1
PORT 1
J8
0.425
10.81
PORT 7
0.125
3.18
2.100
53.34
0.065
1.65
0.100
2.54
0.200
5.08
0.080
2.03
PORT 2
1.550
39.37
1.000
25.40
0.100
2.54
0.050
1.27
DETAIL “A”
0.450
11.43
0.100
2.54
104X DIA.:
0.042
1.07
Chip side
PORT 8
Cable side
0.180
4.57
0.727
18.47 0.610
15.49
PORT 1
PORT 7
0.100
2.54
0.100
2.54
0.510
12.95
0.450
11.43
0.126
3.20
0.062
4X DIA.:
1.57
2X DIA.:
0.250
6.35
2.100
53.34
2.320
58.93
0.110
2.79
Recommended hole pattern
(viewed from component side)
All dimensions are specified in inch with higher precedence in inch.
mm
0.010 .
Unless otherwise specified, all tolerances are
0.25
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
2
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ123(02)
Revised in 06/07
E & E Magnetic Products Limited
1000 Base-T Applications
Stack 2XN, Through Hole
Zigzag Output Pins Pattern (With LED)
M
ECHANICAL
D
IMENSIONS
MJ26N-06A
RIGHT LED
LEFT LED
11
12
13 13
12
11
UPPER PORT
(E&E PART NUMBER)
(DATE)
10
9
8
7
6
5
4
3
2
1
C
R
U
R
US
LOWER PORT
1
2
3
4
5
6
7
8
9
10
NOTE 5
3.440
MAX.
87.38
LED (RIGHT LED)
J1
DETAIL “A”
PORT 12
1.260
MAX.
32.00
PORT 2
LED (LEFT LED)
J8
1.020
MAX.
25.91
REFERENCE OR
GAUGE PLANE
J1
PORT 1
J8
0.425
10.81
PORT 11
0.125
3.18
3.200
81.28
2.650
67.31
2.100
53.34
Chip side
0.065
1.65
0.100
2.54
0.200
5.08
0.080
2.03
PORT 2
1.550
39.37
1.000
25.40
0.100
2.54
0.050
1.27
DETAIL “A”
0.450
11.43
0.100
2.54
156X DIA.:
0.042
1.07
PORT 12
Cable side
0.180
4.57
0.727
18.47 0.610
15.49
PORT 1
PORT 11
0.100
2.54
0.100
2.54
0.510
12.95
0.450
11.43
0.126
2X DIA.:
3.20
0.062
4X DIA.:
1.57
0.250
6.35
4.300
109.22
4.520
114.81
0.110
2.79
Recommended hole pattern
(viewed from component side)
All dimensions are specified in inch with higher precedence in inch.
mm
0.010 .
Unless otherwise specified, all tolerances are
0.25
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
3
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ123(02)
Revised in 06/07
E & E Magnetic Products Limited
1000 Base-T Applications
Stack 2XN, Through Hole
Zigzag Output Pins Pattern (With LED)
M
ECHANICAL
D
IMENSIONS
MJ28N-06A
RIGHT LED
LEFT LED
11
12
13 13
12
11
UPPER PORT
(E&E PART NUMBER)
(DATE)
10
9
8
7
6
5
4
3
2
1
C
R
U
R
US
LOWER PORT
1
2
3
4
5
6
7
8
9
10
NOTE 5
4.540
MAX.
115.32
LED (RIGHT LED)
J1
DETAIL “A”
PORT 16
1.260
MAX.
32.00
PORT 2
LED (LEFT LED)
J8
1.020
MAX.
25.91
REFERENCE OR
GAUGE PLANE
J1
PORT 1
J8
0.425
10.81
PORT 15
0.125
3.18
4.300
109.22 3.750
95.25
3.200
81.28
Chip side
0.065
1.65
0.100
2.54
0.200
5.08
0.080
2.03
PORT 2
2.650
67.31
2.100
53.34
1.550
39.37
1.000
25.40
0.100
2.54
0.050
1.27
DETAIL “A”
0.450
11.43
0.100
2.54
208X DIA.:
0.042
1.07
PORT 16
0.180
4.57
0.727
18.47 0.610
15.49
PORT 1
PORT 15
0.100
2.54
0.100
2.54
0.510
12.95
0.450
11.43
0.126
2X DIA.:
3.20
0.062
4X DIA.:
1.57
0.250
6.35
4.300
109.22
4.520
114.81
0.110
2.79
Cable side
Recommended hole pattern
(viewed from component side)
All dimensions are specified in inch with higher precedence in inch.
mm
0.010 .
Unless otherwise specified, all tolerances are
0.25
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
4
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ123(02)
Revised in 06/07
E & E Magnetic Products Limited
1000 Base-T Applications
Stack 2XN, Through Hole
Zigzag Output Pins Pattern (With LED)
(EACH PORT)
S
CHEMATICS
G100
Primary
10
Shield
1000pF/2000V
1CT:1CT
75Ω
1CT:1CT
75Ω
Secondary
J8
J7
J6
J5
MDI_3-
9
MDI_3+
8
MDI_1-
7
MDI_2-
6
MDI_2+
5
MDI_1+
4
MDI_0-
3
MDI_0+
2
1
1CT:1CT
75Ω
1CT:1CT
75Ω
J4
J3
J2
J1
RJ-45
Chip Side
RJ-45
Cable Side
G300
Primary
10
Shield
1000pF/2000V
Secondary
1CT:1
75Ω
1CT:1
75Ω
MDI_3-
9
MDI_3+
8
MDI_1-
7
MDI_2-
6
MDI_2+
5
MDI_1+
4
MDI_0-
3
MDI_0+
2
1
J8
J7
J6
J5
1CT:1
75Ω
1CT:1
75Ω
J4
J3
J2
J1
RJ-45
Chip Side
RJ-45
Cable Side
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
5
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ123(02)
Revised in 06/07
