KDM168X-3.3-DR-3TN: Description168 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, SOCKET, ROHS COMPLIANT; CategoryThe connector The connector; File Size983KB，2 Pages; ManufacturerKycon

Download Datasheet Parametric View All

KDM168X-3.3-DR-3TN Overview

168 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER, SOCKET, ROHS COMPLIANT

KDM168X-3.3-DR-3TN Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	KDM
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	168
UL Flammability Code	94V-0
Base Number Matches	1

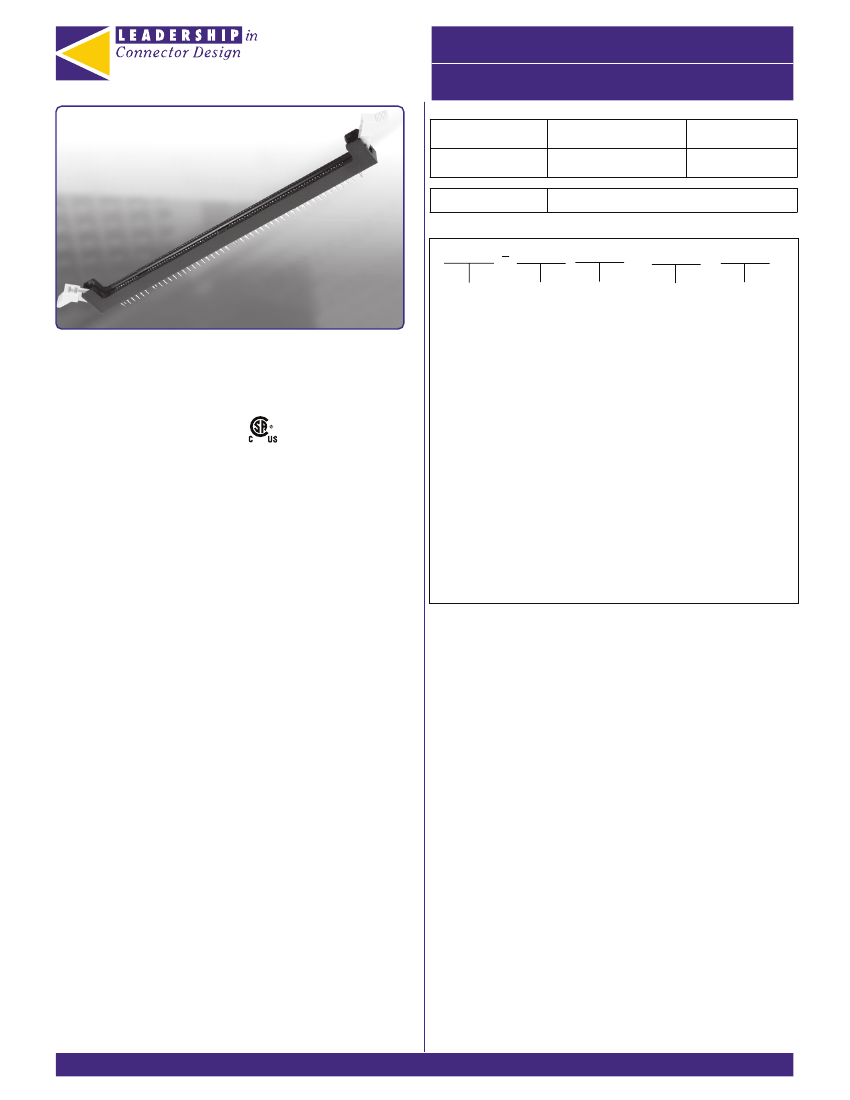

Preview

Download Datasheet

View All

DIMM SOCKETS

KYCON

RoHS

KDM Series

Documentation &

Ordering Information

Drawing

Sample

Stock

Email

CofC

RFQ

Kycon Part #

KDM168X-5.5SD4TN

Part Number Builder

KDM168X

5.5

SD

4

TN

Series

Voltage

RAM

Post

Location

Material

KDM Series

168 Position DIMM Socket

Features

LR78160

KDM168X

KDM168X - 168 Position DIMM Socket

Series

Voltage

3.3 - 3.3V

5.5

5.0 - 5.0V

RAM

DR - DRAM

SD - SDRAM

UN

- Unbuffered DRAM

• 168 Position Socket for Dual Inline Memory Modules

• Mates with JEDEC MO-161E Compatible DIMMs

• Visual and Mechanical Polarization

• Available in DRAM, SDRAM and Unbuffered DRAM

• CSA/NRTL Certified File No. LR78160

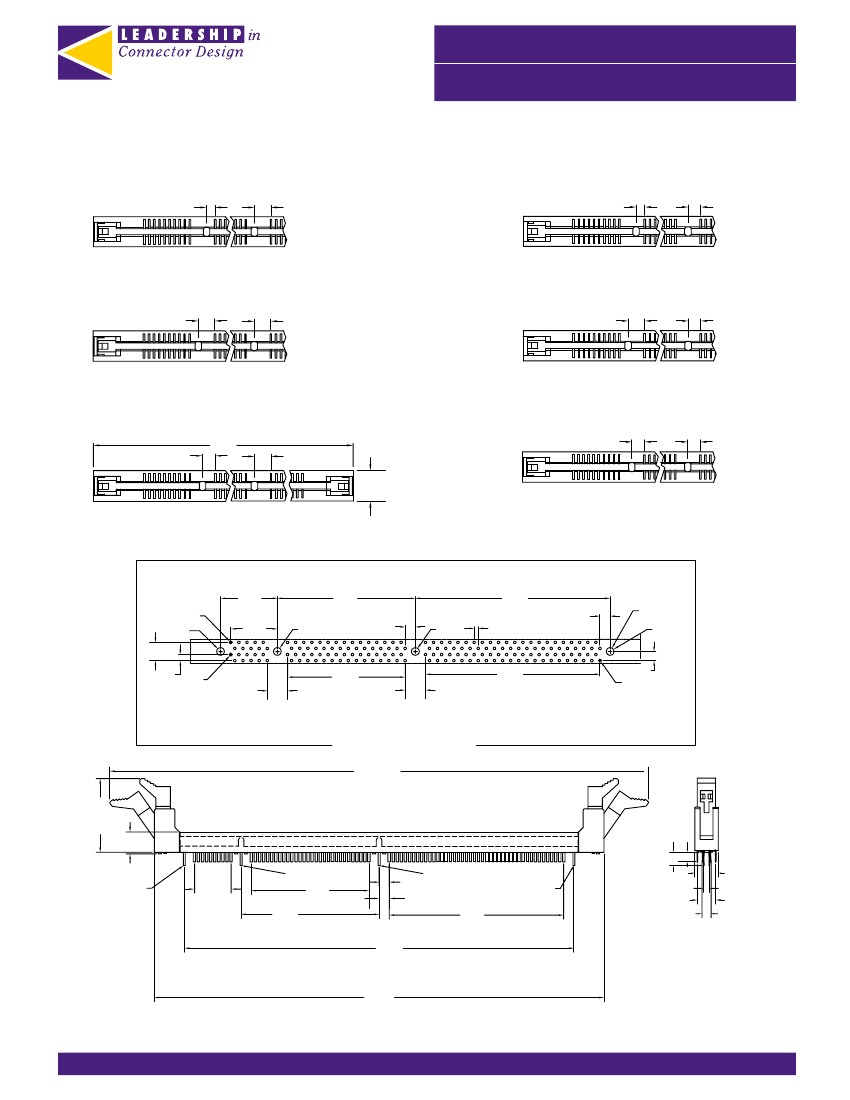

Post Location ( see PCB for Layout)

1

- BCD

2 - AD

3 - BC

4

- ACD

5 - ABCD

Material

TN

Performance Specifications

Materials and Finish

Body

High Temp Material UL 94V-0 Rated, Glass Fiber Reinforced,

Black Color

Terminals

Phosphor Bronze

Contact Plating

Gold Plating over Nickel on Contact Area,

Tin Plating on Terminal

Other Plating Options Available, Contact Kycon for Details

Electrical Characteristics

Voltage Rating

250 V AC

Current Rating

Signal Application Only

Insulation Resistance

1000 Megohm

Dielectric Withstanding

1000V AC for 1 Minute

Operating Temperature

-55°C to + 105°C

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

2007
