D602J52S215DQA

Description
TOGGLE SWITCH
CategoryMechanical and electronic products    switch
File Size284KB,5 Pages
ManufacturerC&K
Environmental Compliance
Download Datasheet Parametric View All

D602J52S215DQA Overview

TOGGLE SWITCH

D602J52S215DQA Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerC&K
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
JESD-609 codee4
Manufacturer's serial numberD
Switch typeTOGGLE SWITCH
Terminal surfaceSilver (Ag)
Base Number Matches1
D Series
Miniature Snap-in Power Rocker Switches

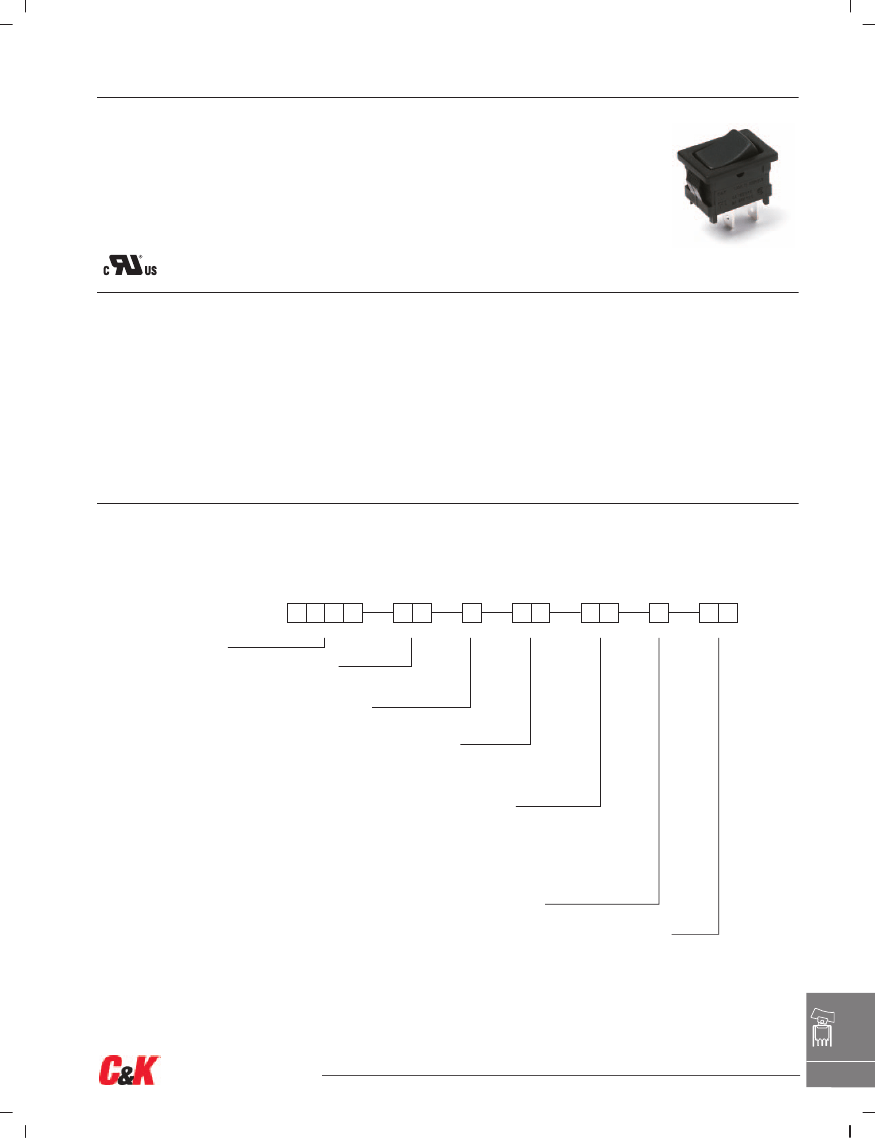

Features/Benefits
Momentary and maintained models
PC and quick connect terminals
Recessed bracket available — prevents
accidental actuation
Typical Applications
Small appliances
Computers and peripherals
Medical instrumentation
RoHS compliant
Specifications
CONTACT RATING: D10X and D20X Models: 4 AMPS @ 125 V AC;
2 AMPS @ 250 V AC. D50X and D60X Models: 10 AMPS @
125 V AC; 5 AMPS @ 250 V AC.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 109
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
Materials
ACTUATOR & HOUSING: 6/6 nylon (UL 94V-2), color black,
finish: matte.
MOVABLE CONTACTS: D10X and D20X Models: Copper, silver plated.
D50X and D60X Models: Coin silver, silver plated.
STATIONARY CONTACTS AND TERMINALS: Copper or brass,
silver plated.
CONTACT SPRING: Music wire or stainless steel.
OPERATING TEMPERATURE: -30ºC to +65ºC
NOTE:
Specifications and materials listed above are for standard switches.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages G–62 through G–65. For additional options not shown in catalog, consult Customer Service Center.

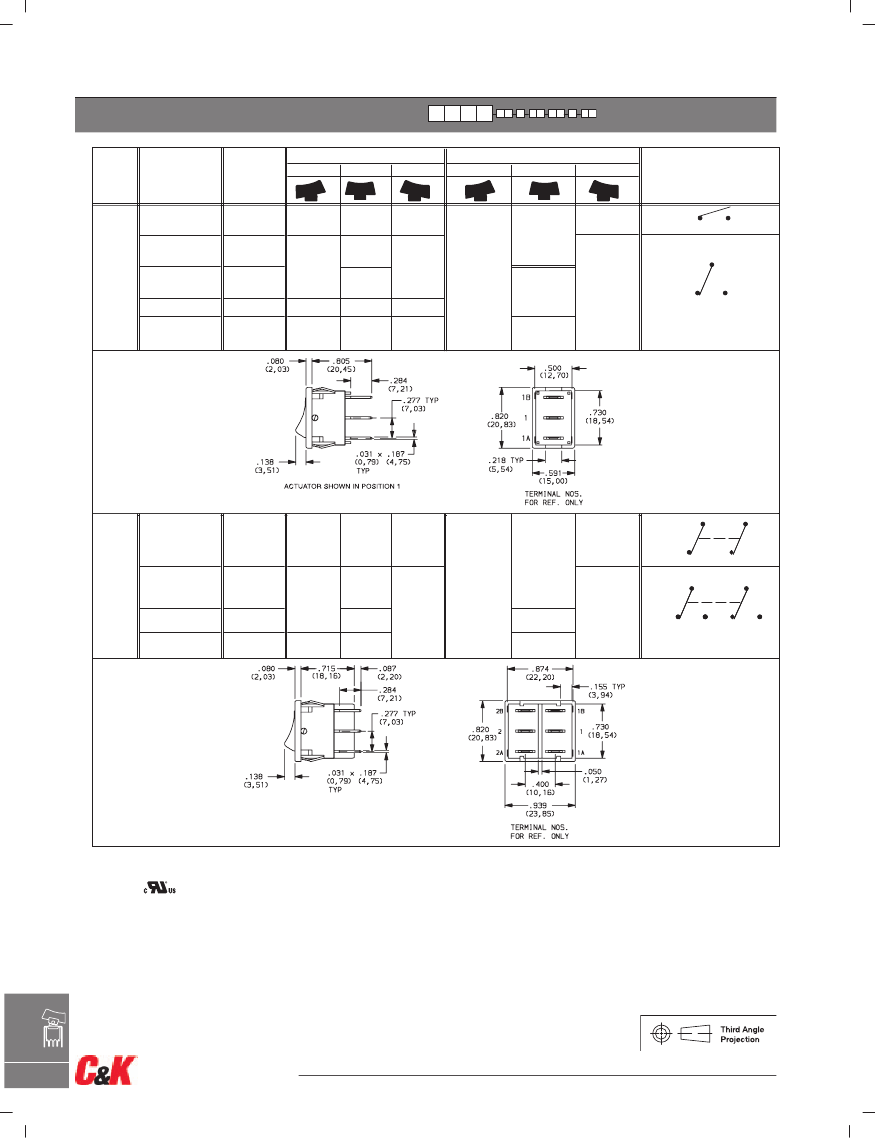

Switch Function
D101
SPDT, On-None-On
D102
SPST, On-None-Off
D103
SPDT, On-Off-On
D105
SPDT, Mom.-Off-Mom.
D108
SPDT, Mom.-None-On
D201
DPDT, On-None-On
D202
DPST, On-None-Off
D203
DPDT, On-Off-On
D501
SPDT, On-None-On
D502
SPST, On-None-Off
D503
SPDT, On-Off-On
D508
SPDT, Mom.-None-On
D601
DPDT, On-None-On
D602
DPST, On-None-Off
D608
DPDT, Mom.-None-On

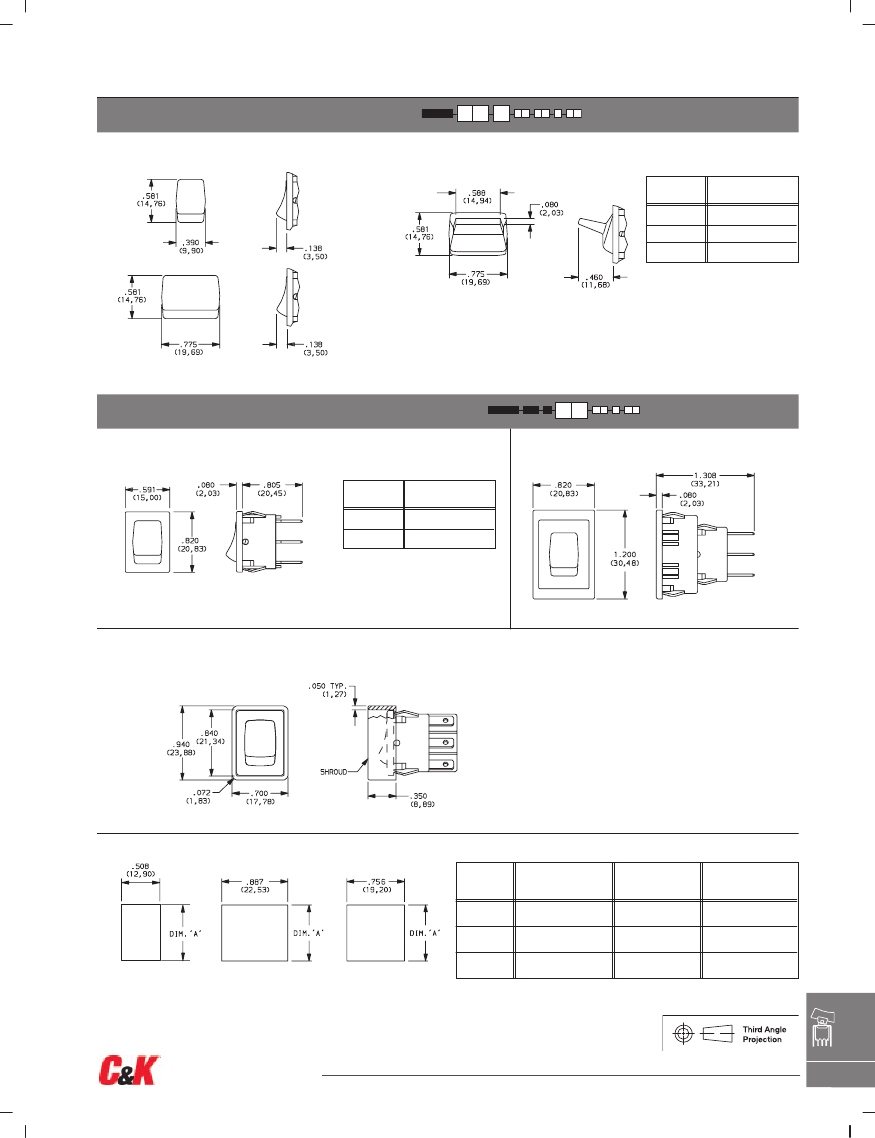

Actuator
J1
Rocker
J5
Lever
Actuator Color
2
Black
1
White

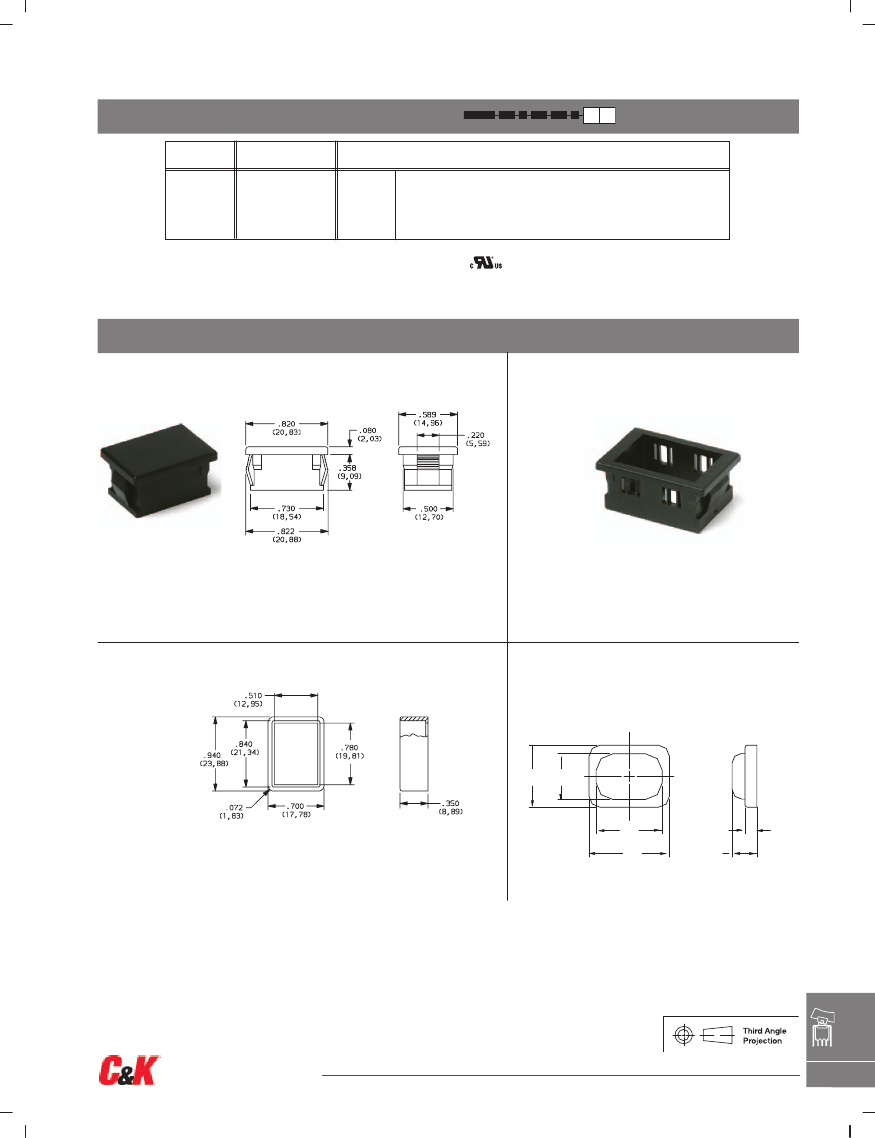

Mounting Style/Color
3
Red
S2
Snap-in, black
B2
Recessed snap-in actuator guard, black
G2
Actuator guard, black
S1
Snap-in, white

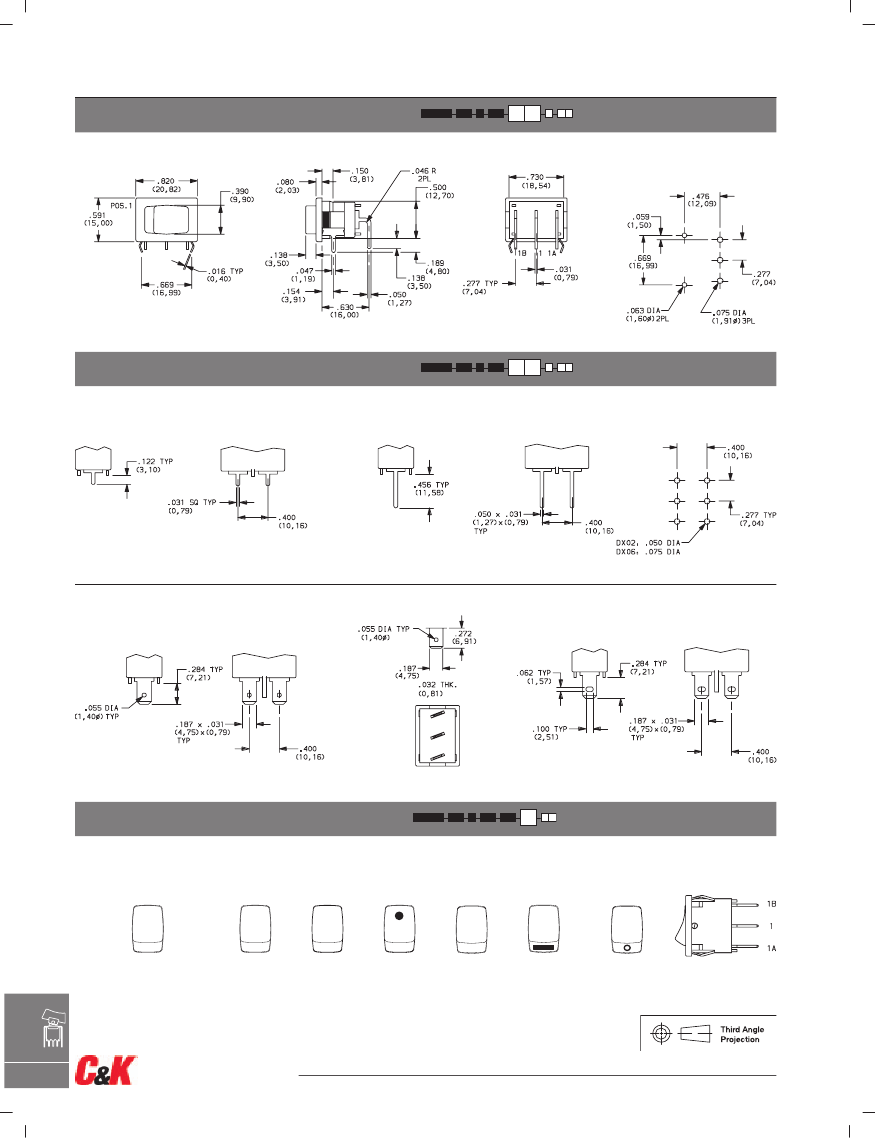

Terminations
15
Quick connect
A
Right angle, PC thru-hole
02
PC Thru-hole
05
Twisted quick connect
06
Extended PC thru-hole
17
Wirable quick connect
Actuator Markings
NONE
No marking
D
ON-OFF
H
O|
N
Large dot
P
O–
R
Red rectangle on end
U
Large dot on end
Rocker
Contact Material
QA
Silver (UL/CSA)
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–61
www.ck-components.com
G
