D Series
Miniature Snap-in Power Rocker Switches
Features/Benefits
•
Momentary and maintained models
•
PC and quick connect terminals
•
Recessed bracket available — prevents
accidental actuation
•
RoHS compliant
Typical Applications
•
Small appliances
•
Computers and peripherals
•
Medical instrumentation
Models Available
Specifications
CONTACT RATING: D10X and D20X Models: 4 AMPS @ 125 V AC;
2 AMPS @ 250 V AC. D50X and D60X Models: 10 AMPS @
125 V AC; 5 AMPS @ 250 V AC.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
Materials
ACTUATOR & HOUSING: 6/6 nylon (UL 94V-2), color black,
finish: matte.
MOVABLE CONTACTS: D10X and D20X Models: Copper, silver plated.
D50X and D60X Models: Coin silver, silver plated.
STATIONARY CONTACTS AND TERMINALS: Copper or brass,
silver plated.
CONTACT SPRING: Music wire or stainless steel.
OPERATING TEMPERATURE: -30ºC to +65ºC
NOTE:
Specifications and materials listed above are for standard switches.
For information on specific and custom switches, consult Customer Service Center.

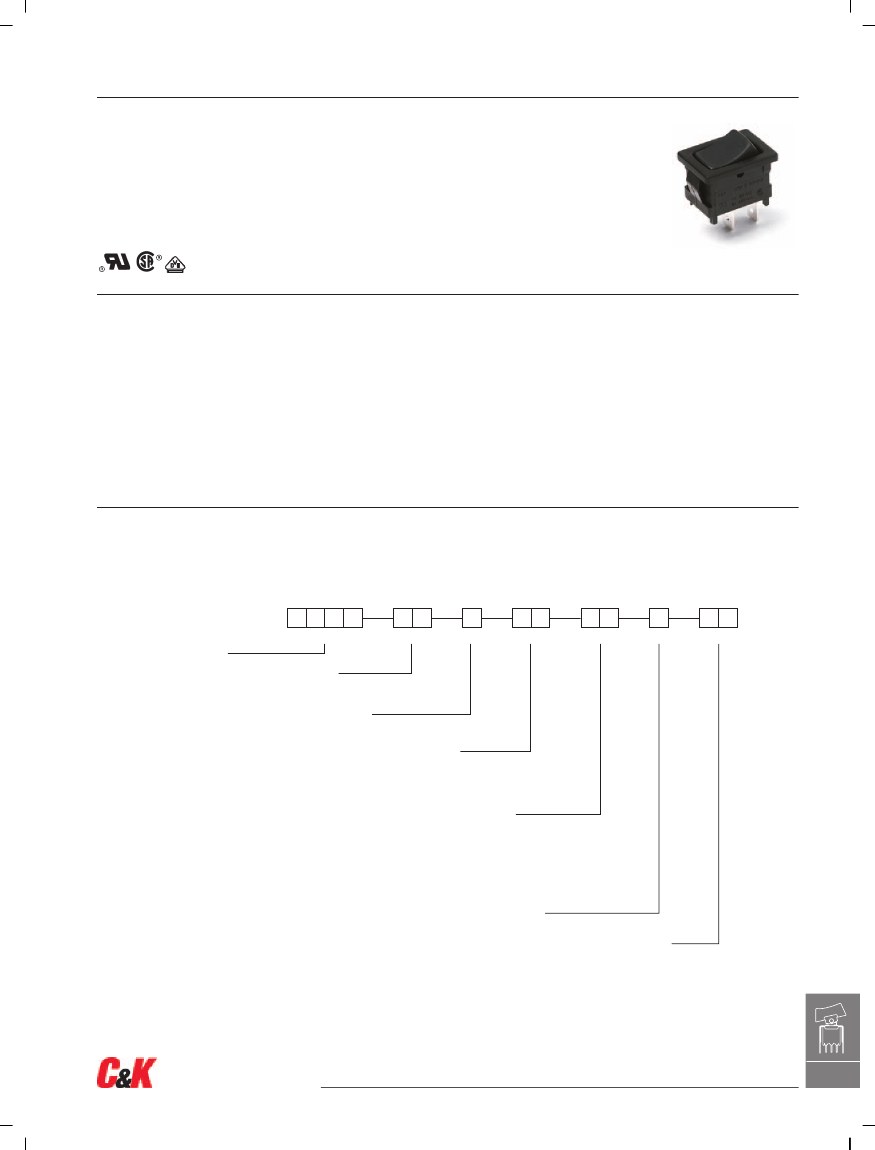

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages H–62 through H–65. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
D101
SPDT, On-None-On
D102
SPST, On-None-Off
D103
SPDT, On-Off-On
D105
SPDT, Mom.-Off-Mom.
D108
SPDT, Mom.-None-On
D201
DPDT, On-None-On
D202
DPST, On-None-Off
D203
DPDT, On-Off-On
D501
SPDT, On-None-On
D502
SPST, On-None-Off
D503
SPDT, On-Off-On
D508
SPDT, Mom.-None-On
D601
DPDT, On-None-On
D602
DPST, On-None-Off
D608
DPDT, Mom.-None-On
Actuator
J1
Rocker
J5
Lever
Actuator Color
2
Black
1
White
Mounting Style/Color
3
Red
S2
Snap-in, black
B2
Recessed snap-in actuator guard, black
G2
Actuator guard, black
S1
Snap-in, white
Terminations
15
Quick connect
A
Right angle, PC thru-hole
02
PC Thru-hole
05
Twisted quick connect
06
Extended PC thru-hole
17
Wirable quick connect
Actuator Markings
NONE
No marking
D
ON-OFF
H
O|
N
Large dot
P
O–
R
Red rectangle on end
U
Large dot on end
Rocker
Contact Material
QA
Silver (UL/CSA)
QF
Silver (UL/CSA/VDE)
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H
H–61
www.ck-components.com
D Series
Miniature Snap-in Power Rocker Switches

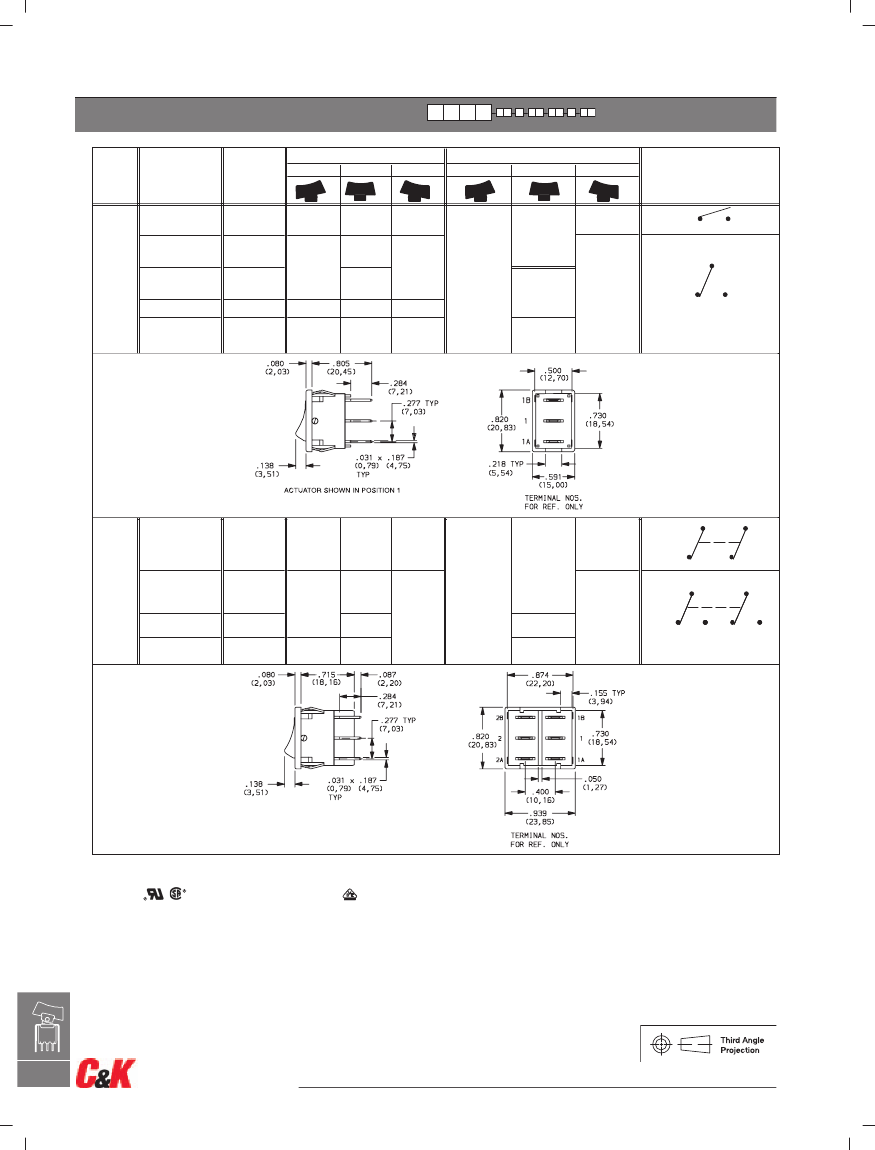

SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
NO.
POLES
MODEL
NO.
AMP
RATING*
4
10
4
10
4
10
4
4
10
MOM.
MOM.
ON
OFF
OFF
NONE
MOM.
ON
N/A
ON
NONE
OFF
N/A
NONE
ON
1-1A
OPEN
1-1B
SPDT
1A
1B
1
POS. 2
POS. 3
CONNECTED TERMINALS
POS. 1
POS. 2
POS. 3
SCHEMATIC
OPEN
SPST
D102
D502
D101
D501
SP
1
1A
D103
D503
D105
D108
D508
SPDT
Part number shown: D101J12S215QA
1
2
D202
D602
DP
4
ON
10
N/A
4
10
4
10
MOM.
ON
NONE
ON
1-1B, 2-2B
OPEN
N/A
DPDT
1A
1B
2A
2
NONE
OFF
OPEN
DPST
1A
2A
D201
D601
D203
D608
1-1A, 2-2A
1
2
OFF
NONE
DPDT
ACTUATOR SHOWN IN POSITION 1
Part number shown: D201J12S215QA
MOM. = Momentary
*AMP RATING: D10X and D20X models: 4 AMPS @ 125 V AC; 2 AMPS @ 250 V AC. D50X and D60X models: 10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC.
All models
. DX01, DX02 models also available with
. See CONTACT MATERIALS, page H-65.
Rocker
H
H–62
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
www.ck-components.com
D Series
Miniature Snap-in Power Rocker Switches

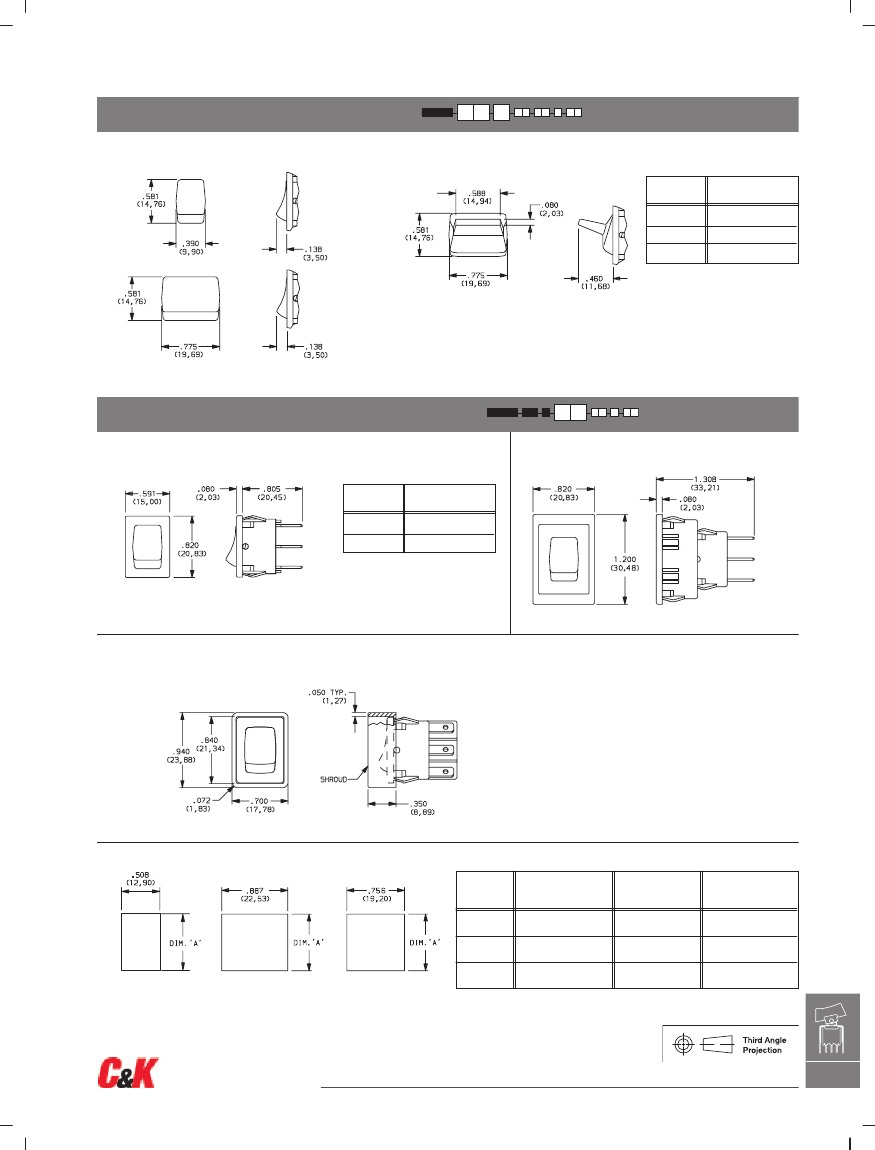

ACTUATOR COLOR
ACTUATOR
J1
ROCKER
ACTUATOR
J5
SP
LEVER
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
RED
2
1
3
DP
NOTE:
Actuator finish: matte.
Other colors available, consult
Customer Service Center.
‘J5’ actuator available only with DP
models D201, D202, D601 and D602.
MOUNTING STYLE/COLOR
S
SNAP-IN
B2
OPTION
CODE
HOUSING
COLOR
(STD.) BLACK
WHITE
RECESSED SNAP-IN ACTUATOR GUARD, BLACK
2
1
NOTE:
Frame finish on housing: matte.
Other colors available, consult Customer
Service Center.
NOTE:
Vertical mount, SP models only.
G2
ACTUATOR GUARD, BLACK
EW!
N
NOTE:
Vertical mount, SP models only.
PANEL MOUNTING
DIM ‘A’
SP & DP MODELS
‘S’ MOUNTING STYLE
.756
(19,20)
.764
(19,41)
.780
(19,81)
DIM ‘A’
WITH ‘G2” OPTION
SP MODELS ONLY
.764
(19,41)
.780
(19,81)
n/a
DIM ‘A’
SP MODELS
‘B’ MOUNTING STYLE
PANEL
THICKNESS
.030–.049
(0,76) (1,24)
.049–.079
(1,24) (2,01)
.079–.118
(2,01) (3,00)
Rocker
1.068
(27,13)
1.076
(27,33)
1.092
(27,74)
SP MODELS
'S' & 'G2' mounting styles
DP MODELS
'S' mounting style
SP MODELS
'B2' mounting style
NOTE:
Blank insert available for SP models only, see page H-68.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H
H–63
www.ck-components.com
D Series
Miniature Snap-in Power Rocker Switches

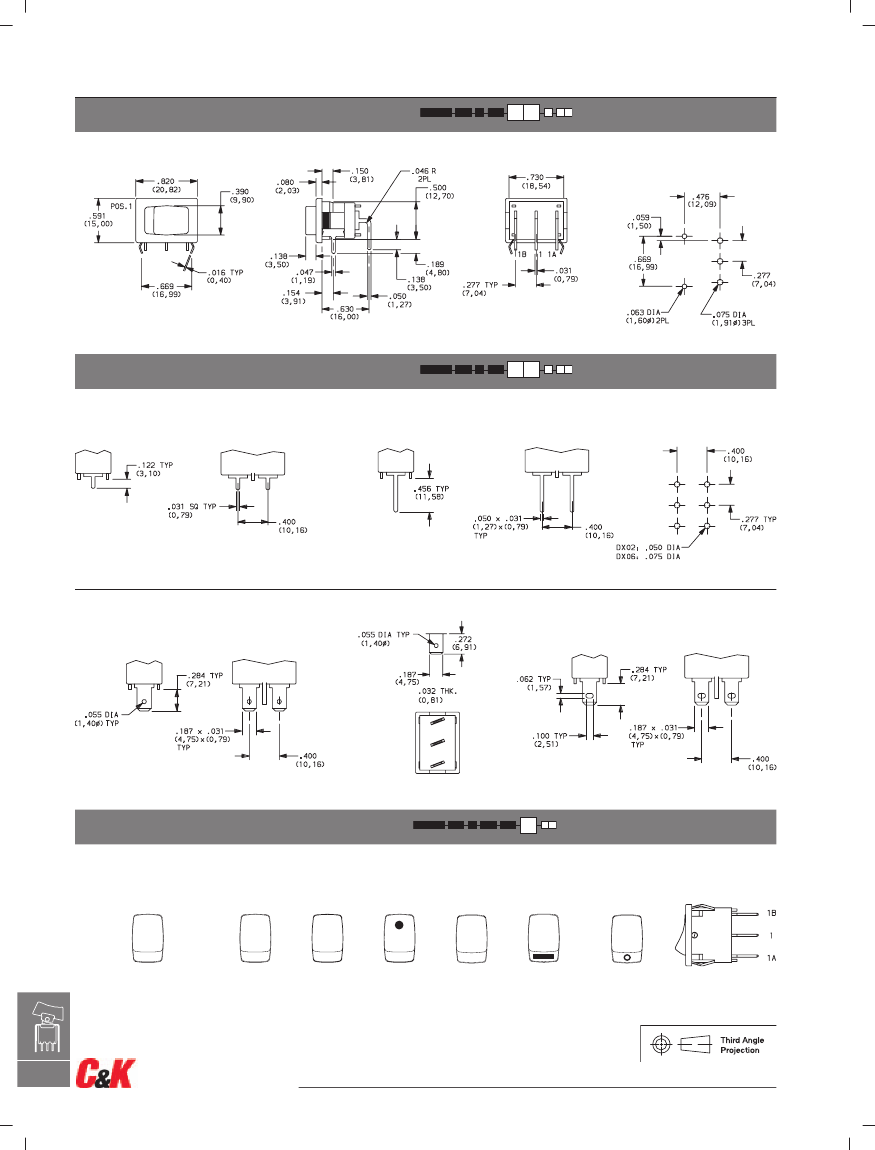

TERMINATIONS
A
RIGHT ANGLE, PC THRU-HOLE
PC MOUNTING
Available with D101, D102, D501, D502 SP models only.
TERMINATIONS
02
SP
PC THRU-HOLE
06
DP
EXTENDED PC THRU-HOLE
PC MOUNTING
(02 and 06)
SP
DP
Available with DX01 and DX02 models only.
Available with DX01 and DX02 models only.
15
QUICK CONNECT
05
DP
TWISTED QUICK CONNECT
17
WIRABLE QUICK CONNECT
SP
DP
SP
Available with DX01 and DX02 models only.
NOTE:
Terminals are twisted.
Available with DX01 and DX02 models only.
ACTUATORS
NONE
NO MARKING
D
ON-OFF
H
O|
N
LARGE DOT
P
O–
R
RED RECTANGLE
ON END
U
LARGE DOT ON END
Rocker
ON
OFF
O
I
O
NOTE:
Orientation of actuator
markings and terminals.
‘D, H, P & U’ marking options: marking color white, standard for all actuator colors except white. Black marking color, standard
for white actuators. ‘R & N’ marking option: red marking color, standard. Consult Customer Service Center for other available marking colors.
I
H
H–64
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
www.ck-components.com
D Series
Miniature Snap-in Power Rocker Switches
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
RATINGS
D10X and D20X MODELS: 4 AMPS @ 125 V AC; 2 AMPS @ 250 V AC (UL/CSA).
D50X and D60X MODELS: 10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC (UL/CSA).
SILVER 1
POWER
D10X and D20X MODELS: 4 AMPS @ 125 V AC; 2 AMPS @ 250 V AC (UL/CSA).
4(2) AMPS @ 125 V AC; 2(1) AMPS @ 250 V AC, T85 (VDE).
D50X and D60X MODELS: 10 AMPS @ 125 V AC; 5 AMPS @ 250 V AC (UL/CSA).
10(6) AMPS @ 125 V AC: 5(3) AMPS @ 250 V AC, T85 (VDE).
QA
QF
1MOVABLE CONTACT: D10X and D20X MODELS: Copper, silver plated.
D50X and D60X MODELS: Coin silver, silver plated.
STATIONARY CONTACTS & TERMINALS: Copper or brass, silver plated.
All models
‘QF’contact material.
with all options. DX01, DX02 models
when ordered with

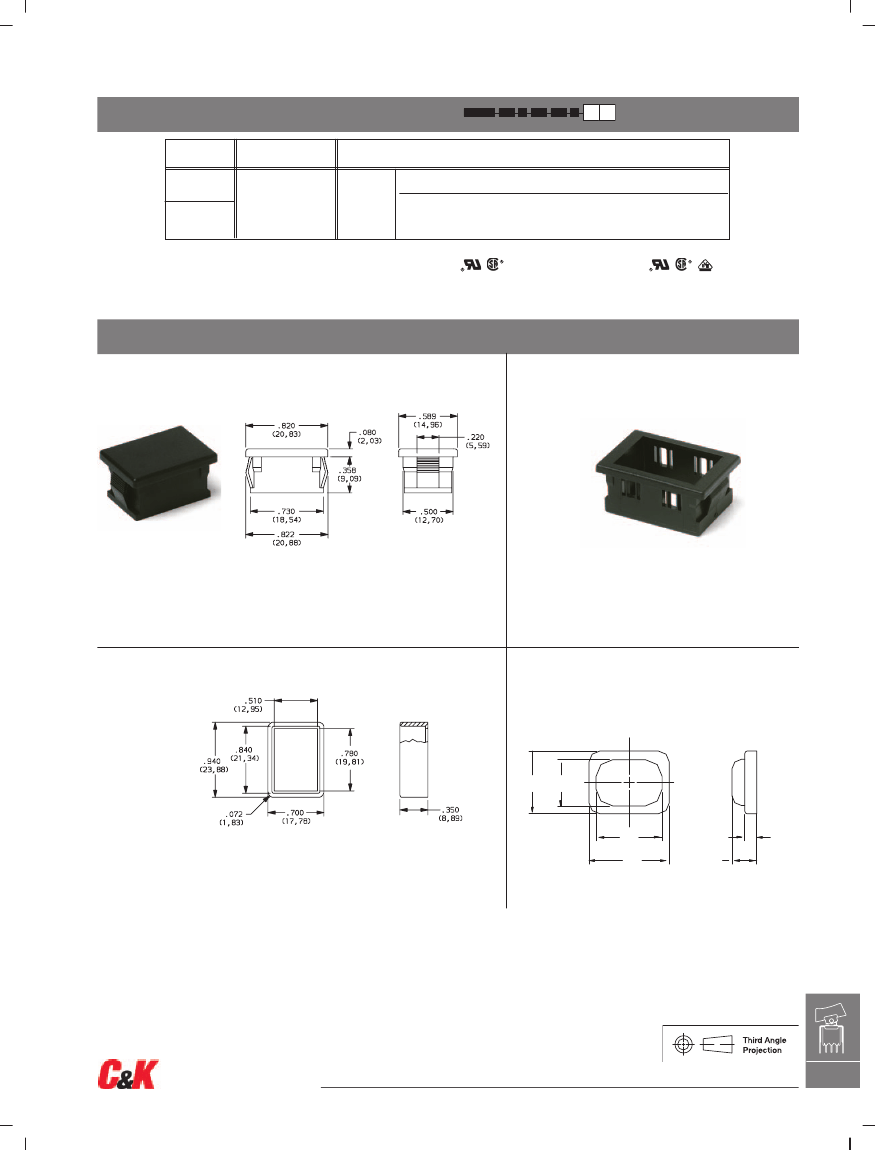

AVAILABLE HARDWARE
Insert
SP Only
Recessed Actuator Guard,
SP Only
PART NO.
057190200
BLACK
Material: Nylon 6/6
Finish: Matte
599D02000
BLACK
Material: 6/6 Nylon
Finish: Matte
Actuator Guard
PART NO.
216C00000
IP65 SPLASH PROOF RUBBER
BOOT
.748
(19,0)
.551
(14,0)
.787
(20,0)
PART NO.
.957
(24,3)
.295
(7,5)
.142
(3,6)
104C22000
Material: PBT thermoplastic
Finish: Matte
Rocker
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H
H–65
www.ck-components.com
