53S34R-MSON3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 53S34R-MSON3

Preview

53S34R-MSON3: DescriptionRF Connector Adapter, N-N-N, Male-Male-Male,; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

53S34R-MSON3 Overview

RF Connector Adapter, N-N-N, Male-Male-Male,

53S34R-MSON3 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	compliant
Is Samacsys	N
Adapter type	N-N-N
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE-MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	53S34R-MSON3
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.4
Base Number Matches	1

Preview

Download Datasheet

View All

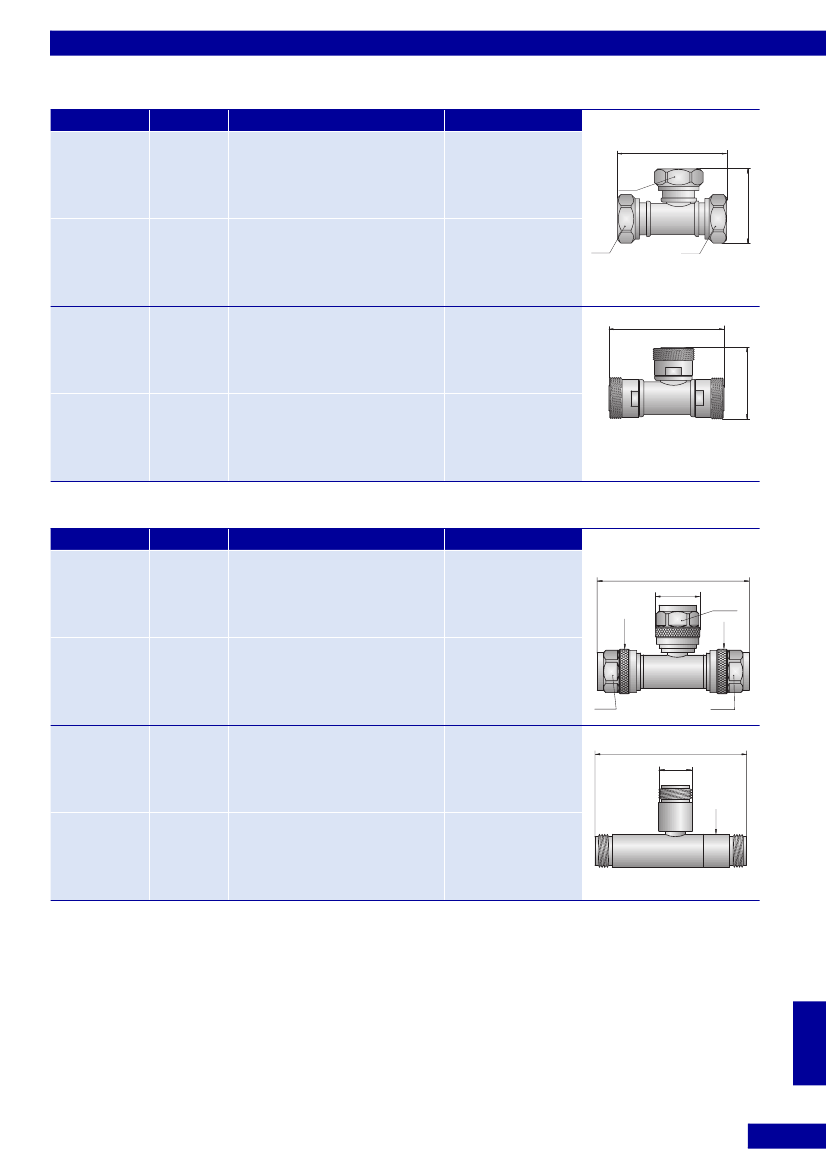

T- Calibration- Adaptors

T- C bration- A

ali

daptors

Test Devices

T- Kalibrier- Adapter

7- 16 Open - Short - Load

Remarks

7- 16 male- male- male

Resulting phase uncertainty:

Open

≤

3.0° to 4 GHz,

Short

≤

2.0° to 4 GHz

Return Loss

Open/Short:

≤

0.15 dB @ DC to 4 GHz

Load:

≥

40 dB @ DC to 2.5 GHz

≥

38 dB @ 2.5 GHz to 4 GHz

Open/Short:

≤

0.15 dB @ DC to 6 GHz

Load:

≥

40 dB @ DC to 2.5 GHz

≥

38 dB @ 2.5 GHz to 6 GHz

Open/Short:

≤

0.15 dB @ DC to 4 GHz

Load:

≥

40 dB @ DC to 2.5 GHz

≥

38 dB @ 2.5 GHz to 4 GHz

Open/Short:

≤

0.15 dB @ DC to 6 GHz

Load:

≥

40 dB @ DC to 2.5 GHz

≥

38 dB @ 2.5 GHz to 6 GHz

short

85

SW32

short

82.5

T- Calibration- Adaptors

7- 16 Open - Short - Load

x

Ordering Number

x60 S 34R- MSO N3

Version

T- Adaptor

load

open

55

x60 S 36R- MSO N3

T- Adaptor

7- 16 male- male- male

Resulting phase uncertainty:

Open

≤

3.0° to 6 GHz,

Short

≤

2.0° to 6 GHz

SW32

x60 K 34R- MSO N3

T- Adaptor

7- 16 female- female- female

Resulting phase uncertainty:

Open

≤

3.0° to 4 GHz,

Short

≤

2.0° to 4 GHz

load

open

53

x60 K 36R- MSO N3

T- Adaptor

7- 16 female- female- female

Resulting phase uncertainty:

Open

≤

3.0° to 6 GHz,

Short

≤

2.0° to 6 GHz

N Standard 50

Ω

Open - Short - Load

x

Ordering Number

x53 S 34R- MSO N3

Version

T- Adaptor

Remarks

N Standard 50

Ω

Open - Short - Load

Return Loss

Open/Short:

≤

0.1 dB @ DC to 4 GHz

Load:

≥

42 dB @ DC to 2.5 GHz

≥

38 dB @ 2.5 GHz to 4 GHz

Open/Short:

≤

0.1 dB @ DC to 6 GHz

Load:

≥

42 dB @ DC to 2.5 GHz

≥

38 dB @ 2.5 GHz to 6 GHz

Open/Short:

≤

0.1 dB @ DC to 4 GHz

Load:

≥

42 dB @ DC to 2.5 GHz

≥

38 dB @ 2.5 GHz to 4 GHz

Open/Short:

≤

0.1 dB @ DC to 6 GHz

Load:

≥

42 dB @ DC to 2.5 GHz

≥

38 dB @ 2.5 GHz to 6 GHz

load

ø15.7

load

short

72

ø21

SW18

ø21

open

SW18

N Standard 50

Ω

male- male- male

Resulting phase uncertainty:

Open

≤

3.0° to 4 GHz,

Short

≤

2.0° to 4 GHz

x53 S 36R- MSO N3

T- Adaptor

N Standard 50

Ω

male- male- male

Resulting phase uncertainty:

Open

≤

3.0° to 6 GHz,

Short

≤

2.0° to 6 GHz

SW18

x53 K 34R- MSO N3

T- Adaptor

N Standard 50

Ω

female- female- female

Resulting phase uncertainty:

Open

≤

3.0° to 4 GHz,

Short

≤

2.0° to 4 GHz

short

70

ø15.7

x53 K 36R- MSO N3

T- Adaptor

N Standard 50

Ω

female- female- female

Resulting phase uncertainty:

Open

≤

3.0° to 6 GHz,

Short

≤

2.0° to 6 GHz

open

Rosenberger Hochfrequenztechnik GmbH & Co. KG, POB 1260, D- 84526 Tittmoning, Tel. +49- 86 84- 18- 0, Fax. +49- 86 84- 18- 499, www.rosenberger.de

229

12

53S34R-MSON3 Related Products

	53S34R-MSON3	53K34R-MSON3
Description	RF Connector Adapter, N-N-N, Male-Male-Male,	RF Connector Adapter, N-N-N, Female-Female-Female, ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Adapter type	N-N-N	N-N-N
Characteristic impedance	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE-MALE	FEMALE-FEMALE-FEMALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	53S34R-MSON3	53K34R-MSON3
Maximum operating frequency	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
voltage standing wave ratio	1.4	1.4
Base Number Matches	1	1
