MPV5 Series
9x14 mm, 5.0 Volt, PECL, VCXO
•
LVDS and PECL Output Logic With
Good Integrated Jitter Performance
(5 ps)
•
Phase-Locked Loops (PLL’s), Clock
Recovery, Reference Signal Tracking,
Synthesizers, Frequency Modulation/
Demodulation

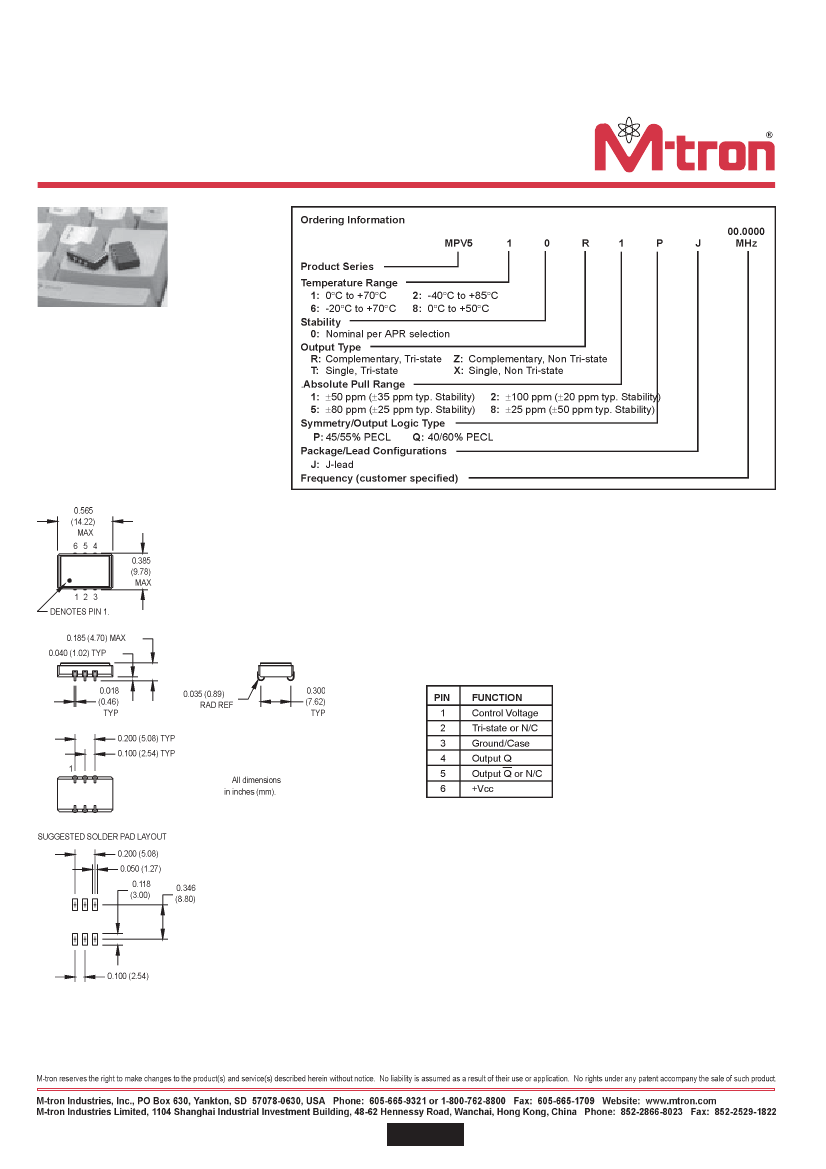

Pin Connections
22
MPV5 Series
9x14 mm, 5.0 Volt, PECL, VCXO
V
C
X
O
1.
2.
3.
4.

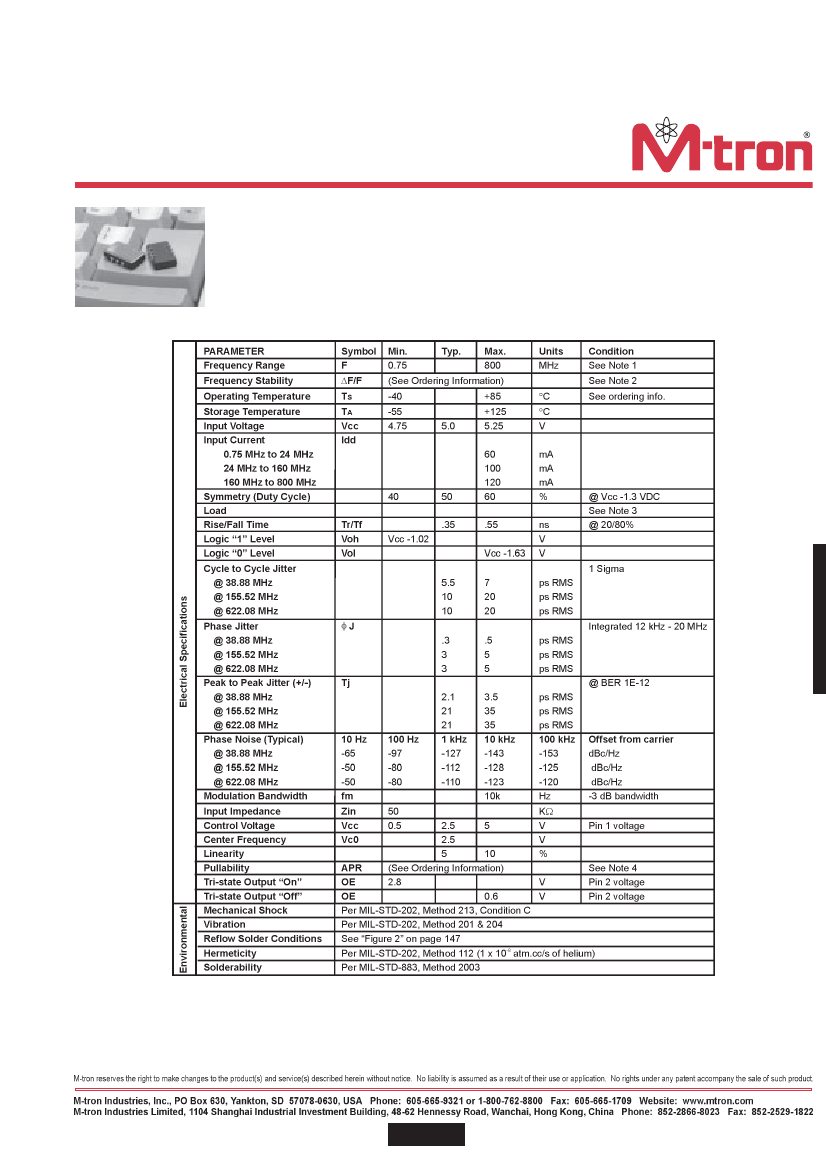

Frequencies above 70 MHz utilize a PLL design. Fundamental and PLL designs are available for other frequencies. Contact factory.
Stability is given for deviation over temperature.
PECL load - see load circuit diagram #3 on page 148.
APR specification inclusive of initial tolerance, deviation over temperature, shock, vibration, supply voltage, and aging.
23
