SNJ54AS874FK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SNJ54AS874FK

SNJ54AS874FK: DescriptionBus Driver, AS Series, 2-Func, 4-Bit, True Output, TTL, CQCC28; Categorylogic logic; File Size823KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SNJ54AS874FK Overview

Bus Driver, AS Series, 2-Func, 4-Bit, True Output, TTL, CQCC28

SNJ54AS874FK Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Reach Compliance Code	unknown
Is Samacsys	N
Other features	WITH CLEAR
series	AS
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	12.5 ns
Certification status	Not Qualified
Maximum seat height	2.03 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm
Base Number Matches	1

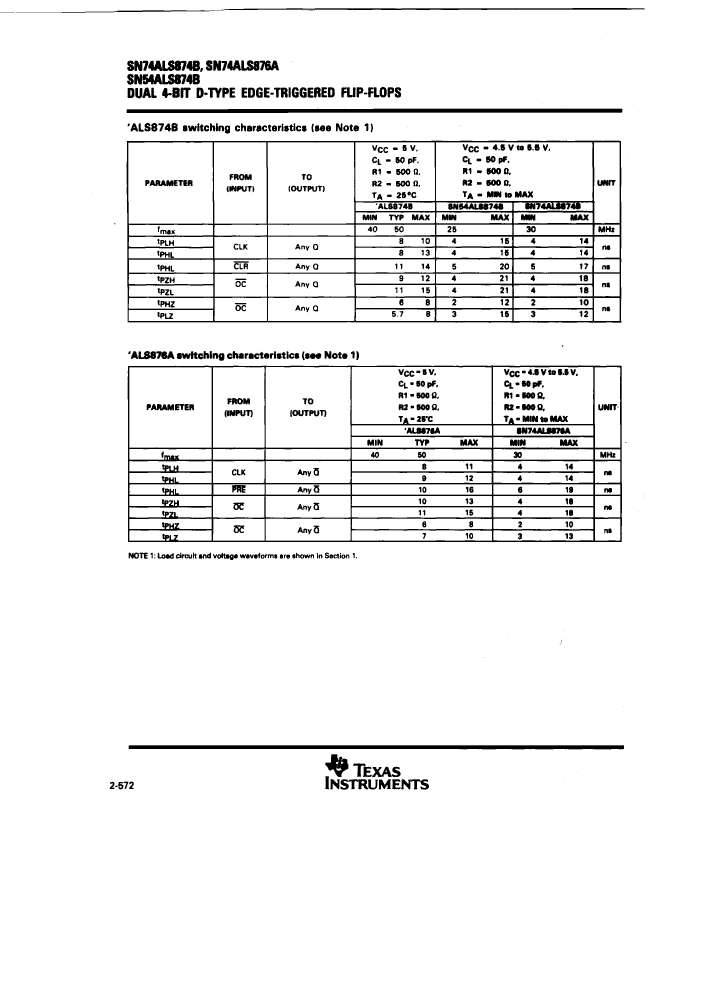

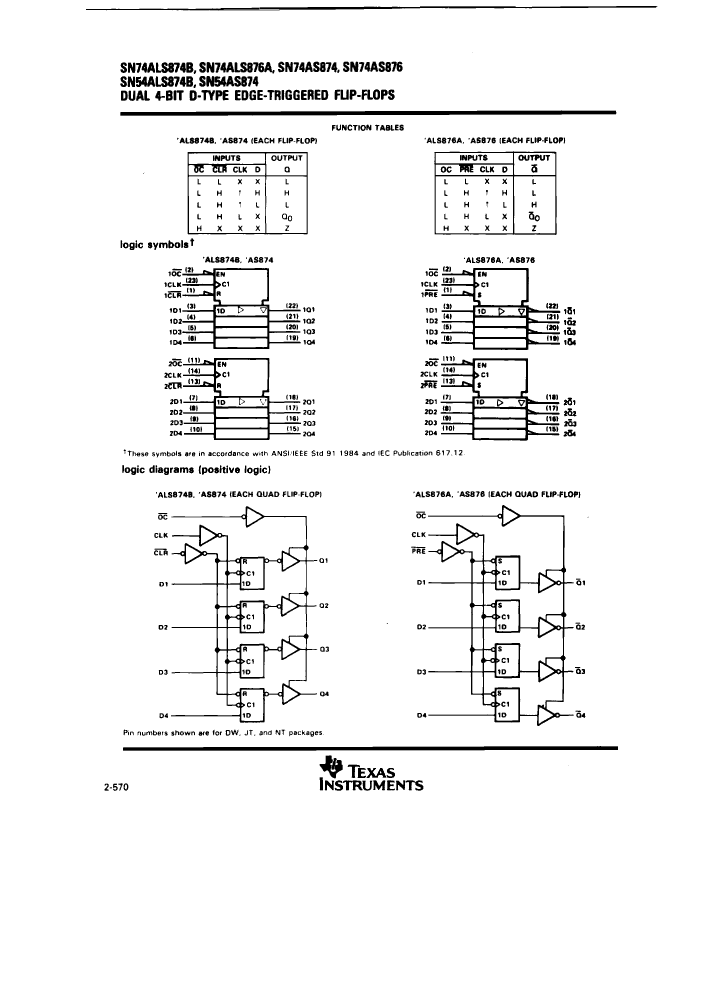

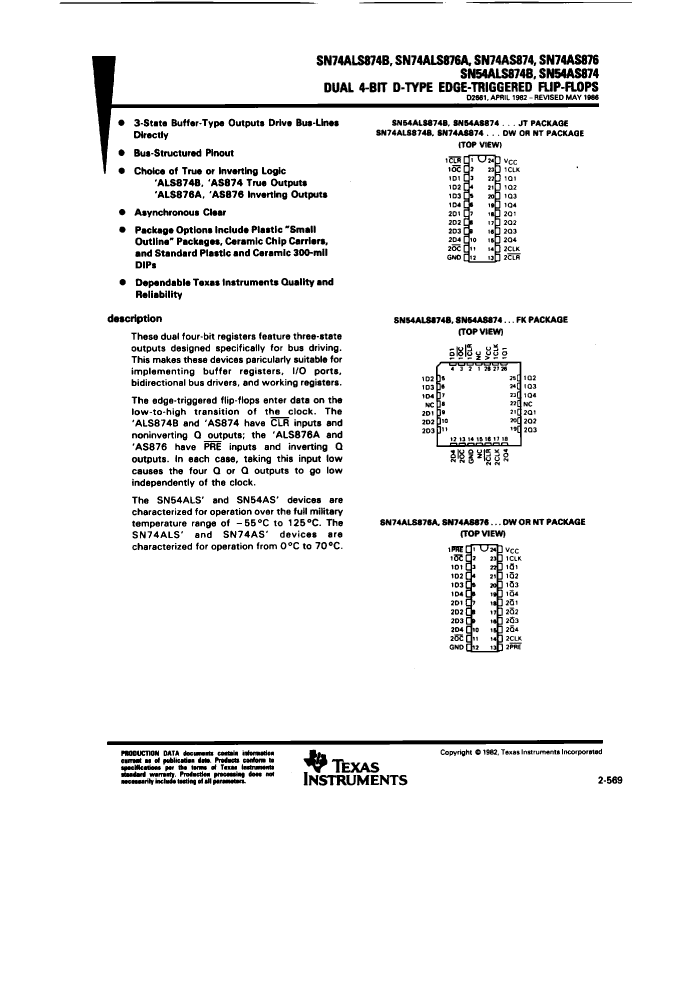

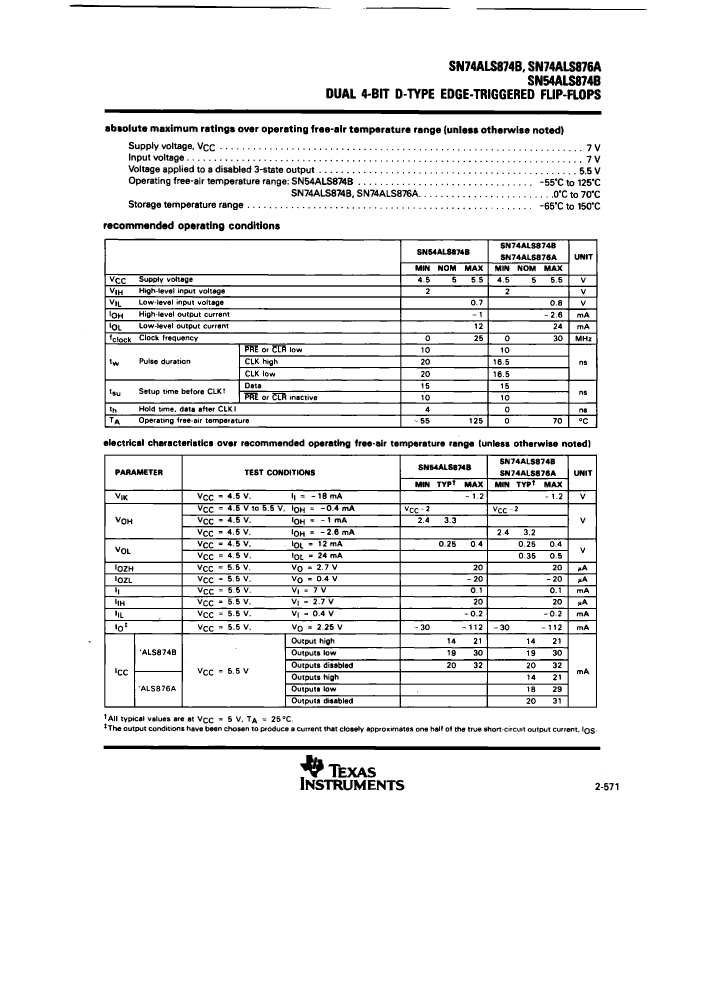

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

SNJ54AS874FK Related Products

	SNJ54AS874FK	SN74ALS874BNT3	SN74AS874NT3	SNJ54AS874JT	SN54AS874JT	SN54AS874FK
Description	Bus Driver, AS Series, 2-Func, 4-Bit, True Output, TTL, CQCC28	ALS SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDIP24	AS SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDIP24	Bus Driver, AS Series, 2-Func, 4-Bit, True Output, TTL, CDIP24	AS SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDIP24	AS SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CQCC28
Is it lead-free?	Contains lead	Lead free	Lead free	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH CLEAR	WITH CLEAR	WITH CLEAR	WITH CLEAR	WITH CLEAR	WITH CLEAR
series	AS	ALS	AS	AS	AS	AS
JESD-30 code	S-CQCC-N28	R-PDIP-T24	R-PDIP-T24	R-GDIP-T24	R-GDIP-T24	S-CQCC-N28
JESD-609 code	e0	e0	e0	e0	e0	e0
length	11.43 mm	31.64 mm	31.64 mm	32.005 mm	32.005 mm	11.43 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2
Number of terminals	28	24	24	24	24	28
Maximum operating temperature	125 °C	70 °C	70 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	DIP	DIP	DIP	QCCN
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	12.5 ns	14 ns	10.5 ns	12.5 ns	12.5 ns	12.5 ns
Certification status	Not Qualified	COMMERCIAL	COMMERCIAL	Not Qualified	COMMERCIAL	COMMERCIAL
Maximum seat height	2.03 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	2.03 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	11.43 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	11.43 mm
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	-	-	Rochester Electronics
Base Number Matches	1	1	1	1	1	-
Humidity sensitivity level	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
