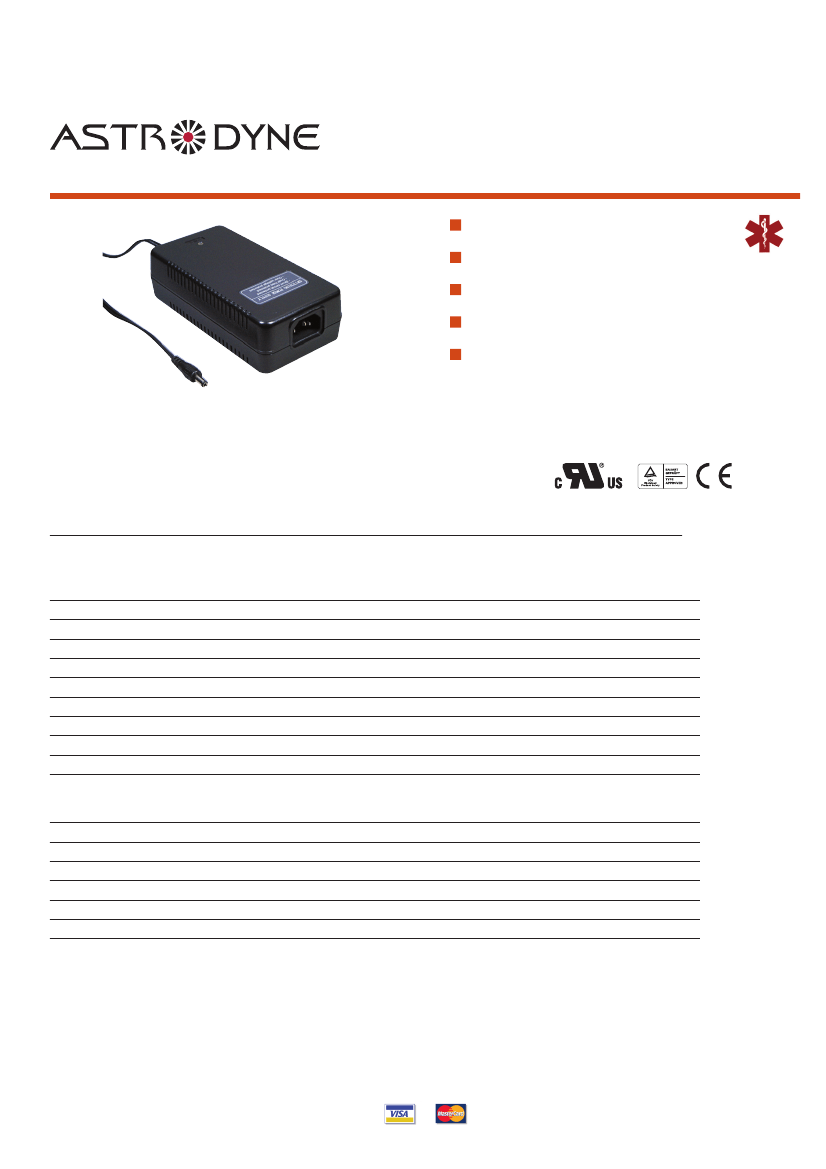

5 0 W M e di c al G rad e De sktop Switc hing P ower A dapter s
mpu50
Universal 85-265VAC Input
UL60601-1, EN60601-1 Approved
Regulated Outputs
4000V Isolation
IEC320-C14 Input
series
5.75”W x 3.0”L x1.7”H
model Number
SINGLE OuTpuT
MPU50-100
MPU50-101
MPU50-102
MPU50-103
MPU50-104
MPU50-105
MPU50-106
MPU50-107
MPU50-108
MPU50-109
MPU50-110
MPU50-111
Output Voltage
Output Amps
Regulation
Output Watts Output Connector
2.5
3.3
5
6
10
12
15
18
24
30
36
48
12
12.12
8
7
4.5
3.75
3
2.7
2.08
1.66
1.38
1.04
7%
5%
5%
5%
4%
3%
3%
3%
2%
2%
2%
2%
30W
40W
40W
42W
45W
45W
45W
50W
50W
50W
50W
50W
DIN
DIN
DIN
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Coaxial
Order On-Line!
WWW.ASTRODYNE.COm
astrodyne.com
300 myles Standish Blvd., Taunton, mA 02780
ph: 1-800-823-8082
Fax: 508-823-8181
5 0 W M e di c al G rad e De sktop Switc hing P ower A dapter s
mpu50
Universal 85-265VAC Input
UL60601-1, EN60601-1 Approved
Regulated Outputs
4000V Isolation
IEC320-C14 Input
series
5.75”W x 3.0”L x1.7”H
model Number
DuAL OuTpuT
MPU50-200
MPU50-201
MPU50-202
MPU50-203
MPU50-204
MPU50-209
MPU50-210
MPU50-216
MPU50-217
MPU50-218
TRIpLE OuTpuT
MPU50-300
MPU50-301
MPU50-302
MPU50-303
MPU50-304
MPU50-305
MPU50-306
Output Voltage
Output Amps
Regulation
Output Watts Output Connector
3.3/12
5/12
5/15
5/24
3.3/5
+/-12
+/-15
5.1/7.2
+/-10.5
+/-5
3.3,+/-12
5/12/-5
5/12/-12
5/15/-15
5,+/-24
5/24/-12
3.3/12/-5
5/2
5/2
5/1.5
5/1
5/2
3/1
2/1
5/2.6
+/-2.0
5/2
5/2/0.8
5/2/0.8
5/2/0.8
5/2/0.8
5/1/0.5
5/1/0.8
5/2/0.8
7/5%
5/5%
5/5%
5/5/%
7/5%
5/5%
5/5%
5/5%
5/5%
5/5%
7/5/5%
5/5/5%
5/5/5%
5/6/5%
5/5/5%
5/5/5%
7/5/5%
40W
42W
42W
42W
26.5W
42W
42W
42W
42W
35W
42W
42W
42W
42W
42W
42W
42W
DIN
DIN
DIN
DIN
DIN
DIN
DIN
DIN
DIN
DIN
DIN
DIN
DIN
DIN
DIN
DIN
DIN
Order On-Line!
WWW.ASTRODYNE.COm
astrodyne.com
300 myles Standish Blvd., Taunton, mA 02780
ph: 1-800-823-8082
Fax: 508-823-8181
5 0 W M e di c al G rad e De sktop Switc hing P ower A dapter s
INpuT SpECIFICATIONS
Input Voltage Range
Frequency Range
Input Current
Inrush Current, typ (Cold Start)
115VAC Input
230VAC Input
Leakage Current
85-265 VAC
47-63 Hz
(115/230 VAC Input @ FL) 1.6 / 1.0A
12 Amps (15Amps Max.)
*
26 Amps (30 Amps Max.)
*
0.1mA typ. @ 240VAC
mpu50
I/P-O/P: 4000VAC
I/P-Ground: 1500VAC
100 Mohm
83% typ.
UL60601-1, EN60601-1
series
GENERAL SpECIFICATIONS
Isolation
Isolation Resistance
Efficiency
Safety
pHYSICAL SpECIFICATIONS
Size
Construction
Weight
5.75” x 3.0” x 1.7”
Desktop Style
11.4 oz (325g)
OuTpuT SpECIFICATIONS
Voltage and Current
Load Regulation
Line Regulation
Temperature Coefficient
Ripple/Noise
Over Voltage Protection
Over Current Protection
Transient Response
Start Up Time (min./typ./max.)
Hold Up Time
See Selection Charts
See Selection Charts
+/- 0.5%, typ (1% Max.)
+/-0.04%/°C, typ
0.5% Pk-Pk, typ (1% Max.)
112-132% (O/P 1 only)
*
110-150% of Rated Current
50% to 100% Load
0.3/1/2 Seconds
16-20mS at 110VAC Input
ENVIRONmENTAL SpECIFICATIONS
Oper. Temperature
Storage Temperature
Relative Humidity
EMC
MTBF
0 to +70°C
See Derate Curve
-40 to +85°C
*
5 to + 95%, non-cond
*
Vin = 220VAC
CISPR-11 B
Vin = 110VAC
FCC Part 18 B
100,000 Hrs
4mS
OuTpuT DERATING CuRVE
All specifications are typical at nominal input, full load, and 25°C unless other-
wise noted
*
These are stress ratings. Exposure of the devices to any of these conditions
may adversely affect long term reliability. Proper operation under conditions
other than the standard operating conditions is neither warranteed nor implied.
Astrodyne products are not authorized or warranteed for use
as critical components in life support systems, equipment used
in hazardous environments, nuclear controls systems, or other
mission-critical applications.
WWW.ASTRODYNE.COm
300 myles Standish Blvd., Taunton, mA 02780
ph: 1-800-823-8082
Fax: 508-823-8181
5 0 W M e di c al G rad e De sktop Switc hing P ower A dapter s
mECHANICAL DImENSIONS
Output Cord Length 72” typ.
H
mpu50
series
Input Connection
W
DC Output Connections
Coaxial plug (Single Output models)
-Vout
+Vout
5.5mm outer diameter
2.1mm inner diameter, female
11mm length, center “+”
DIN (Single-Output models)
5 pin DIN
1
4
5
2
3
1. COM
2. COM
3. Vout
4. COM
5. Vout
SHELL = GND
DIN (multi-Output models)
5 pin DIN
1
4
5
2
3
1. COM
2. COM
3. Output #1
4. Output #3 (Triples, N.C. Otherwise)
5. Output #2
WWW.ASTRODYNE.COm
300 myles Standish Blvd., Taunton, mA 02780
ph: 1-800-823-8082
Fax: 508-823-8181
