DS1330W
3.3V 256k Nonvolatile SRAM
with Battery Monitor
www.maxim-ic.com
FEATURES
§
§
§
§
§
§
§
§
§
§
§
10 years minimum data retention in the
absence of external power
Data is automatically protected during power
loss
Power supply monitor resets processor when
V
CC
power loss occurs and holds processor in
reset during V
CC
ramp-up
Battery monitor checks remaining capacity
daily
Read and write access times as fast as 100 ns
Unlimited write cycle endurance
Typical standby current 50 µA
Upgrade for 32k x 8 SRAM, EEPROM or
Flash
Lithium battery is electrically disconnected to
retain freshness until power is applied for the
first time
Optional industrial temperature range of
-40°C to +85°C, designated IND
PowerCap Module (PCM) package
-
Directly surface-mountable module
-
Replaceable snap-on PowerCap provides
lithium backup battery
-
Standardized pinout for all nonvolatile
SRAM products
-
Detachment feature on PowerCap allows
easy removal using a regular screwdriver
PIN ASSIGNMENT
BW
NC
NC
RST
V
CC
WE
OE
CE
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
NC
NC
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
GND V
BAT
34-Pin PowerCap Module (PCM)
(Uses DS9034PC PowerCap)
PIN DESCRIPTION
A0-A14
DQ0-DQ7
CE
WE
OE
RST
BW
V
CC
GND
NC
- Address Inputs
- Data In/Data Out
- Chip Enable
- Write Enable
- Output Enable
- Reset Output
- Battery Warning Output
- Power (+3.3V)
- Ground
- No Connect
DESCRIPTION
The DS1330W 3.3V 256k Nonvolatile SRAM is a 262,144-bit, fully static, nonvolatile SRAM organized
as 32,768 words by 8 bits. Each NV SRAM has a self-contained lithium energy source and control
circuitry which constantly monitors V
CC
for an out-of-tolerance condition. When such a condition occurs,
the lithium energy source is automatically switched on and write protection is unconditionally enabled to
prevent data corruption. Additionally, the DS1330W has dedicated circuitry for monitoring the status of
V
CC
and the status of the internal lithium battery. DS1330W devices in the PowerCap Module package
are directly surface mountable and are normally paired with a DS9034PC PowerCap to form a complete
Nonvolatile SRAM module. The devices can be used in place of 32k x 8 SRAM, EEPROM or Flash
components.
1 of 12
103102
DS1330W

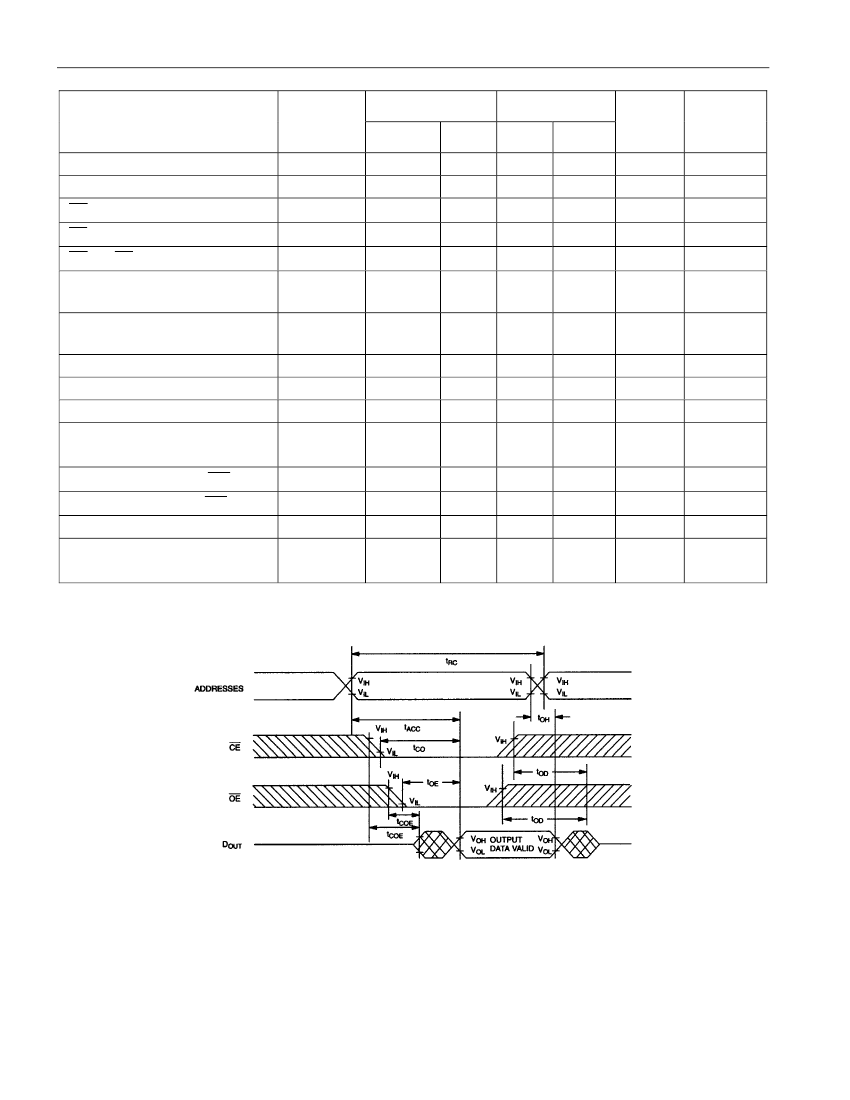

READ MODE
The DS1330W executes a read cycle whenever
WE
(Write Enable) is inactive (high) and
CE
(Chip
Enable) and
OE
(Output Enable) are active (low). The unique address specified by the 15 address inputs
(A
0
- A
14
) defines which of the 32,768 bytes of data is to be accessed. Valid data will be available to the
eight data output drivers within t
ACC
(Access Time) after the last address input signal is stable, providing
that
CE
and
OE
(Output Enable) access times are also satisfied. If
OE
and
CE
access times are not
satisfied, then data access must be measured from the later-occurring signal (
CE
or
OE
) and the limiting
parameter is either t
CO
for
CE
or t
OE
for
OE
rather than address access.
WRITE MODE
The DS1330W executes a write cycle whenever the
WE
and
CE
signals are in the active (low) state after
address inputs are stable. The later-occurring falling edge of
CE
or
WE
will determine the start of the
write cycle. The write cycle is terminated by the earlier rising edge of
CE
or
WE
. All address inputs must
be kept valid throughout the write cycle.
WE
must return to the high state for a minimum recovery time
(t
WR
) before another cycle can be initiated. The
OE
control signal should be kept inactive (high) during
write cycles to avoid bus contention. However, if the output drivers are enabled (
CE
and
OE
active) then
WE
will disable the outputs in t
ODW
from its falling edge.
DATA RETENTION MODE
The DS1330W provides full-functional capability for V
CC
greater than 3.0 volts and write protects by 2.8
volts. Data is maintained in the absence of V
CC
without any additional support circuitry. The nonvolatile
static RAMs constantly monitor V
CC
. Should the supply voltage decay, the NV SRAMs automatically
write protect themselves, all inputs become “don’t care,” and all outputs become high impedance. As V
CC
falls below approximately 2.5 volts, the power switching circuit connects the lithium energy source to
RAM to retain data. During power-up, when V
CC
rises above approximately 2.5 volts, the power
switching circuit connects external V
CC
to the RAM and disconnects the lithium energy source. Normal
RAM operation can resume after V
CC
exceeds 3.0 volts.
SYSTEM POWER MONITORING
The DS1330W has the ability to monitor the external V
CC
power supply. When an out-of-tolerance power
supply condition is detected, the NV SRAM warns a processor-based system of impending power failure
by asserting
RST
. On power-up,
RST
is held active for 200ms nominally to prevent system operation
during power-on transients and to allow t
REC
to elapse.
RST
has an open-drain output driver.
BATTERY MONITORING
The DS1330W automatically performs periodic battery voltage monitoring on a 24-hour time interval.
Such monitoring begins within t
REC
after V
CC
rises above V
TP
and is suspended when power failure
occurs.
After each 24-hour period has elapsed, the battery is connected to an internal 1MΩ test resistor for 1
second. During this 1 second, if battery voltage falls below the battery voltage trip point (2.6V), the
battery warning output
BW
is asserted. Once asserted,
BW
remains active until the module is replaced.
The battery is still re-tested after each V
CC
power-up, however, even if
BW
is active. If the battery
voltage is found to be higher than 2.6V during such testing,
BW
is de-asserted and regular 24-hour testing
resumes.
BW
has an open-drain output driver.
2 of 12
DS1330W
FRESHNESS SEAL
Each DS1330W is shipped from Dallas Semiconductor with its lithium energy source disconnected,
guaranteeing full energy capacity. When V
CC
is first applied at a level greater than V
TP
, the lithium
energy source is enabled for battery backup operation.
PACKAGES
The 34-pin PowerCap Module integrates SRAM memory and nonvolatile control into a module base
along with contacts for connection to the lithium battery in the DS9034PC PowerCap. The PowerCap
Module package design allows a DS1330W device to be surface mounted without subjecting its lithium
backup battery to destructive high-temperature reflow soldering. After a DS1330W module base is reflow
soldered, a DS9034PC is snapped on top of the base to form a complete Nonvolatile SRAM module. The
DS9034PC is keyed to prevent improper attachment. DS1330W module bases and DS9034PC
PowerCaps are ordered separately and shipped in separate containers. See the DS9034PC data sheet for
further information.
