DM2202J-15 datasheet, PDF - EEWORLD Datasheet

DM2202J-15: DescriptionCache DRAM, 1MX4, 15ns, CMOS, PDSO28,; Categorystorage storage; File Size974KB，17 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

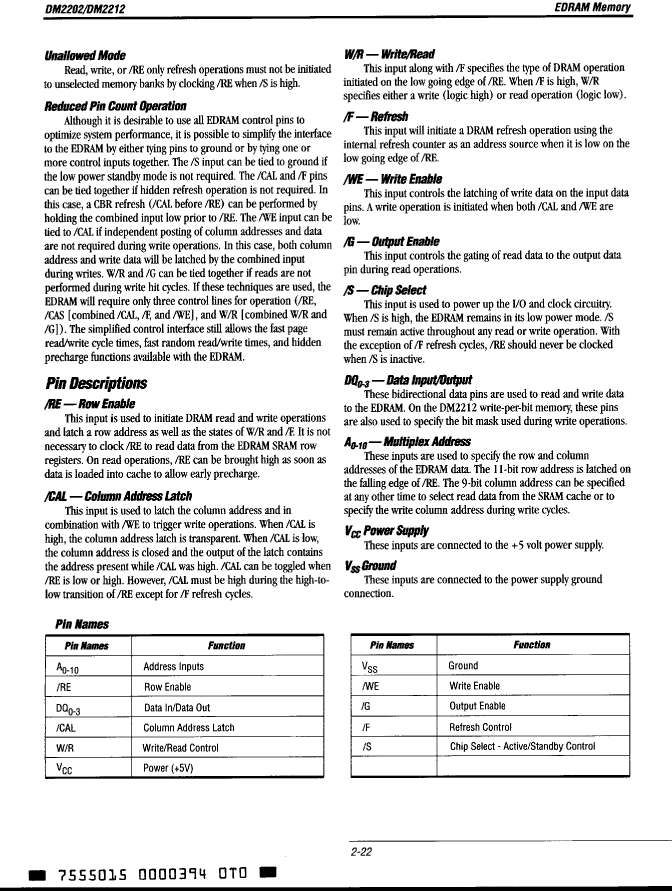

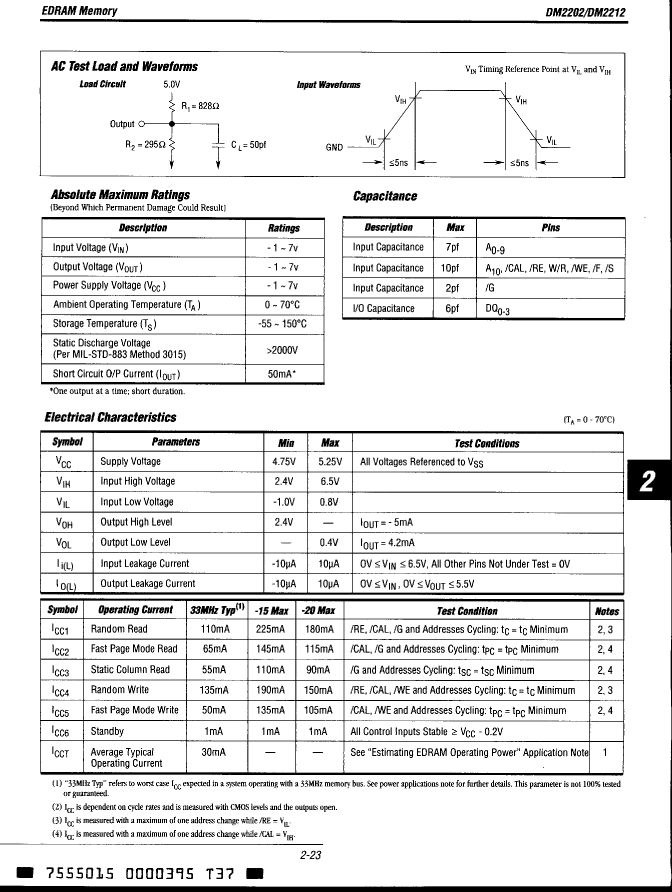

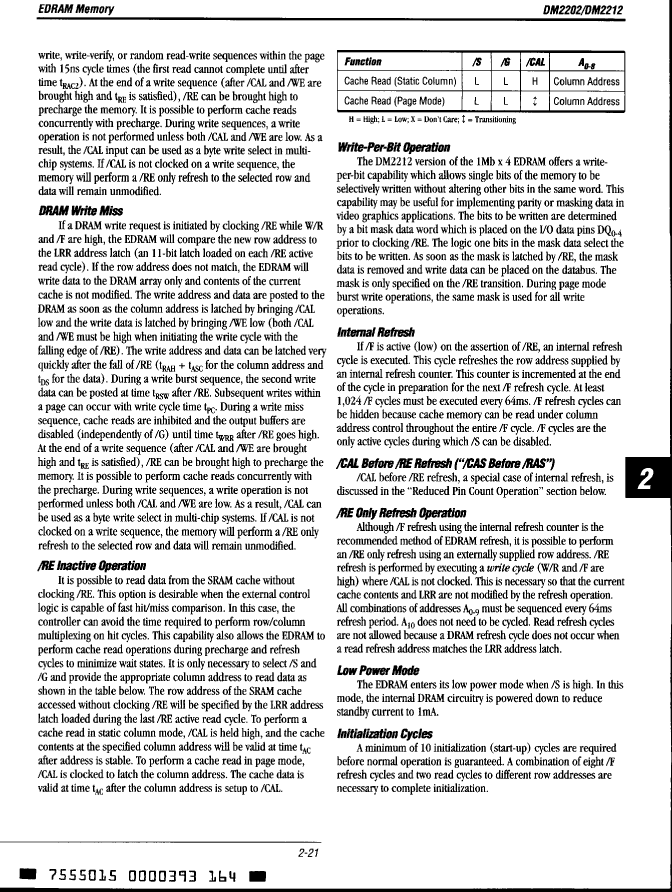

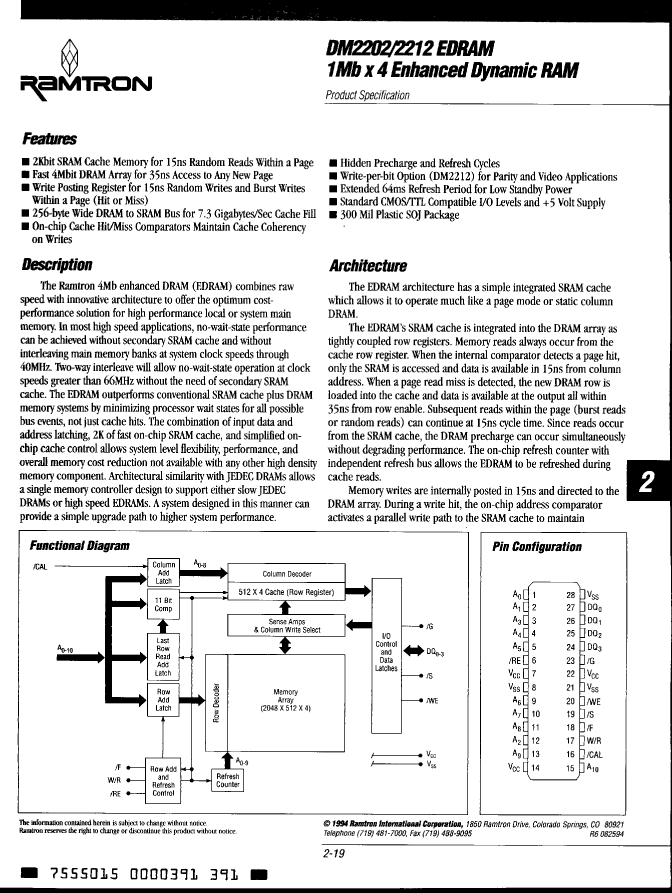

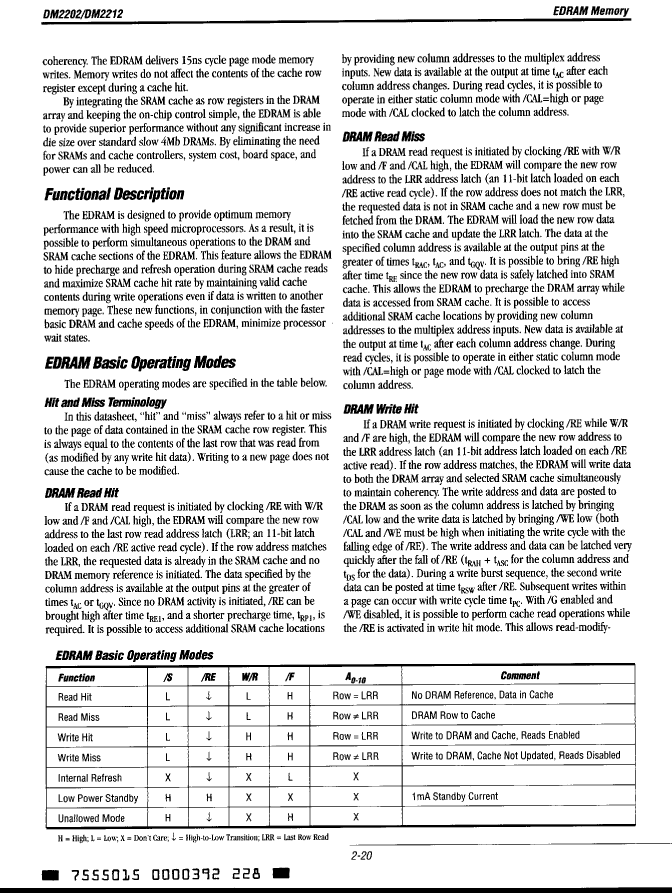

DM2202J-15 Overview

Cache DRAM, 1MX4, 15ns, CMOS, PDSO28,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
package instruction	SOJ, SOJ28,.34
Reach Compliance Code	compliant
Is Samacsys	N
Maximum access time	15 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J28
memory density	4194304 bit
Memory IC Type	CACHE DRAM
memory width	4
Number of terminals	28
word count	1048576 words
character code	1000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ28,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
self refresh	NO
Maximum standby current	0.001 A
Maximum slew rate	0.12 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	DM2202J-15	DM2212J-20
Description	Cache DRAM, 1MX4, 15ns, CMOS, PDSO28,	Cache DRAM, 1MX4, 20ns, CMOS, PDSO28,
Is it Rohs certified?	incompatible	incompatible
Maker	Cypress Semiconductor	Cypress Semiconductor
package instruction	SOJ, SOJ28,.34	SOJ, SOJ28,.34
Reach Compliance Code	compliant	compliant
Maximum access time	15 ns	20 ns
I/O type	COMMON	COMMON
JESD-30 code	R-PDSO-J28	R-PDSO-J28
memory density	4194304 bit	4194304 bit
Memory IC Type	CACHE DRAM	CACHE DRAM
memory width	4	4
Number of terminals	28	28
word count	1048576 words	1048576 words
character code	1000000	1000000
Maximum operating temperature	70 °C	70 °C
organize	1MX4	1MX4
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ
Encapsulate equivalent code	SOJ28,.34	SOJ28,.34
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
refresh cycle	1024	1024
self refresh	NO	NO
Maximum standby current	0.001 A	0.001 A
Maximum slew rate	0.12 mA	0.12 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
