HLMP-0504 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HLMP-0504

HLMP-0504: DescriptionSingle Color LED, High Efficiency Green, Tinted Diffused, 7.4mm, 2.50 X 7.40 MM, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size279KB，4 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric View All

HLMP-0504 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HLMP-0504	-	-	View	Buy Now

HLMP-0504 Overview

Single Color LED, High Efficiency Green, Tinted Diffused, 7.4mm, 2.50 X 7.40 MM, PLASTIC PACKAGE-2

HLMP-0504 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	2.50 X 7.40 MM, PLASTIC PACKAGE-2
Reach Compliance Code	compliant
Is Samacsys	N
Other features	HIGH RELIABILITY
color	HIGH EFFICIENCY GREEN
color@wavelength	Green
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	3 V
Lens type	TINTED DIFFUSED
minimum luminous intensity	100 cd
Nominal luminous intensity	5.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	7.69 mm
method of packing	BULK
peak wavelength	565 nm
shape	RECTANGULAR
size	7.4 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	100 deg
Base Number Matches	1

Preview

Download Datasheet

View All

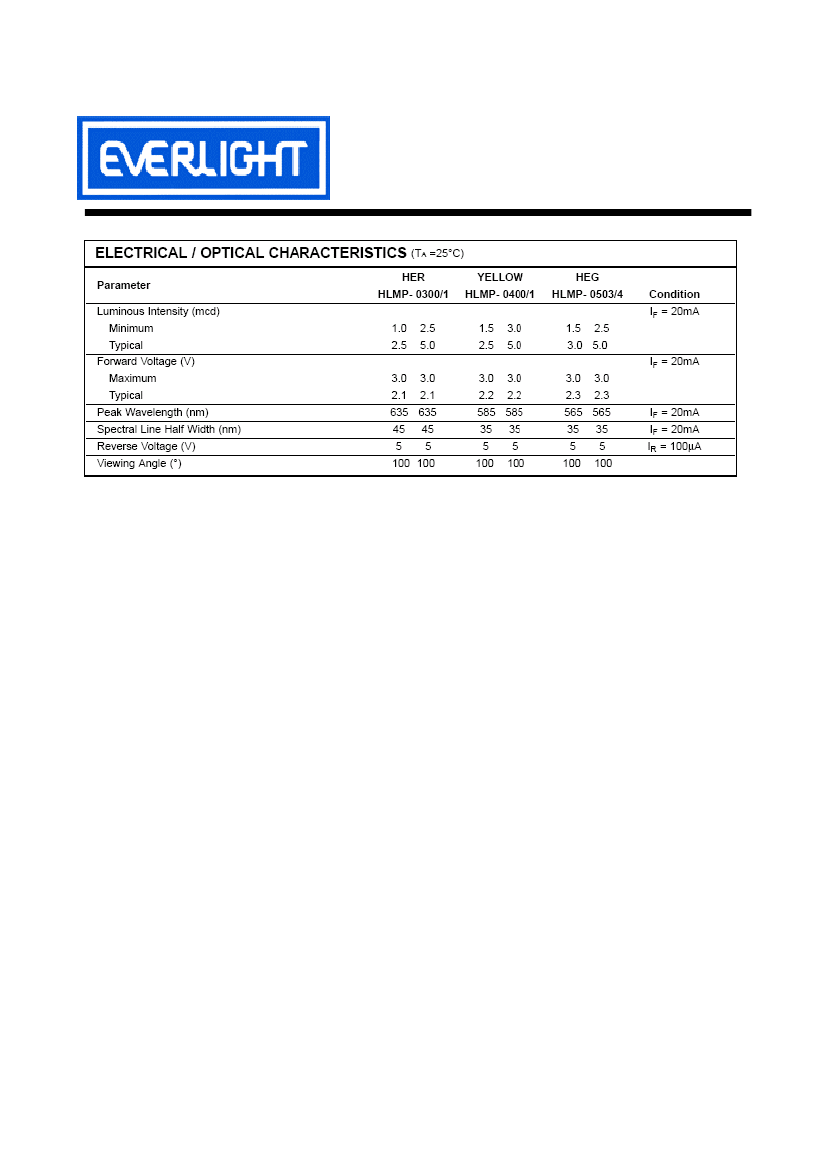

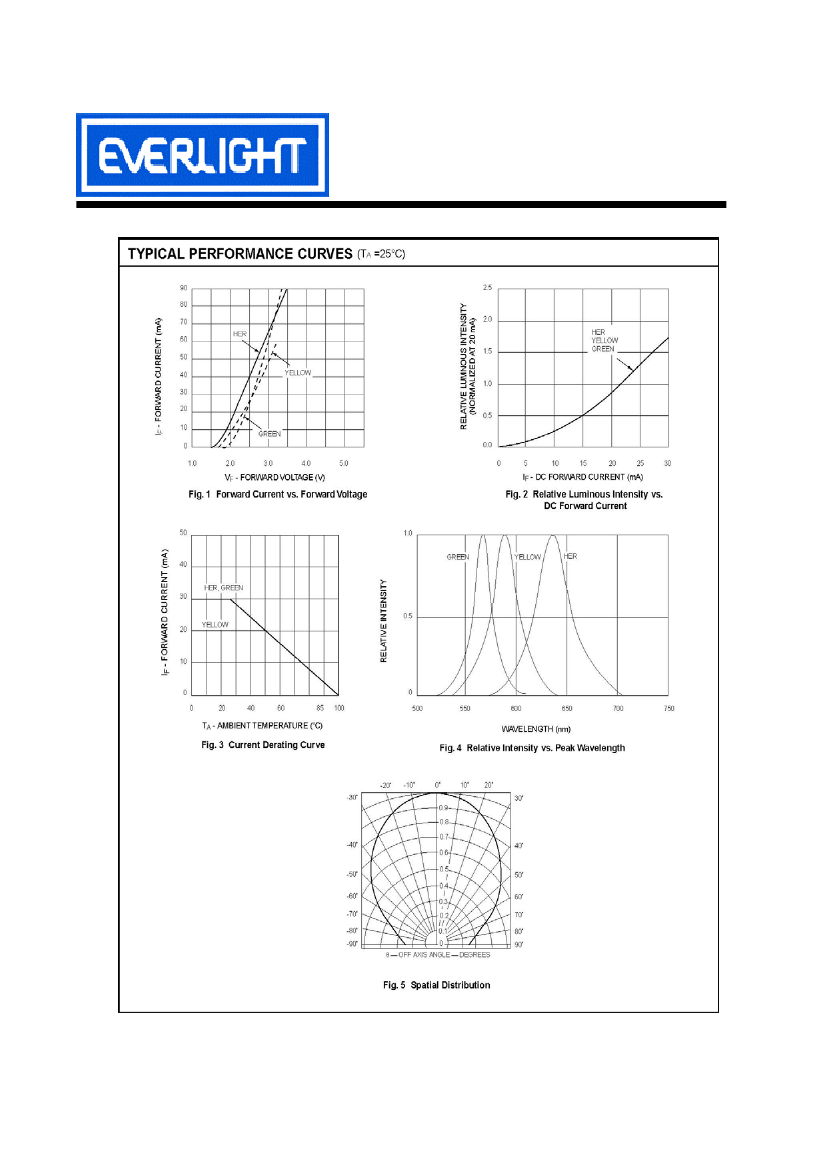

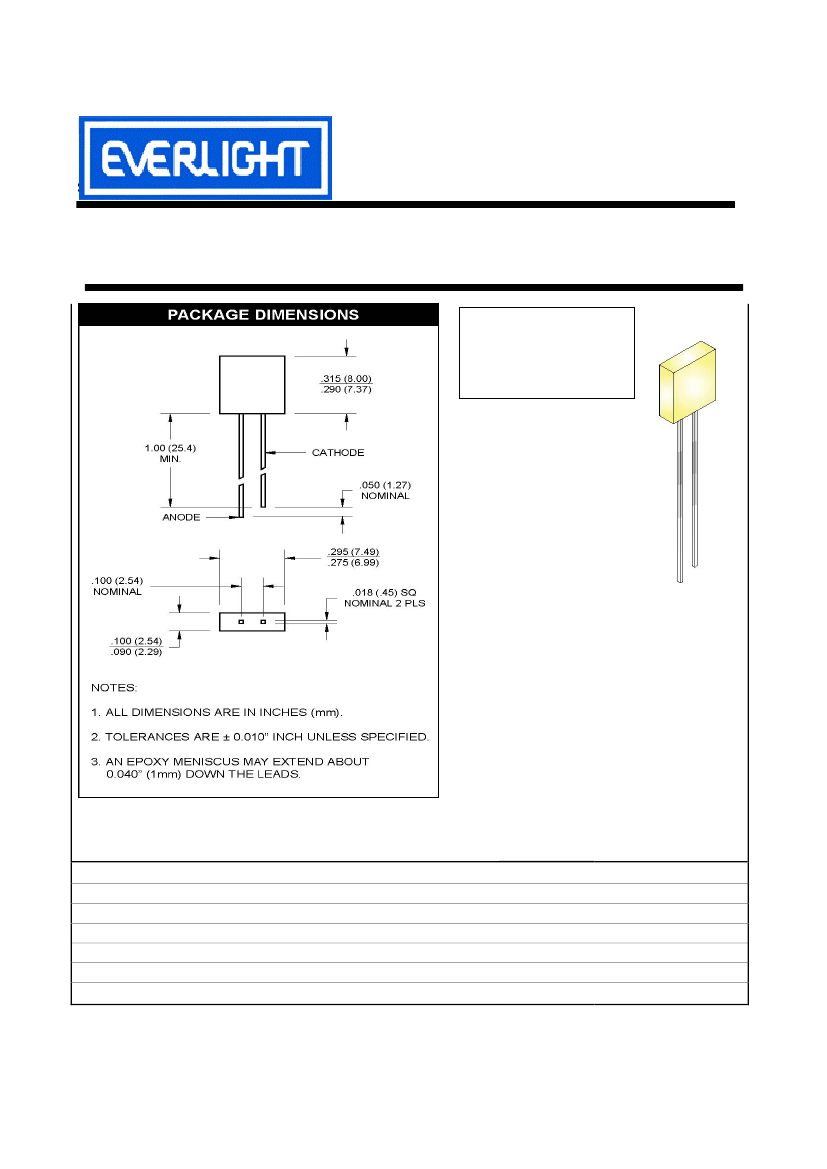

2.5 X 7.4 mm RECTANGULAR

SOLID STATE LAMPS

HIGH EFFICIENCY RED HLMP- 0300/1

YELLOW HLMP- 0400/1

HIGH EFFICIENCY GREEN HLMP- 0503/4

FEATURES

‧

Wide viewing angle

‧

Solid state reliability

‧Perfect

for panel indicators

DESCRIPTION

The HLMP-0X0X series of rectangular lamps are

direct replacements for Agilent’s series with the

same part numbers. The series is similar to

MV5X123 except for the larger lens size. Like the

MV5X123, the HLMP-0X0X is stackable. The

lamps are tinted and diffused.

ABSOLUTE MAXIMUM RATING

=25°C)

Parameter

Power Dissipation (HLMP-040X=85mA)

Peak Forward Current (1µsec pluse, 0.3% DC)

Continuous DC Forward Current

Lead Soldering Time at 260° C

Operating Temperature

Storage Temperature

HER

135

-55 to +100

YELLOW

135

-55 to +100

HEG

135

-50 to +100

UNITS

sec

°C
