HCF4086BF datasheet, PDF - EEWORLD Datasheet

HCF4086BF: DescriptionAND-OR-Invert Gate, CMOS, CDIP14; Categorylogic logic; File Size354KB，7 Pages; ManufacturerSGS-Ates Componenti Electronici SPA

Download Datasheet Parametric View All

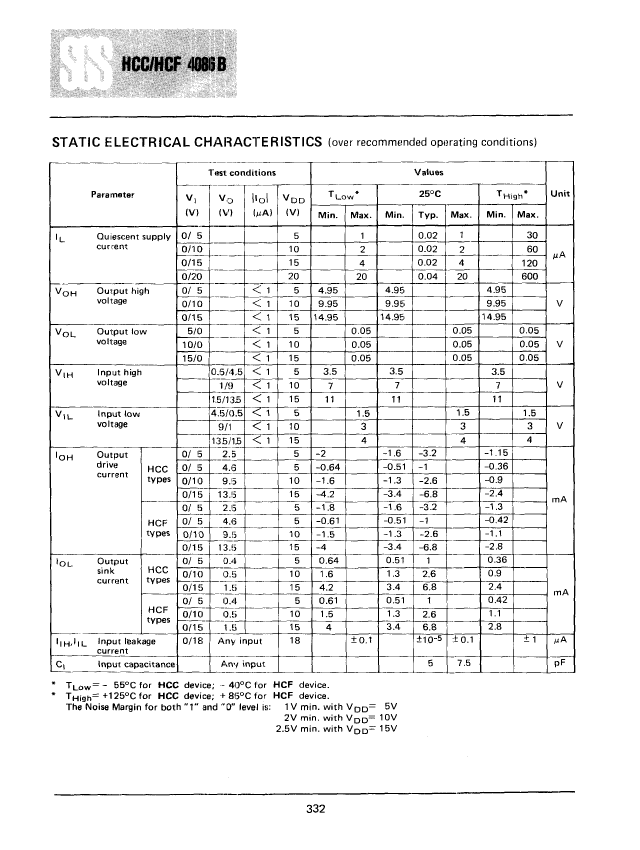

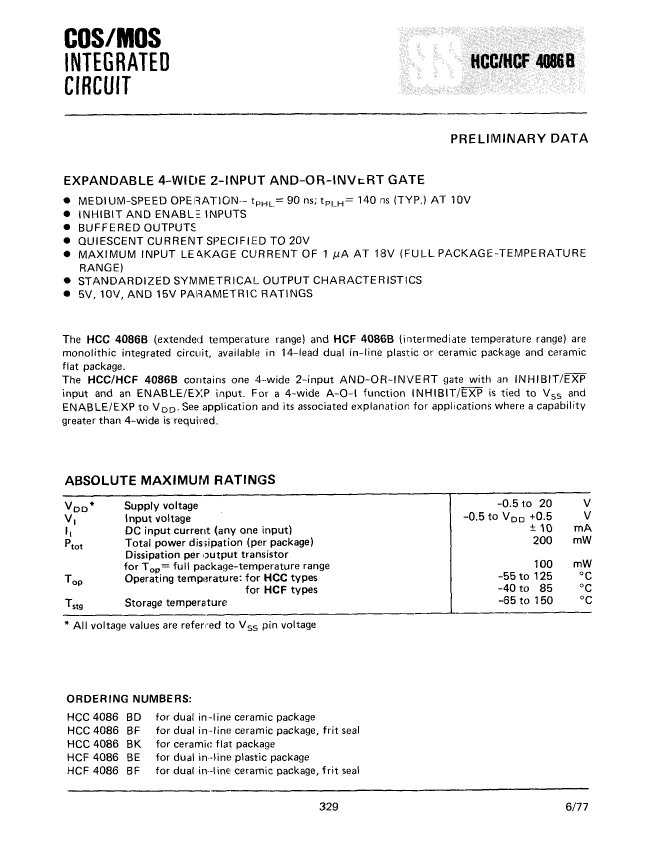

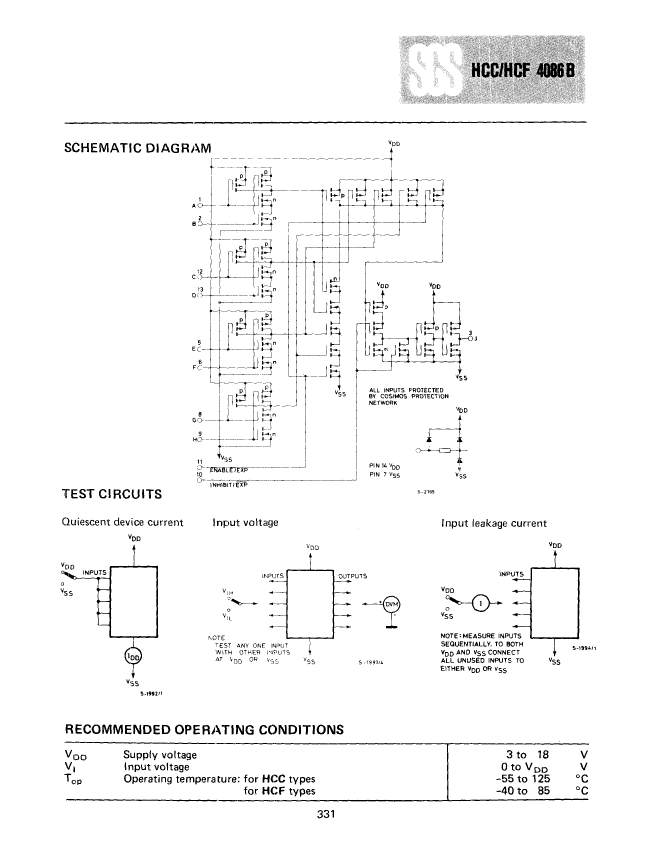

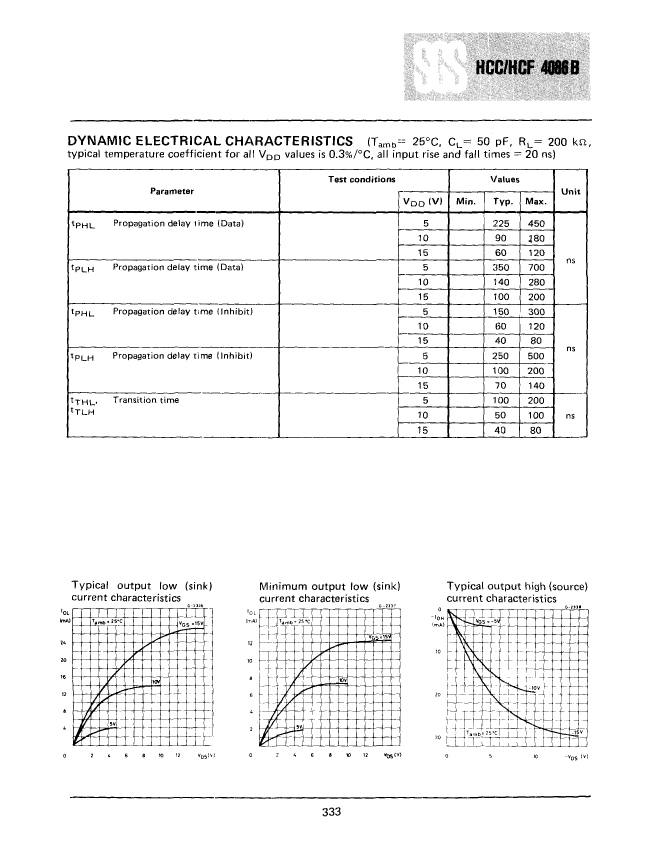

HCF4086BF Overview

AND-OR-Invert Gate, CMOS, CDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SGS-Ates Componenti Electronici SPA
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	AND-OR-INVERT GATE
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C

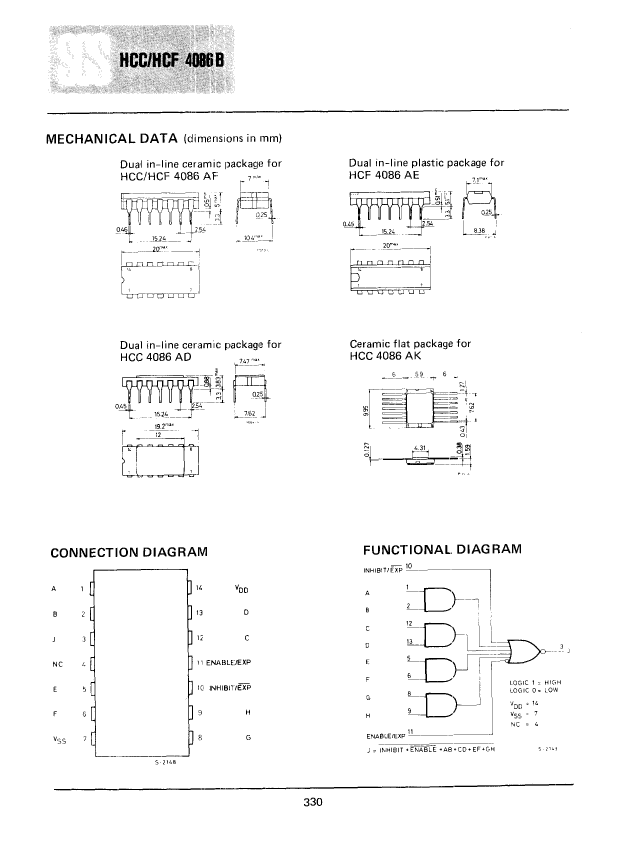

Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
