BSP452E6327T datasheet, PDF - EEWORLD Datasheet

BSP452E6327T: DescriptionBuffer/Inverter Based Peripheral Driver, 1.7A, PDSO4, PLASTIC, SOT-223, 4 PIN; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size84KB，4 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

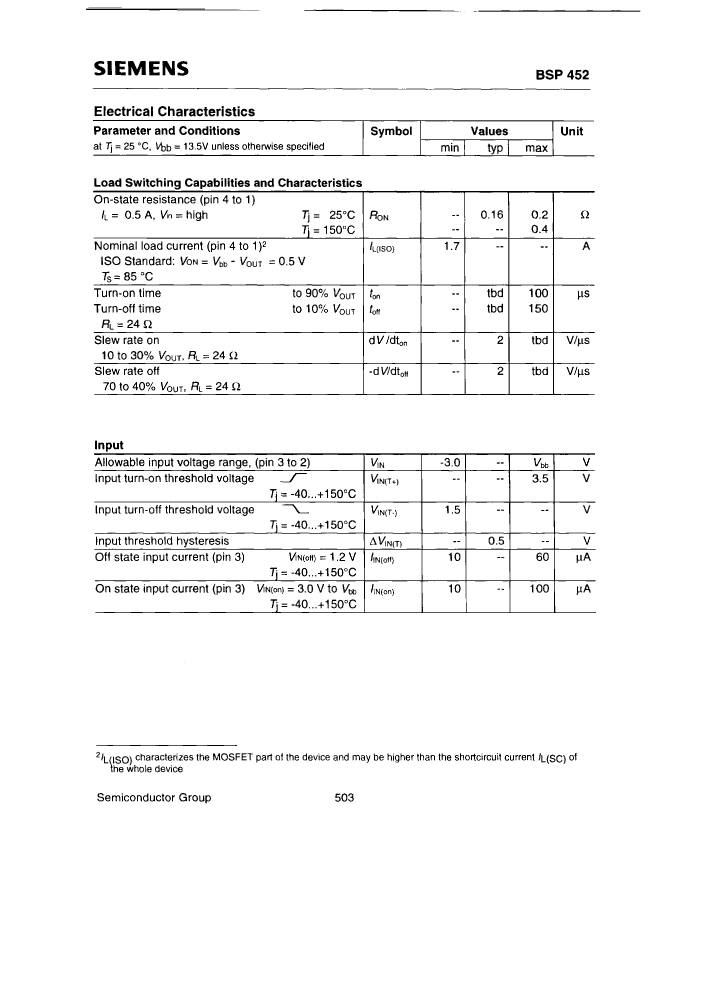

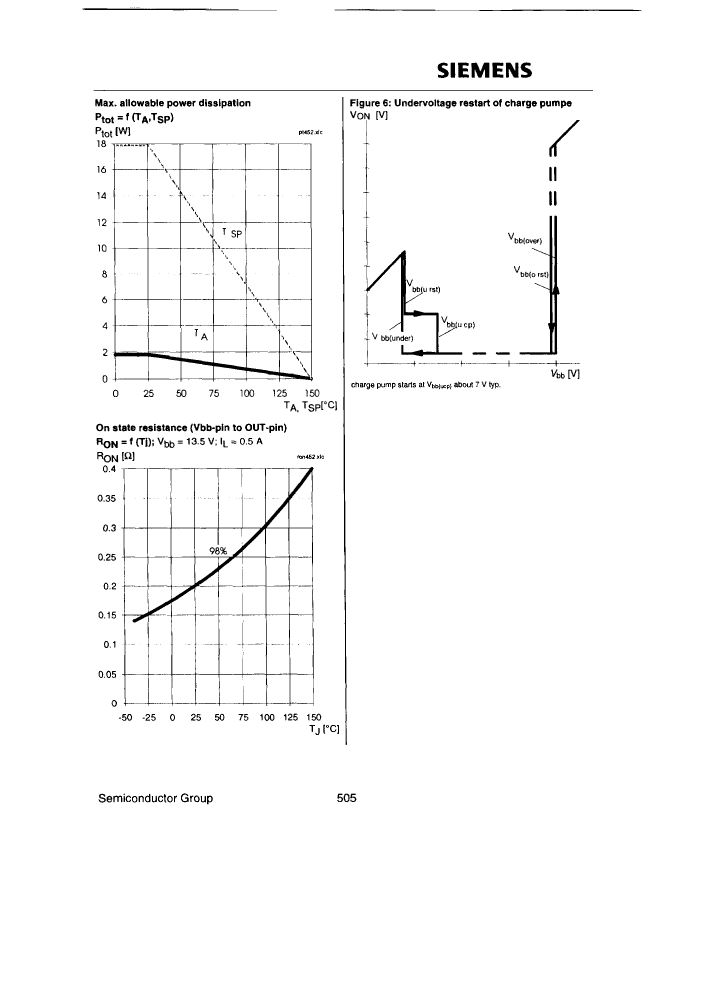

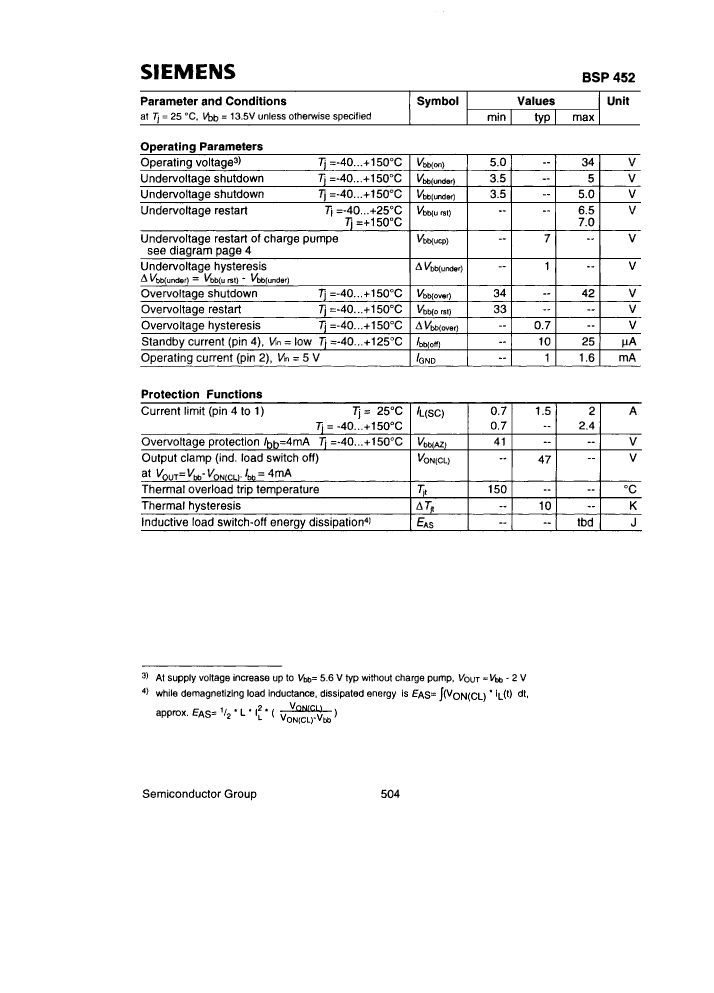

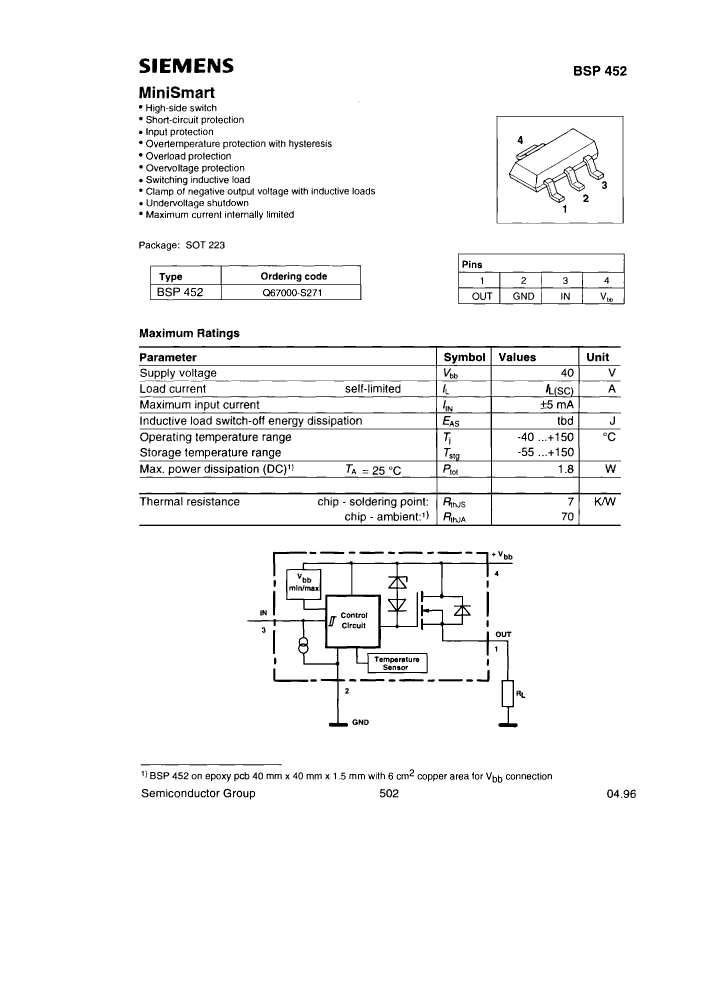

BSP452E6327T Overview

Buffer/Inverter Based Peripheral Driver, 1.7A, PDSO4, PLASTIC, SOT-223, 4 PIN

Parameter Name	Attribute value
Maker	Infineon
Parts packaging code	SOT-223
package instruction	SOP,
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Built-in protection	TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G4
length	6.5 mm
Number of functions	1
Number of terminals	4
Output current flow direction	SINK
Nominal output peak current	1.7 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum supply voltage	34 V
Minimum supply voltage	5 V
Nominal supply voltage	13.5 V
surface mount	YES
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	DUAL
Disconnect time	150 µs
connection time	100 µs
width	3.5 mm
Base Number Matches	1

	BSP452E6327T
Description	Buffer/Inverter Based Peripheral Driver, 1.7A, PDSO4, PLASTIC, SOT-223, 4 PIN
Maker	Infineon
Parts packaging code	SOT-223
package instruction	SOP,
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Built-in protection	TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G4
length	6.5 mm
Number of functions	1
Number of terminals	4
Output current flow direction	SINK
Nominal output peak current	1.7 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum supply voltage	34 V
Minimum supply voltage	5 V
Nominal supply voltage	13.5 V
surface mount	YES
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	DUAL
Disconnect time	150 µs
connection time	100 µs
width	3.5 mm
Base Number Matches	1
