BTS650PE3230 datasheet, PDF - EEWORLD Datasheet

BTS650PE3230: DescriptionBuffer/Inverter Based Peripheral Driver, 240A, MOS, PSFM7; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size313KB，12 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

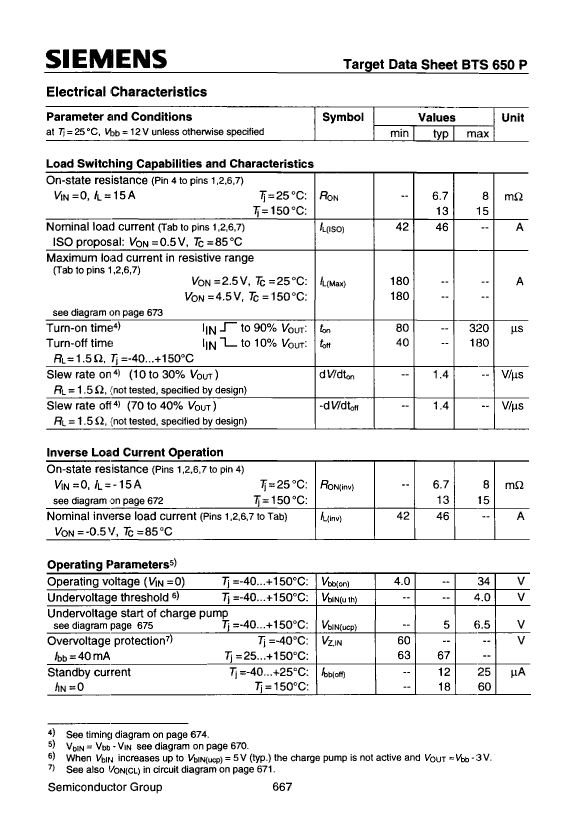

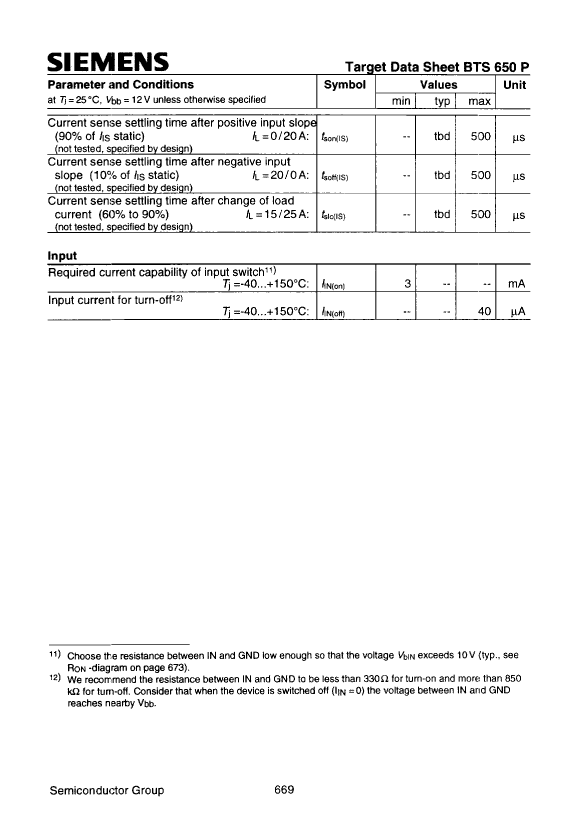

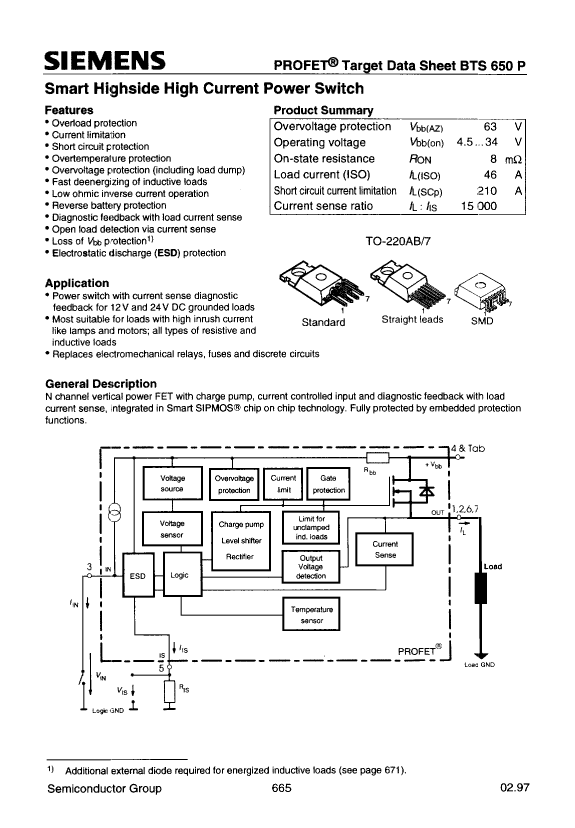

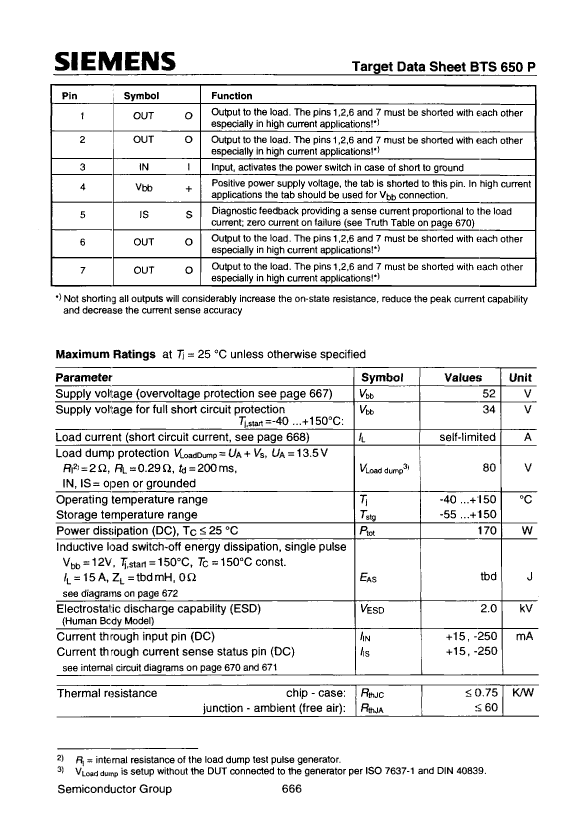

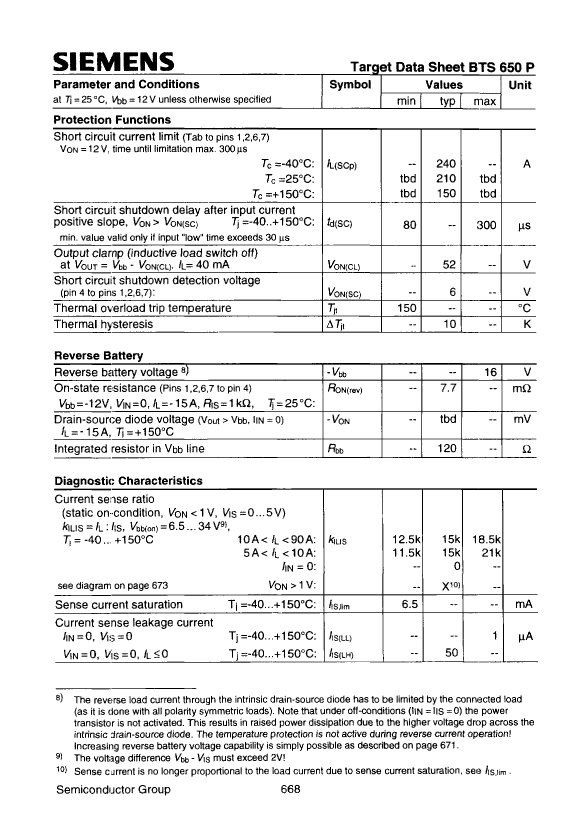

BTS650PE3230 Overview

Buffer/Inverter Based Peripheral Driver, 240A, MOS, PSFM7

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSFM-T7
Number of functions	1
Number of terminals	7
Output characteristics	OPEN-SOURCE
Output current flow direction	SOURCE
Nominal output peak current	240 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum supply voltage	34 V
Minimum supply voltage	4 V
Nominal supply voltage	12 V
surface mount	NO
technology	MOS
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Disconnect time	180 µs
connection time	320 µs
Base Number Matches	1

	BTS650PE3230	BTS650PE3128
Description	Buffer/Inverter Based Peripheral Driver, 240A, MOS, PSFM7	Buffer/Inverter Based Peripheral Driver, 240A, MOS, PSSO6
Maker	SIEMENS	SIEMENS
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL	OVER CURRENT; OVER VOLTAGE; THERMAL
Input properties	STANDARD	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSFM-T7	R-PSSO-G6
Number of functions	1	1
Number of terminals	7	6
Output characteristics	OPEN-SOURCE	OPEN-SOURCE
Output current flow direction	SOURCE	SOURCE
Nominal output peak current	240 A	240 A
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	34 V	34 V
Minimum supply voltage	4 V	4 V
Nominal supply voltage	12 V	12 V
surface mount	NO	YES
technology	MOS	MOS
Terminal form	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE
Disconnect time	180 µs	180 µs
connection time	320 µs	320 µs
Base Number Matches	1	1
