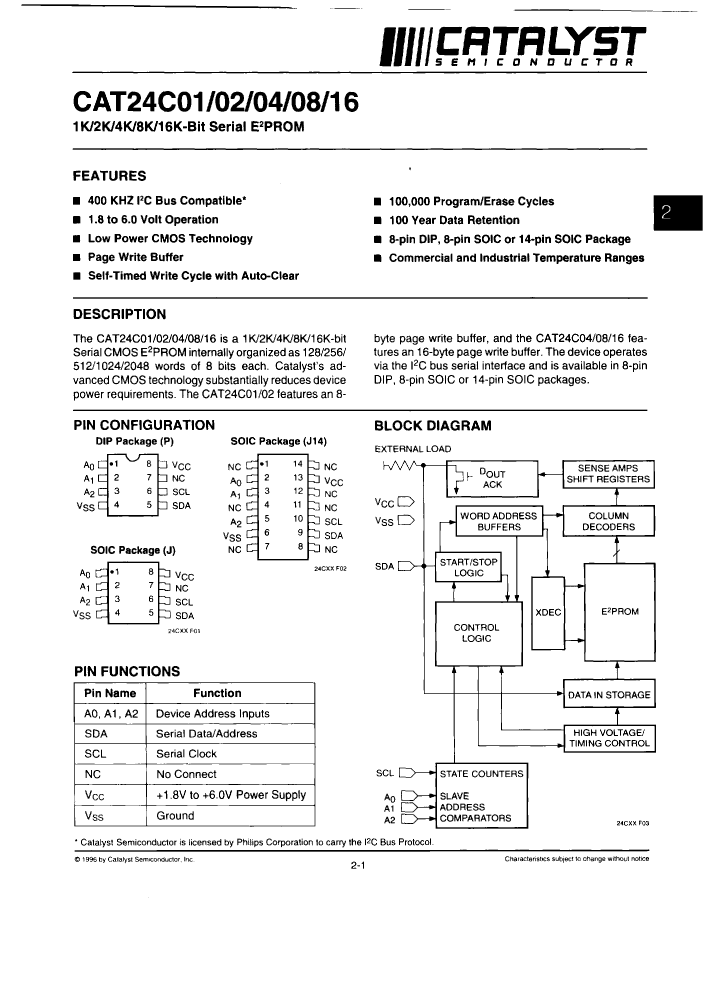

CAT24C01P-2.5 datasheet, PDF - EEWORLD Datasheet

CAT24C01P-2.5: DescriptionEEPROM, 128X8, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8; Categorystorage storage; File Size304KB，8 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric View All

CAT24C01P-2.5 Overview

EEPROM, 128X8, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Catalyst
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N

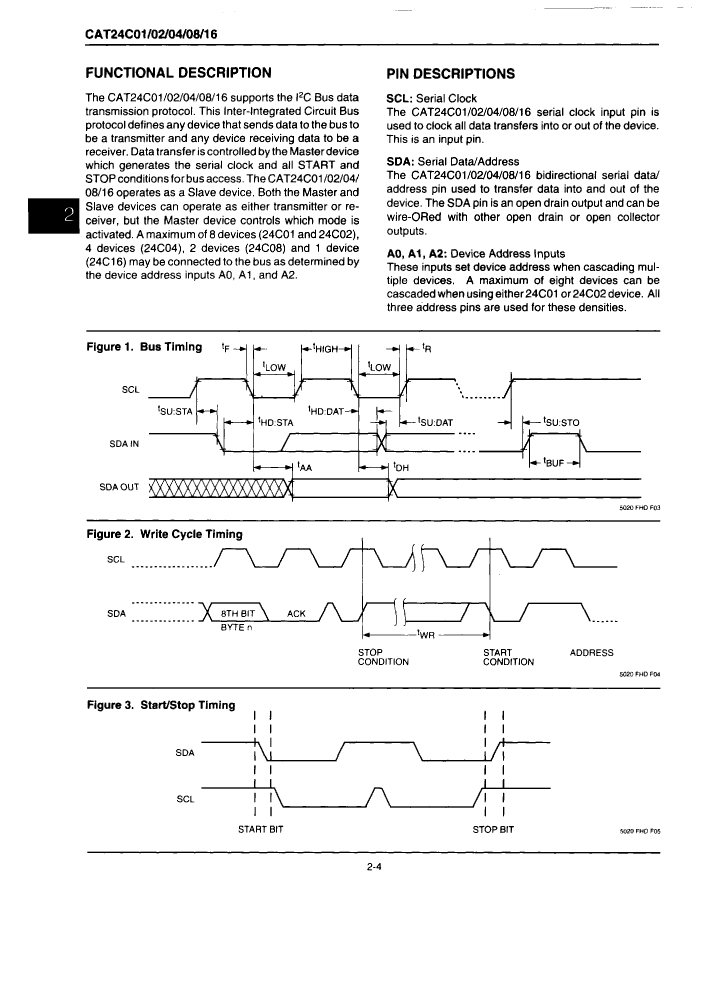

Other features	I2C BUS SERIAL INTERFACE; AUTOMATIC WRITE
Maximum clock frequency (fCLK)	0.1 MHz

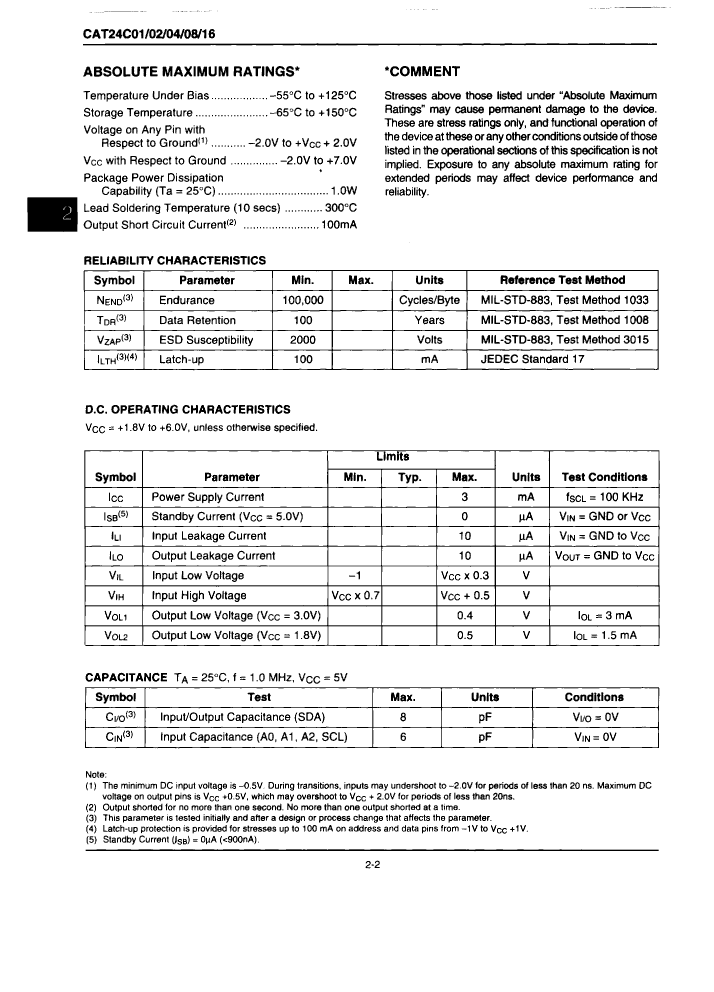

Data retention time - minimum	100
Durability	1000000 Write/Erase Cycles

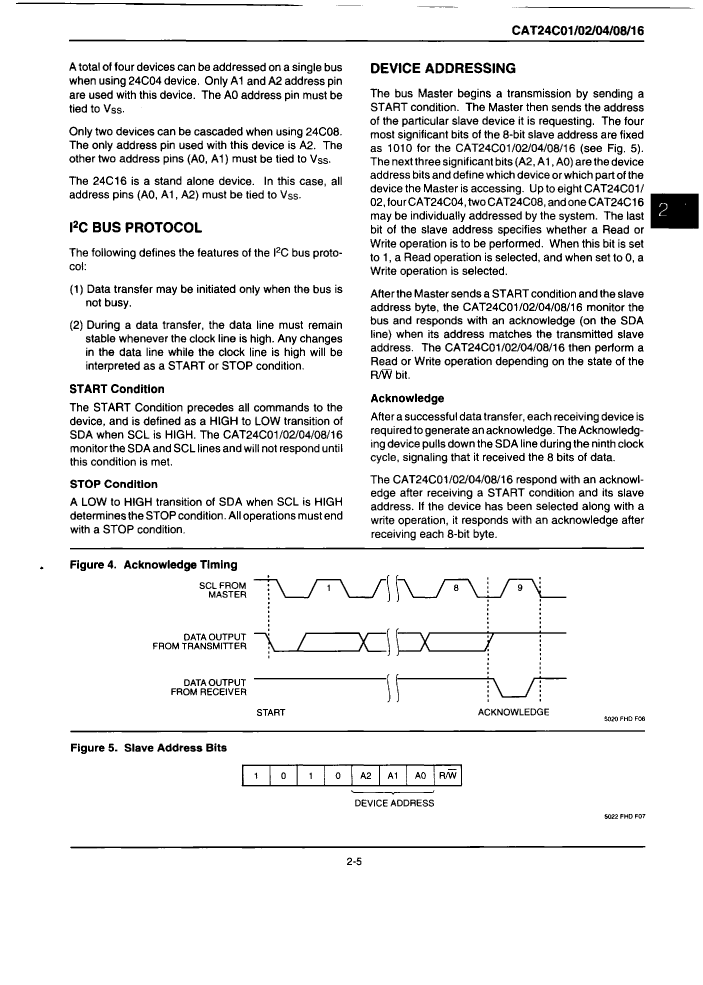

I2C control byte	1010DDDR
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
length	9.36 mm
memory density	1024 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128X8
Output characteristics	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	4.57 mm
Serial bus type	I2C
Maximum standby current	9e-7 A
Maximum slew rate	0.003 mA
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

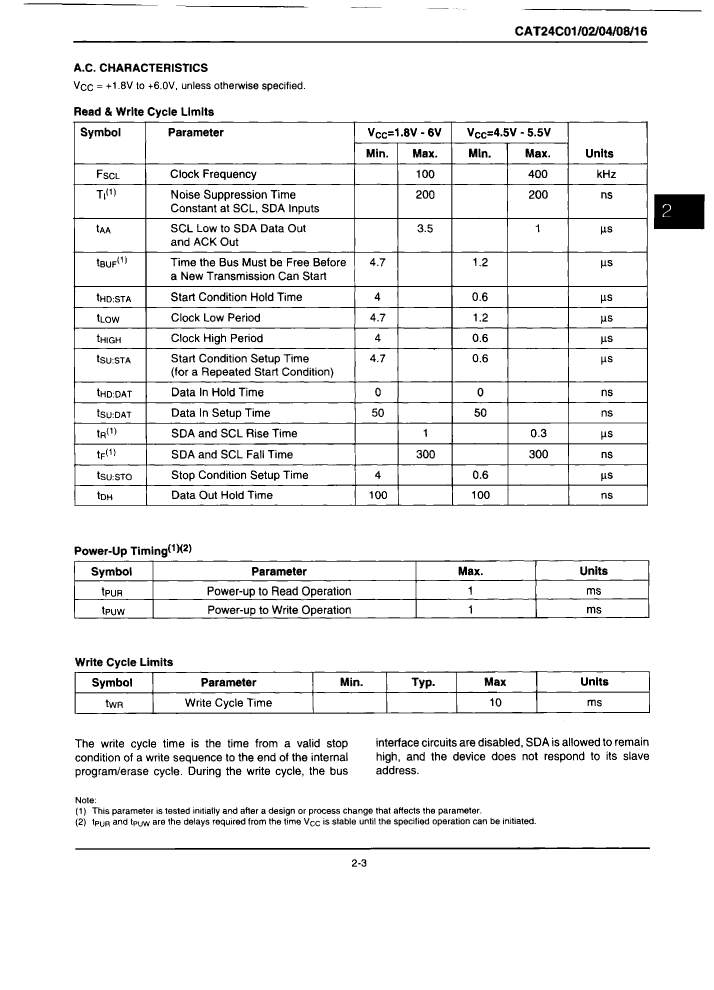

Maximum write cycle time (tWC)	10 ms
Base Number Matches	1
