KPC-3216PBC-A

Description
SINGLE COLOR LED, BLUE, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
CategoryLED optoelectronic/LED    photoelectric
File Size65KB，1 Pages
ManufacturerKingbright
Websitehttp://www.us.kingbright.com
Environmental Compliance
Download Datasheet Parametric View All

KPC-3216PBC-A Overview

SINGLE COLOR LED, BLUE, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

KPC-3216PBC-A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerKingbright
package instruction3.20 X 1.60 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
colorBLUE
ConfigurationSINGLE
Maximum forward current0.03 A
Lens typeWATER CLEAR
Nominal luminous intensity60.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSINGLE COLOR LED
total height1.1 mm
method of packingTAPE AND REEL
peak wavelength468 nm
shapeRECTANGULAR
size2 mm
surface mountYES
Terminal pitch3.75 mm
perspective120 deg
Base Number Matches1

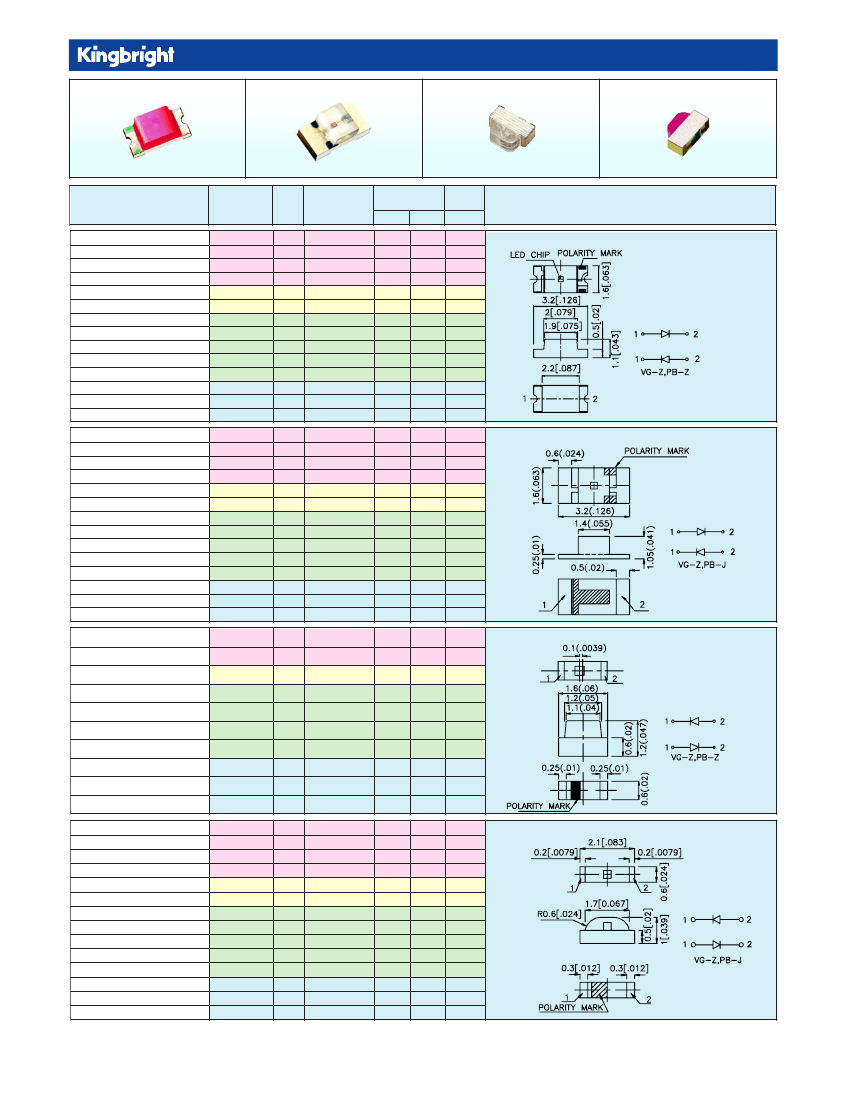

Preview

Download Datasheet
SURFACE MOUNT LED LAMPS
KPC-3216
KPTR-3216
KPA-1606
KPA-2106
Part No.
Material
λ
D
(nm)
Lens Type
Iv (mcd)
@20mA
Min.
Typ.
View ing
Angle
2θ 1/2
θ
Dimension
KPC-3216SURC
KPC-3216SURCK
KPC-3216SEC
KPC-3216SECK
KPC-3216SYC
KPC-3216SYCK
KPC-3216MGC
KPC-3216CGCK
KPC-3216ZGC
KPC-3216VGC-A
KPC-3216VGC-Z
KPC-3216QBC-D
KPC-3216PBC-A
KPC-3216PBC-Z-SI
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
AlInGaN
InGaN
InGaN
AlInGaN
InGaN
InGaN
628
635
601
601
588
590
568
570
525
525
535
470
470
465
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
70
50
70
50
50
36
18
10
110
50
380
50
18
110
200
150
200
160
150
120
70
40
300
180
800
100
60
250
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
150
°
3.2mm x 1
.
6mm x 1
.
1mm (1206)
Units : mm(inch)
Tolerance :
±0.2(0.008)
KPTR-3216SURC
KPTR-3216SURCK
KPTR-3216SEC
KPTR-3216SECK
KPTR-3216SYC
KPTR-3216SYCK
KPTR-3216MGC
KPTR-3216CGCK
KPTR-3216ZGC
KPTR-3216VGC-A
KPTR-3216VGC-Z
KPTR-3216QBC-D
KPTR-3216PBC-A
KPTR-3216PBC-J
KPA-1606SURCK
KPA-1606SECK
KPA-1606SYCK
KPA-1606ZGC
KPA-1606CGCK
KPA-1606VGC-A
KPA-1606VGC-Z
KPA-1606QBC-D
KPA-1606PBC-A
KPA-1606PBC-Z-SI
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
AlInGaN
InGaN
InGaN
AlInGaN
InGaN
InGaN
InGaAlP
InGaAlP
InGaAlP
AlInGaN
InGaAlP
InGaN
InGaN
AlInGaN
InGaN
InGaN
628
635
601
601
588
590
568
570
525
525
535
470
470
470
635
601
590
525
570
525
535
470
470
465
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
70
50
70
50
50
36
18
10
110
50
380
50
18
50
110
70
50
70
18
70
380
36
18
110
200
150
200
160
150
120
70
40
300
180
800
100
60
160
250
250
150
250
60
180
800
90
60
230
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
110
°
110
°
110
°
110
°
110
°
110
°
110
°
110
°
110
°
110
°
3.2mm x 1
.
6mm x 1
.
05mm (1206 Reverse Mount)
Units : mm(inch)
Tolerance :
±0.2(0.008)
1.6mm x 0
.
6mm x 1.2mm (0602 Right Angle)
Units : mm(inch)
Tolerance :
±0.1(0.004)
KPA-2106SURC
KPA-2106SURCK
KPA-2106SEC
KPA-2106SECK
KPA-2106SYC
KPA-2106SYCK
KPA-2106MGC
KPA-2106CGCK
KPA-2106ZGC
KPA-2106VGC-A
KPA-2106VGC-Z
KPA-2106QBC-D
KPA-2106PBC-A
KPA-2106PBC-J
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
InGaAlP
AlInGaN
InGaN
InGaN
AlInGaN
InGaN
InGaN
628
635
601
601
588
590
568
570
525
525
535
470
470
470
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
water clear
110
110
70
70
70
50
36
18
70
70
380
36
18
50
300
250
300
250
180
150
80
60
250
180
800
90
60
150
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
120
°
2.1mm x 0
.
6mm x 1
.
0mm (0802 Right Angle)
Units : mm(inch)
Tolerance :
±0.1(0.004)
NOTE:
1.KP series custom-made is available upon request.
