Input: “P” designates Power Factor Corrected wide range (90-264V
AC
) input (standard feature)
Power Fail Warning: “H” designates transition to Logic “0” upon loss of AC (standard configuration)
Active Current Share: “M” designates current sharing on main output (V1) (standard feature)
NOTES: (1) Standard configurations shown; consult factory for other available options
(2) Cover required to meet EMI specification

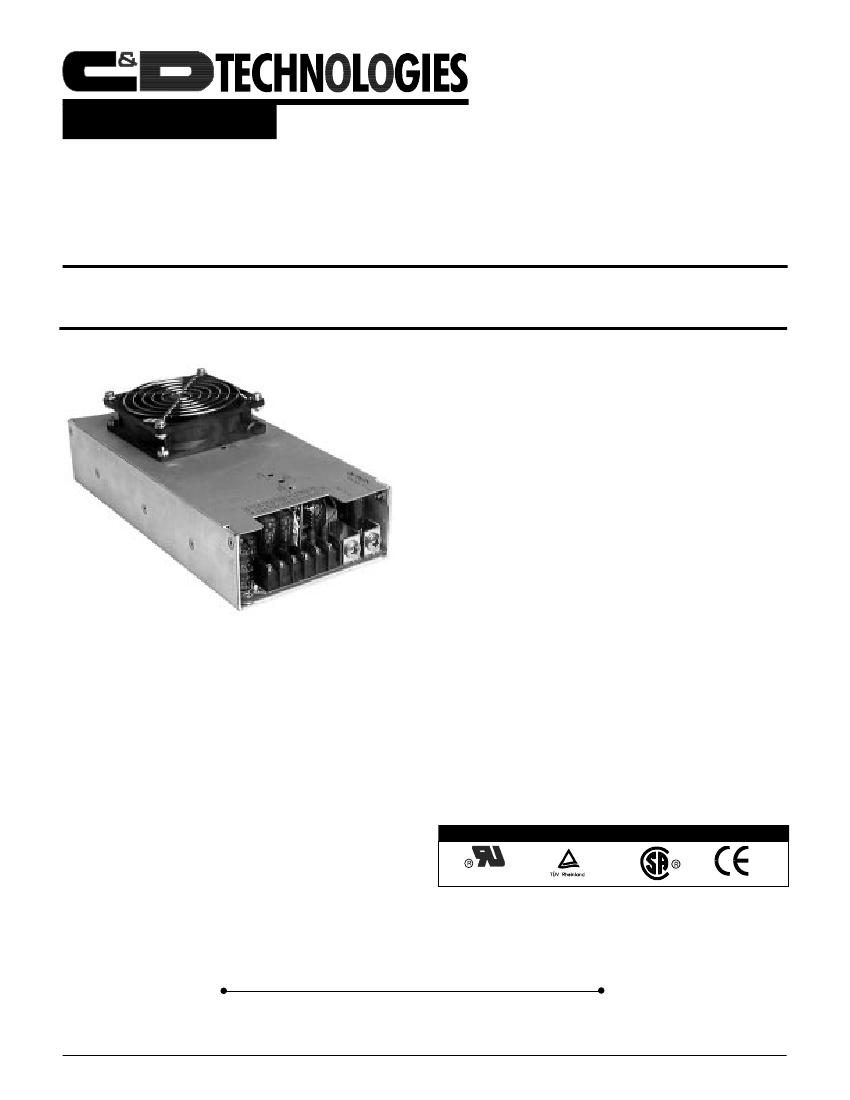

PT500
The information provided herein is believed to be reliable; however, C&D TECHNOLOGIES assumes no responsibility for inaccuracies or omissions. C&D TECHNOLOGIES
assumes no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to
change without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. C&D TECHNOLOGIES does not authorize
or warrant any C&D TECHNOLOGIES product for use in life support devices/systems or in aircraft control applications.
PT500 4/99 REV A
Page
3

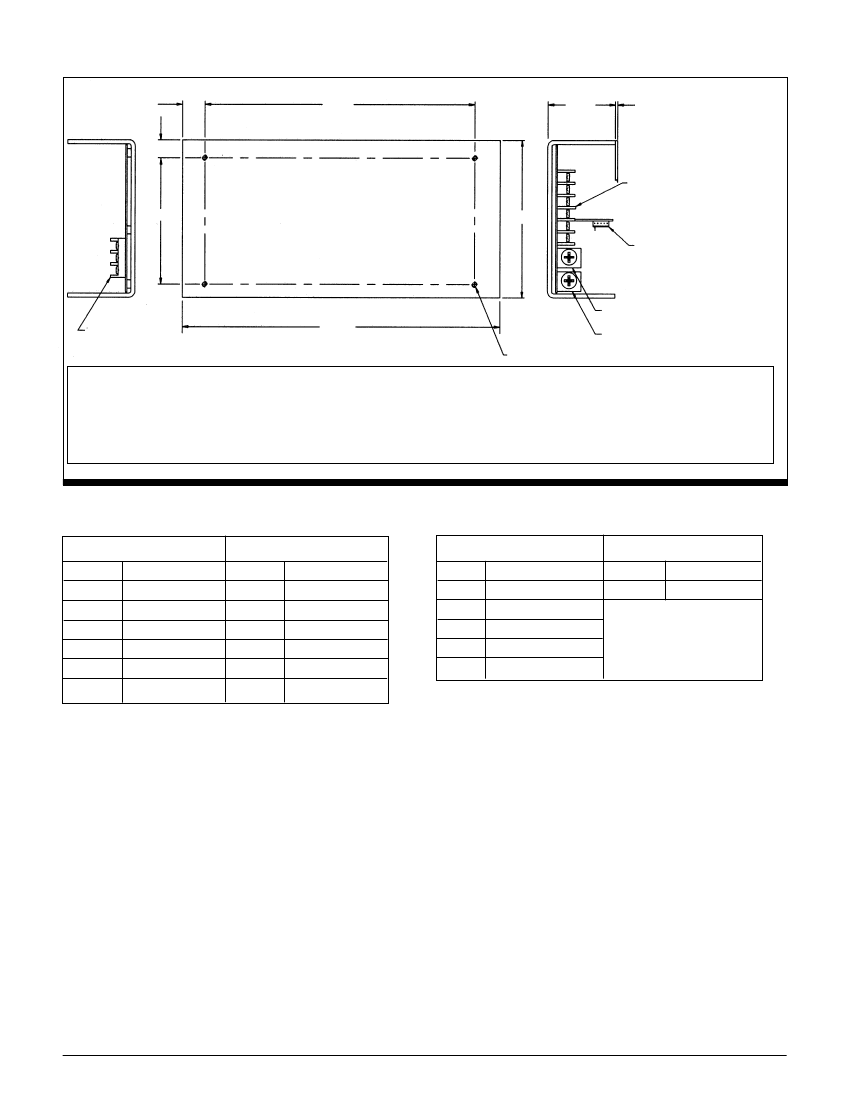

Mechanical
TOP VIEW
0.700
8.500
2.12
0.063
COVER
0.550
1
2
3
TB2
3.900
1
2
3
4.850
4
5
6
J9
3.3V
TB1
10.000
3.3V Return
Maximum depth of mounting screws is 0.156”
NOTES:
All dimensions are in inches
FAN MOUNTED ON COVER ADDS 1.30”.
COOLING:
The PT500 is designed to operate with 40 CFM airflow.
SHOCK AND VIBRATION:
The PT500 family meets the requirements of MIL STD-810D. (Vibration-Method 514.3 Pocedure I; Shock-Method 516.3 Procedure I).
WEIGHT:
Approximately 4 lbs.
Terminal Block 1
FUNCTION
P
OS
1
2
3
Ground
AC Neutral
AC Line
Terminal Block 2
POS
1
2
3
4
5
6
FUNCTION
-V4
+V4
-V3
+V3
-V2
+V2
1
2
3
4
5
J9 Connector
PIN
FUNCTION
- Sense
+ Sense
Current Share
Remote Inhibit
Power Fail
J9 Connector
Molex No.
Connector
22-28-1050
The information provided herein is believed to be reliable; however, C&D Technologies assumes no responsibility for inaccuracies or omissions. C&D Technologies assumes no
responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without notice. No patent
rights or licenses to any of the circuits described herein are implied or granted to any third party. C&D Technologies does not authorize or warrant any C&D Technologies product for use
in life support devices/systems or in aircraft control applications. C&D Technologies, Iso-ThermoFlex and T.E.A.M. Q are trademarks of C&D Technologies Corporation.
