REVISION J
C
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .003[.08] MAX.
3. PARTS TO BE MOLDED TO POSITION.
4. MINIMUM PIN PULLOUT FORCE: 5.000LB[22.24N].
5. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS INTO PLACE.
6. ALL FINISHED GOODS ARE TO BE LAYER PACKAGED IN SHIPPING.
7. ONLY AVAILABLE IN TIN PLATING.
8. ALL PARTS TO PASS ELECTRICAL TEST UPON ASSEMBLY
(INCLUDING HI-POT TEST AT 1000 VOLTS DC).
9. APPLICATIONS INVOLVING SEVERE BENDING REQUIRE 6" MINIMUM CABLE LENGTH.
10. DELETED.
11. DELETED.
12. -203 USES 20 GAGE 300 VOLT CABLE.
13. AVAILABLE ONLY AS AN ASO.
14. -206 USES 20 GAGE 600 VOLT CABLE.
15. MINIMUM METAL LATCH RETENTION FORCE: 1.000LB[4.45N].
16. SEE DWL-01-XXX-X-XX.XX-XX-XX FOR CRIMP DIMENSIONS.
PMSD-XX-XXXX-XX-XX.XX-X-XXX
No OF POSITIONS
-02 THRU -15
(PER ROW)
WIRE GAUGE (AWG)
-16
-18
-206
-203
-22
-24
COLOR CODE
LEAVE BLANK FOR ALL BLACK WIRE
C: COLOR CODED WIRE, SEE COLOR
SEQUENCE TABLE, SHEET 3
LEAD STYLE
-SP: STANDARD POWER (C-169-XX-SP-T)
-HP: HIGH POWER (C-169-XX-HP-T)
ASSEMBLED LENGTH
SPECIFY IN INCHES
3.00 INCHES MINIMUM FOR SINGLE ENDED
3.50 INCHES MINIMUM FOR DOUBLE ENDED
[USE DWC-XX-XX-XXX]
OPTION
SINGLE
***-M: METAL LATCH (USE IPBD-XX-D-M)
(LEAVE BLANK FOR PLASTIC)
DOUBLE
-LUS: PLASTIC LATCH UP, STRAIGHT
-LDS: PLASTIC LATCH DOWN, STRAIGHT
-LUX: PLASTIC LATCH UP, CROSSED
-LDX: PLASTIC LATCH DOWN, CROSSED
***-MUS: METAL LATCH UP, STRAIGHT
***-MDS: METAL LATCH DOWN, STRAIGHT
***-MUX: METAL LATCH UP, CROSSED
***-MDX: METAL LATCH DOWN, CROSSED
END OPTION
-S: SINGLE END
-D: DOUBLE END
(SEE OPTIONS)
*** NOT RELEASED FOR PRODUCTION
17. FOR LENGTHS LESS THAN 12 IN, TOLERANCE SHALL
BE ±.125[3.18]. FOR OTHER LENGTHS, TOLERANCES SHALL BE ±2%.
(No OF POS x .165[4.19])
+ .040[1.02]) REF
02 01
.478 12.14
REF
10
06
.378 9.60
REF
IPBD-XX-D
"A"
.776 19.71
REF
DWL-01-XXX-D-XX.XX-XX-XX
.485 12.32
REF
XX.XX
(SEE NOTE 17)
C
XX.XX
(SEE NOTE 17)
C
DWL-01-XXX-S-XX.XX-XX-XX
"A"
SECTION "A"-"A"
(PMSD-05-22-XX-XX.XX-D-LUS SHOWN)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG. 2
(PMSD-05-22-XX-XX.XX-S SHOWN)
FIG. 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
* SEE NOTES 12 & 13
** SEE NOTE 14
c:\enterprisevault\DWG\MISC\MKTG\PMSD-XX-XXXX-XX-XX.XX-X-XXX-MKT.SLDDRW
HOUSING: VALOX 457, COLOR: NATURAL
CONTACT: PHOS BRONZE
CABLE; INSULATION: PVC
WIRE: TINNED COPPER (NOT LEAD FREE)
METAL LATCH: NICKEL-PLATED BeCu, #25, 1/2 HT

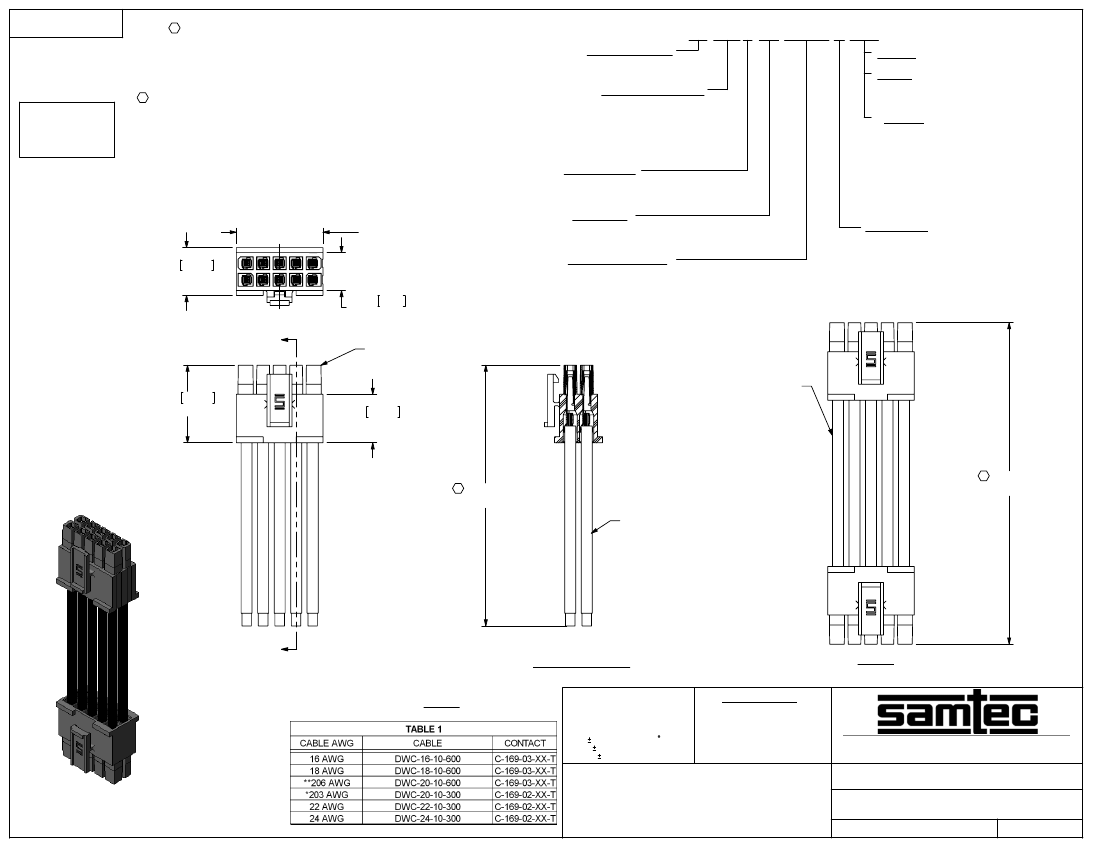

.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
BY:
DEAN P
PMSD-XX-XXXX-XX-XX.XX-X-XXX
07/28/2004
SHEET
1
OF
3
REVISION J
LATCH-
END 2
LATCH-
END 1
LATCH-
END 1

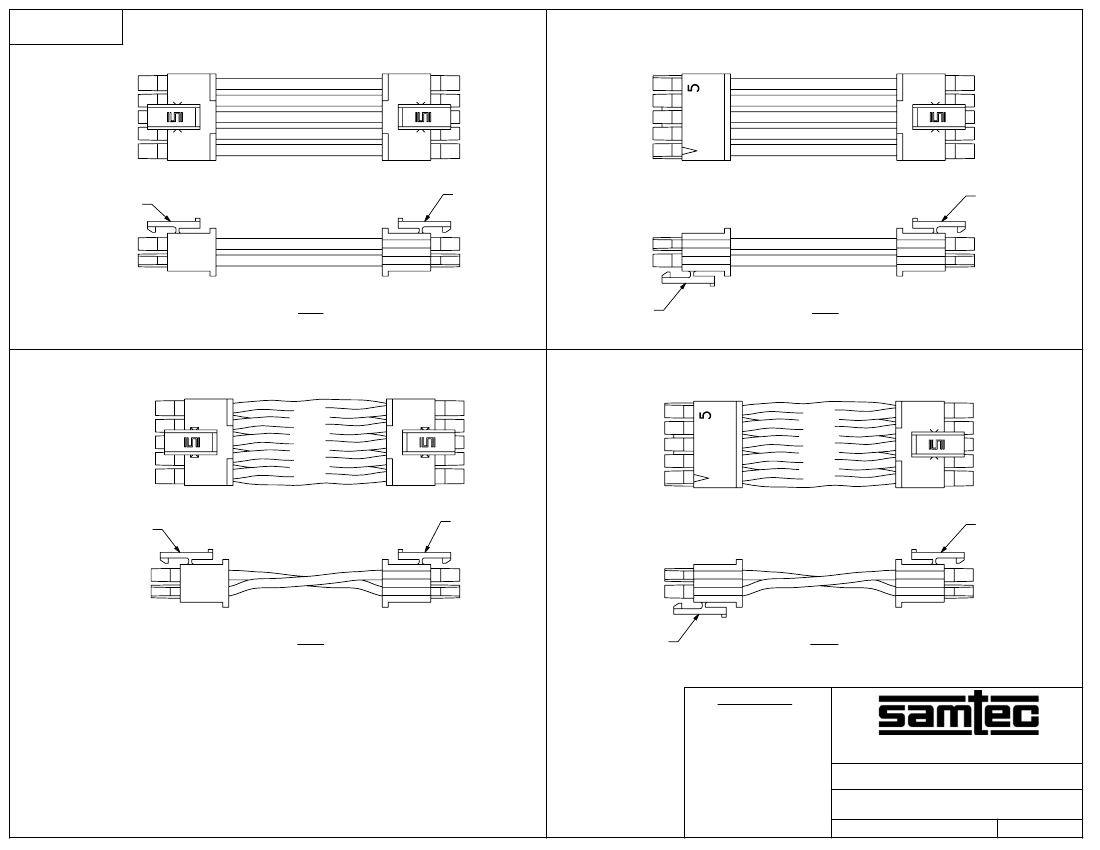

[LATCH UP- CABLE STRAIGHT]
-LUS
LATCH-
END 2
[LATCH DOWN- CABLE STRAIGHT]
-LDS
LATCH-
END 2
LATCH-
END 1
LATCH-
END 1
[LATCH UP- CABLE CROSSED]
-LUX
LATCH-
END 2
[LATCH DOWN- CABLE CROSSED]
-LDX
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
c:\enterprisevault\DWG\MISC\MKTG\PMSD-XX-XXXX-XX-XX.XX-X-XXX-MKT.SLDDRW
BY:
DEAN P
PMSD-XX-XXXX-XX-XX.XX-X-XXX
07/28/2004
SHEET
2
OF
3

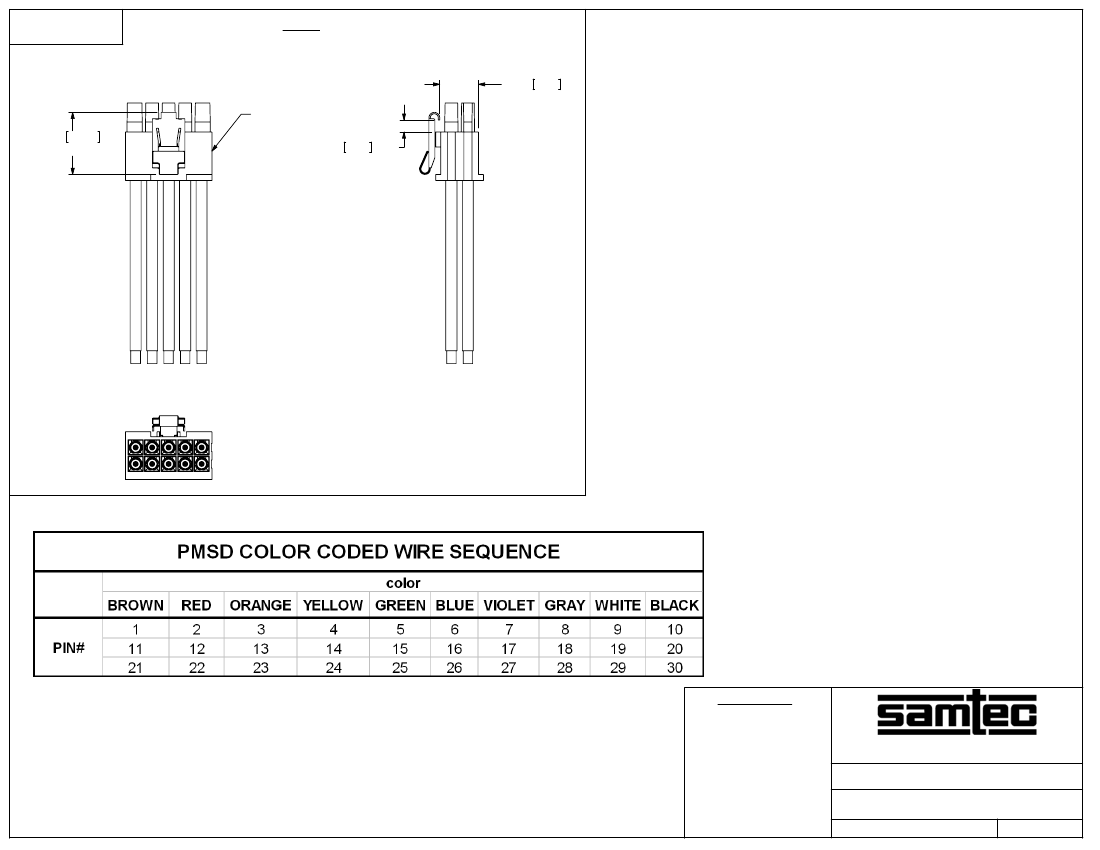

REVISION J
(PMSD-05-XXX-XX-XX.XX-S-M SHOWN)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
NOT RELEASED FOR PRODUCTION
.388 9.86
IPBD-XX-D-M
FIG. 3
.621 15.76
REF
.120 3.05 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
PMSD-XX-XXXX-XX-XX.XX-X-XXX
07/28/2004
SHEET
3
OF
3
c:\enterprisevault\DWG\MISC\MKTG\PMSD-XX-XXXX-XX-XX.XX-X-XXX-MKT.SLDDRW
BY:
DEAN P
