LM139AJ/NOPB Overview

Basic information of LM139AJ/NOPB amplifier:

LM139AJ/NOPB is a COMPARATOR. The commonly used packaging method is DIP,

LM139AJ/NOPB amplifier core information:

The minimum operating temperature of the LM139AJ/NOPB is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is 260°C and its maximum average bias current is 0.3 µA

When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LM139AJ/NOPB takes only 1300 ns to respond.

The nominal supply voltage of LM139AJ/NOPB is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of LM139AJ/NOPB is 4000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of LM139AJ/NOPB:

The width of LM139AJ/NOPB is: 7.62 mm and the length is 19.43 mm. LM139AJ/NOPB has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14

LM139AJ/NOPB amplifier additional information:

Its temperature grade is: MILITARY. And its humidity sensitivity level is: 1. LM139AJ/NOPB is not Rohs certified. It contains lead. The corresponding JESD-30 code is: R-GDIP-T14.

The packaging code of LM139AJ/NOPB is: DIP. The materials of LM139AJ/NOPB package are mostly CERAMIC, GLASS-SEALED. The package shape is RECTANGULAR. The LM139AJ/NOPB package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

The maximum seat height is 5.08 mm.

LM139AJ/NOPB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Rochester Electronics
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.3 µA
Maximum input offset voltage	4000 µV
JESD-30 code	R-GDIP-T14
length	19.43 mm
Humidity sensitivity level	1
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output type	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Certification status	COMMERCIAL
Nominal response time	1300 ns
Maximum seat height	5.08 mm
Supply voltage upper limit	36 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

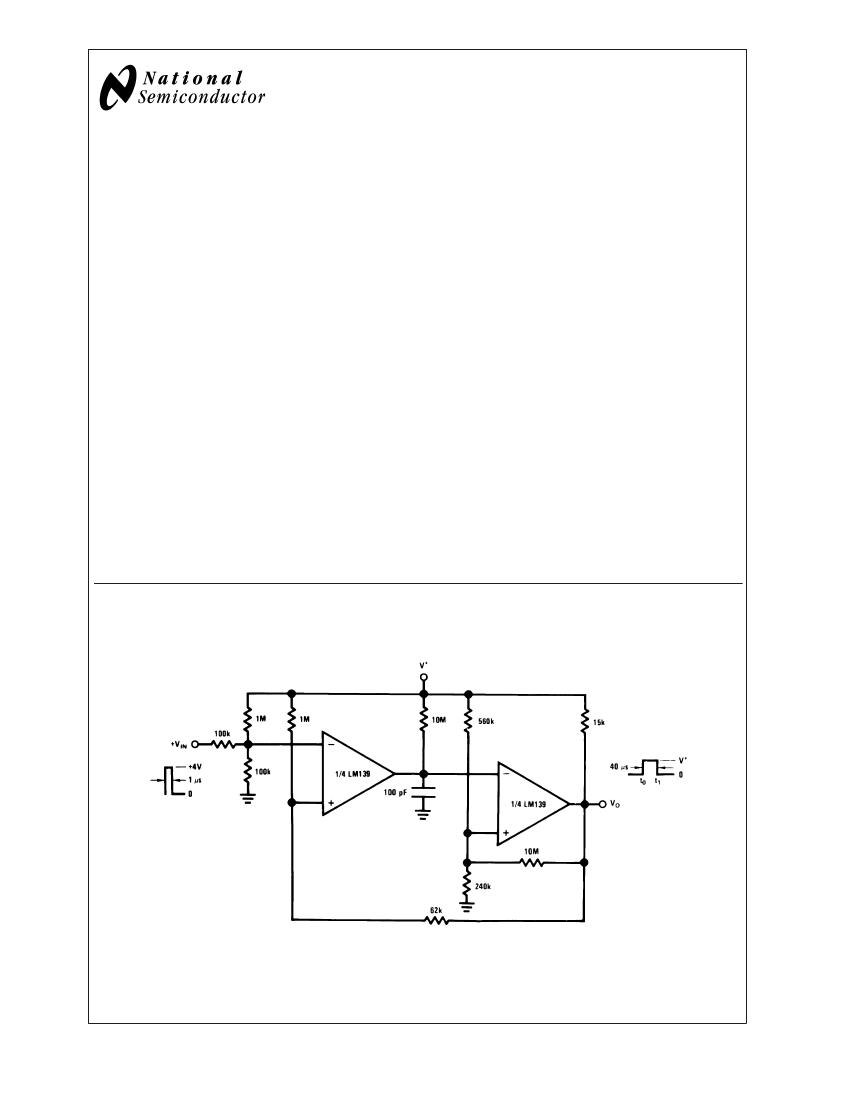

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

LM139AJ/NOPB Related Products

	LM139AJ/NOPB	LM139J/NOPB	LM139J	LM239J	LM339J	LM339N/NOPB	LM2901N/NOPB
Description	QUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14	Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14, CERDIP-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14	Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14, CERDIP-14	Comparator, 4 Func, 9000uV Offset-Max, 1300ns Response Time, BIPolar, PDIP14, LEAD FREE, PLASTIC, DIP-14	Comparator, 4 Func, 15000uV Offset-Max, 1300ns Response Time, BIPolar, PDIP14, PLASTIC, DIP-14
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Contains lead
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP,	CERDIP-14	DIP,	CERDIP-14	DIP,	DIP,	DIP,
Contacts	14	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.3 µA	0.3 µA	0.3 µA	0.4 µA	0.4 µA	0.4 µA	0.5 µA
Maximum input offset voltage	4000 µV	9000 µV	9000 µV	9000 µV	9000 µV	9000 µV	15000 µV
JESD-30 code	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-PDIP-T14	R-PDIP-T14
length	19.43 mm	19.43 mm	19.43 mm	19.43 mm	19.43 mm	19.18 mm	19.18 mm
Number of functions	4	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	85 °C	70 °C	70 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-25 °C	-	-	-40 °C
Output type	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	NOT SPECIFIED	260	260	NOT APPLICABLE	260
Certification status	COMMERCIAL	COMMERCIAL	Not Qualified	COMMERCIAL	Not Qualified	Not Qualified	Not Qualified
Nominal response time	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Supply voltage upper limit	36 V	36 V	36 V	36 V	36 V	36 V	36 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	OTHER	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	40	40	NOT APPLICABLE	40
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Is it Rohs certified?	conform to	-	incompatible	incompatible	incompatible	conform to	conform to
Humidity sensitivity level	1	1	-	1	1	1	1
Terminal surface	-	NOT SPECIFIED	-	TIN LEAD	TIN LEAD	TIN	TIN
ECCN code	-	-	EAR99	-	EAR99	EAR99	EAR99
JESD-609 code	-	-	-	e0	e0	e3	e3
