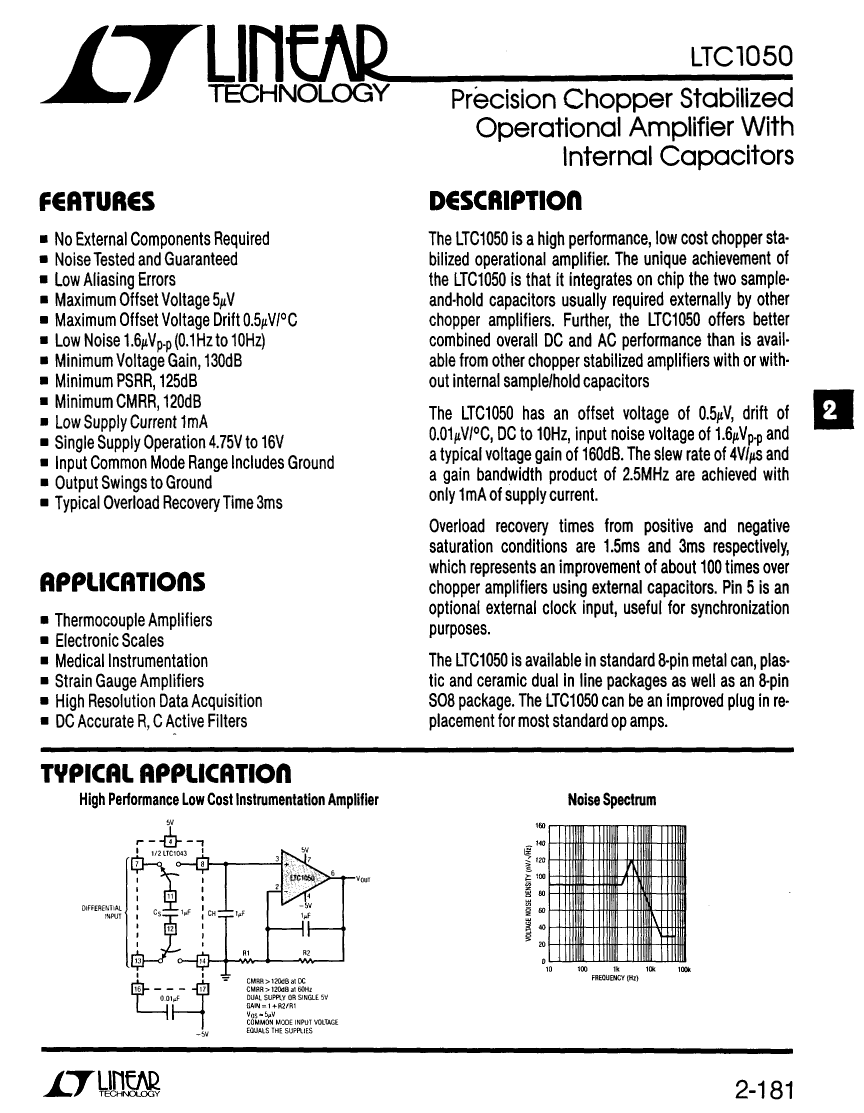

Basic information of LT1050CS8#PBF amplifier:
LT1050CS8#PBF is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP,

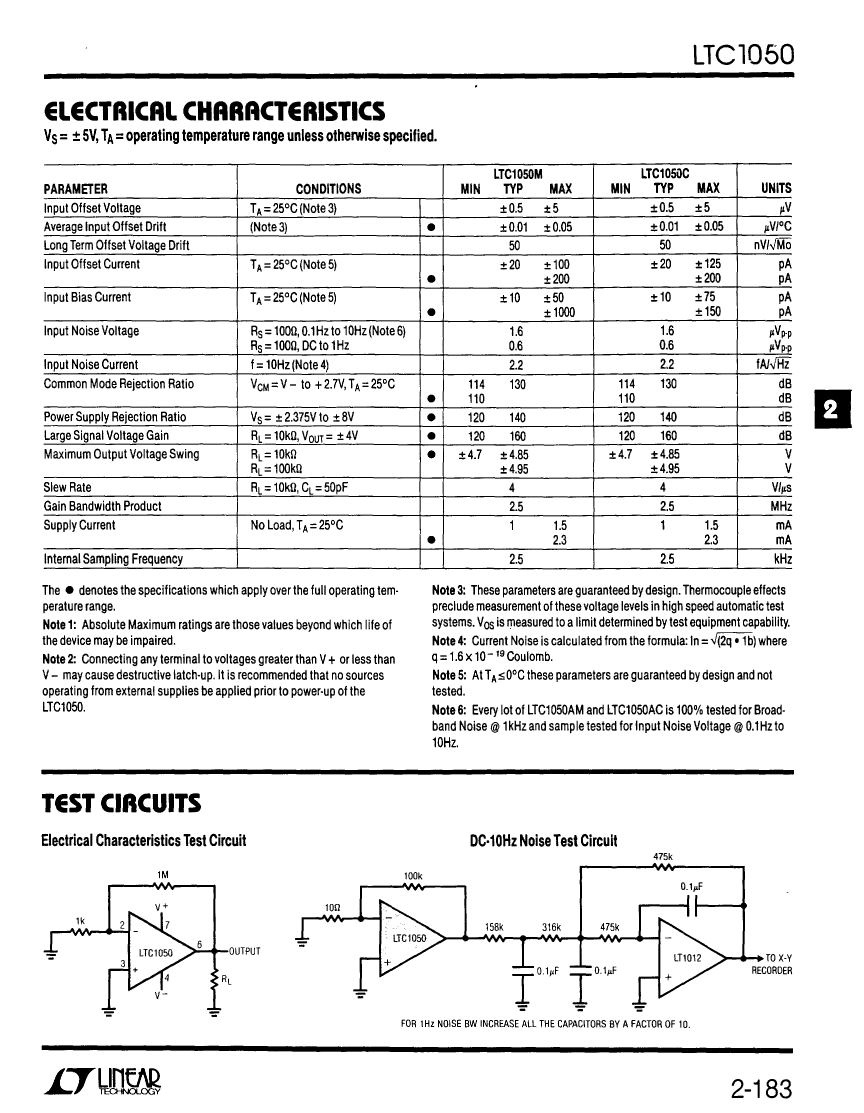

LT1050CS8#PBF amplifier core information:
The minimum operating temperature of LT1050CS8#PBF is -40 °C and the maximum operating temperature is 85 °C. Its peak reflow temperature is 250°C and its maximum average bias current is 0.00015 µA

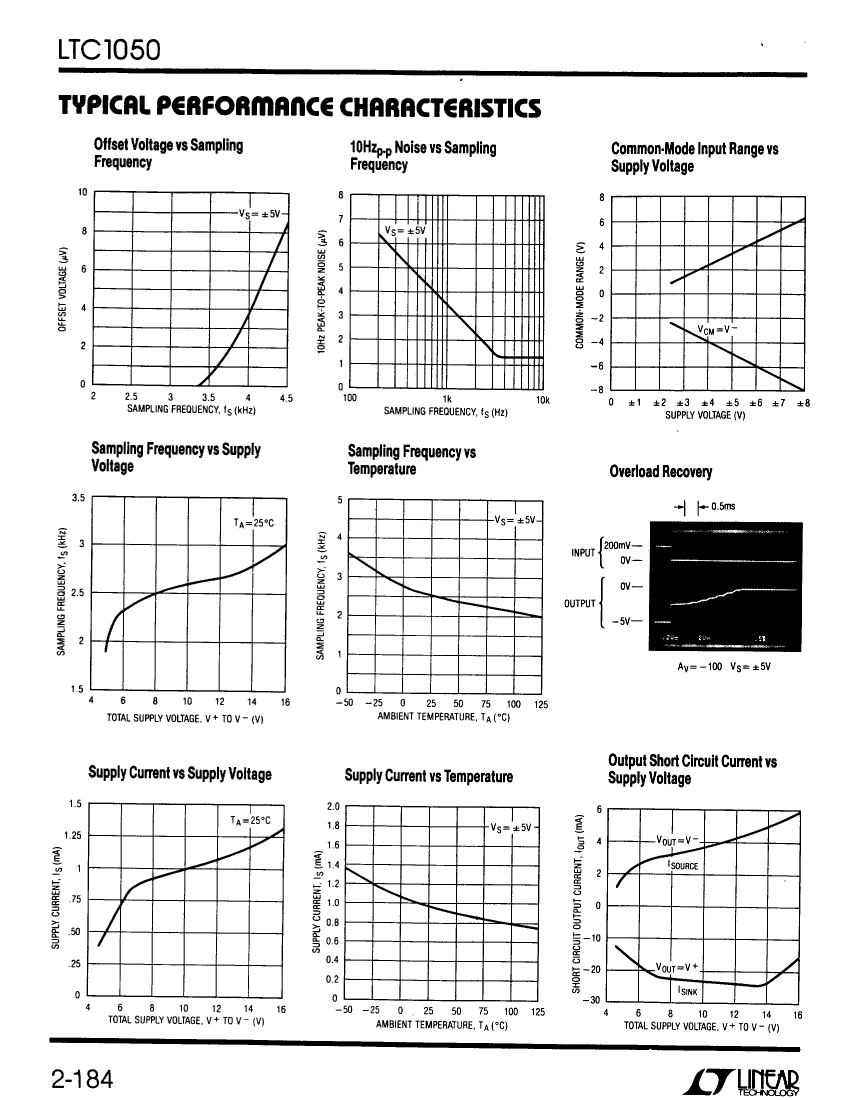

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of LT1050CS8#PBF is 4 V/us. When the op amp is used in closed loop, at a specified closed loop gain (usually 1 or 2, 10, etc.), the frequency when the LT1050CS8#PBF gain becomes 0.707 times the low frequency gain is 2500 kHz.
The nominal supply voltage of LT1050CS8#PBF is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of LT1050CS8#PBF is 5 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

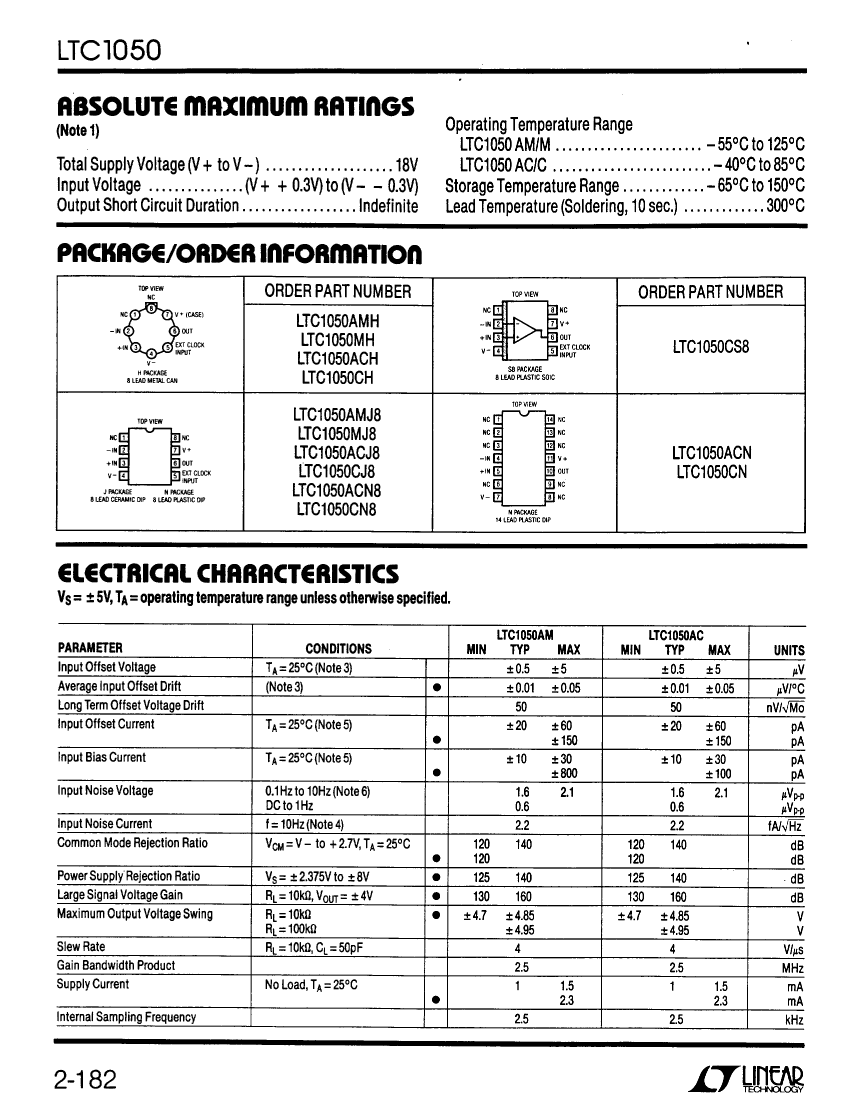

Related dimensions of LT1050CS8#PBF:
The width of LT1050CS8#PBF is: 3.9 mm and the length is 4.9 mm. LT1050CS8#PBF has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 8
LT1050CS8#PBF amplifier other information:
Its temperature grade is: INDUSTRIAL. And its humidity sensitivity level is: 1. LT1050CS8#PBF is not Rohs certified. It does not contain lead. The corresponding JESD-30 code is: R-PDSO-G8.
The corresponding JESD-609 code is: e3. The packaging code of LT1050CS8#PBF is: SOP. The materials used in the LT1050CS8#PBF package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LT1050CS8#PBF package pins are: SMALL OUTLINE.
Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.
Basic information of LT1050CS8#PBF amplifier:
LT1050CS8#PBF is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP,
LT1050CS8#PBF amplifier core information:
The minimum operating temperature of LT1050CS8#PBF is -40 °C and the maximum operating temperature is 85 °C. Its peak reflow temperature is 250°C and its maximum average bias current is 0.00015 µA

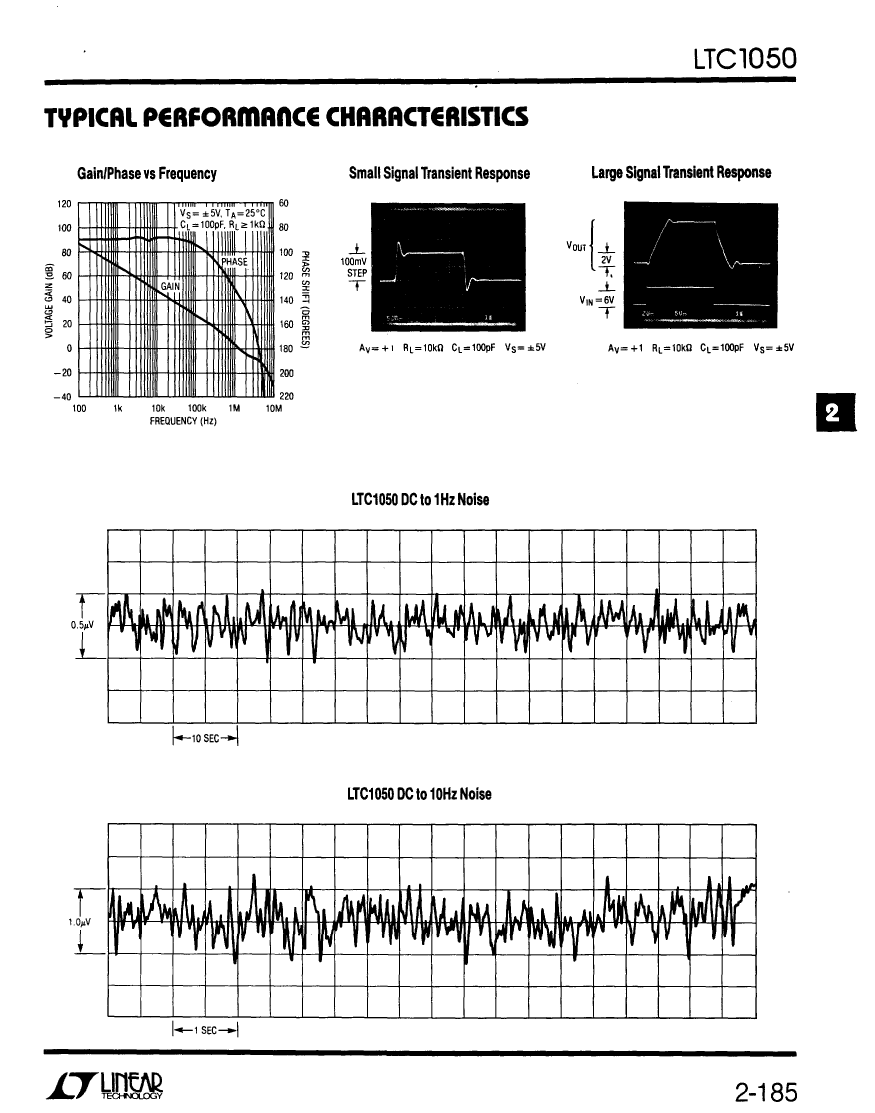

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of LT1050CS8#PBF is 4 V/us. When the op amp is used in closed loop, at a specified closed loop gain (usually 1 or 2, 10, etc.), the frequency when the LT1050CS8#PBF gain becomes 0.707 times the low frequency gain is 2500 kHz.
The nominal supply voltage of LT1050CS8#PBF is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of LT1050CS8#PBF is 5 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LT1050CS8#PBF:
The width of LT1050CS8#PBF is: 3.9 mm and the length is 4.9 mm. LT1050CS8#PBF has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 8
LT1050CS8#PBF amplifier other information:
Its temperature grade is: INDUSTRIAL. And its humidity sensitivity level is: 1. LT1050CS8#PBF is not Rohs certified. It does not contain lead. The corresponding JESD-30 code is: R-PDSO-G8.
The corresponding JESD-609 code is: e3. The packaging code of LT1050CS8#PBF is: SOP. The materials used in the LT1050CS8#PBF package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LT1050CS8#PBF package pins are: SMALL OUTLINE.
Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Linear ( ADI ) |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 8 |
| Reach Compliance Code | compliant |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.00015 µA |
| Nominal Common Mode Rejection Ratio | 130 dB |
| Maximum input offset voltage | 5 µV |
| JESD-30 code | R-PDSO-G8 |
| JESD-609 code | e3 |
| length | 4.9 mm |
| Humidity sensitivity level | 1 |
| Negative supply voltage upper limit | -9 V |
| Nominal Negative Supply Voltage (Vsup) | -5 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 250 |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Nominal slew rate | 4 V/us |
| Supply voltage upper limit | 9 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | MATTE TIN |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 2500 kHz |
| width | 3.9 mm |
| Base Number Matches | 1 |
| LT1050CS8#PBF | LT1050ACN8#PBF | LT1050CN#PBF | LT1050CN8#PBF | |
|---|---|---|---|---|
| Description | IC OP-AMP, 5 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDSO8, PLASTIC, SOIC-8, Operational Amplifier | IC OP-AMP, 5 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8, Operational Amplifier | IC OP-AMP, 5 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDIP14, PLASTIC, DIP-14, Operational Amplifier | IC OP-AMP, 5 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8, Operational Amplifier |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to |
| Maker | Linear ( ADI ) | Linear ( ADI ) | Linear ( ADI ) | Linear ( ADI ) |
| Parts packaging code | SOIC | DIP | DIP | DIP |
| package instruction | SOP, | DIP, | DIP, | DIP, |
| Contacts | 8 | 8 | 14 | 8 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| Is Samacsys | N | N | N | N |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.00015 µA | 0.0001 µA | 0.00015 µA | 0.00015 µA |
| Nominal Common Mode Rejection Ratio | 130 dB | 140 dB | 130 dB | 130 dB |
| Maximum input offset voltage | 5 µV | 5 µV | 5 µV | 5 µV |
| JESD-30 code | R-PDSO-G8 | R-PDIP-T8 | R-PDIP-T14 | R-PDIP-T8 |
| JESD-609 code | e3 | e3 | e3 | e3 |
| Negative supply voltage upper limit | -9 V | -9 V | -9 V | -9 V |
| Nominal Negative Supply Voltage (Vsup) | -5 V | -5 V | -5 V | -5 V |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 14 | 8 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | 250 | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal slew rate | 4 V/us | 4 V/us | 4 V/us | 4 V/us |
| Supply voltage upper limit | 9 V | 9 V | 9 V | 9 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | MATTE TIN | MATTE TIN | MATTE TIN | MATTE TIN |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 2500 kHz | 2500 kHz | 2500 kHz | 2500 kHz |
| Base Number Matches | 1 | 1 | 1 | 1 |
