LF156H Overview

Basic information of LF156H amplifier:

LF156H is an OPERATIONAL AMPLIFIER. The commonly used packaging method is CAN8,.2

LF156H amplifier core information:

The minimum operating temperature of LF156H is -55 °C and the maximum operating temperature is 125 °C.

The power supply range is: +-15/+-20 V. The input offset voltage of the LF156H is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of LF156H:

LF156H has 8 terminals. Its terminal position type is: BOTTOM.

LF156H amplifier additional information:

LF156H adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of LF156H is: YES. Its temperature grade is: MILITARY.

LF156H is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the LF156H package are mostly METAL. And its package shape is ROUND.

The LF156H package pin format is: CYLINDRICAL. Its terminal form is: WIRE.

LF156H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	General Electric Solid State
package instruction	, CAN8,.2
Reach Compliance Code	unknown
Is Samacsys	N
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	YES
Maximum input offset voltage	7000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15/+-20 V
Certification status	Not Qualified
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

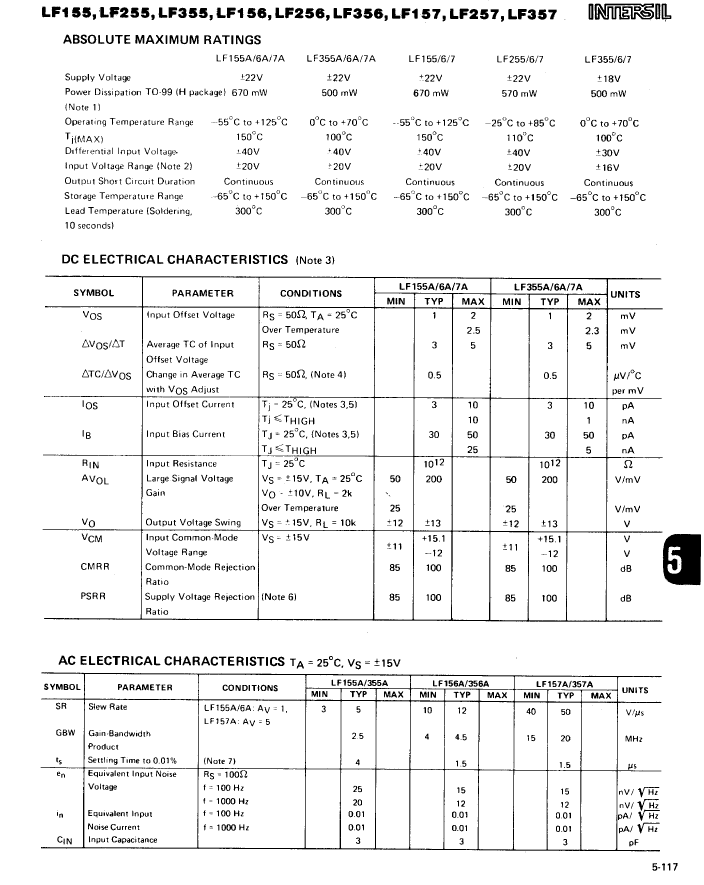

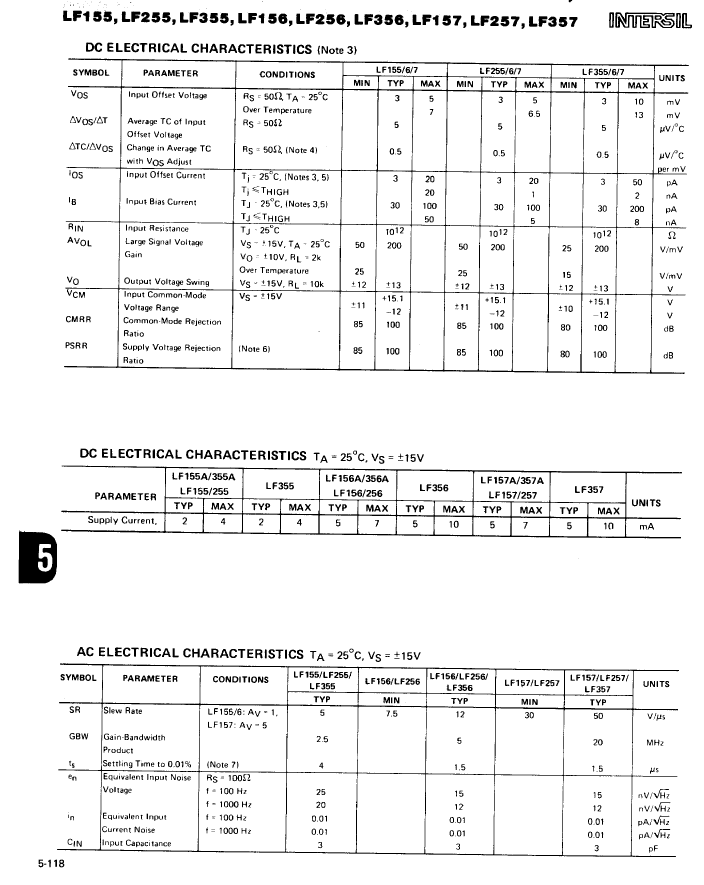

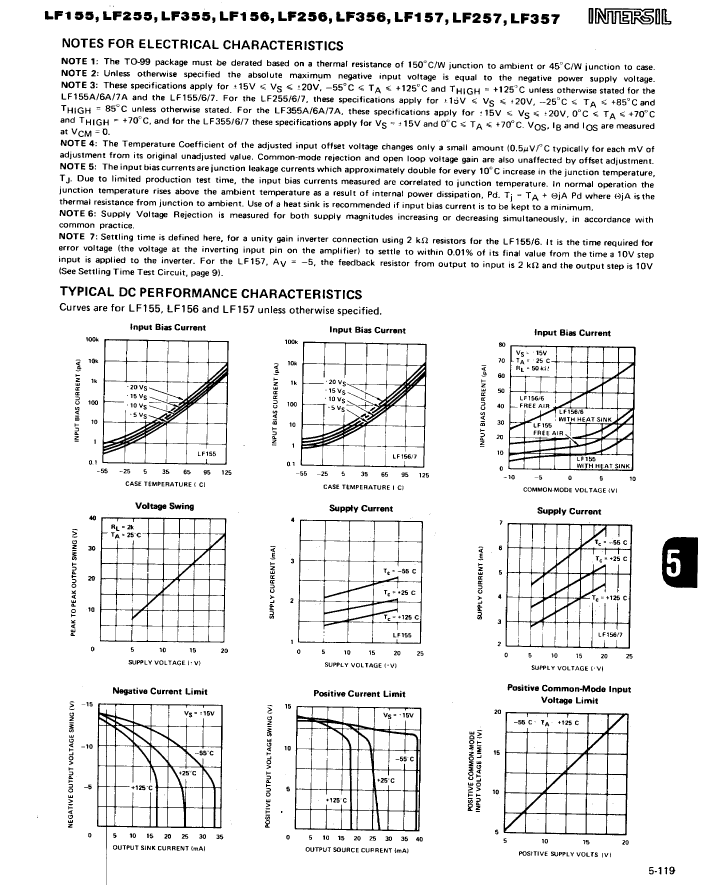

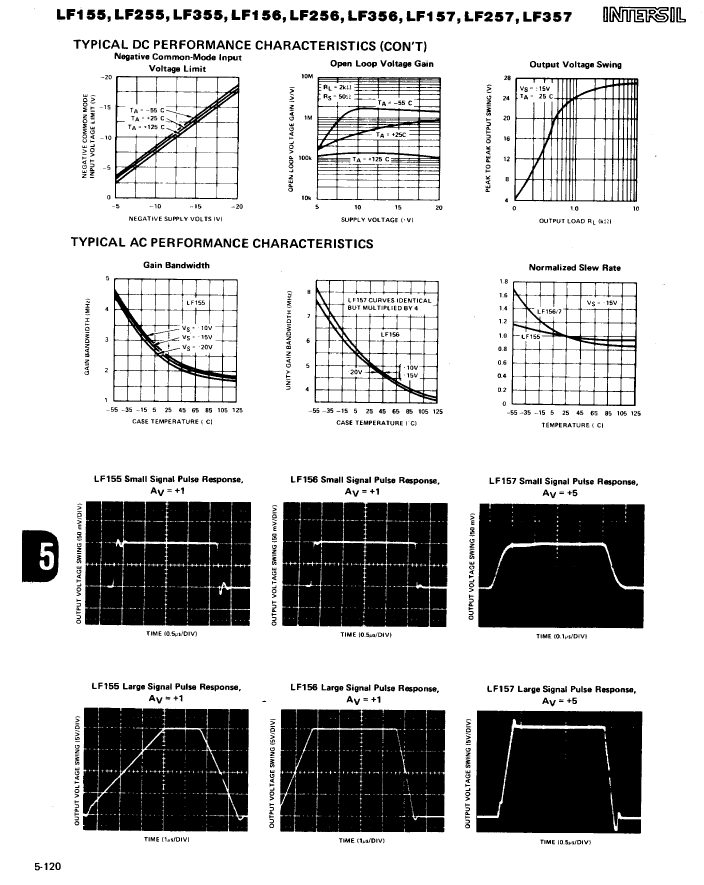

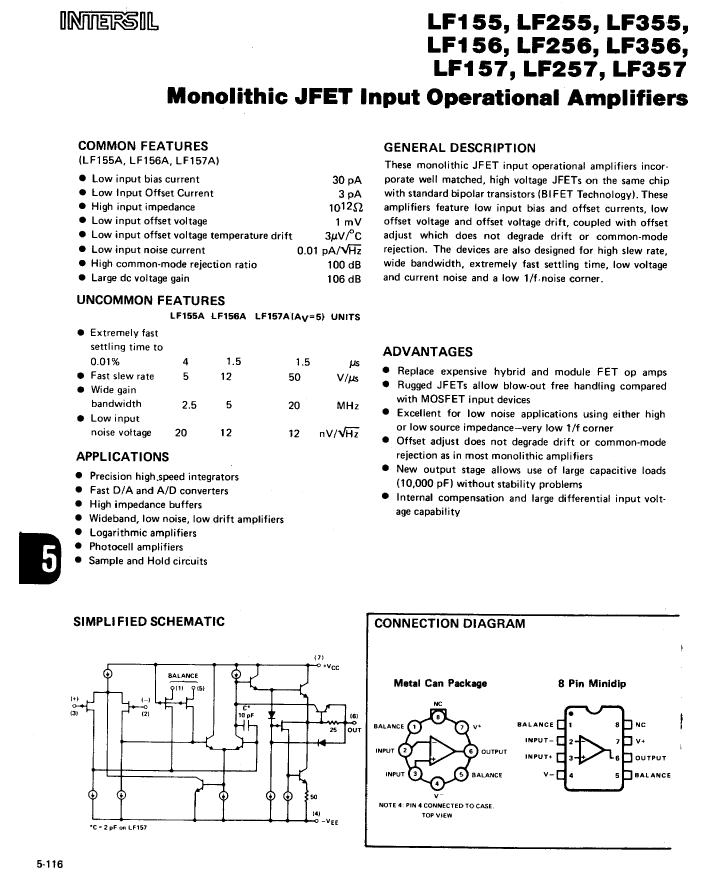

Preview

Download Datasheet

View All
