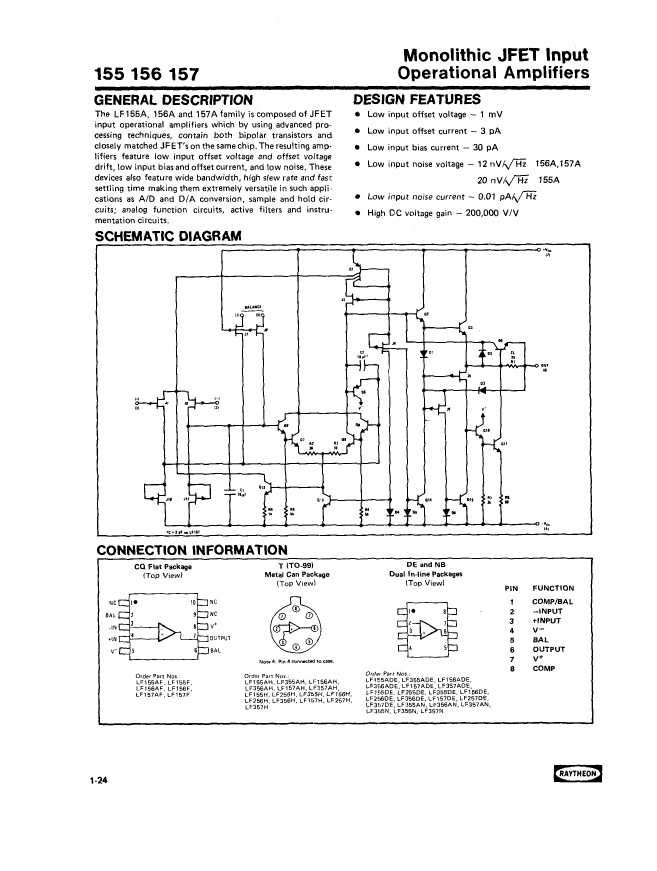

Basic information of LF156H amplifier:
LF156H is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are METAL CAN, TO-99, 8 PIN
LF156H amplifier core information:
The minimum operating temperature of LF156H is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED
The nominal supply voltage of LF156H is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the LF156H is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LF156H:
LF156H has 8 terminals. Its terminal position type is: BOTTOM.
LF156H amplifier additional information:
LF156H adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of LF156H is: YES. Its temperature grade is: MILITARY.
LF156H is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the LF156H package are mostly METAL. And its package shape is ROUND.
The LF156H package pin format is: CYLINDRICAL. Its terminal form is: WIRE.
Basic information of LF156H amplifier:
LF156H is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are METAL CAN, TO-99, 8 PIN
LF156H amplifier core information:
The minimum operating temperature of LF156H is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED
The nominal supply voltage of LF156H is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the LF156H is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LF156H:
LF156H has 8 terminals. Its terminal position type is: BOTTOM.
LF156H amplifier additional information:
LF156H adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of LF156H is: YES. Its temperature grade is: MILITARY.
LF156H is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. The materials used in the LF156H package are mostly METAL. And its package shape is ROUND.
The LF156H package pin format is: CYLINDRICAL. Its terminal form is: WIRE.

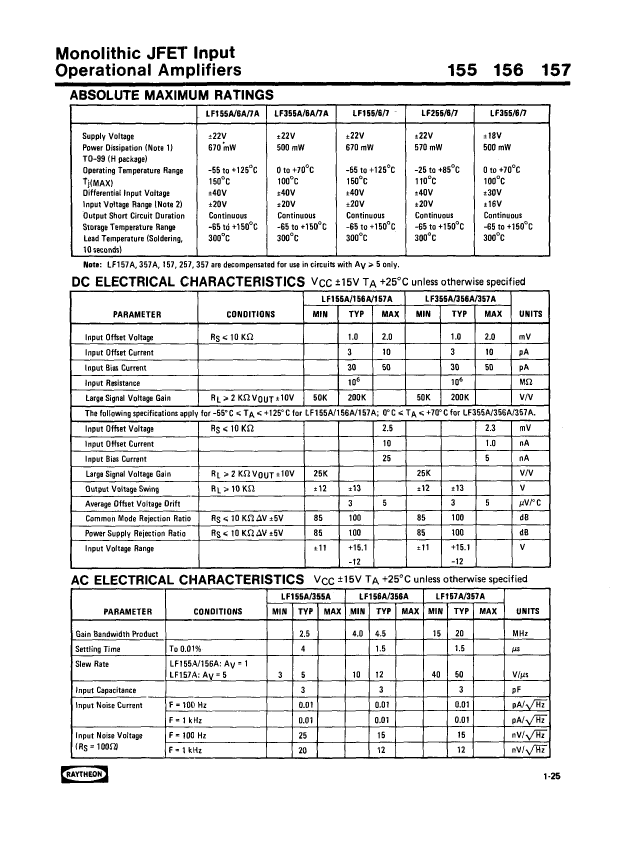

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Raytheon Company |
| package instruction | METAL CAN, TO-99, 8 PIN |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| frequency compensation | YES |
| Maximum input offset voltage | 7000 µV |
| JESD-30 code | O-MBCY-W8 |
| JESD-609 code | e0 |
| low-bias | YES |
| low-dissonance | NO |
| Negative supply voltage upper limit | -22 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | METAL |
| Encapsulate equivalent code | CAN8,.2 |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15/+-20 V |
| Certification status | Not Qualified |
| Supply voltage upper limit | 22 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| LF156H | LF156AH | LF156H/883B | |
|---|---|---|---|
| Description | Operational Amplifier, 1 Func, 7000uV Offset-Max, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN | Operational Amplifier, 1 Func, 2500uV Offset-Max, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN | Operational Amplifier, 1 Func, 7000uV Offset-Max, BIPolar, MBCY8, METAL, TO-99, CAN-8 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| package instruction | METAL CAN, TO-99, 8 PIN | METAL CAN, TO-99, 8 PIN | , CAN8,.2 |
| Reach Compliance Code | unknown | unknown | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| frequency compensation | YES | YES | YES |
| Maximum input offset voltage | 7000 µV | 2500 µV | 7000 µV |
| JESD-30 code | O-MBCY-W8 | O-MBCY-W8 | O-MBCY-W8 |
| JESD-609 code | e0 | e0 | e0 |
| low-bias | YES | YES | YES |
| low-dissonance | NO | NO | NO |
| Negative supply voltage upper limit | -22 V | -22 V | -22 V |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Package body material | METAL | METAL | METAL |
| Encapsulate equivalent code | CAN8,.2 | CAN8,.2 | CAN8,.2 |
| Package shape | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | +-15/+-20 V | +-15/+-20 V | +-15/+-20 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Supply voltage upper limit | 22 V | 22 V | 22 V |
| surface mount | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maker | Raytheon Company | - | Raytheon Company |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | - |
| Nominal supply voltage (Vsup) | 15 V | 15 V | - |
| Base Number Matches | 1 | 1 | - |
| Part Number | Manufacturer | Description |
|---|---|---|
| LF156H/883 | Texas Instruments(德州仪器) | JFET Input Operational Amplifiers 8-TO-99 -55 to 125 |
| LF156H | Texas Instruments(德州仪器) | JFET Input Operational Amplifiers 8-TO-99 -55 to 125 |
| M38510/11402BGA | Texas Instruments(德州仪器) | JFET Input Operational Amplifiers 8-TO-99 -55 to 125 |
| LF156H/NOPB | Texas Instruments(德州仪器) | JFET Input Operational Amplifiers 8-TO-99 -55 to 125 |
| JM38510/11405BGC | Precision Monolithics Inc | Operational Amplifier, 1 Func, 2500uV Offset-Max, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN |
| JM38510/11402BGC | Precision Monolithics Inc | Operational Amplifier, 1 Func, 7000uV Offset-Max, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN |
| JM38510/11402 | Texas Instruments(德州仪器) | OP-AMP, 5000uV OFFSET-MAX, 5MHz BAND WIDTH, MBCY8, METAL CAN-8 |
| JM38510/11402BGA | Precision Monolithics Inc | Operational Amplifier, 1 Func, 7000uV Offset-Max, BIPolar, MBCY8, METAL CAN, TO-99, 8 PIN |
| OPA156AM | Burr-Brown | Operational Amplifier, 1 Func, 2500uV Offset-Max, BIPolar, MBCY8, |
| LM158J | Texas Instruments(德州仪器) | Low Power Dual Operational Amplifier 8-CDIP -55 to 125 |
