LM2904DR2 Overview

Basic information of LM2904DR2 amplifier:

LM2904DR2 is an OPERATIONAL AMPLIFIER. The commonly used packaging method is SOP,

LM2904DR2 amplifier core information:

The minimum operating temperature of the LM2904DR2 is -40 °C and the maximum operating temperature is 105 °C. Its peak reflow temperature is 240°C and its maximum average bias current is 0.5 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the LM2904DR2 has a nominal slew rate of 0.6 V/us. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LM2904DR2 gain becomes 0.707 times the low-frequency gain is 1000 kHz.

The nominal supply voltage of LM2904DR2 is 5 V, and its corresponding nominal negative supply voltage is. The input offset voltage of LM2904DR2 is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of LM2904DR2:

The width of LM2904DR2 is: 3.9 mm and the length is 4.9 mm. LM2904DR2 has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 8

LM2904DR2 amplifier additional information:

Its temperature grade is: INDUSTRIAL. And its humidity sensitivity level is: 1. The LM2904DR2 is not Rohs certified. It does not contain lead. The corresponding JESD-30 code is: R-PDSO-G8.

The corresponding JESD-609 code is: e0. The packaging code of LM2904DR2 is: SOP. The materials of LM2904DR2 package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LM2904DR2 package pins are: SMALL OUTLINE.

Its terminal forms are: GULL WING. The maximum seat height is 1.75 mm.

LM2904DR2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
Is Samacsys	N
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.5 µA
Nominal Common Mode Rejection Ratio	70 dB
Maximum input offset voltage	7000 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Humidity sensitivity level	1
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	2
Number of terminals	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	COMMERCIAL
Maximum seat height	1.75 mm
Nominal slew rate	0.6 V/us
Supply voltage upper limit	32 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Nominal Uniform Gain Bandwidth	1000 kHz
width	3.9 mm
Base Number Matches	1

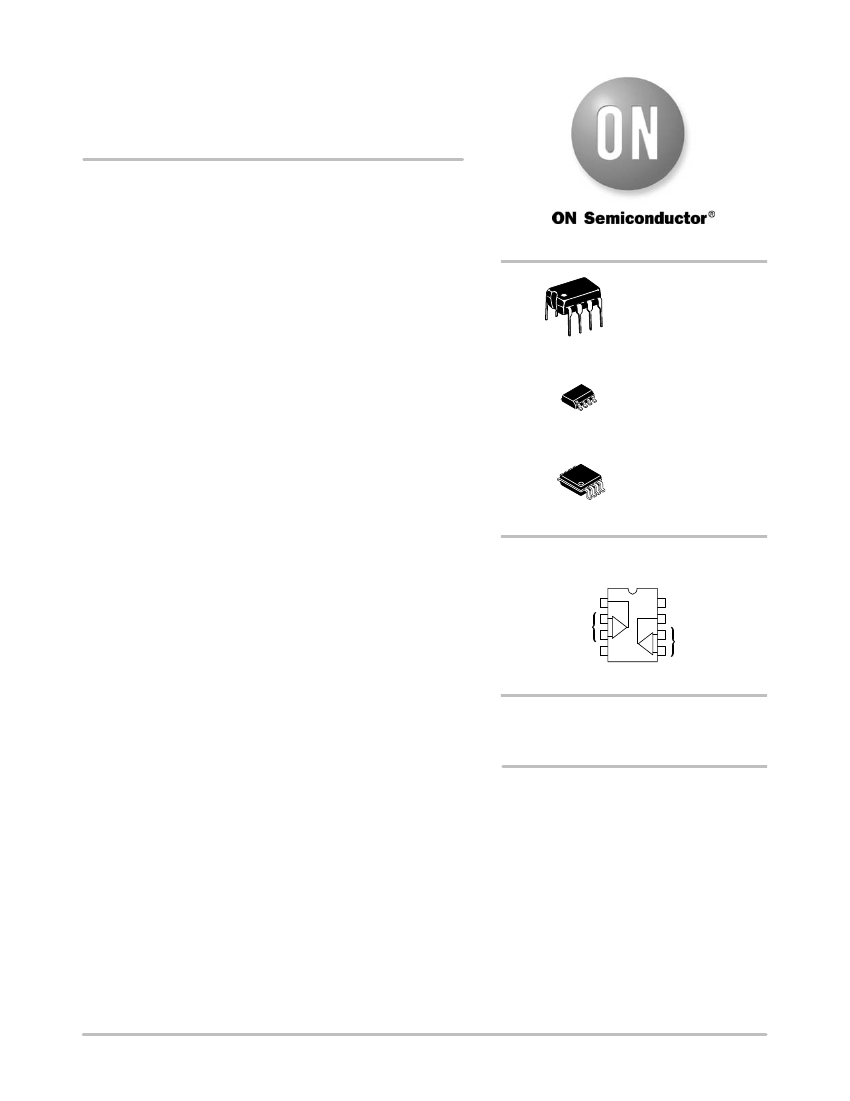

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

LM2904DR2 Related Products

	LM2904DR2	LM258DR2	LM358DR2	LM2904VD	LM2904VN	LM2904AN	NCV2904DR2
Description	DUAL OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO8, SOIC-8	DUAL OP-AMP, 5000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO8, SOIC-8	DUAL OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO8, SOIC-8	DUAL OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO8, SOIC-8	DUAL OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8	DUAL OP-AMP, 7000uV OFFSET-MAX, PDIP8, PLASTIC, DIP-8	DUAL OP-AMP, 7000uV OFFSET-MAX, PDSO8, SOIC-8
Is it lead-free?	Lead free	Lead free	Lead free	Contains lead	Contains lead	Contains lead	Contains lead
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
Parts packaging code	SOIC	SOIC	SOIC	SOIC	DIP	DIP	SOIC
package instruction	SOP,	SOIC-8	SOP,	SOIC-8	PLASTIC, DIP-8	PLASTIC, DIP-8	SOIC-8
Contacts	8	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.5 µA	0.3 µA	0.5 µA	0.5 µA	0.5 µA	0.25 µA	0.5 µA
Nominal Common Mode Rejection Ratio	70 dB	85 dB	70 dB	70 dB	70 dB	70 dB	70 dB
Maximum input offset voltage	7000 µV	5000 µV	7000 µV	7000 µV	7000 µV	7000 µV	7000 µV
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	4.9 mm	4.9 mm	4.9 mm	4.9 mm	9.78 mm	9.78 mm	4.9 mm
Number of functions	2	2	2	2	2	2	2
Number of terminals	8	8	8	8	8	8	8
Maximum operating temperature	105 °C	85 °C	70 °C	125 °C	125 °C	105 °C	125 °C
Minimum operating temperature	-40 °C	-25 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	DIP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240	240	240	240	240	240
Certification status	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	4.45 mm	4.45 mm	1.75 mm
Supply voltage upper limit	32 V	32 V	32 V	32 V	32 V	32 V	32 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	OTHER	COMMERCIAL	AUTOMOTIVE	AUTOMOTIVE	INDUSTRIAL	AUTOMOTIVE
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	7.62 mm	7.62 mm	3.9 mm
Is it Rohs certified?	incompatible	-	incompatible	-	incompatible	incompatible	-
Humidity sensitivity level	1	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal slew rate	0.6 V/us	0.6 V/us	0.6 V/us	0.6 V/us	0.6 V/us	-	-
Nominal Uniform Gain Bandwidth	1000 kHz	1000 kHz	1000 kHz	1000 kHz	1000 kHz	-	-
