FVM15P64SG3: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal, M3, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size877KB，6 Pages; ManufacturerFCT electronic; Environmental Compliance

Download Datasheet Parametric View All

FVM15P64SG3 Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, M3, Receptacle, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FCT electronic
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: DIN 41652
body width	0.492 inch
subject depth	0.213 inch
body length	1.539 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M3
Installation option 2	SCREWLOCKS
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.146 inch
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

THT/THR Connectors

THT/THR Steckverbinder

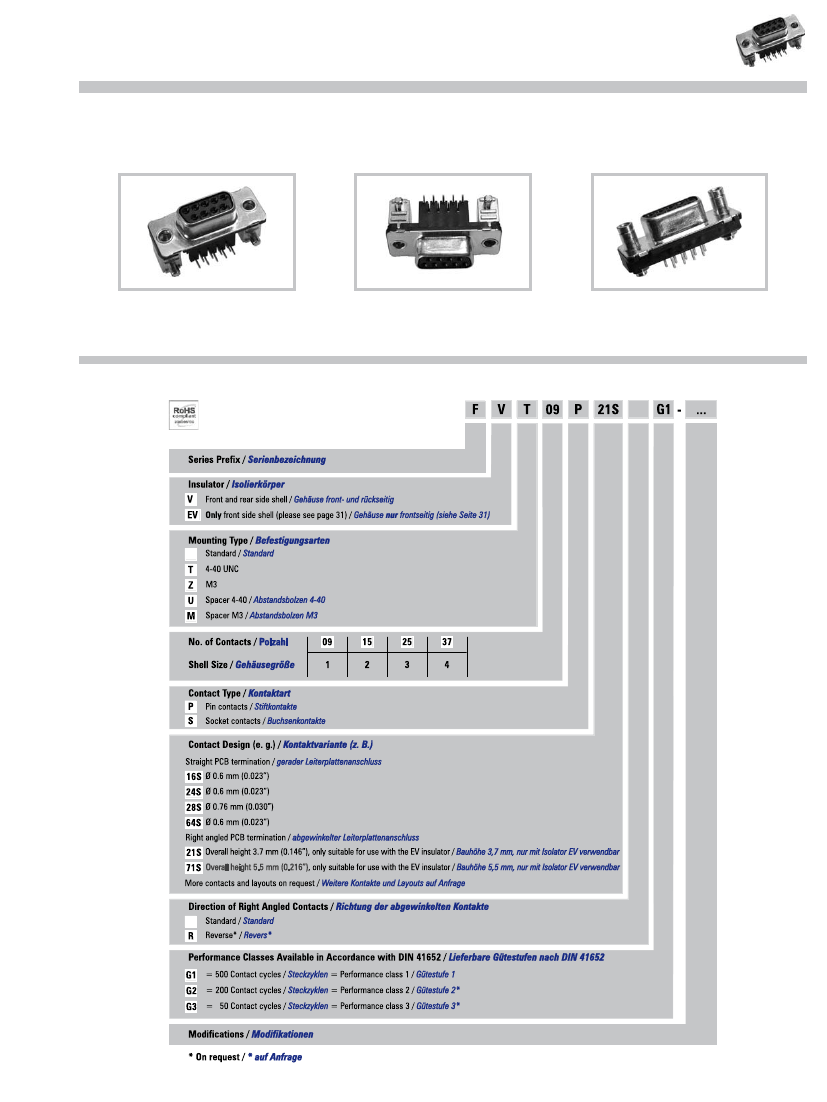

Ordering Code

Bestellschlüssel

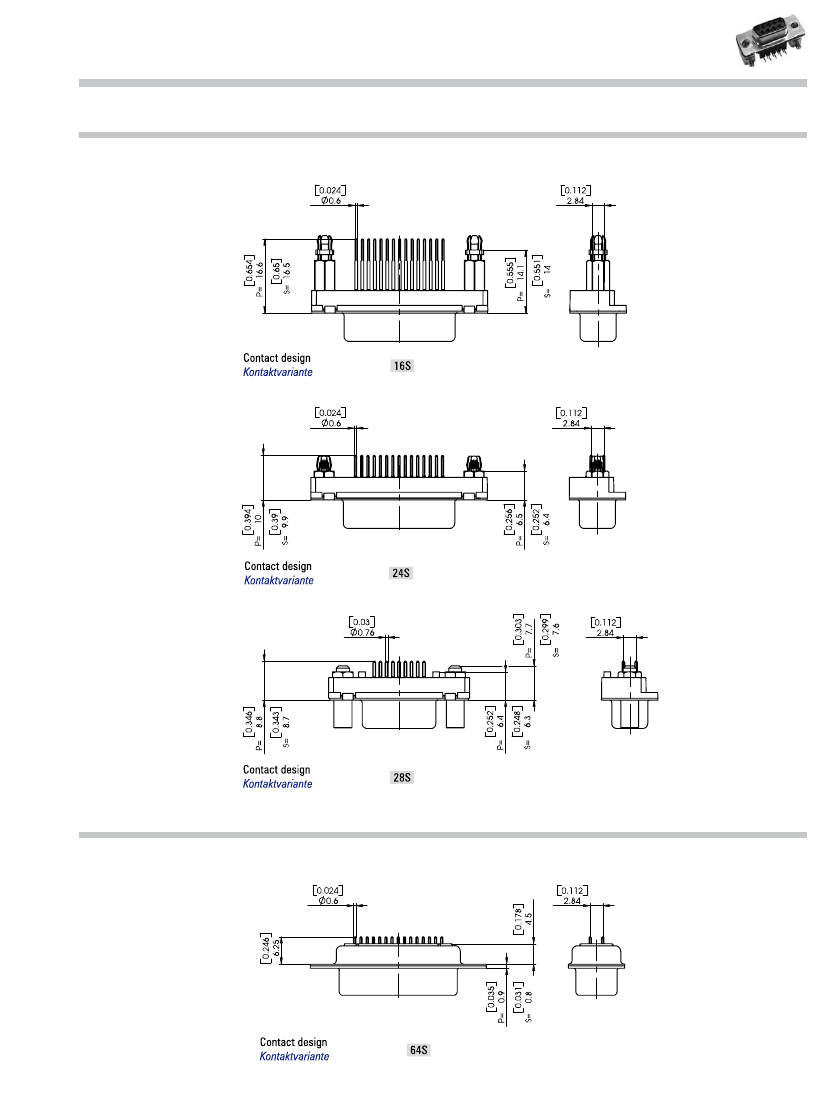

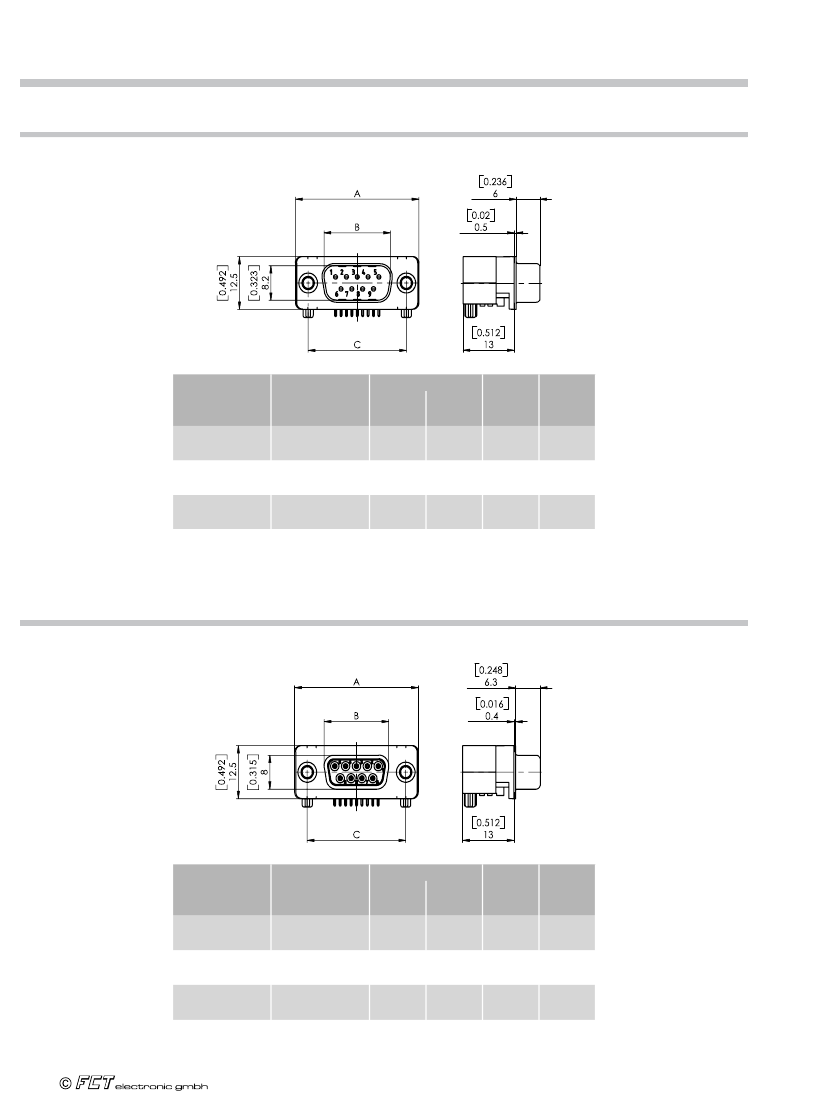

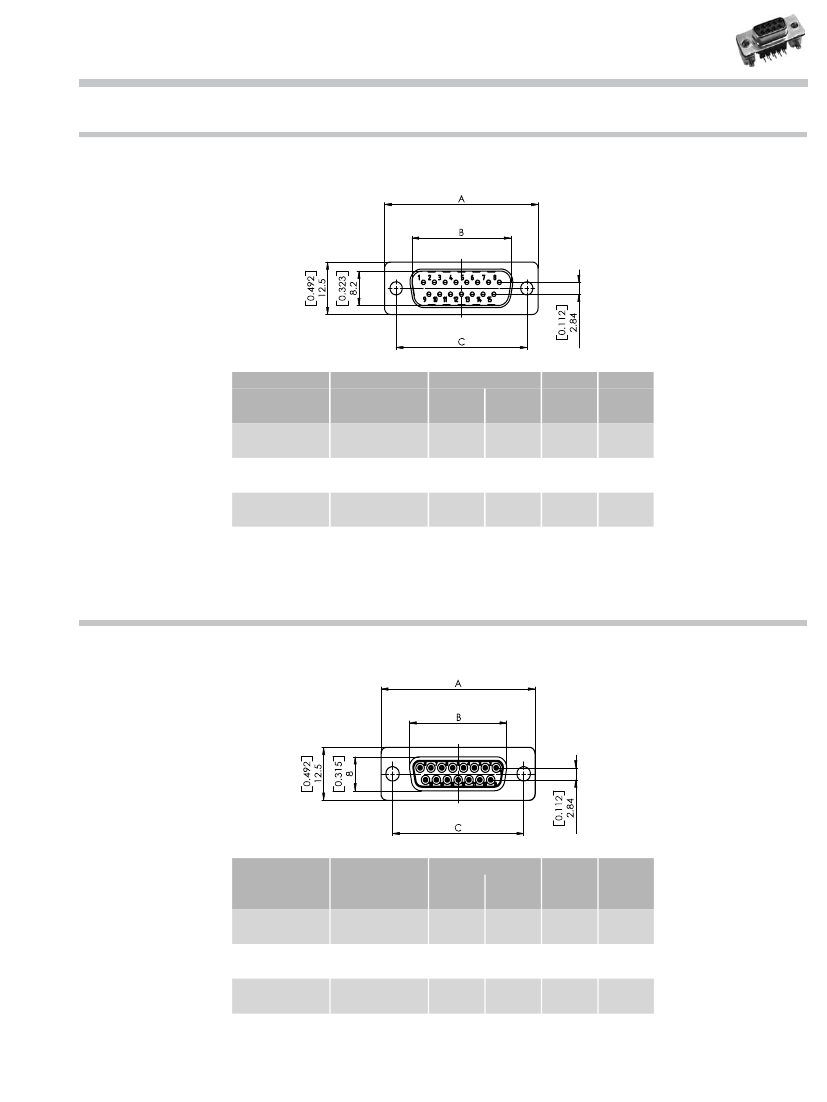

ALL DIMENSIONS IN MILLIMETERS - VALUES FOR INCHES IN BRACKETS - TECHNICAL DATA SUBJECT TO CHANGE

DS 10/2007
