Part Number

Search

EB73SA18SGFXIA

Description
CONNECTOR, EDGE CONNECTOR,CABLE MNT,18 CONTACTS,1,SOLDER TERMINAL,HOLE .125-.137
CategoryThe connector    The connector
File Size122KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

EB73SA18SGFXIA Overview

CONNECTOR, EDGE CONNECTOR,CABLE MNT,18 CONTACTS,1,SOLDER TERMINAL,HOLE .125-.137

EB73SA18SGFXIA Parametric

Parameter NameAttribute value
MakerVishay
Reach Compliance Codeunknown
Is SamacsysN
Other featuresNO MOUNTING PAD
body width0.328 inch
subject depth0.44 inch
body length3.66 inch
Connector typeCARD EDGE CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage1800VAC V
Durability500 Cycles
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Plug contact pitch0.156 inch
Installation option 1HOLE .125-.137
Installation option 2LOCKING
Installation typePANEL
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Plating thickness10u inch
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.22 inch
Termination typeSOLDER LUG
Total number of contacts18
Maximum wire diameter22 AWG
Minimum wire diameter22 AWG
Base Number Matches1

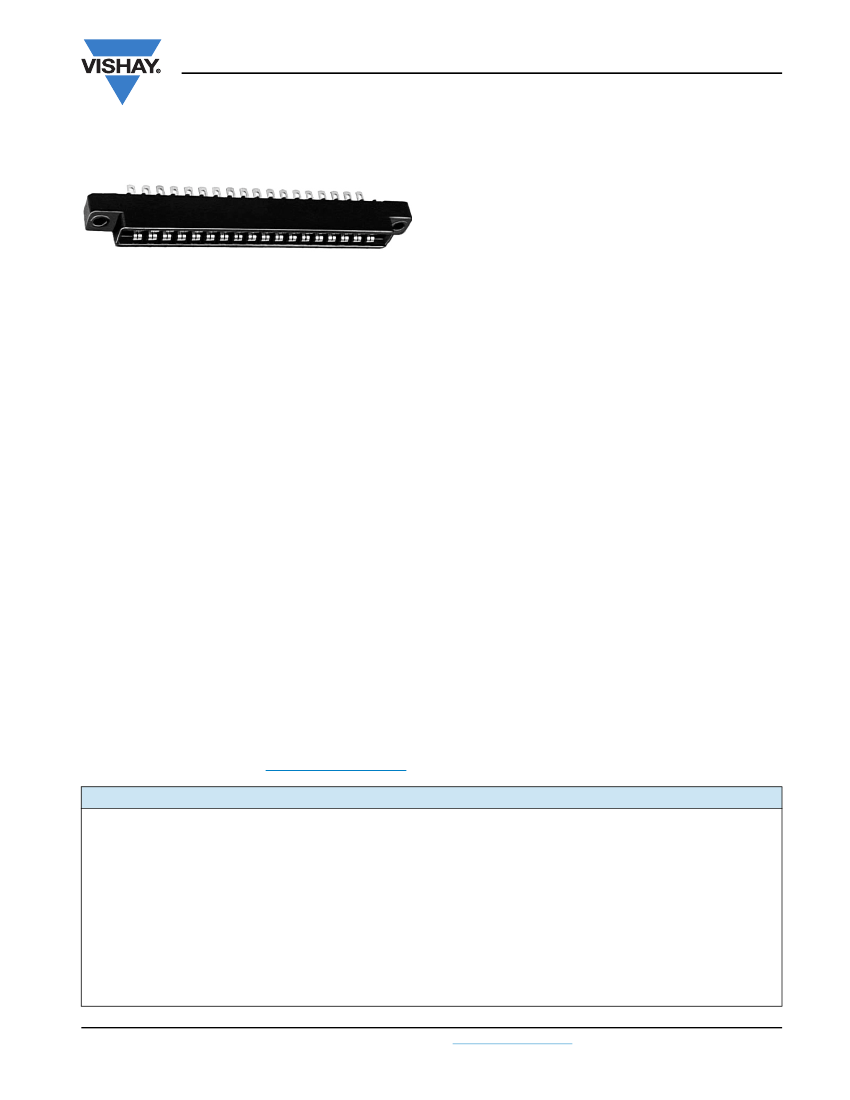

EB7S
Vishay Dale
Edgeboard Connectors, Single Readout
FEATURES
• 0.156" (3.96 mm) C-C
• Bifurcated bellows contacts provide 2 flexing contact
surfaces to assure positive contact under adverse
conditions such as vibration or PC board irregularities
• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm
to 1.80 mm)
• Polarization between contact positions in all sizes.
Between contact polarization permits polarizing without
loss of contact position
• Selective gold plating
• Polarizing key is reinforced nylon, may be inserted by
hand, requires no adhesive.
• Protected entry, provided by recessed leading edge of
contact, permits the card slot to straighten and align the
board before electrical contact is made. Prevents damage
to contact which might be caused by warped or out of
tolerance boards
Recognized under the Component Program of
Underwriters Laboratories, Inc. listed under file
E65524, project 77CH3889
ELECTRICAL SPECIFICATIONS
Current Rating:
5 A
Test Voltage Between Contacts:
At sea level: 1800 V
RMS
At 70 000 feet (21 336 meters): 450 V
RMS
Insulation Resistance:
5000 MΩ minimum at 500 V
DC
potential
Contact Resistance:
30 mV maximum at rated current (with
gold plating)
Operating Temperature:
- 55 °C to + 125 °C
Humidity:
96 h at 90 % relative humidity at + 40 °C, dried at
room temperature for 3 h minimum, insulation resistance
was greater than 5000 MΩ
Durability:
(With gold plating) After 500 cycles of insertion
and withdrawal of a 0.070" (1.78 mm) thick steel test
gauge, contact resistance less than 0.030 V at 5 A and
individual contact retention force when measured with 0.054"
(1.37 mm) thick steel test slug greater than ½ oz.
Shock:
Three 50G shocks in each of 3 mutually
perpendicular planes with no loss of continuity
Vibration:
2 h in each of 3 mutually perpendicular planes,
frequency sweep 10 cps to 55 cps at 0.06 double amplitude
with no loss of continuity
APPLICATIONS
For use with 0.062" (1.57 mm) printed circuit boards requiring
an edgeboard type connector on 0.156" (3.96 mm) centers
MATERIAL SPECIFICATIONS
Body:
(Standard) glass-filled phenolic per MIL-M-14, dark
green, flame retardant (UL 94 V-0). (Optional - see Ordering
Information)
“1” glass-filled diallyl phtalate per MIL-M-14, type SDG-F
green, flame retardant (UL 94 V-0)
“3” thermoplastic polyester, glass-filled, black, flame
retardant (UL 94 V-0)
Contacts:
Phosphor bronze
Polarizing Key:
Glass reinforced nylon, flame retardant
(UL 94H-B)
Contact Plating:
Gold (See Ordering Information)

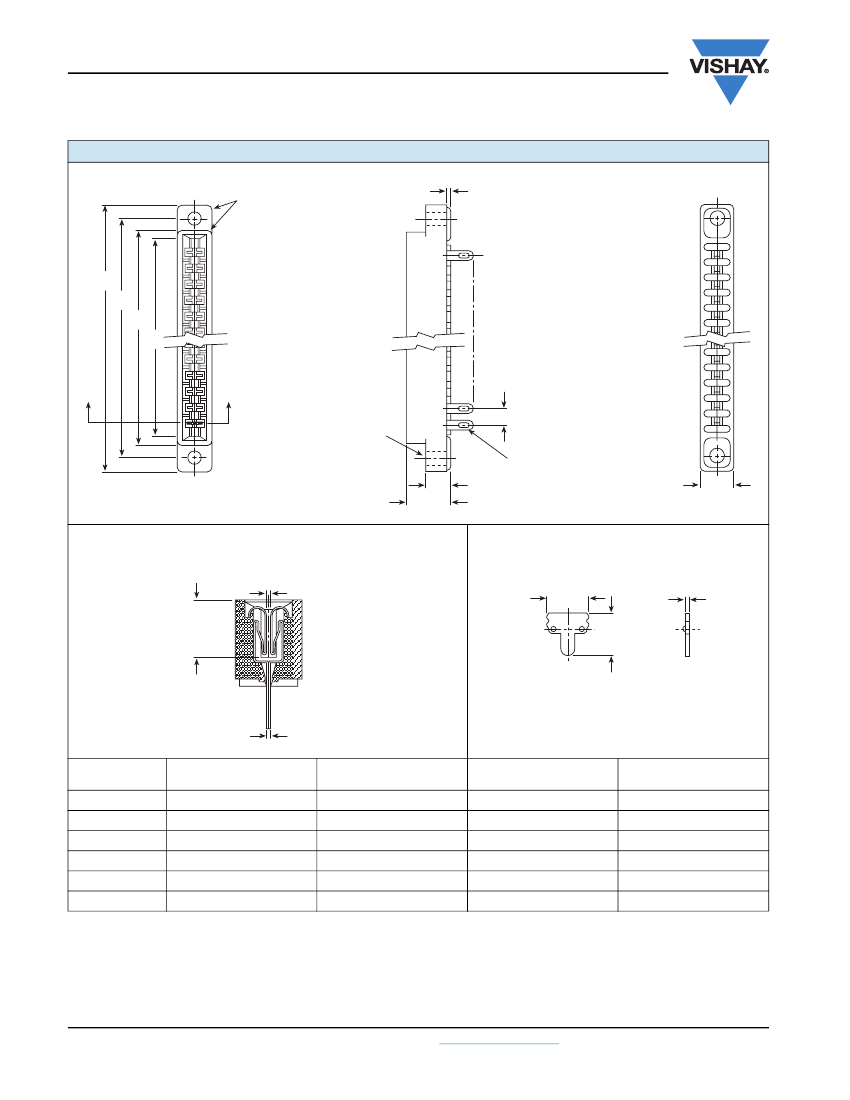

PHYSICAL SPECIFICATIONS
Contact Type:
Bifurcated bellows
Number of Contacts:
6, 10, 12, 15, 18, and 22
Contact Spacing:
0.156" (3.96 mm) center to center
Card Thickness:
0.054" to 0.071" (1.37 mm to 1.80 mm)
Card Slot Depth:
Single readout = 0.300" (7.62 mm)
Note
• High temperature burn-in, edgeboard connectors, 0.156"
(3.96 mm) center to center are on
www.vishay.com/doc?36006
ORDERING INFORMATION
EB7
1
MODEL BODY MATERIAL
Optional body
material
1 = Diallyl
Phthalate
3 = Glass-filled
Polyester
= Omit number
for standard
pheniolic
S
SINGLE
READOUT
A
22
SG
X
A
STANDARD CONTACTS
CONTACT PLATING
MOUNTING
POLARIZING
TERMINAL
VARIATIONS
KEY POSITIONS
VARIATIONS
SG = Selective gold plating
6, 10, 12,
(0.00003" (0.000762 mm)
Key(s) are located to
A or B
15, 18,
minimum thick) on contact area
right of position(s)
or 22
with gold flash on terminal
designated. Required
SGF = Selective gold plating
only when polarizing
(0.000010" (0.000254 mm)
keys are to be factory
minimum thick) on contact area
installed
with gold flash on terminal.
All gold plating over 0.00005"
(0.00127 mm) minimum nickel
underplate.
Contact factory for additional
plating options.
Document Number: 36004
Revision: 16-Feb-09
For technical questions, contact:
connectors@vishay.com
www.vishay.com
